Engine Mount Control Solenoid: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Removal steps in this procedure may contain installation details.

  1. 1.

    Disconnect the electrical, and the vacuum hose connectors. Remove the retainer and the engine mount control solenoid.

    Torque: 97 lb.in (11 Nm)

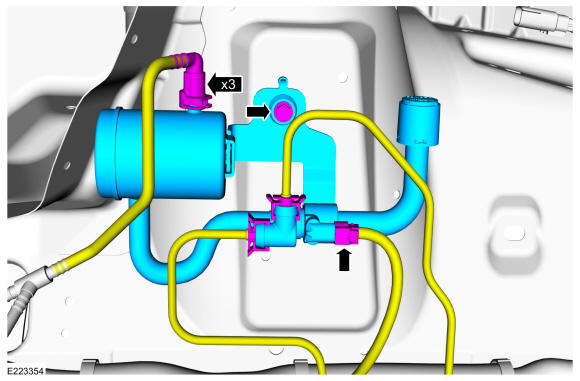

GFD130976Courtesy of FORD MOTOR COMPANY
