Fuse And Relay Location

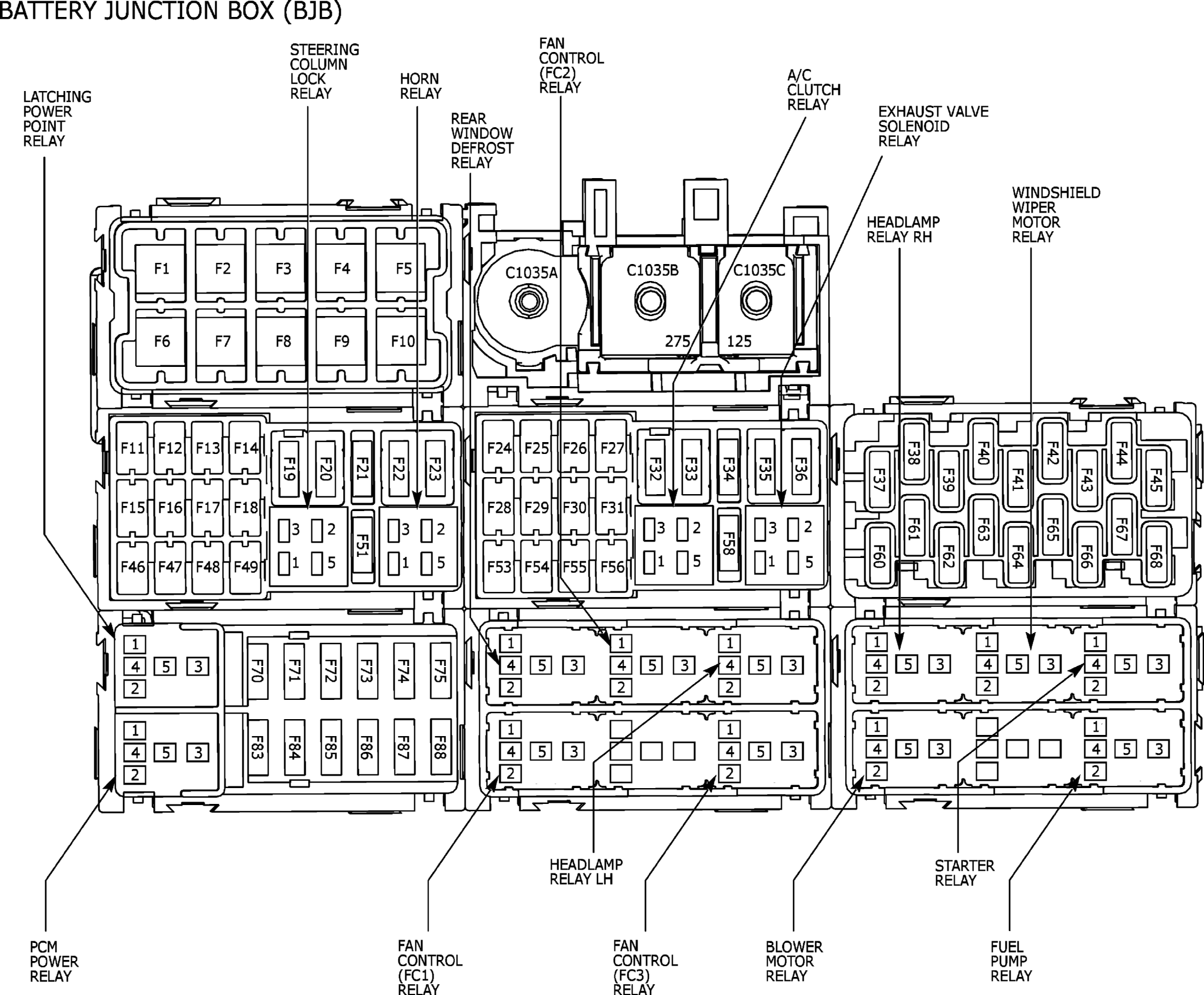

BATTERY JUNCTION BOX RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| Latching Power Point Relay |
| Steering Column Lock Relay |
| Horn Relay |
| Rear Window Defrost Relay |
| Fan Control (FC2) Relay |
| A/C Clutch Relay |
| Exhaust Valve Solenoid Relay |
| Headlamp Relay RH |
| Windshield Wiper Motor Relay |
| Fuel Pump Relay |
| Starter Relay |
| Blower Motor Relay |
| Fan Control (FC3) Relay |
| Headlamp Relay LH |
| Fan Control (FC1) Relay |
| PCM Power Relay |
BATTERY JUNCTION BOX FUSE IDENTIFICATION LEGEND
| Fuse | Amps | Circuits protected |
|---|---|---|
| MEGA | 275 | Generator |
| MIDI | 125 | Power Steering Control Module (PSCM) |
| F1 | - | Not used |
| F2 | - | Not used |
| F3 | - | Not used |
| F4 | - | Not used |
| F5 | 50 | Anti-lock Brake System (ABS) module |
| F6 | 50 | Body Control Module (BCM) |
| F7 | 60 | Body Control Module (BCM) |
| F8 | 50 | Body Central Module (BCM) |
| F9 | 40 | Heated rear window element, Front Controls Interface Module (FCIM) |
| F10 | 40 | Blower motor relay |
| F11 | 30 | Driver Door Module (DDM), Driver door window regulator motor |
| F12 | 30 | Front seat control switch LH, Driver Seat Module (DSM) |
| F13 | 30 | Front seat control switch RH |
| F14 | 30 | Front seat climate control Module [SCME] |
| F15 | 20 | Convertible top motor 2 |
| F16 | - | Not used |
| F17 | 20 | Convertible top motor 1 |
| F18 | - | Not used |
| F19 | 20 | Steering column lock relay |
| F20 | 10 | Brake Pedal Position (BPP) switch |
| F21 | 20 | Horn relay |
| F22 | 10 | PCM power relay |
| F23 | 10 | A/C clutch relay |
| F24 | 30 | Body Control Module (BCM) |
| F25 | - | Net used |
| F26 | 25 | Windshield wiper motor, rain sensor |
| F27 | - | Not used |
| F28 | 30 | Anti-lock Brake System (ABS) module |
| F29 | 30 | Fan Control (FC1) relay, Engine cooling fan motor 1 |
| F30 | 30 | Starter relay |
| F31 | 40 | Fan control (FC3) relay |
| F32 | 10 | Latching power point relay, F53, F54 |
| F33 | 20 | Headlamp assembly LH |
| F34 | - | Not used |
| F35 | 20 | Headlamp assembly RH |
| F36 | 10 | Generator |
| E37 | - | Not used |
| F38 | 20 | Powertrain Control Module (PCM) |
| F40 | 20 | Evaporative emission canister vent valve, Intake Manifold Runner Control Bank 1 (IMRC1) solenoid, Evaporative emission (EVAP) purge valve, Variable Camshaft Timing (VCT) solenoids, Heated Oxygen Sensors (HO2S), Universal Heated Oxygen Sensors (HO2S) |
| F41 | 15 | Powertrain Control Module (PCM) - 3.7L, Fuel injectors - 3.7L/5.0L |
| F42 | 15 | Fan Control (FC2) relay, Fan Control (FC3) relay, Fan Control (FC1) relay, Engine mount control solenoid. Active grille shutter, Turbocharger Bypass Valve (TCBY) - 2.3L, Turbocharger wastegate regulator valve solenoid - 2.3L, Air Conditioning (A/C) compressor control solenoid - 2.3L |
| F43 | - | Not used |
| F44 | 15 | Ignition coil-on-plugs, Ignition transformer capacitor 1 - 5.0L |
| F45 | - | Not used |
| F46 | - | Not used |
| F47 | - | Not used |
| F48 | - | Not used |
| F49 | 30 | Fuel pump relay |
| F51 | - | Not used |
| F53 | 20 | Auxiliary power point |
| F54 | 20 | Front power outlet socket |
| F55 | 25 | Engine cooling fan motor 2 |
| F56 | - | Not used |
| F58 | - | Not used |
| F60 | 5 | Powertrain Control Module (PCM) |
| F61 | - | Not used |
| F62 | 5 | Anti-lock Brake System (ABS) module |
| F63 | - | Not used |
| F64 | 5 | Power Steering Control Module (PSCM) |
| F65 | - | Not used |
| F66 | 5 | Rear window defrost relay, Proximity warning radar unit, Head Up Display (HUD) module. Rear parking aid camera, Slide Obstacle Detection Control Modules |
| F67 | - | Not used |
| F68 | 10 | headlamp switch. Headlamp control modules, Headlamp assemblies |
| F70 | 10 | Exterior mirrors |
| F71 | - | Not used |
| F72 | 5 | Rain sensor |
| F73 | - | Not used |
| F74 | 5 | Mass Airflow/Intake Air Temperature (MAF/IAT) sensor |
| F75 | - | Not used |

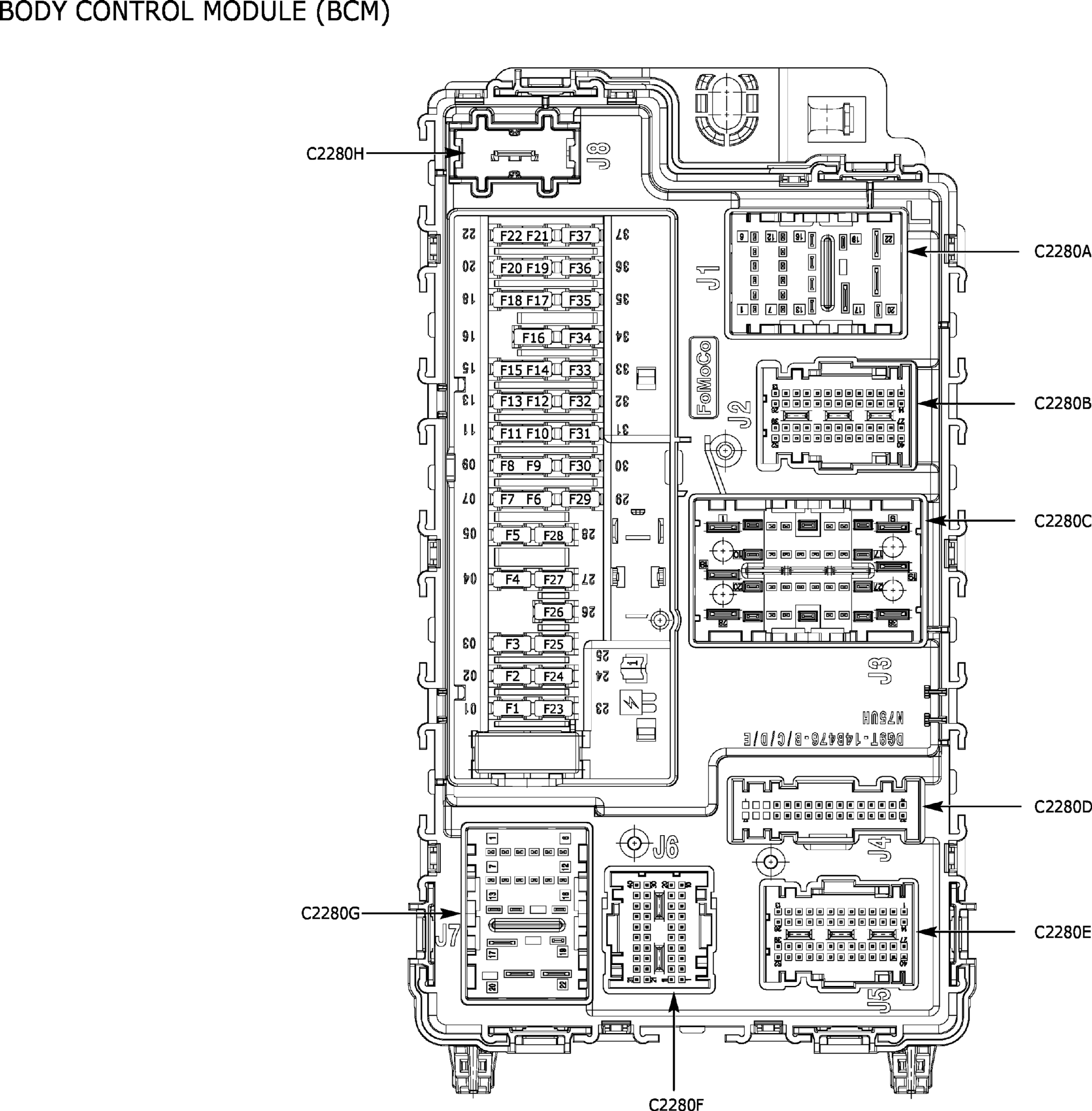

BODY CONTROL MODULE FUSE IDENTIFICATION LEGEND
| Fuse | Amps | Circuits protected |
|---|---|---|
| F1 | 10 | Battery saver relay, Center console lock assembly, Luggage compartment, Glove compartment lamp, Overhead console, Vanity mirror lamps |
| F2 | 7.5 | Power folding mirror relay, Driver Seat Module (DSM) |
| F3 | 20 | Driver unlock relay, Center console lock assembly, Front door latch motor LH |
| F4 | 5 | Not used |
| F5 | 20 | Subwoofer amplifier rear |
| F6 | 10 | Not used |
| F7 | 10 | Not used |
| F8 | 10 | Security horn relay, Anti-theft horn |
| F9 | 10 | Not used |
| F10 | 5 | Not used |
| F11 | 5 | Not used |
| F12 | 7.5 | Front Controls Interface Module (FCIM) |
| F13 | 7.5 | Gateway module, Instrument Panel Cluster (IPC), Steering Column Module (SCCM) |
| F14 | 10 | Not used |
| F15 | 10 | Gateway module |
| F16 | 15 | Luggage relay, Luggage compartment lid latch |
| F17 | 5 | Not used |
| F18 | 5 | Overhead console |
| F19 | 7.5 | Passenger Airbag Deactivation (PAD) indicator |
| F20 | 7.5 | Not used |
| F21 | 5 | In-vehicle temperature sensor |
| F22 | 5 | Occupant Classification System Module (OCSM) |
| F23 | 10 | Power window motors (Rear), Passenger door window regulator motor, Front door lock switch RH, Passenger door window control switch, Master window control switch, Driver door window regulator switch, Front door lock switch LH, Auto-dimming interior mirror. |
| F24 | 20 | Central lock and unlock relays, Front door latch release motor RH, Front doors latch release motors |
| F25 | 30 | Not used |
| F26 | 30 | Passenger Door Module (PDM), Passenger door window regulator motor |
| F27 | 30 | Audio Digital Signal Processing (DSP) module |
| F28 | 20 | Body control module B |
| F29 | 30 | Power window motor left rear |
| F30 | 30 | Power window motor right rear |
| F31 | 15 | Not used |
| F32 | 10 | Global Positioning System Module (GPSM), Sync Module (APIM), Front Control Display Interface Module (FCDIM), Information control module, Radio Transceiver Module (RTM) |
| F33 | 20 | Audio Control Module (ACM) |
| F34 | 30 | Run start relay, BCM F19, F20, F21, F22, F35, F36, F37 |
| F35 | 5 | Restraints Control Module (RCM) |
| F36 | 15 | Body control module B |
| F37 | 15 | Battery Junction Box (BJB) F60, F62, F64, F66, F68 |
