Intake Manifold: Installation
WARNING: This page is about a different variant/trim than selected.
NOTE:

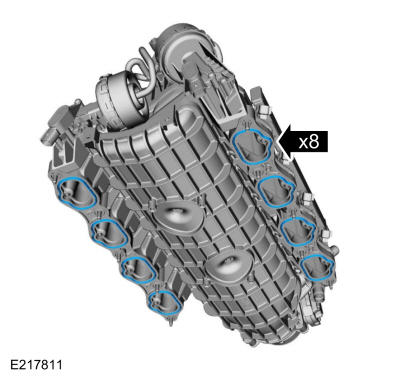

If the engine is repaired or replaced because of upper engine failure, typically including valve or piston damage, check the intake manifold for metal debris. If metal debris if found, install a new intake manifold. Failure to follow these instructions can result in engine damage.
- 2.

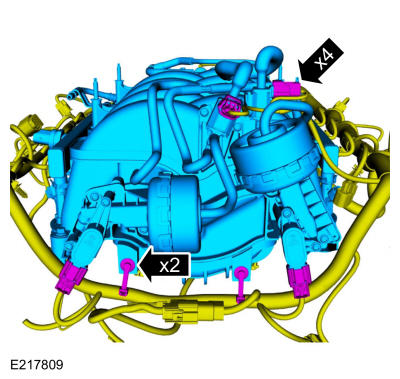

Position the intake manifold onto the engine.- Attach the wiring harness retainers.

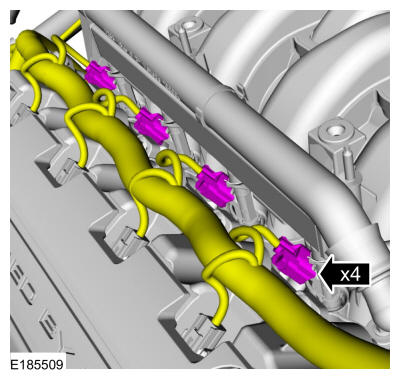

- Connect the wiring harness electrical connectors.
- 3.
- 1.

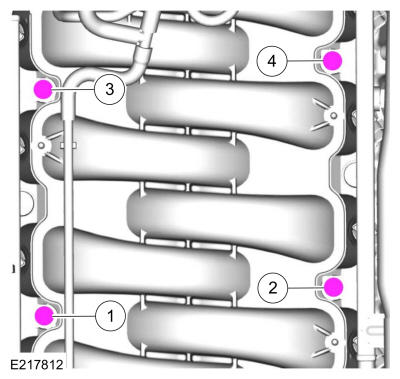

Position the manifold to the installed position.
- 2.

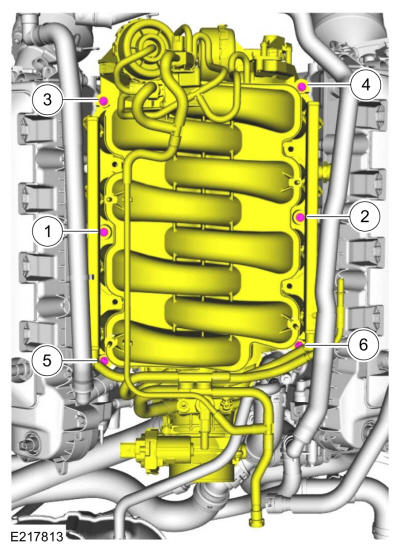

Tighten the intake manifold bolts.Torque:
Stage 1: 106 lb.in (12 Nm)
Stage 2: 35 °
- 1.
- 5.
- 1.

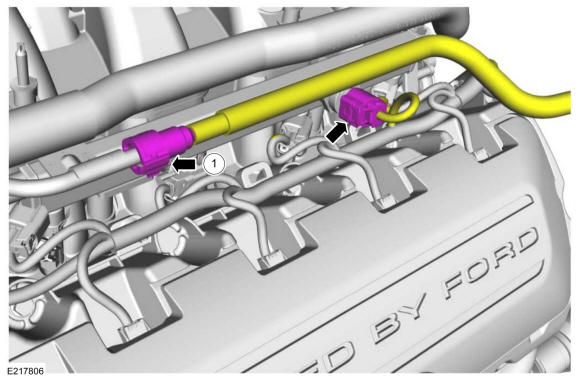

Connect the fuel supply tube. Refer to: Quick Release Coupling .
- Connect the fuel pressure sensor electrical connector.
- 1.
- 7.
- 1.

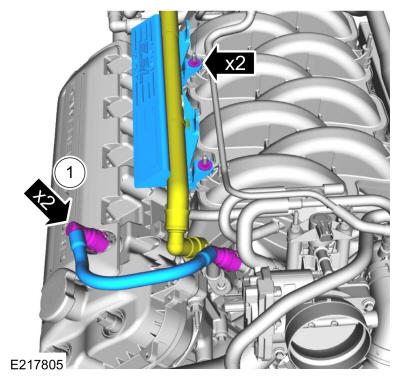

Position the crankcase vent tube and connect the couplings. Refer to: Quick Release Coupling .
- Install the heater hose support.
- Install the nuts.
Torque: 62 lb.in (7 Nm)
- Position the heater hose.
- 1.
- 8.

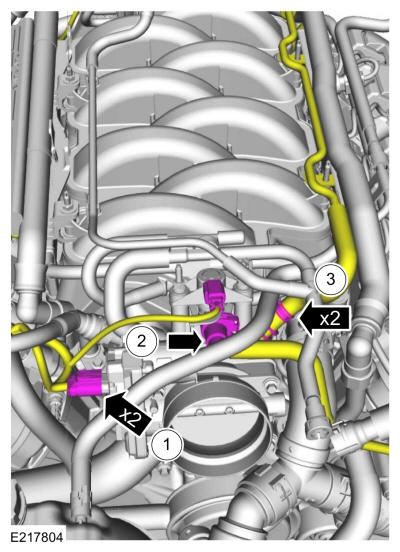

- Connect the throttle body and EVAP purge valve electrical connectors.
- Connect the EVAP tube. Refer to: Quick Release Coupling .
- Install the vacuum tube and clamps.
- 9.
- 1.

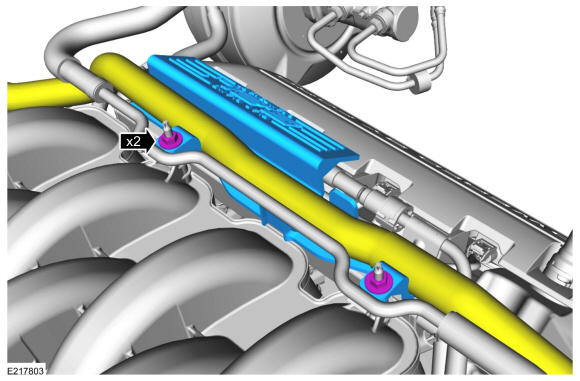

Install the heater hose support.
- 2.
Install the nuts.Torque: 62 lb.in (7 Nm)
- 3.
Position the heater hose.
- 1.
- 11.
Install the following items:- Refer to: Cowl Panel Grille .
- Refer to: Air Cleaner Outlet Pipe .
- 12.
- Install the strut tower cross brace and nuts.
Torque: 41 lb.ft (55 Nm)
- Attach the wiring harness retainer.
- Install the strut tower cross brace and nuts.
- 13.
Connect the battery ground and positive cables. Refer to: Battery Disconnect and Connect .
