Engine Mount LH: Installation

WARNING: This page is about a different variant/trim than selected.

Courtesy of FORD MOTOR COMPANY

2.

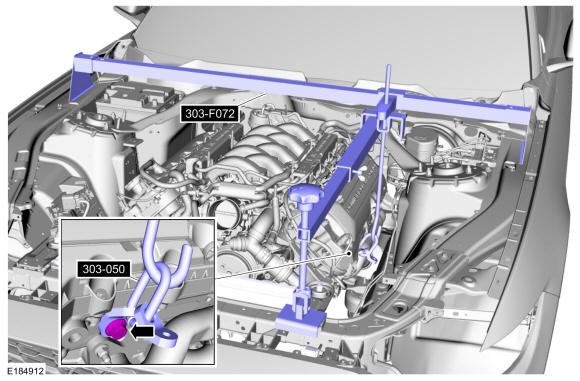

Lower the engine onto the engine mounts and remove the special tools Use Special Service Tool: 303-F072 Support Bar, Engine., 303-050 (T70P-6000) Lifting Bracket, Engine.

Courtesy of FORD MOTOR COMPANY

3.

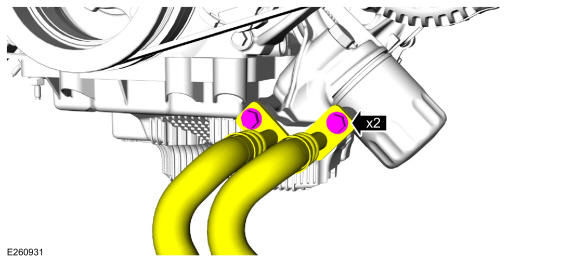

Connect the oil cooler hoses and install the bolts.
Torque: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

8.

Install the following items:
1. Refer to: Air Cleaner .
2. Refer to: Air Cleaner Outlet Pipe .

Courtesy of FORD MOTOR COMPANY

10.

Connect the battery ground and positive cables. Refer to: Battery Disconnect and Connect .

11.

Inspect and adjust the engine oil level.
Material: Castrol ® EDGE ® Supercar 5W-50 (WSS-M2C931-C)
