Cylinder Head: Assembly

All cylinder heads

• 1.

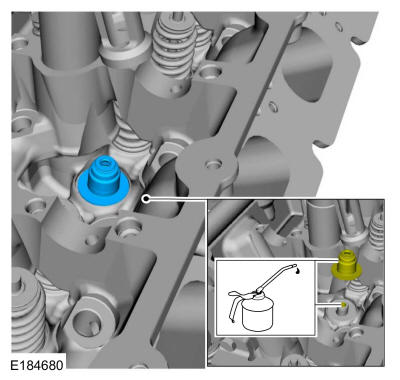

  NOTE: Lubricate the new valve stem seal and valve guide bore with clean engine oil.

  Install the new valve stem seal.

  Material: Motorcraft ® SAE 5W-50 Full Synthetic Motor Oil / XO-5W50-QGT (WSS-M2C931-C)

Courtesy of FORD MOTOR COMPANY

• 2.

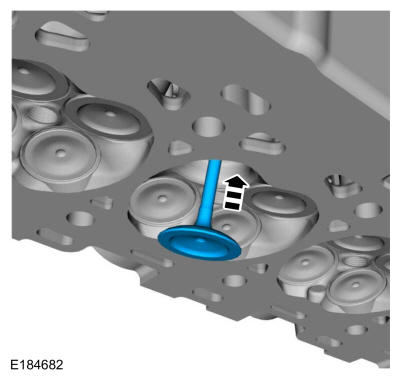

  Install the valve into the cylinder head.

Courtesy of FORD MOTOR COMPANY

• 3.

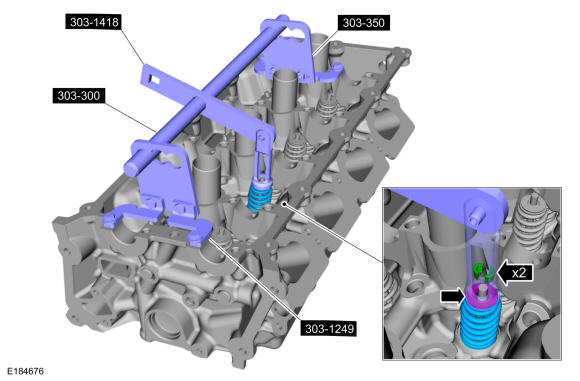

  Using the special tools, install the spring, retainer and keys. Use Special Service Tool: 303-300 (T87C-6565-A) Set, Valve Spring Compressor., 303-350 (T89P-6565-A) Compressor, Valve Spring., 303-1249 Valve Spring Compressor., 303-1418 Compressor, Valve Spring.

Courtesy of FORD MOTOR COMPANY

• 4.

  Repeat the previous steps for each of the remaining valves.

• 5.

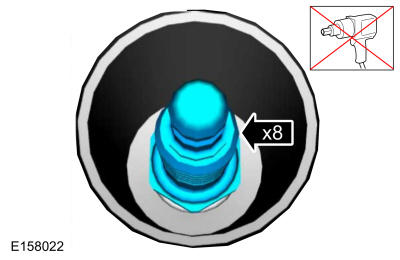

  Install the spark plugs.

  Torque: 133 lb.in (15 Nm)

Courtesy of FORD MOTOR COMPANY

RH cylinder heads

• 6.

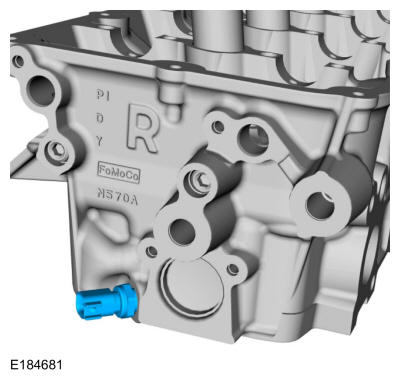

  Install a new CHT sensor.

  Torque: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY

• 7.

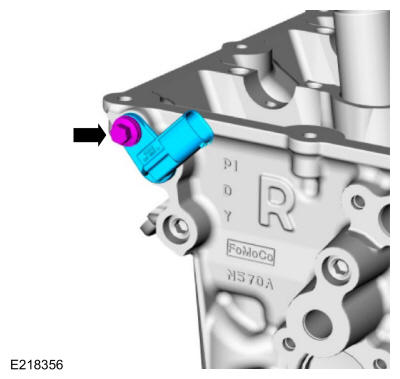

  Install the CMP sensor and the bolt.

  Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

• 8.

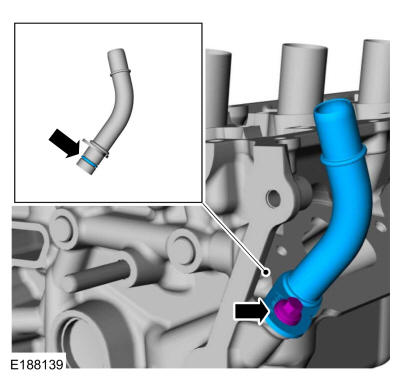

  NOTE: Lubricate the O-ring seal with clean engine coolant prior to installing.

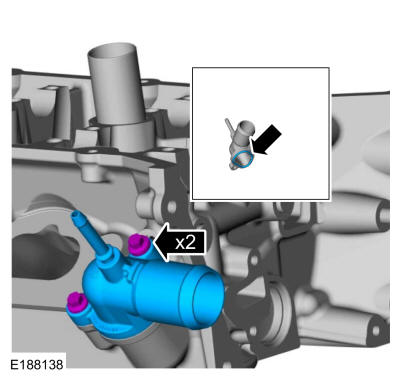

  Using a new O-ring seal, install the coolant outlet pipe.

  Material: Motorcraft ® Orange Concentrated Antifreeze/Coolant / VC-3-B (WSS-M97B44-D)

  Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

LH cylinder heads

• 9.

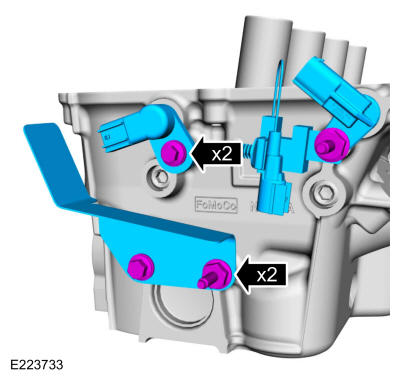

  • Install the heat shield and the fasteners.

    Torque: 89 lb.in (10 Nm)

  • Install the intake and exhaust CMP sensors, the radio interference capacitor and the fasteners.

    Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

• 10.

  Using a new gasket, install the coolant outlet and the bolts.

  Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
