Power Distribution

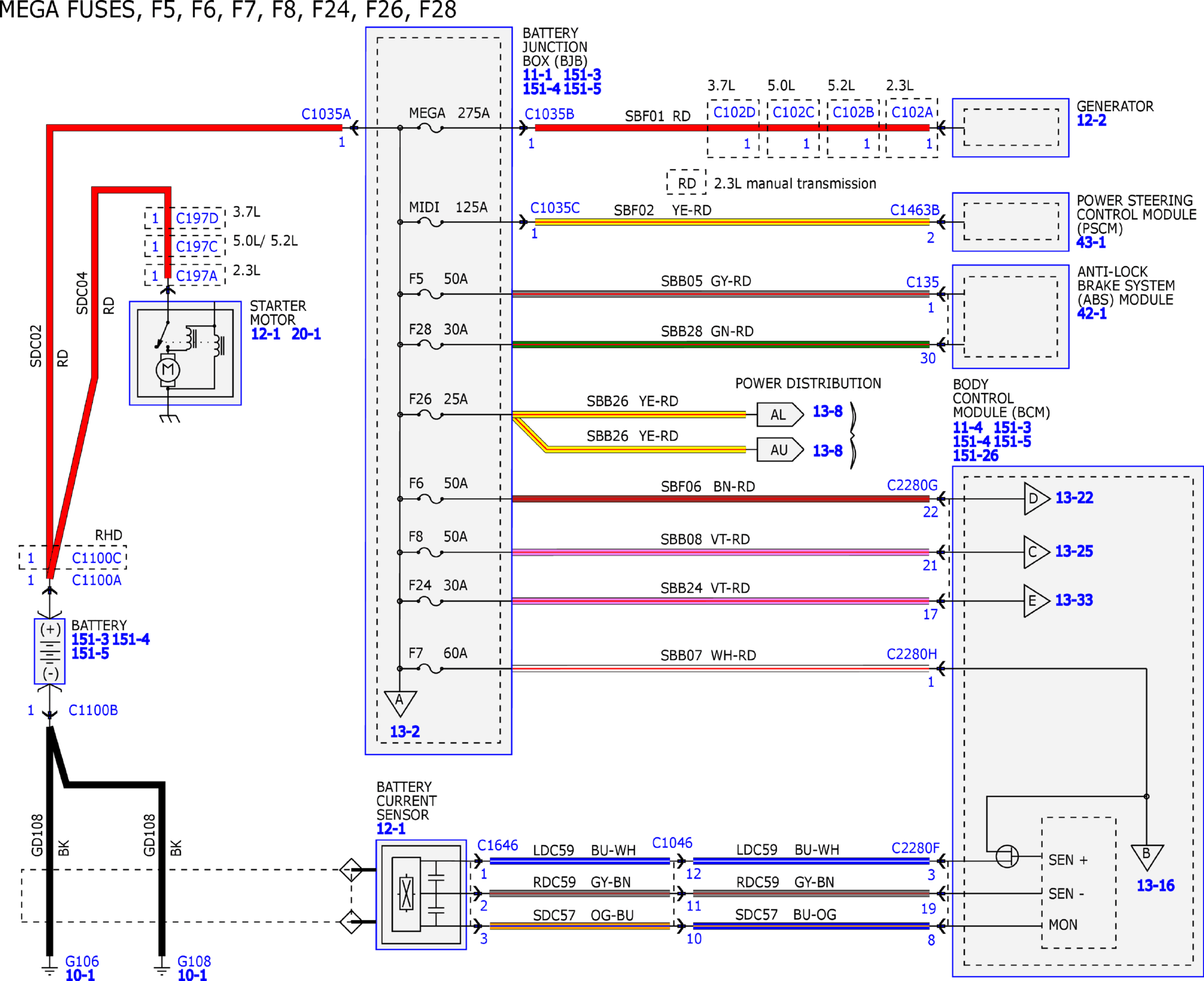

Fig 1: Power Distribution Wiring Diagram (1 of 40)

GFDW57543

Courtesy of FORD MOTOR COMPANY

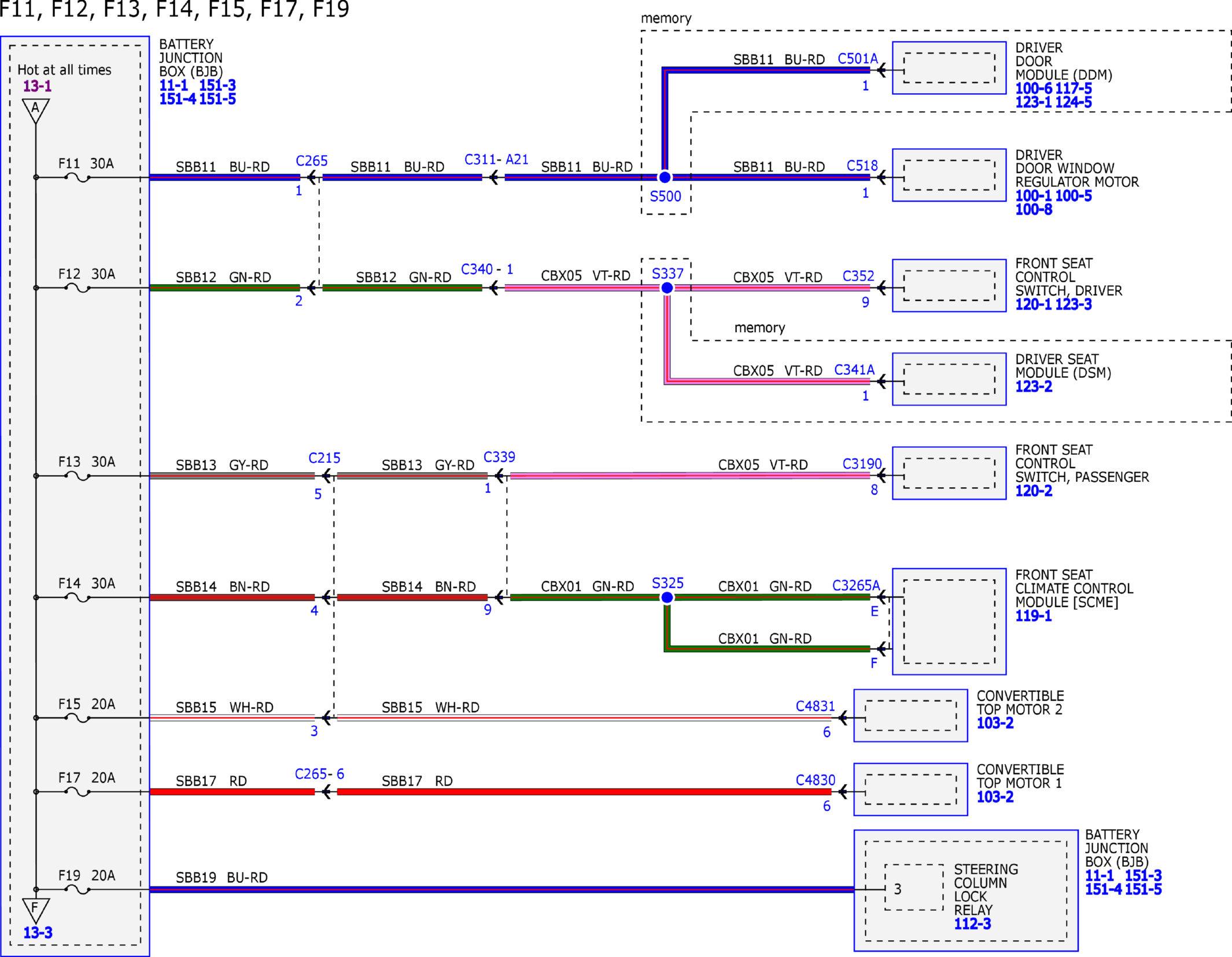

Fig 2: Power Distribution Wiring Diagram (2 of 40)

GFDW57544

Courtesy of FORD MOTOR COMPANY

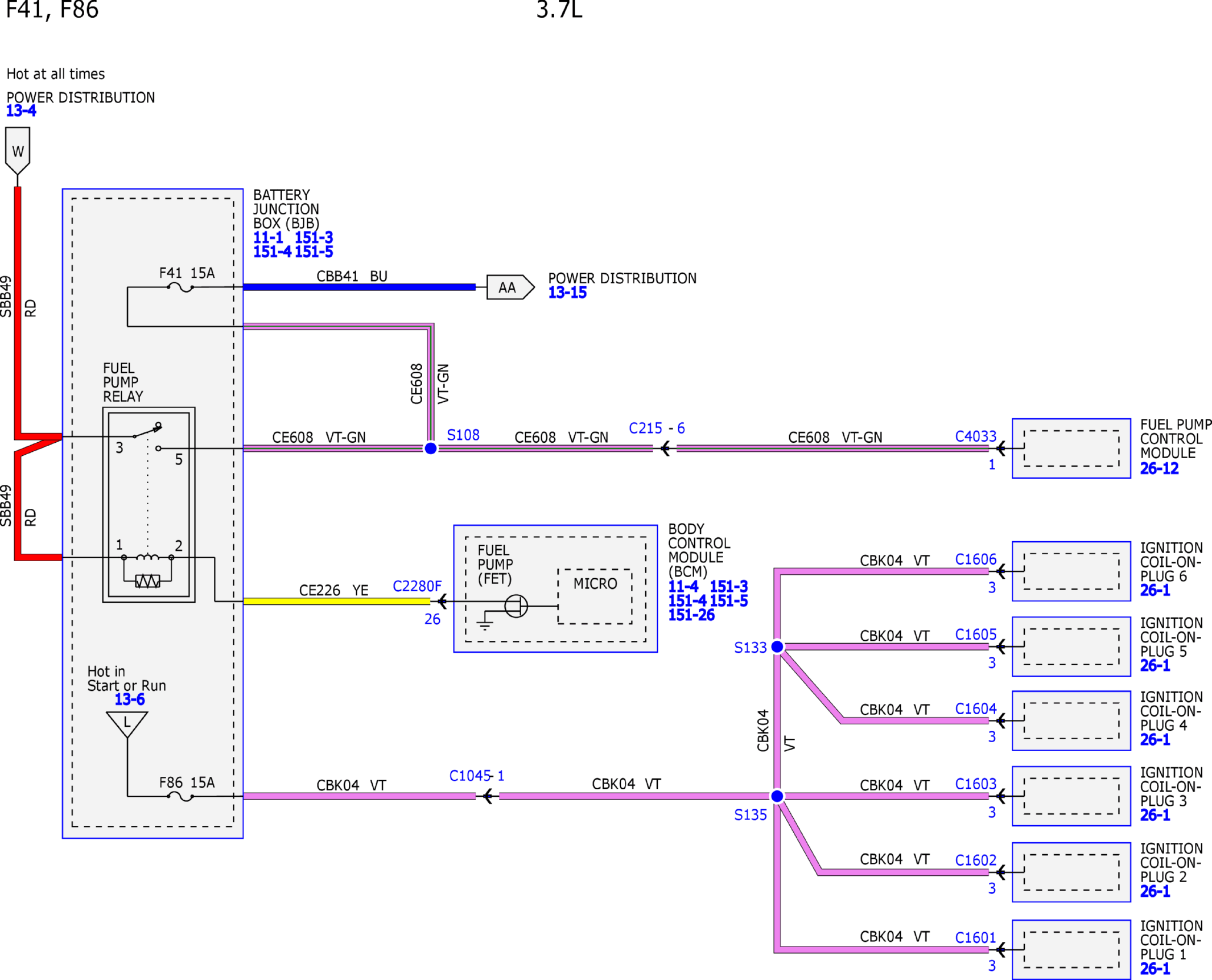

Fig 3: Power Distribution Wiring Diagram (3 of 40)

GFDW57545

Courtesy of FORD MOTOR COMPANY

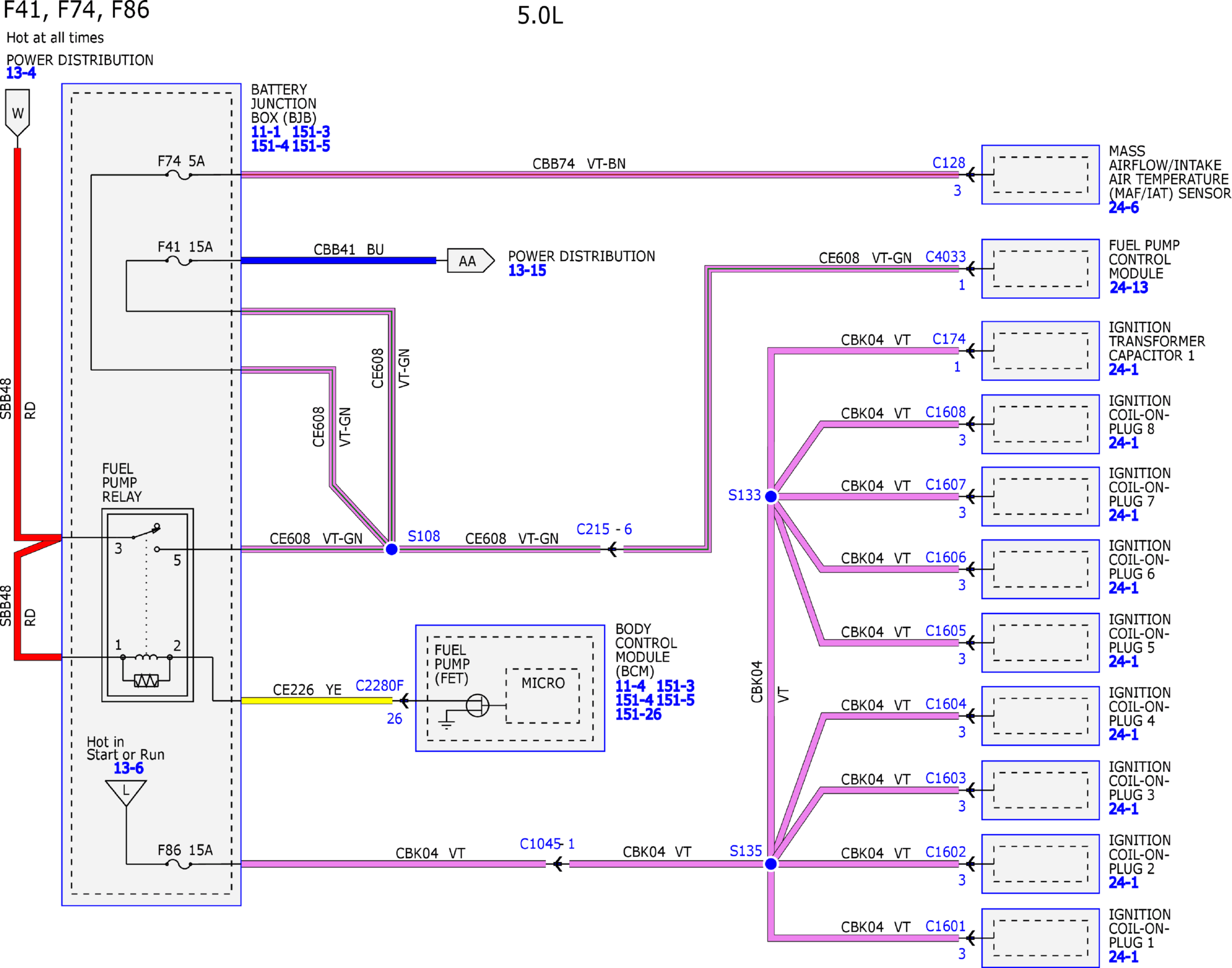

Fig 4: Power Distribution Wiring Diagram (4 of 40)

GFDW57546

Courtesy of FORD MOTOR COMPANY

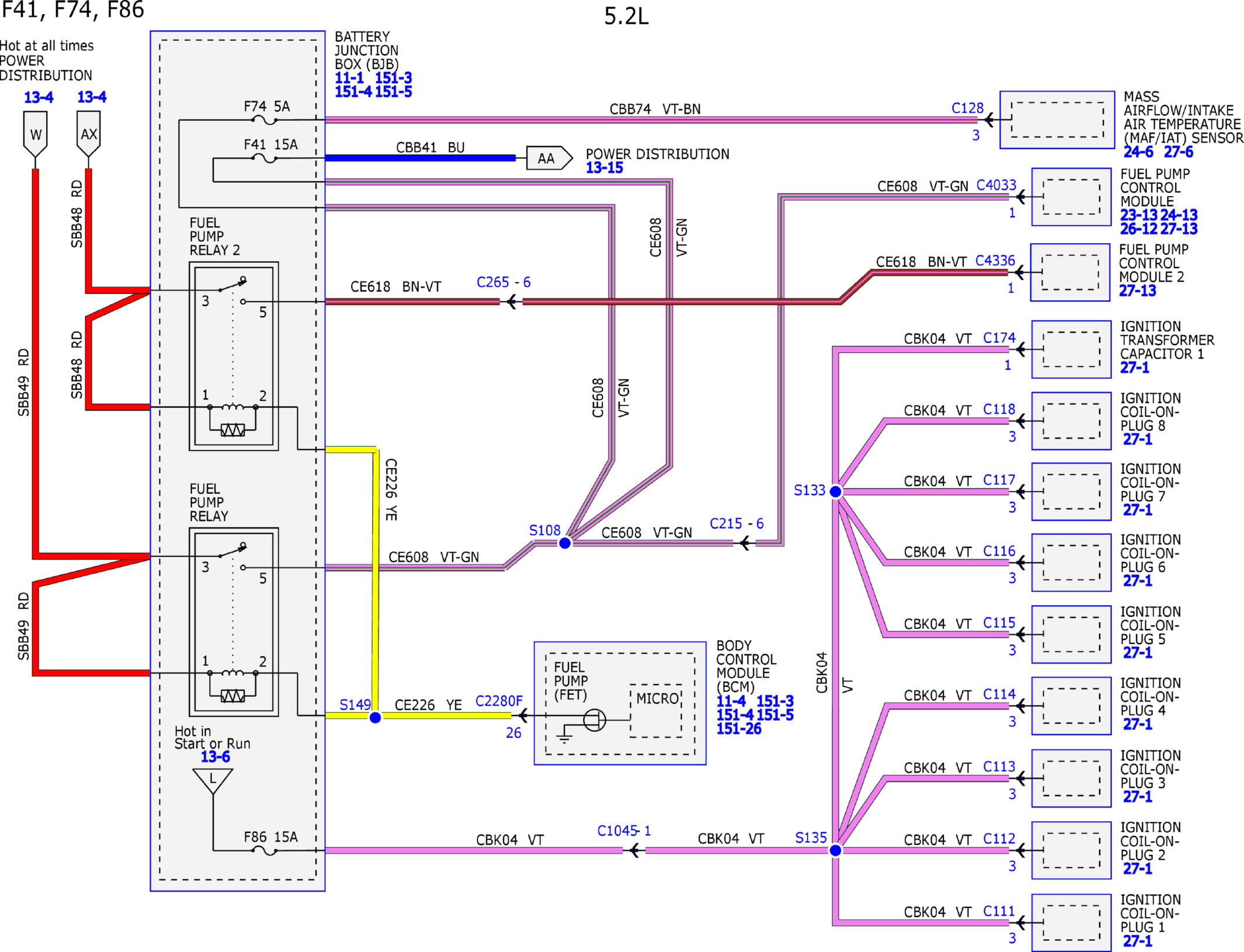

Fig 5: Power Distribution Wiring Diagram (5 of 40)

GFDW57547

Courtesy of FORD MOTOR COMPANY

Fig 6: Power Distribution Wiring Diagram (6 of 40)

GFDW57548

Courtesy of FORD MOTOR COMPANY

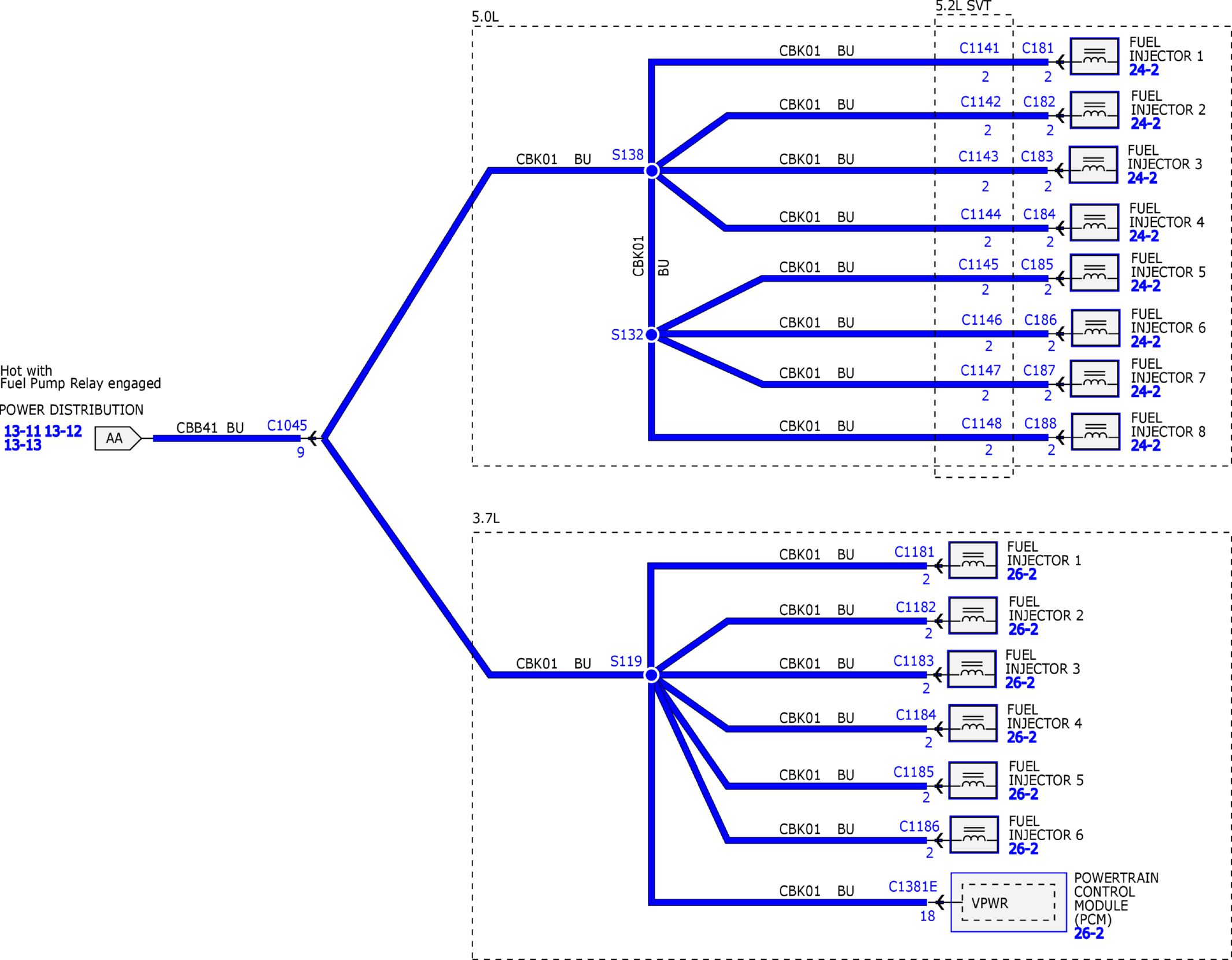

Fig 7: Power Distribution Wiring Diagram (7 of 40)

GFDW57549

Courtesy of FORD MOTOR COMPANY

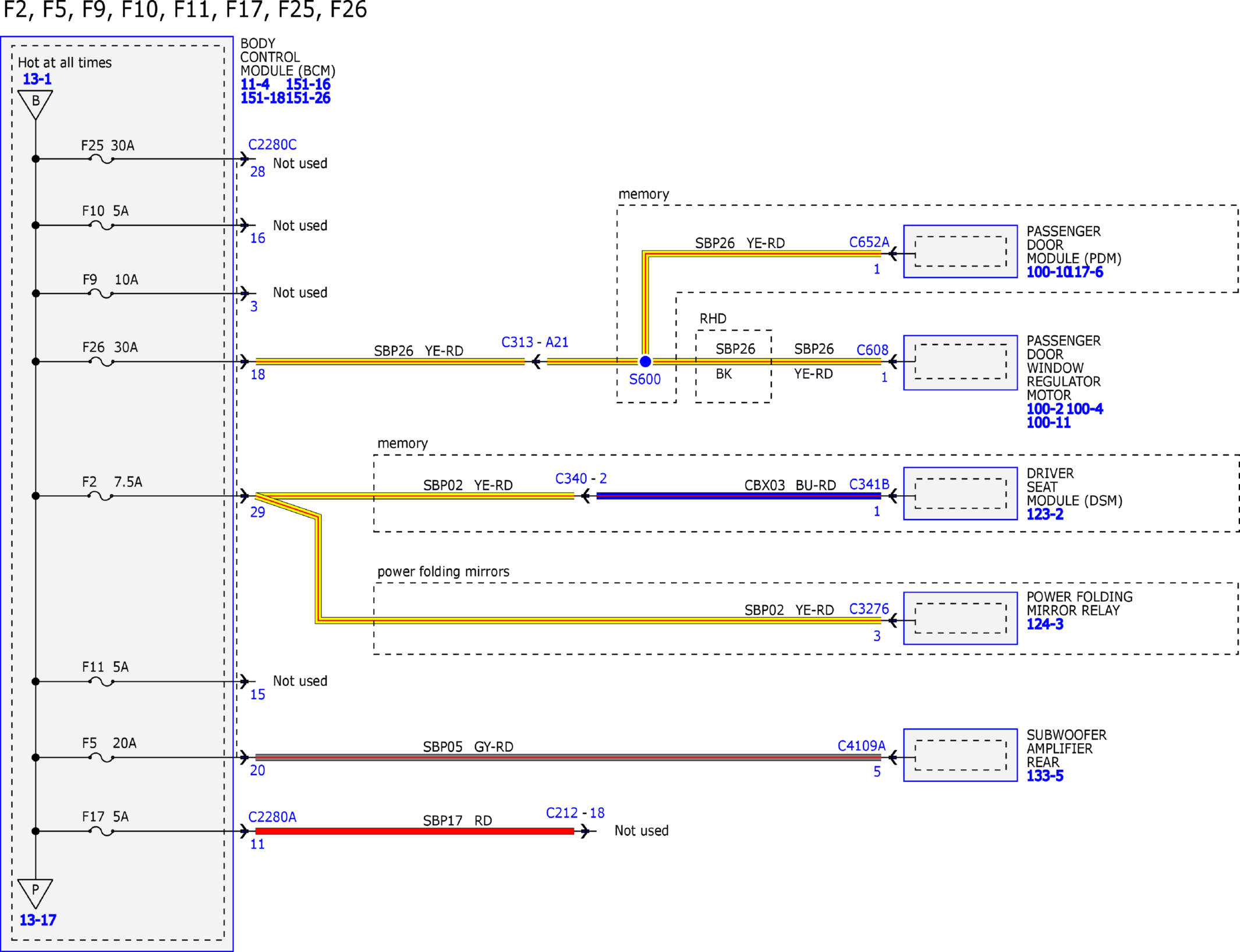

Fig 8: Power Distribution Wiring Diagram (8 of 40)

GFDW57550

Courtesy of FORD MOTOR COMPANY

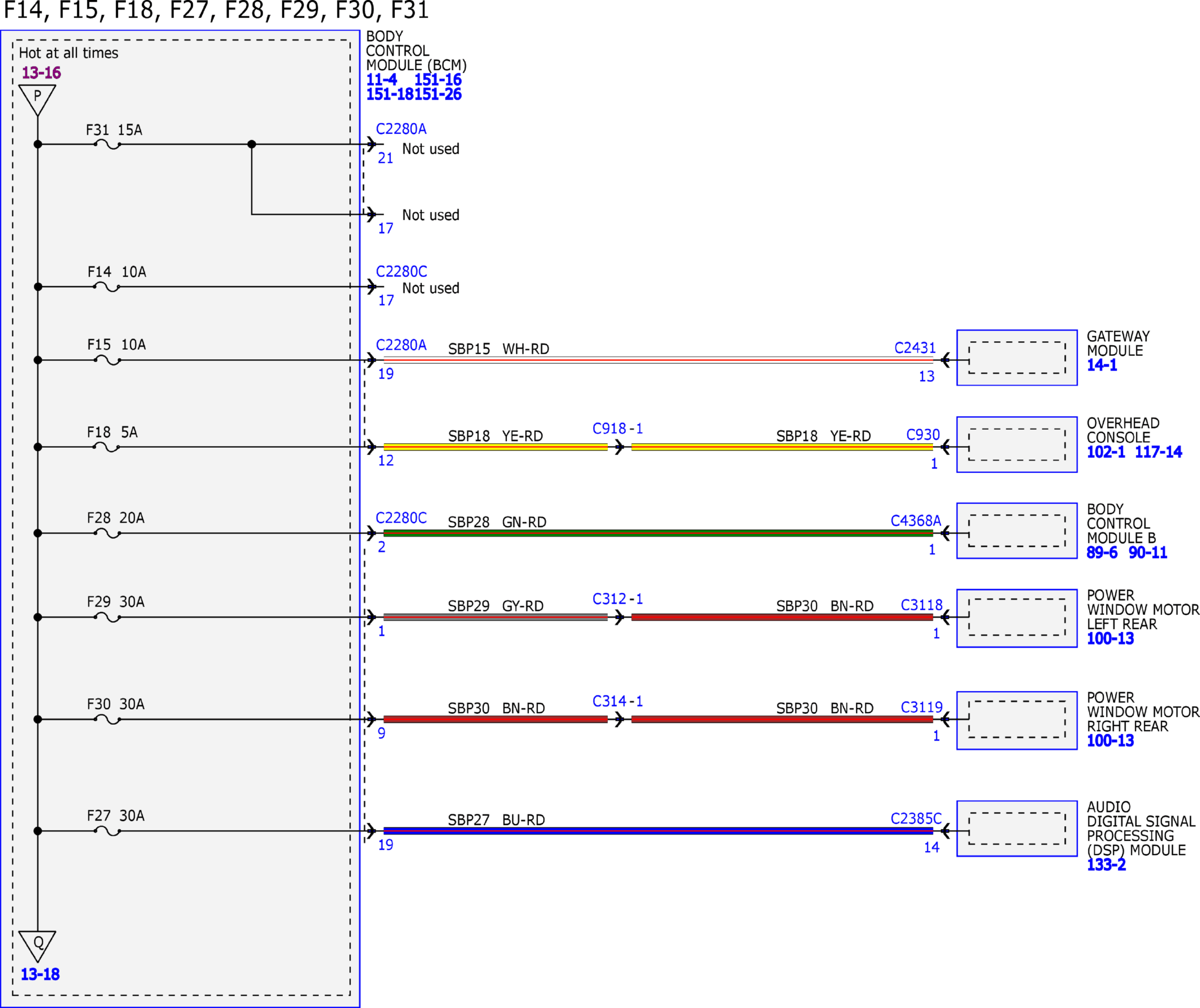

Fig 9: Power Distribution Wiring Diagram (9 of 40)

GFDW57551

Courtesy of FORD MOTOR COMPANY

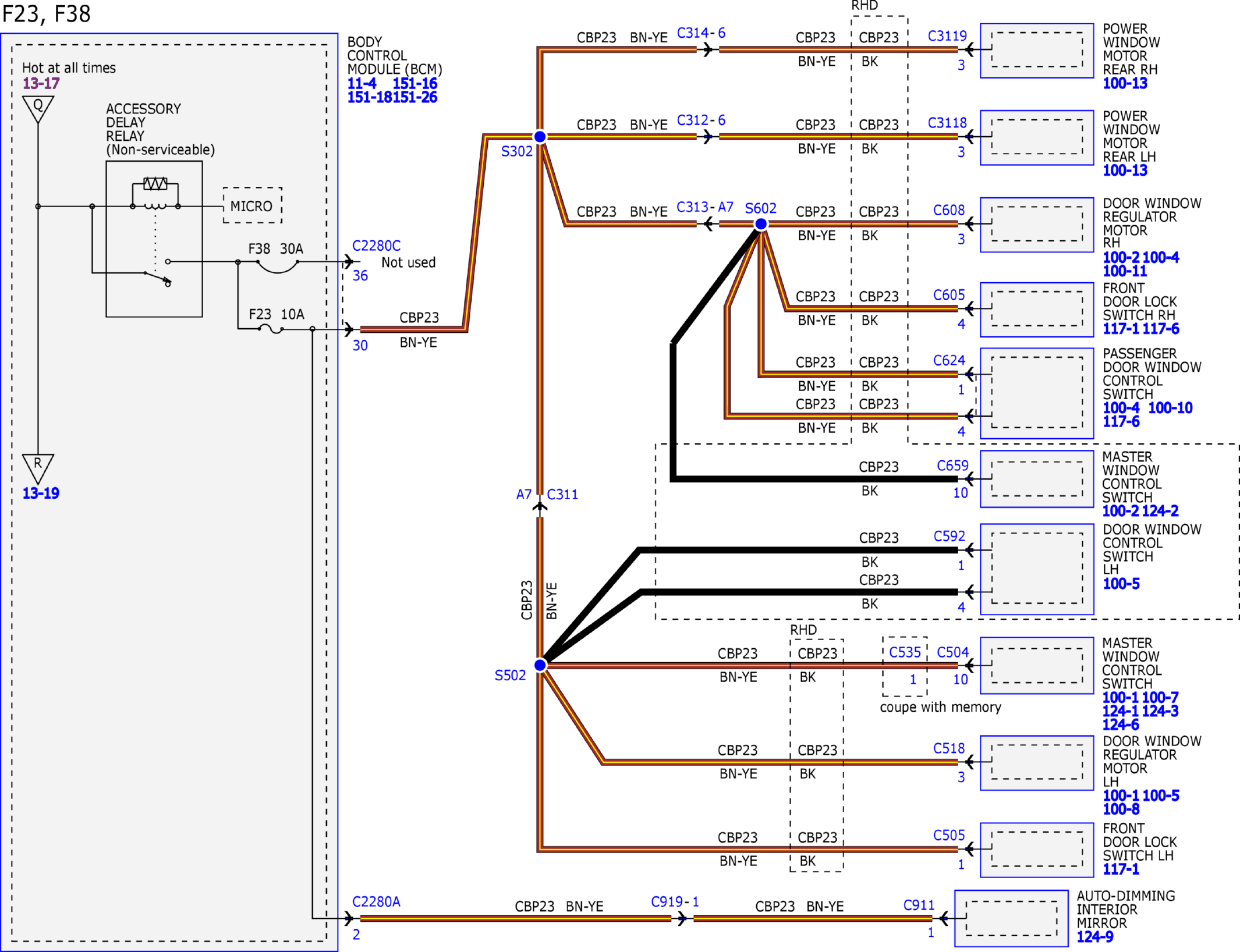

Fig 10: Power Distribution Wiring Diagram (10 of 40)

GFDW57552

Courtesy of FORD MOTOR COMPANY

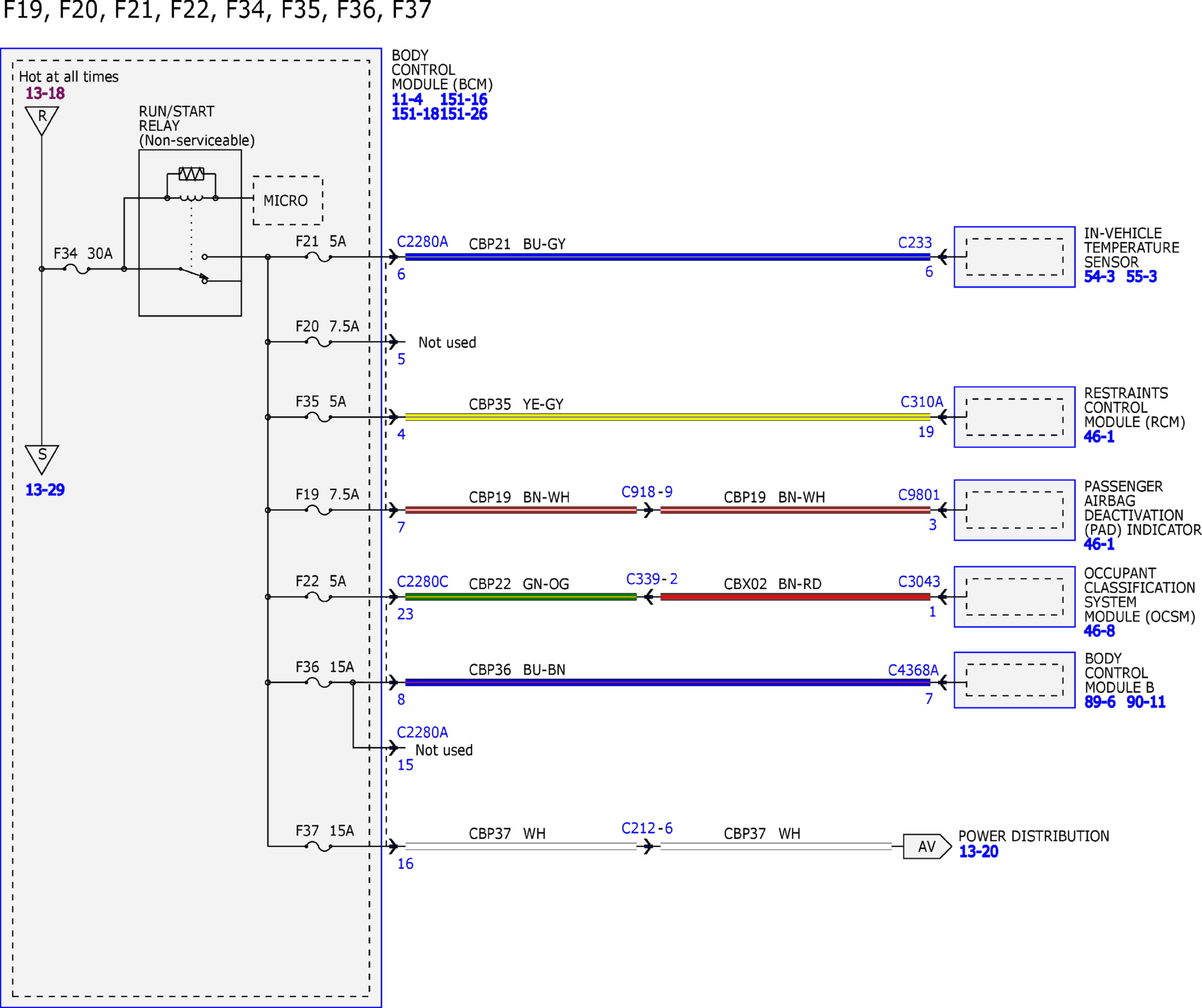

Fig 11: Power Distribution Wiring Diagram (11 of 40)

GFDW57553

Courtesy of FORD MOTOR COMPANY

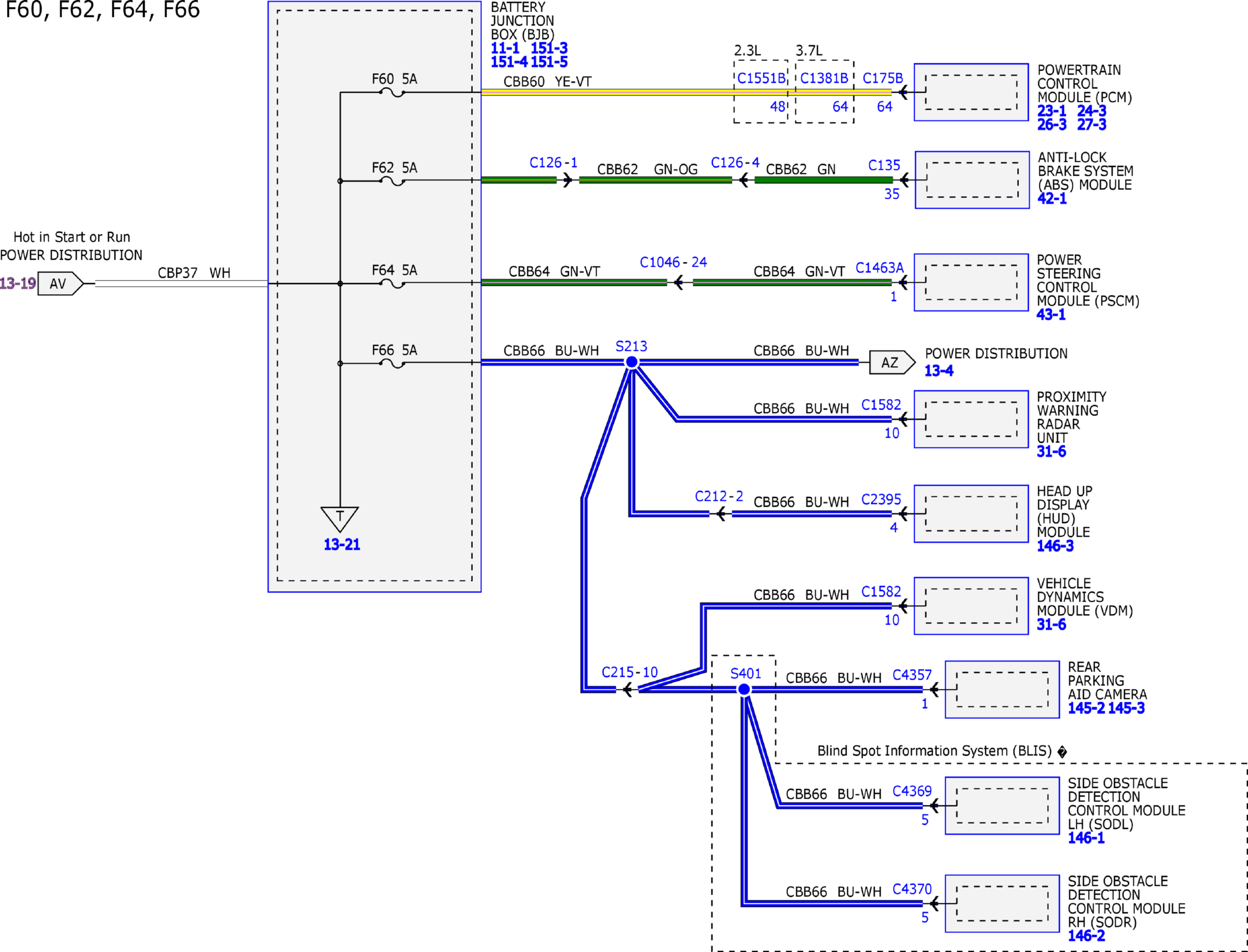

Fig 12: Power Distribution Wiring Diagram (12 of 40)

GFDW57554

Courtesy of FORD MOTOR COMPANY

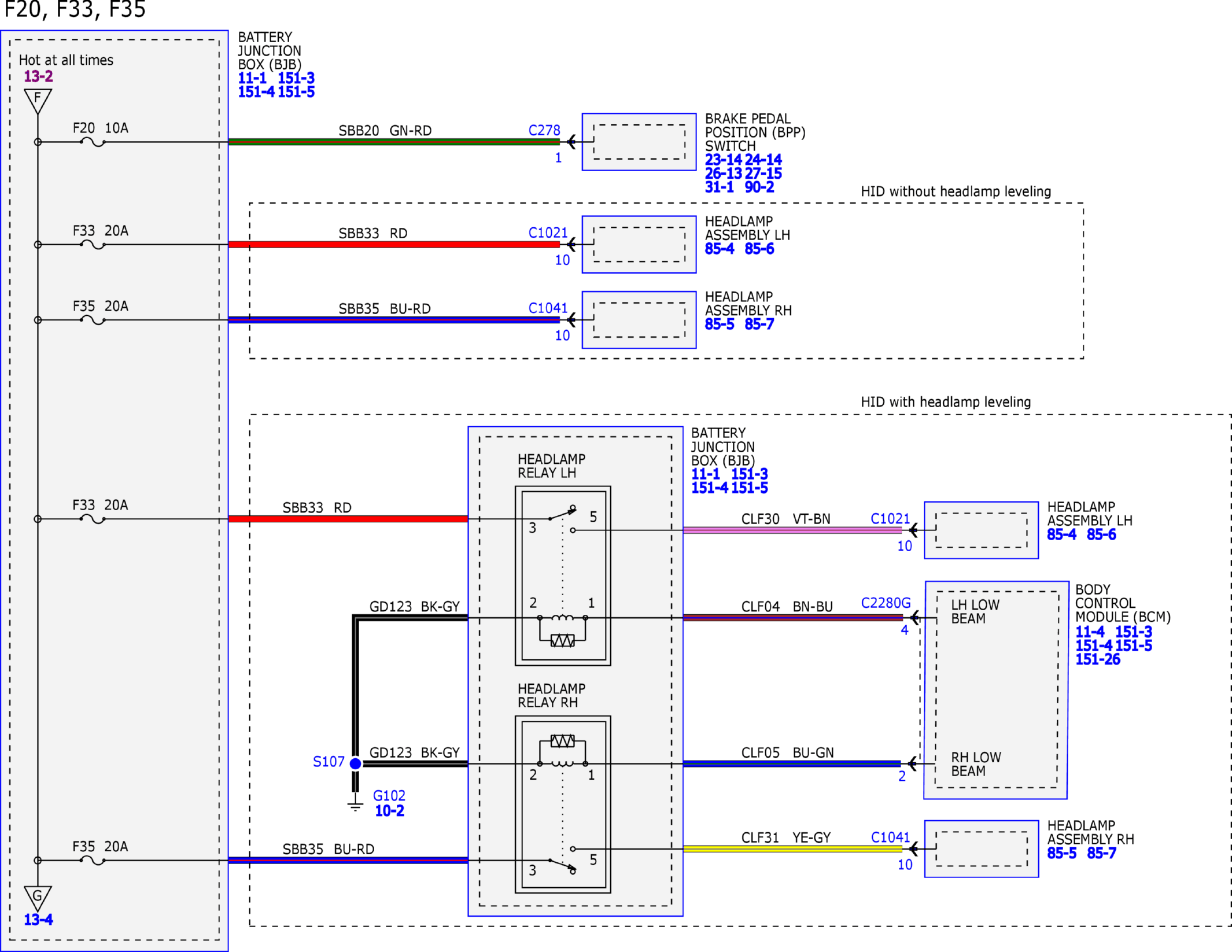

Fig 13: Power Distribution Wiring Diagram (13 of 40)

GFDW57555

Courtesy of FORD MOTOR COMPANY

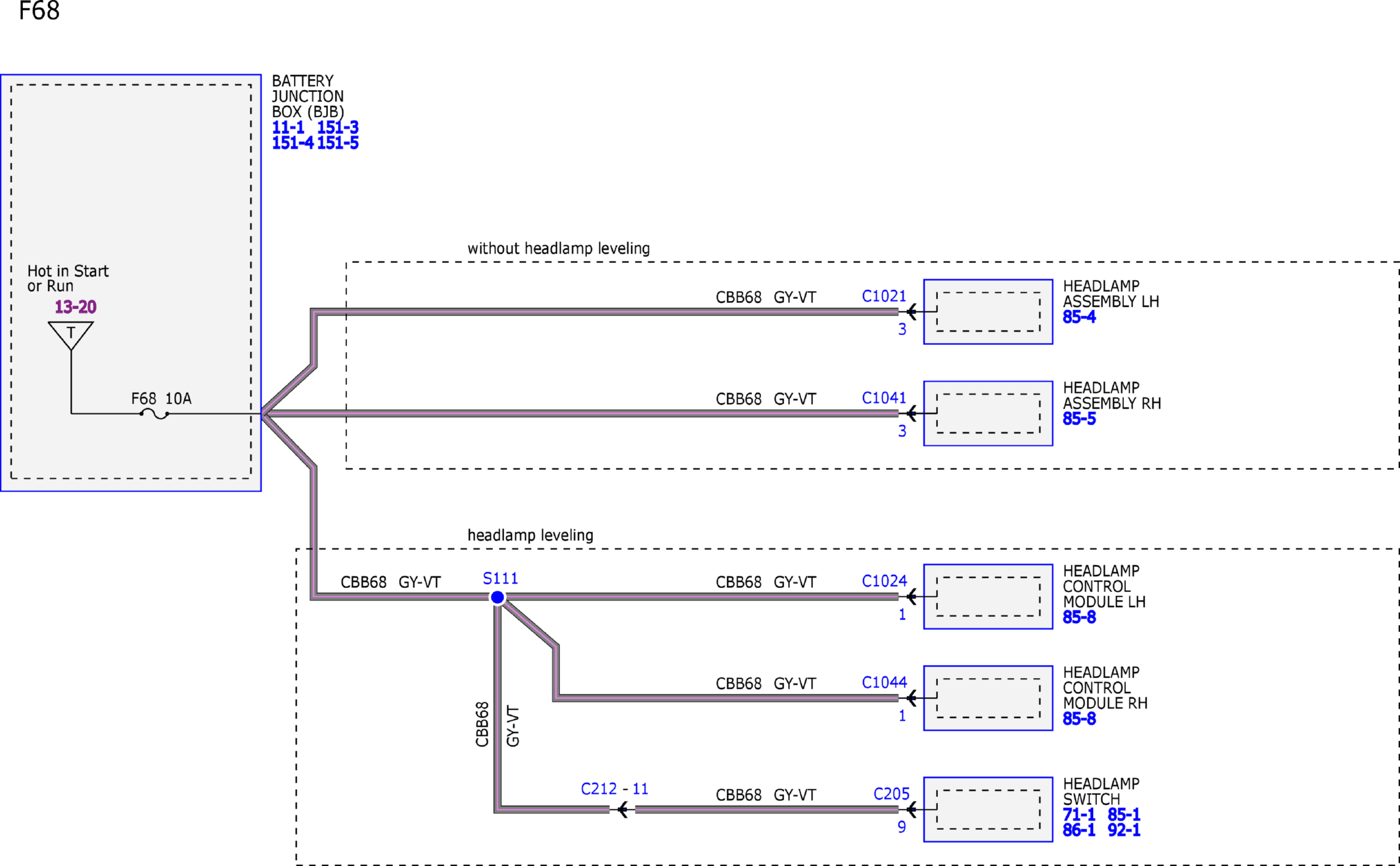

Fig 14: Power Distribution Wiring Diagram (14 of 40)

GFDW57556

Courtesy of FORD MOTOR COMPANY

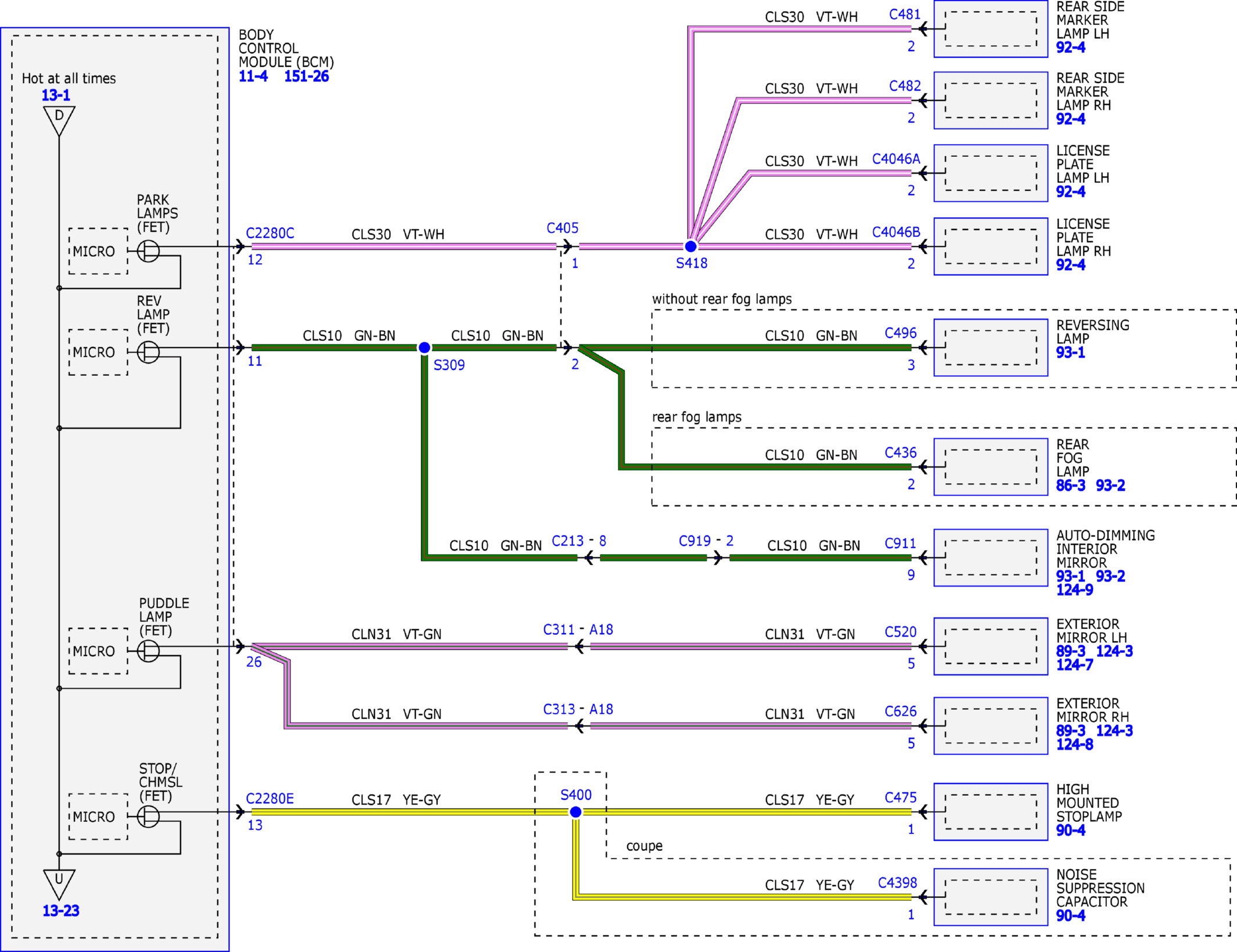

Fig 15: Power Distribution Wiring Diagram (15 of 40)

GFDW57557

Courtesy of FORD MOTOR COMPANY

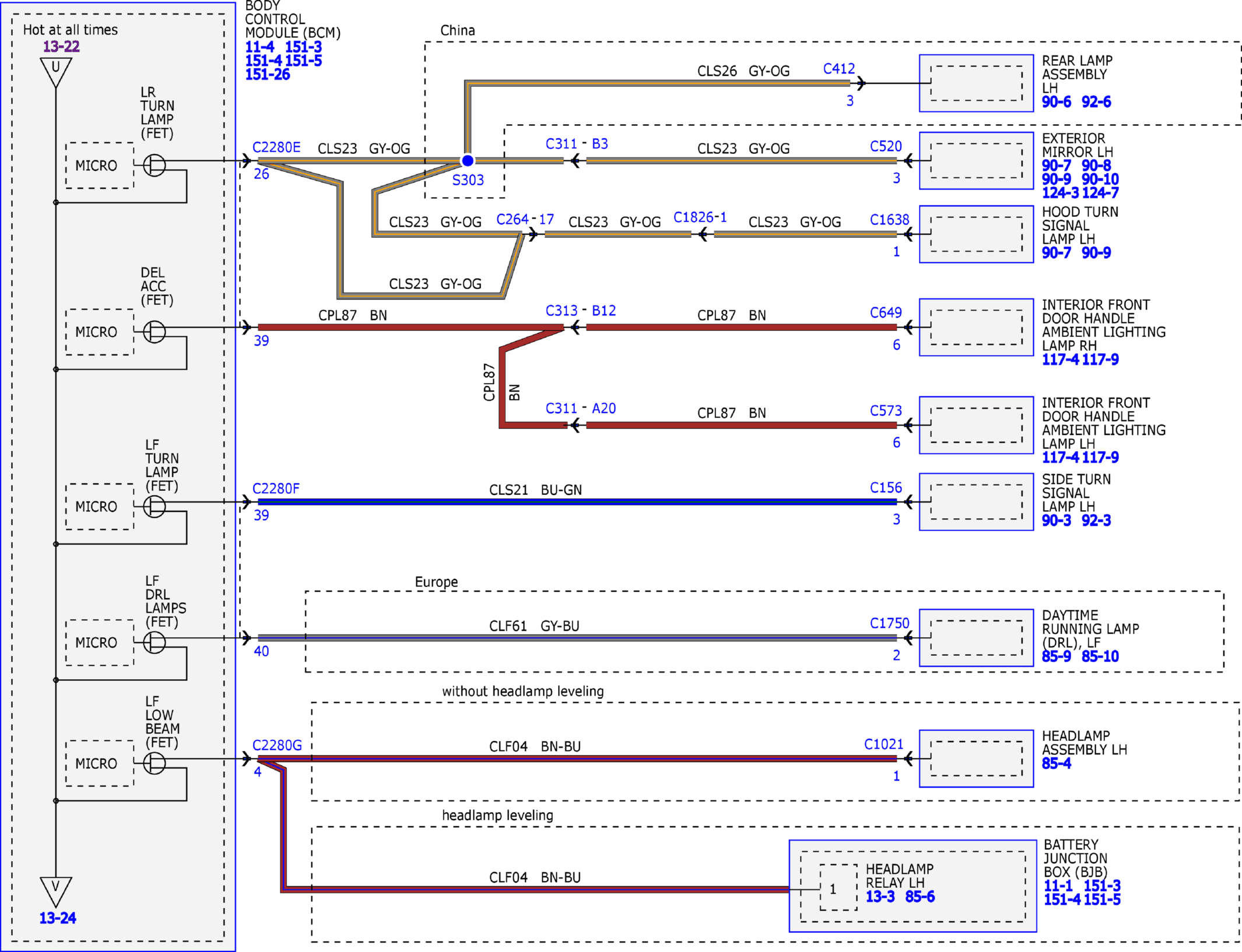

Fig 16: Power Distribution Wiring Diagram (16 of 40)

GFDW57558

Courtesy of FORD MOTOR COMPANY

Fig 17: Power Distribution Wiring Diagram (17 of 40)

GFDW57559

Courtesy of FORD MOTOR COMPANY

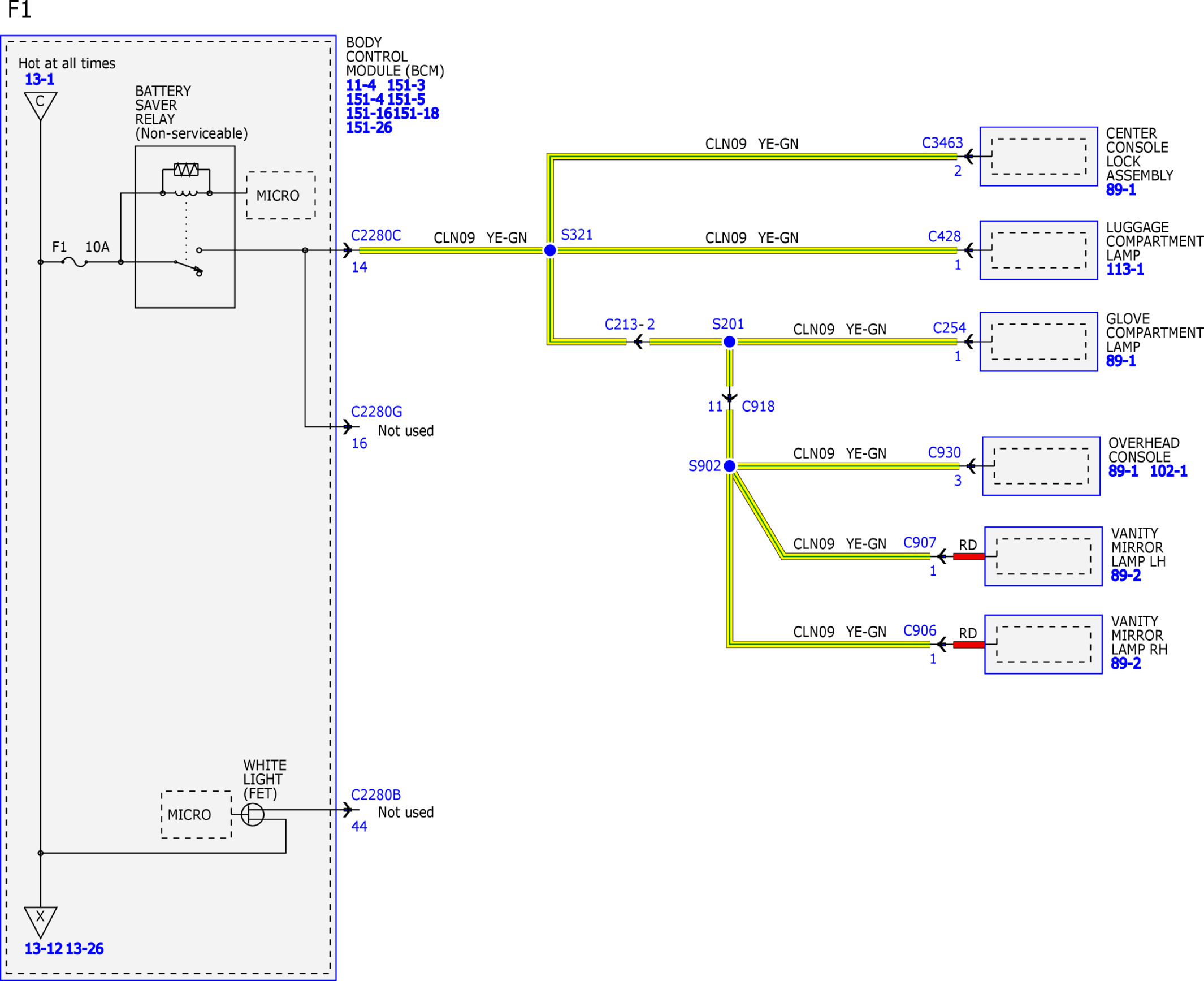

Fig 18: Power Distribution Wiring Diagram (18 of 40)

GFDW57560

Courtesy of FORD MOTOR COMPANY

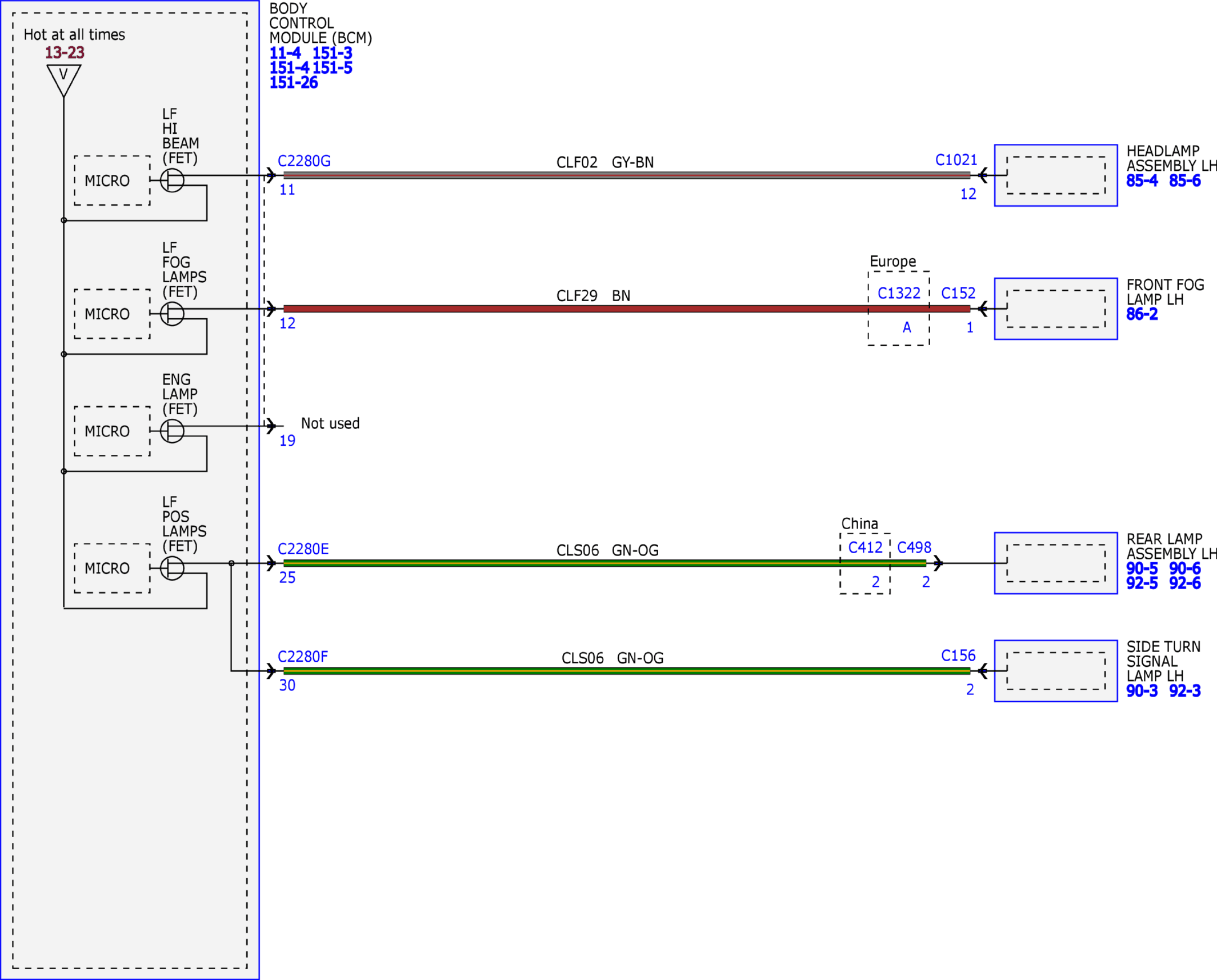

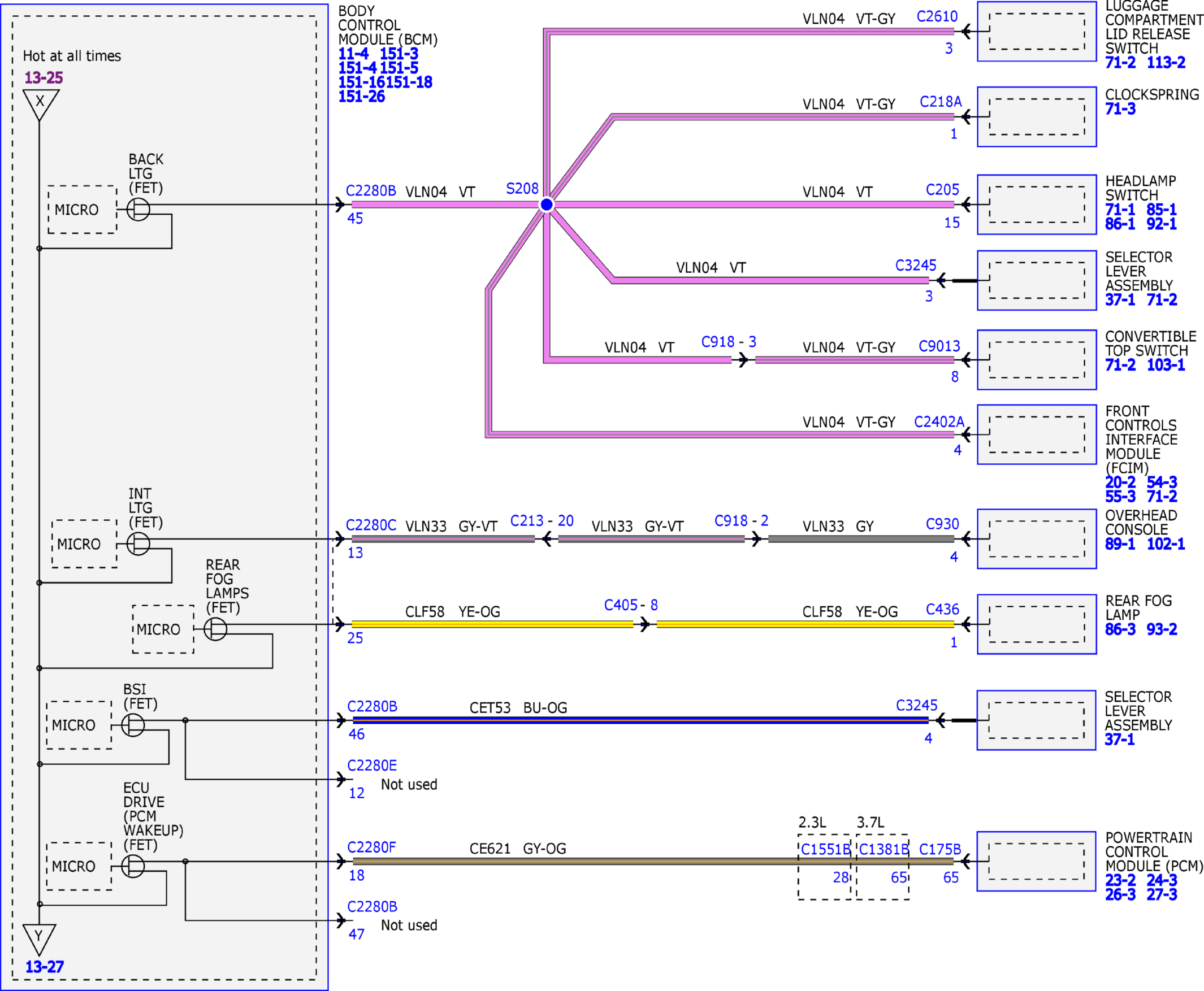

Fig 19: Power Distribution Wiring Diagram (19 of 40)

GFDW57561

Courtesy of FORD MOTOR COMPANY

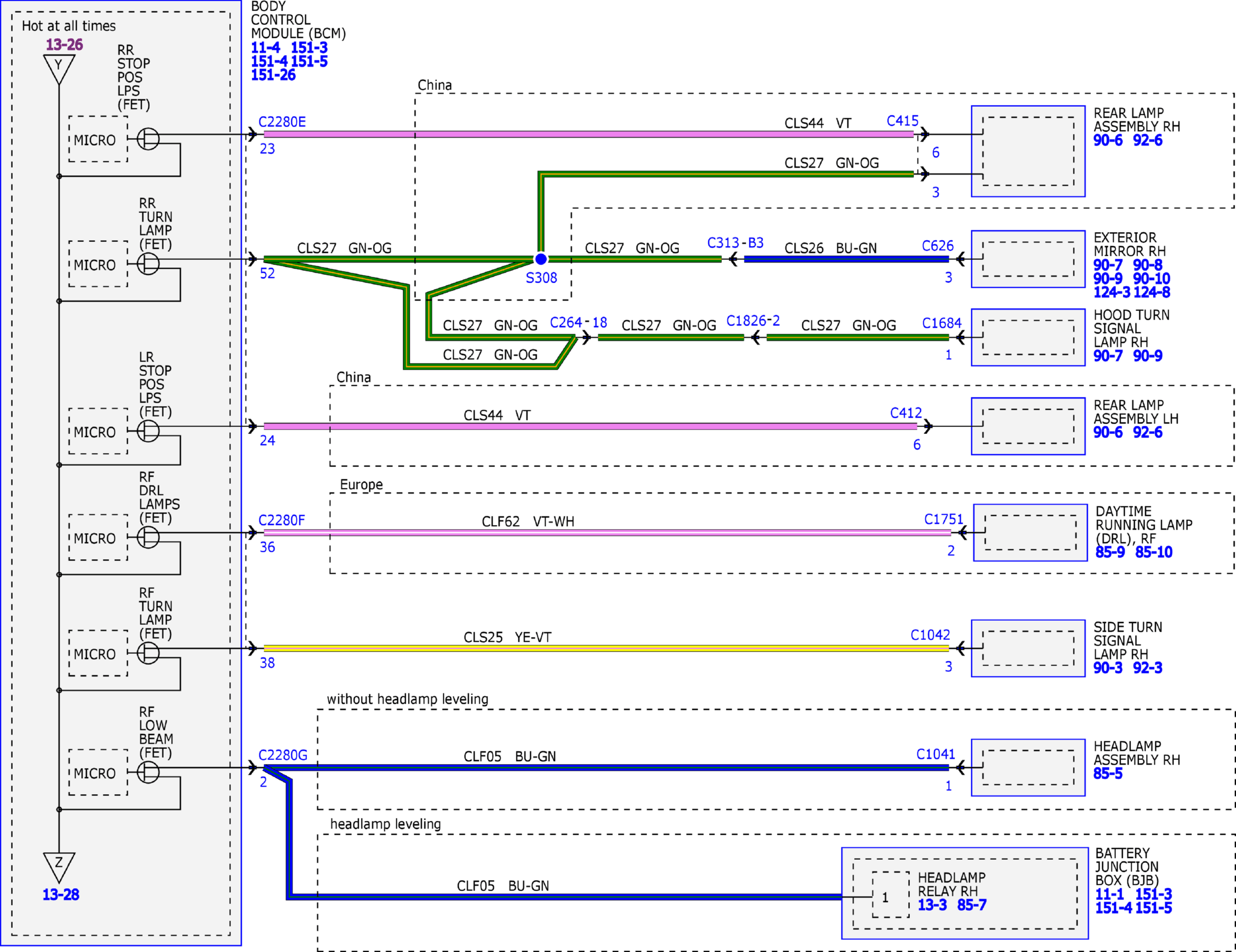

Fig 20: Power Distribution Wiring Diagram (20 of 40)

GFDW57562

Courtesy of FORD MOTOR COMPANY

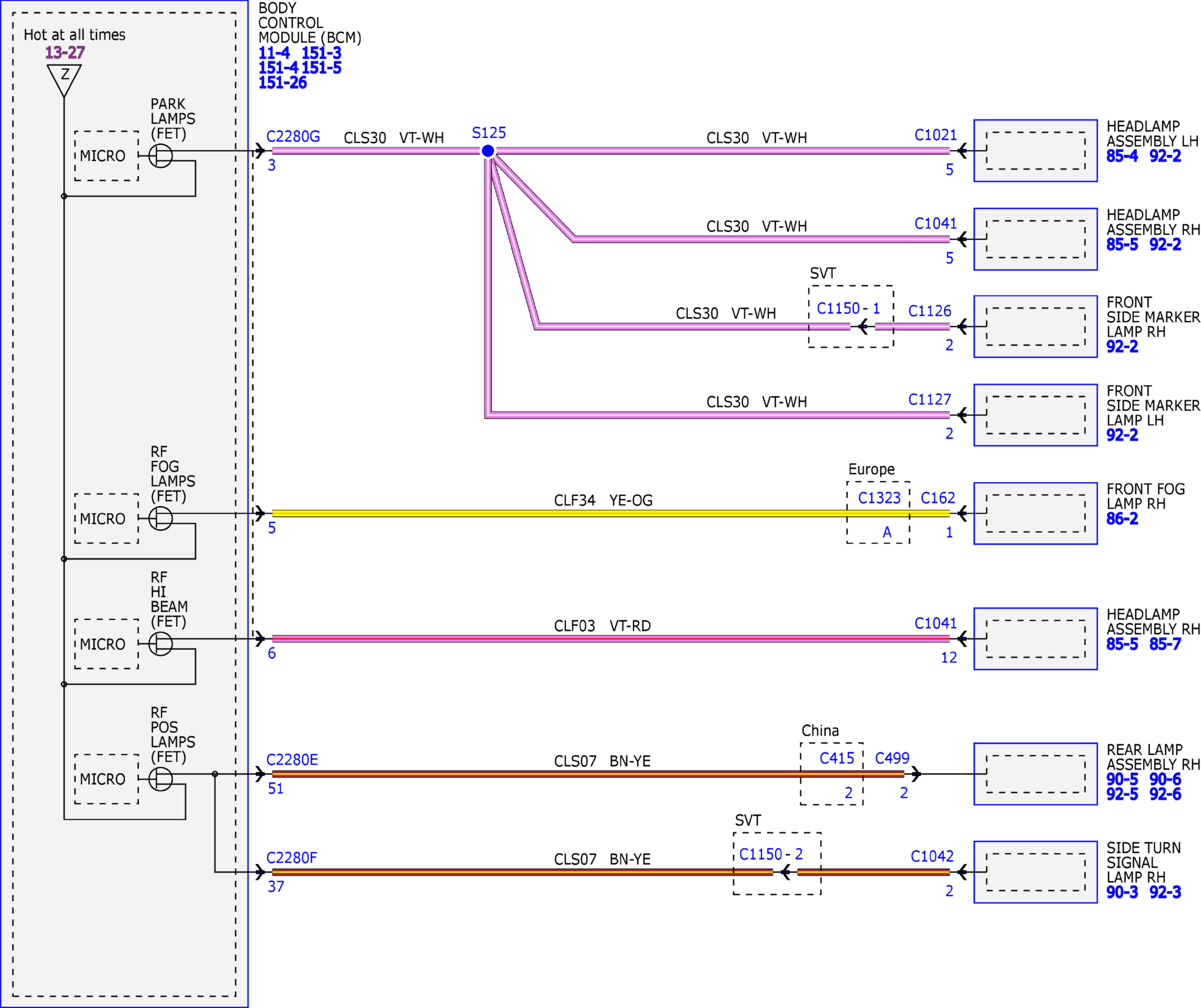

Fig 21: Power Distribution Wiring Diagram (21 of 40)

GFDW57563

Courtesy of FORD MOTOR COMPANY

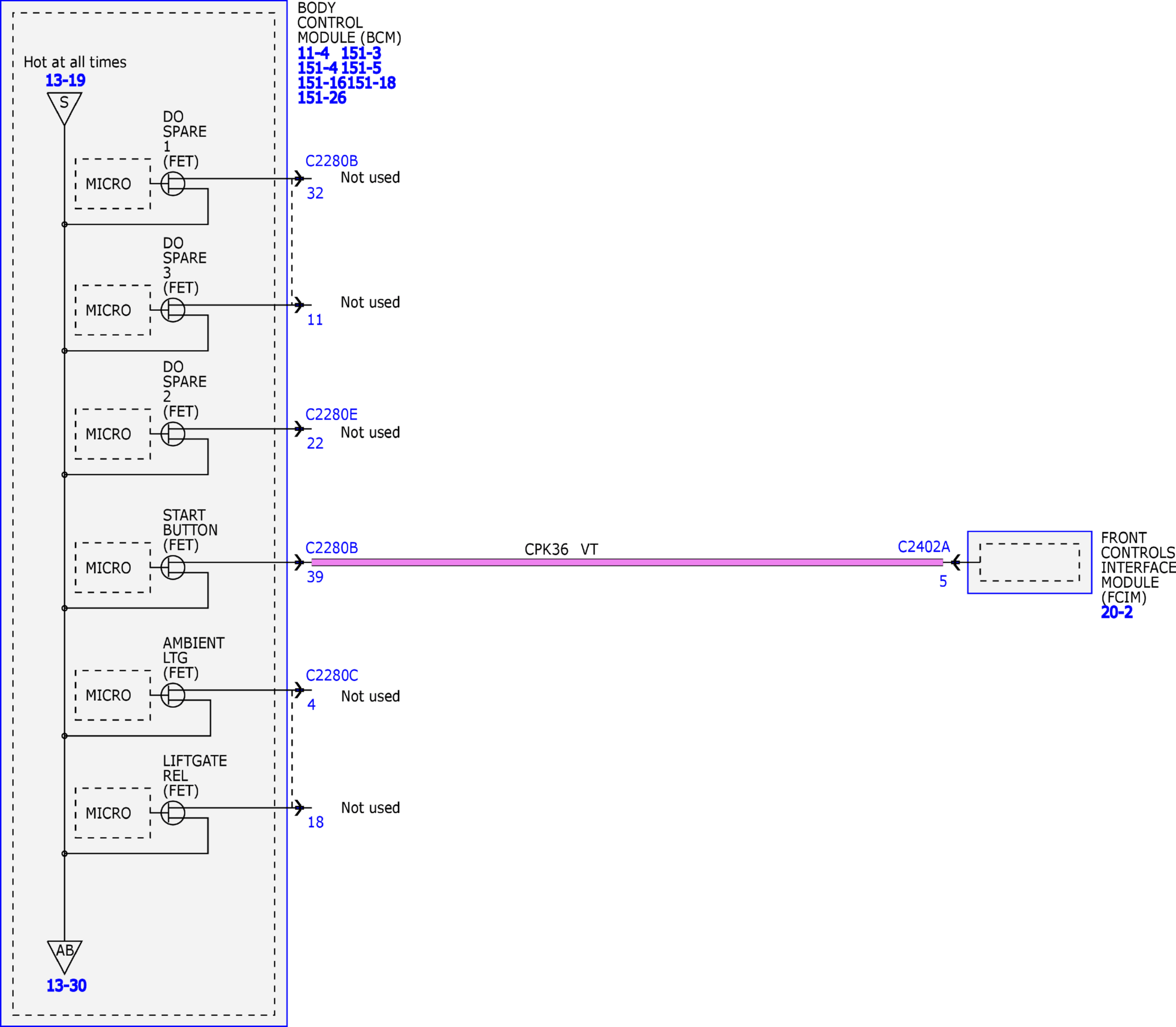

Fig 22: Power Distribution Wiring Diagram (22 of 40)

GFDW57564

Courtesy of FORD MOTOR COMPANY

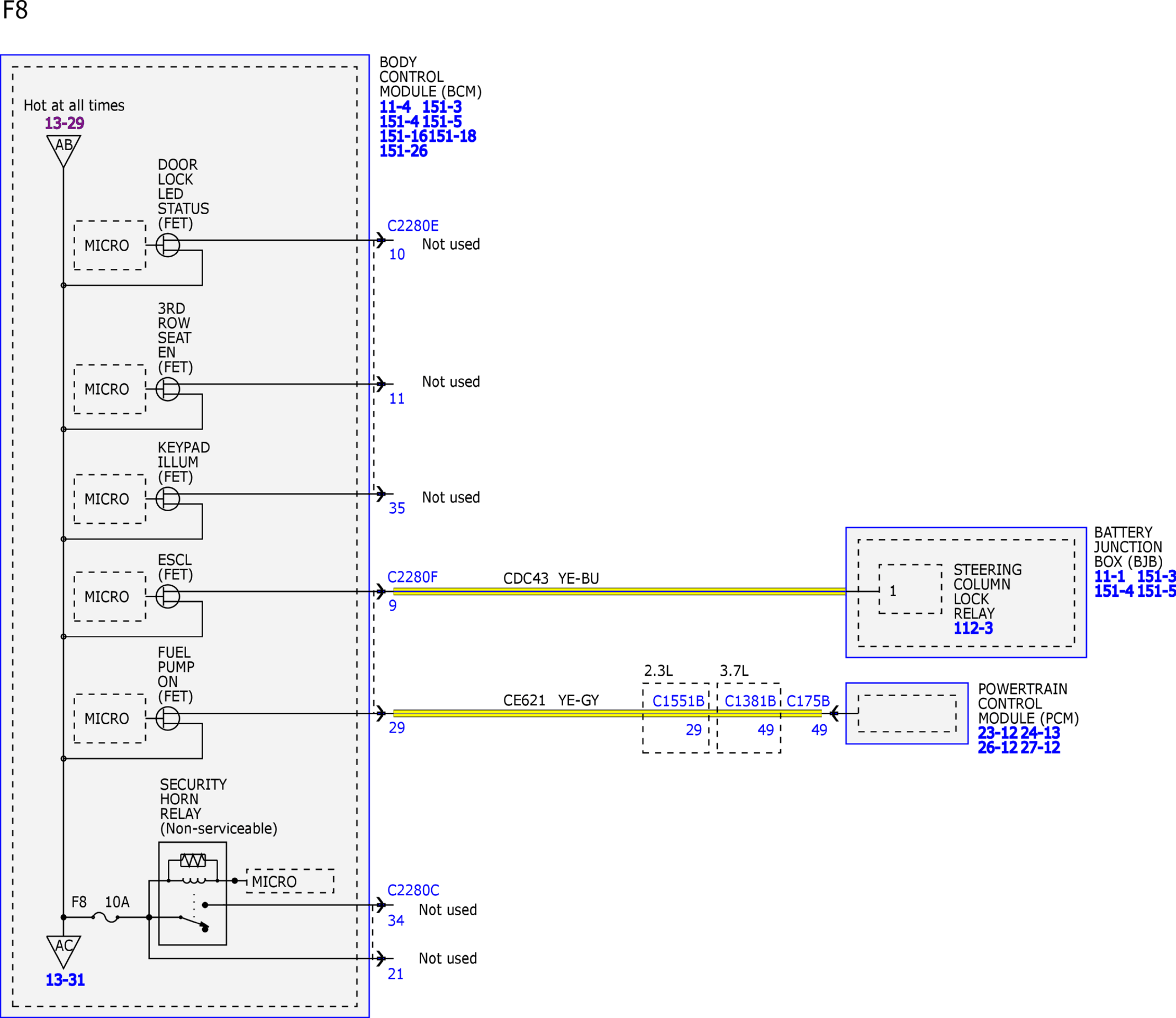

Fig 23: Power Distribution Wiring Diagram (23 of 40)

GFDW57565

Courtesy of FORD MOTOR COMPANY

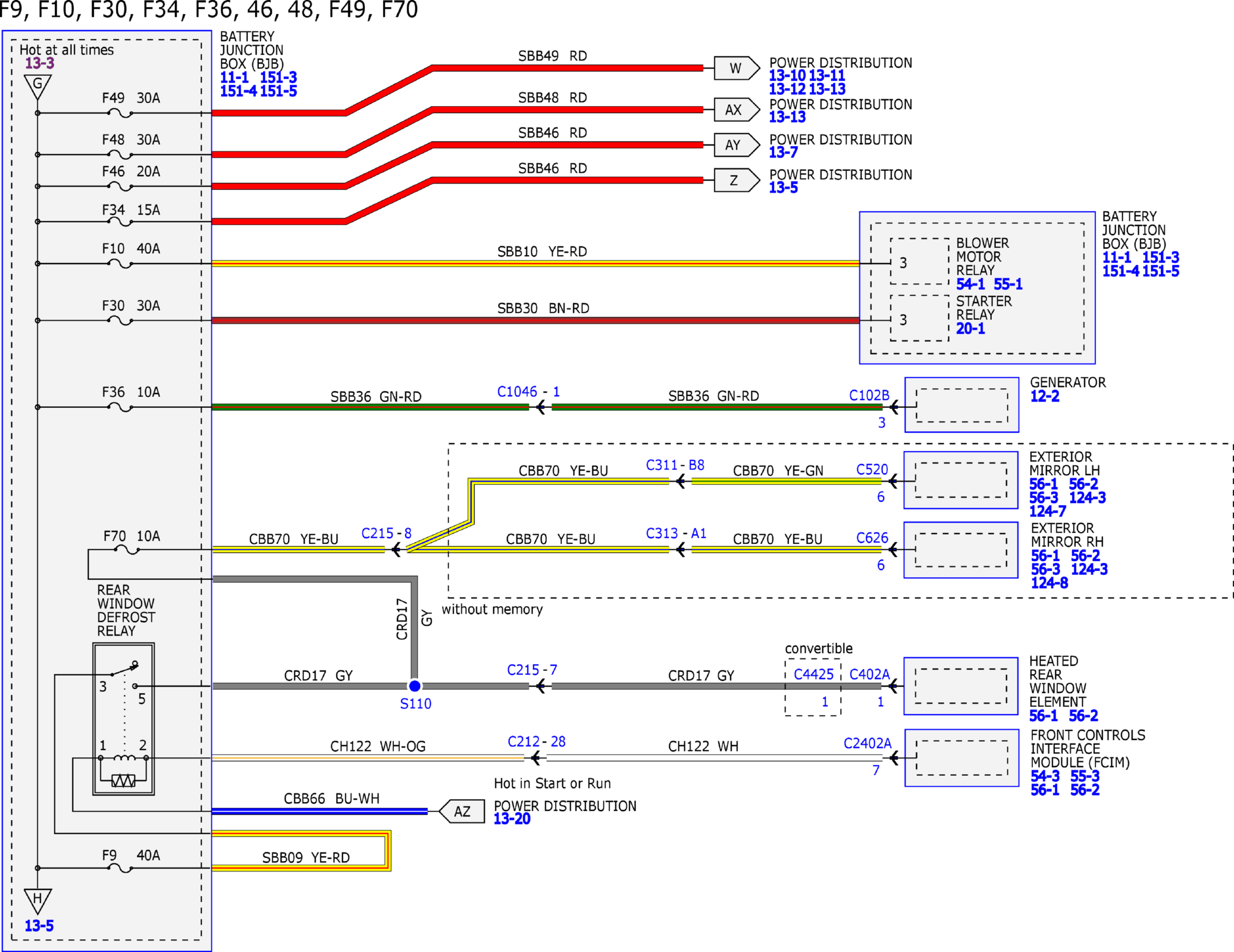

Fig 24: Power Distribution Wiring Diagram (24 of 40)

GFDW57566

Courtesy of FORD MOTOR COMPANY

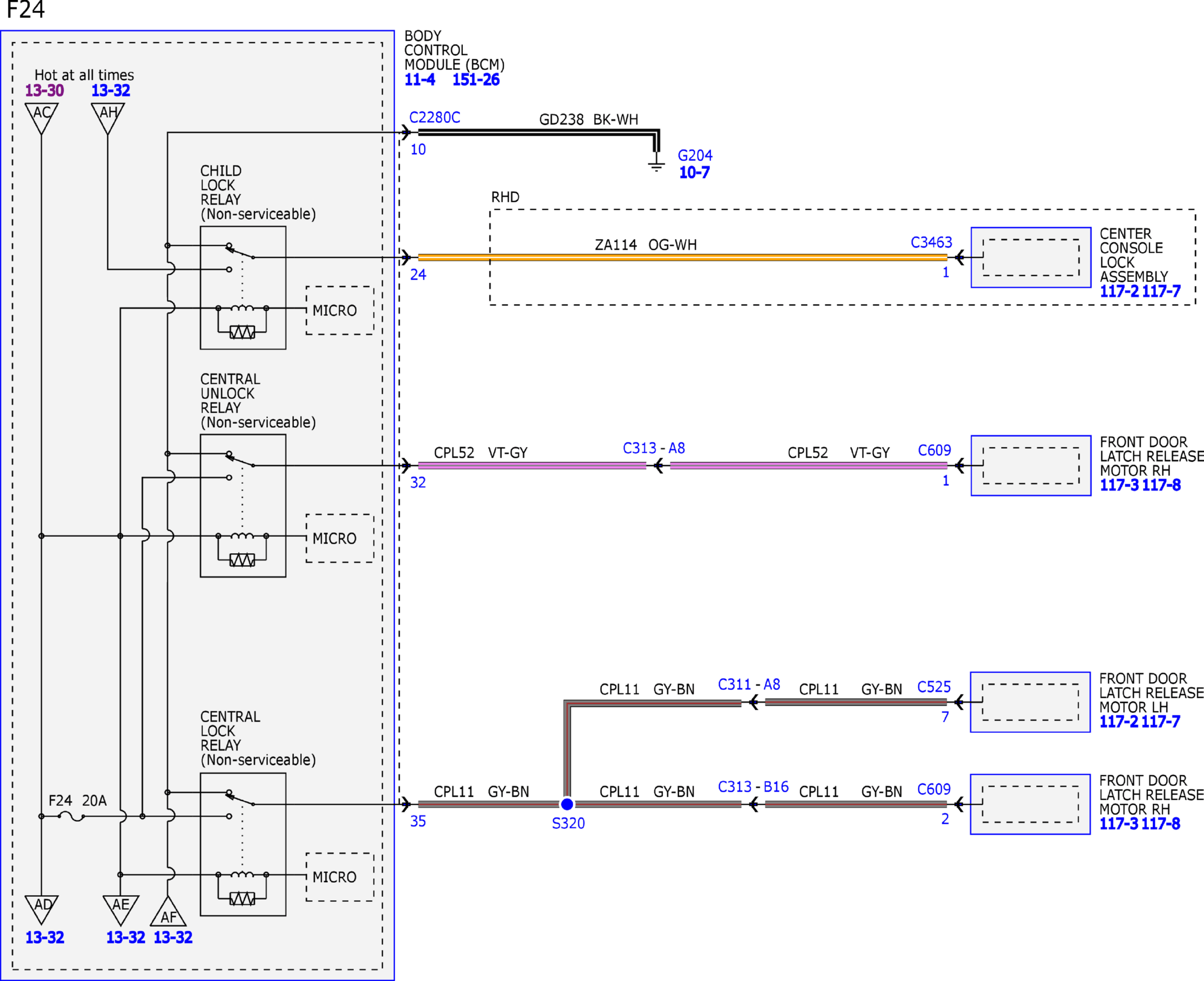

Fig 25: Power Distribution Wiring Diagram (25 of 40)

GFDW57567

Courtesy of FORD MOTOR COMPANY

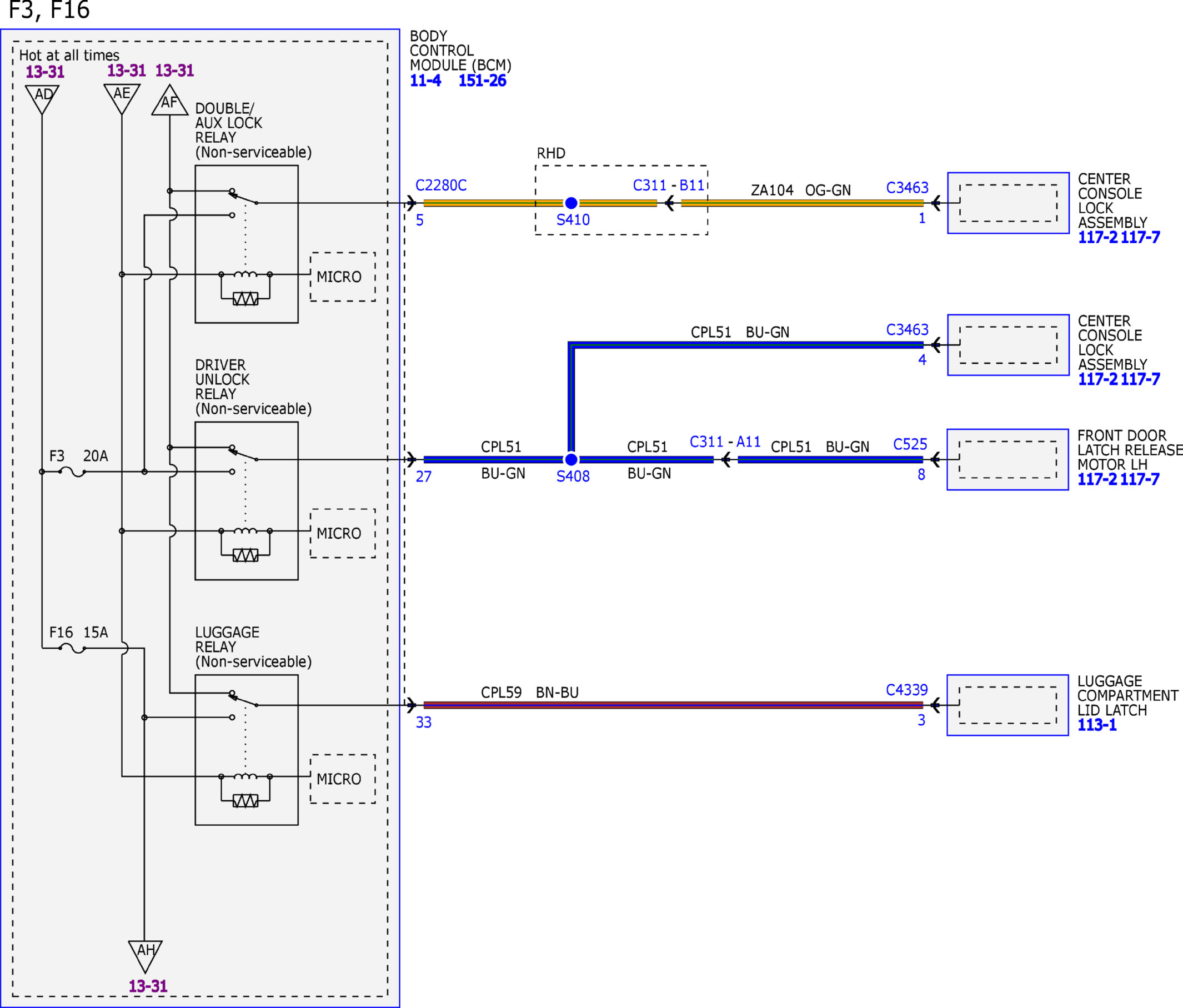

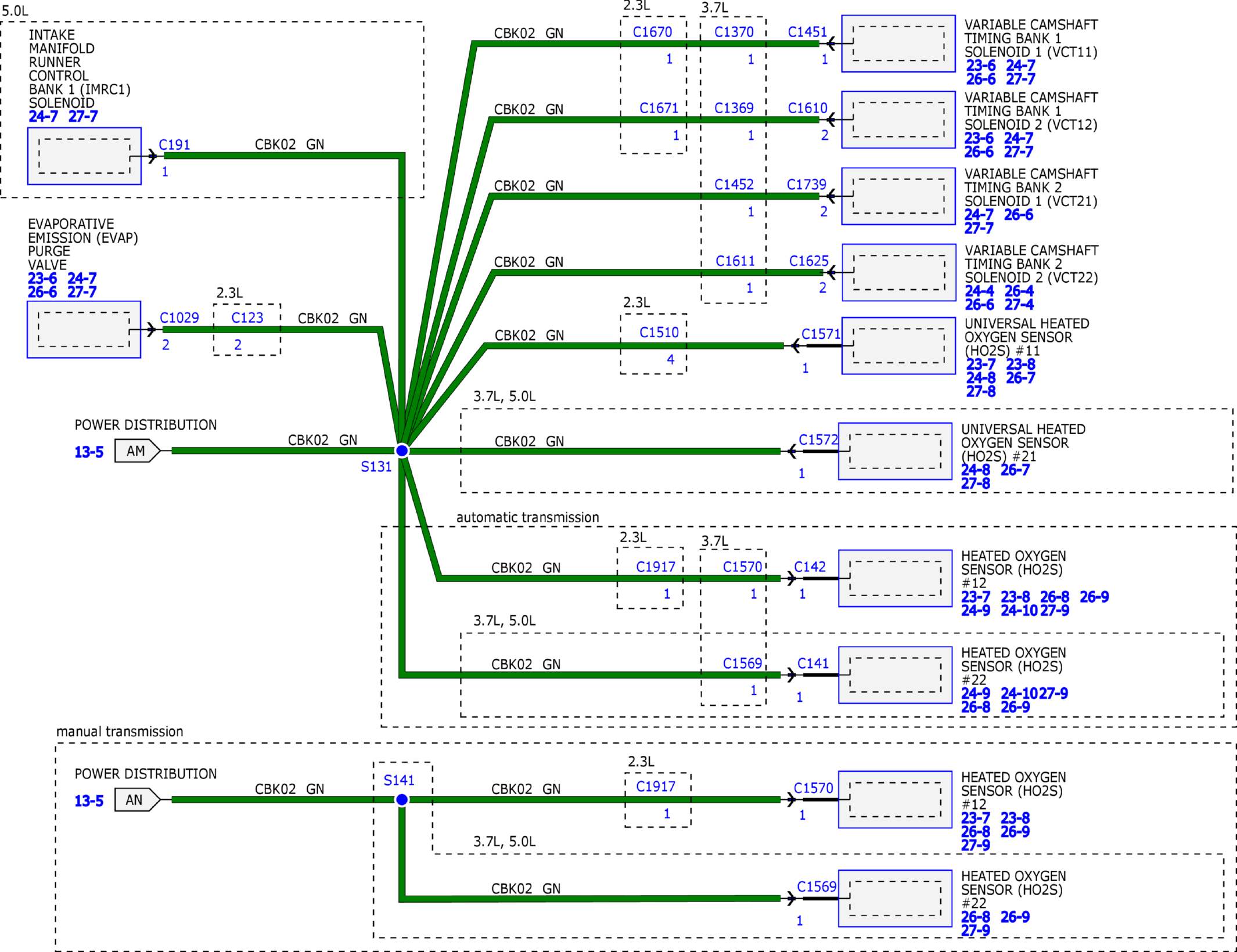

Fig 26: Power Distribution Wiring Diagram (26 of 40)

GFDW57568

Courtesy of FORD MOTOR COMPANY

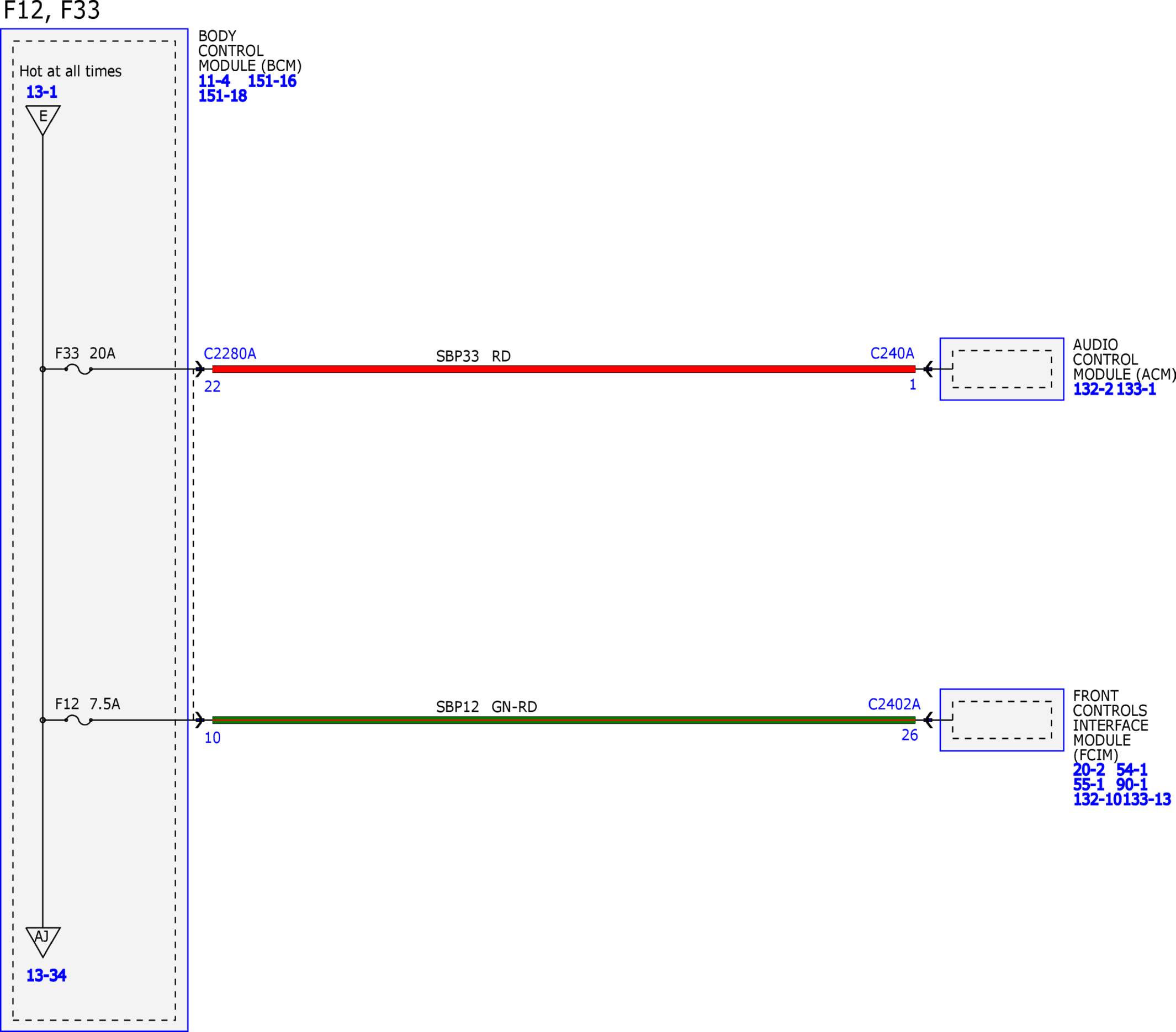

Fig 27: Power Distribution Wiring Diagram (27 of 40)

GFDW57569

Courtesy of FORD MOTOR COMPANY

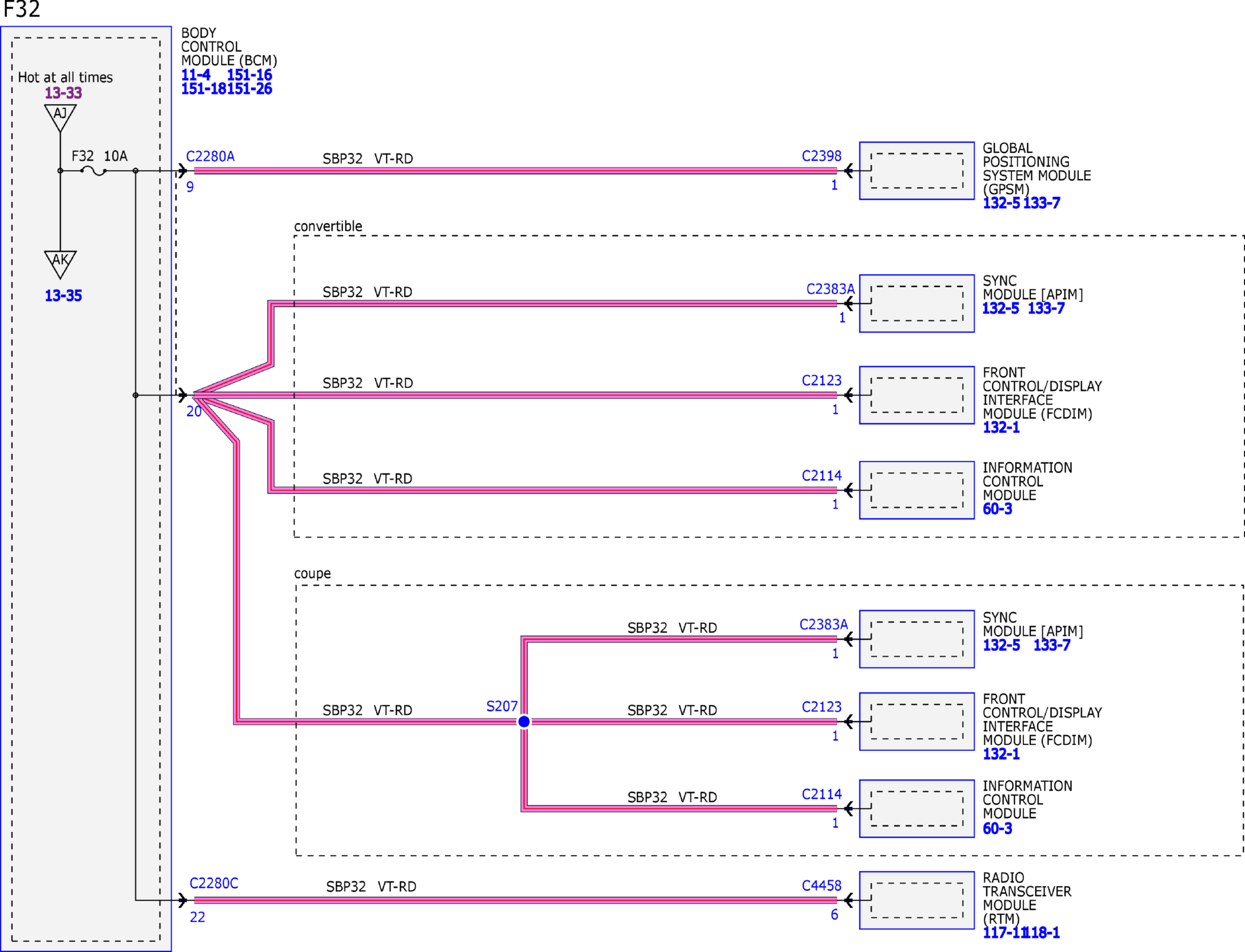

Fig 28: Power Distribution Wiring Diagram (28 of 40)

GFDW57570

Courtesy of FORD MOTOR COMPANY

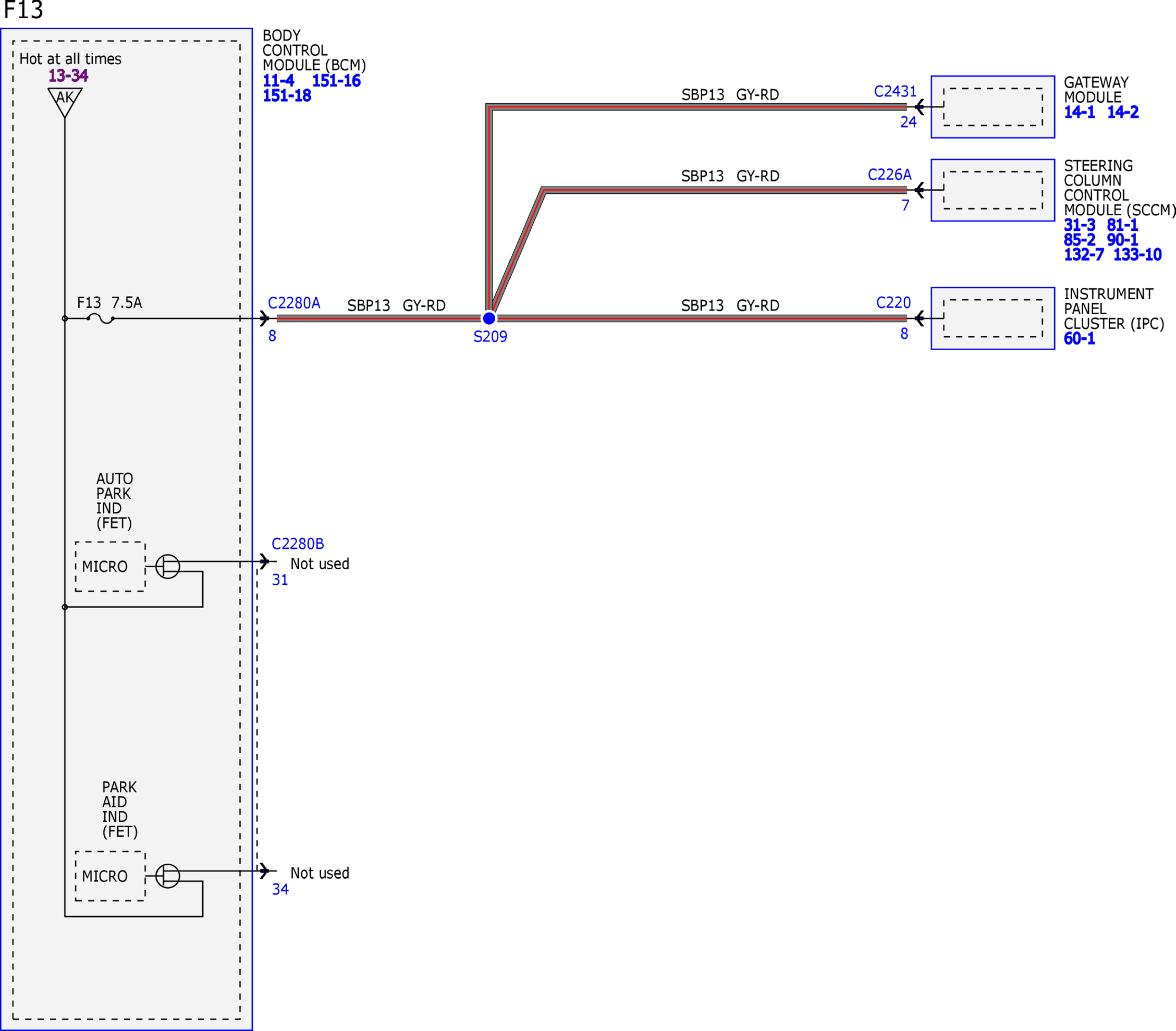

Fig 29: Power Distribution Wiring Diagram (29 of 40)

GFDW57571

Courtesy of FORD MOTOR COMPANY

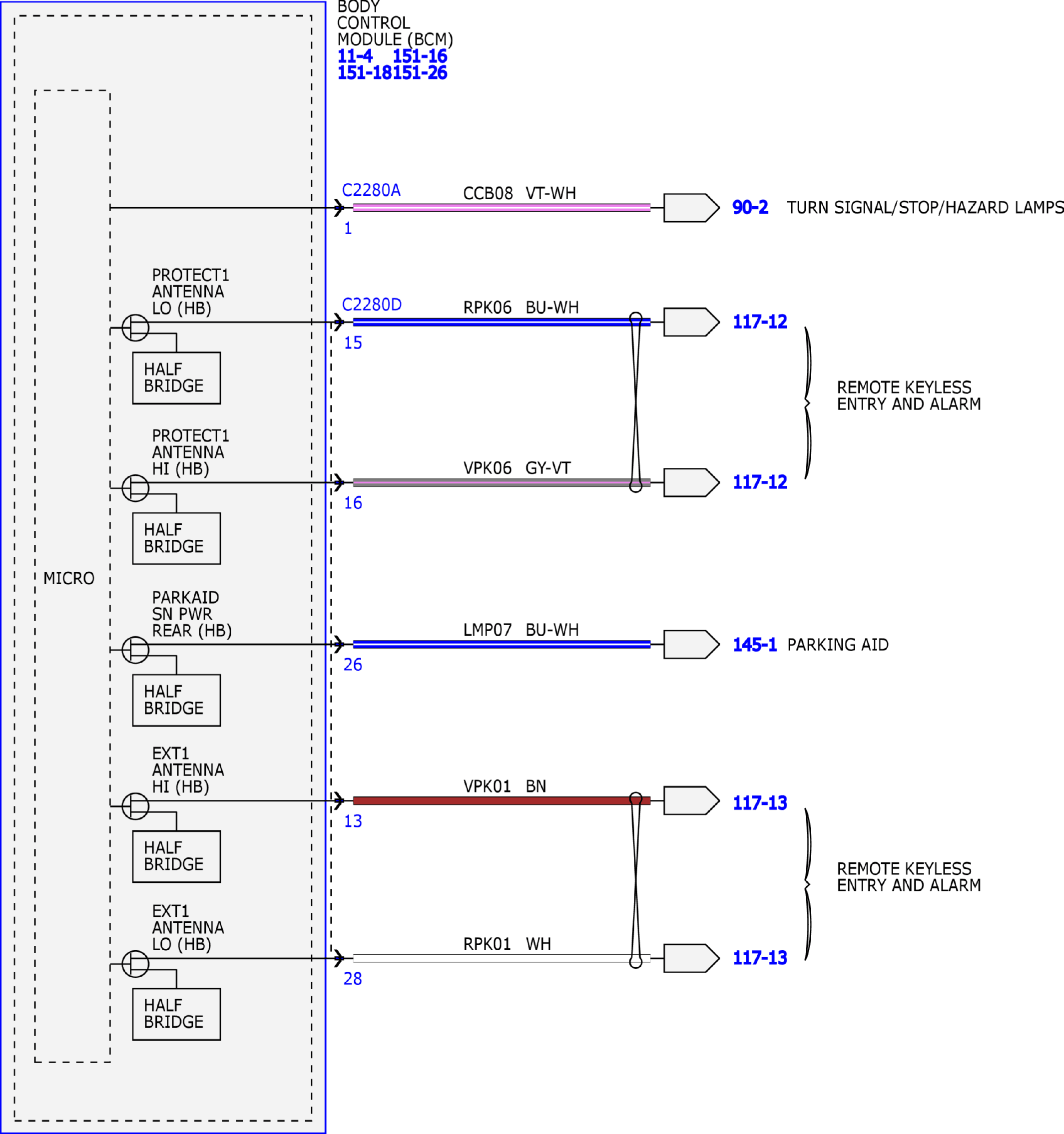

Fig 30: Power Distribution Wiring Diagram (30 of 40)

GFDW57572

Courtesy of FORD MOTOR COMPANY

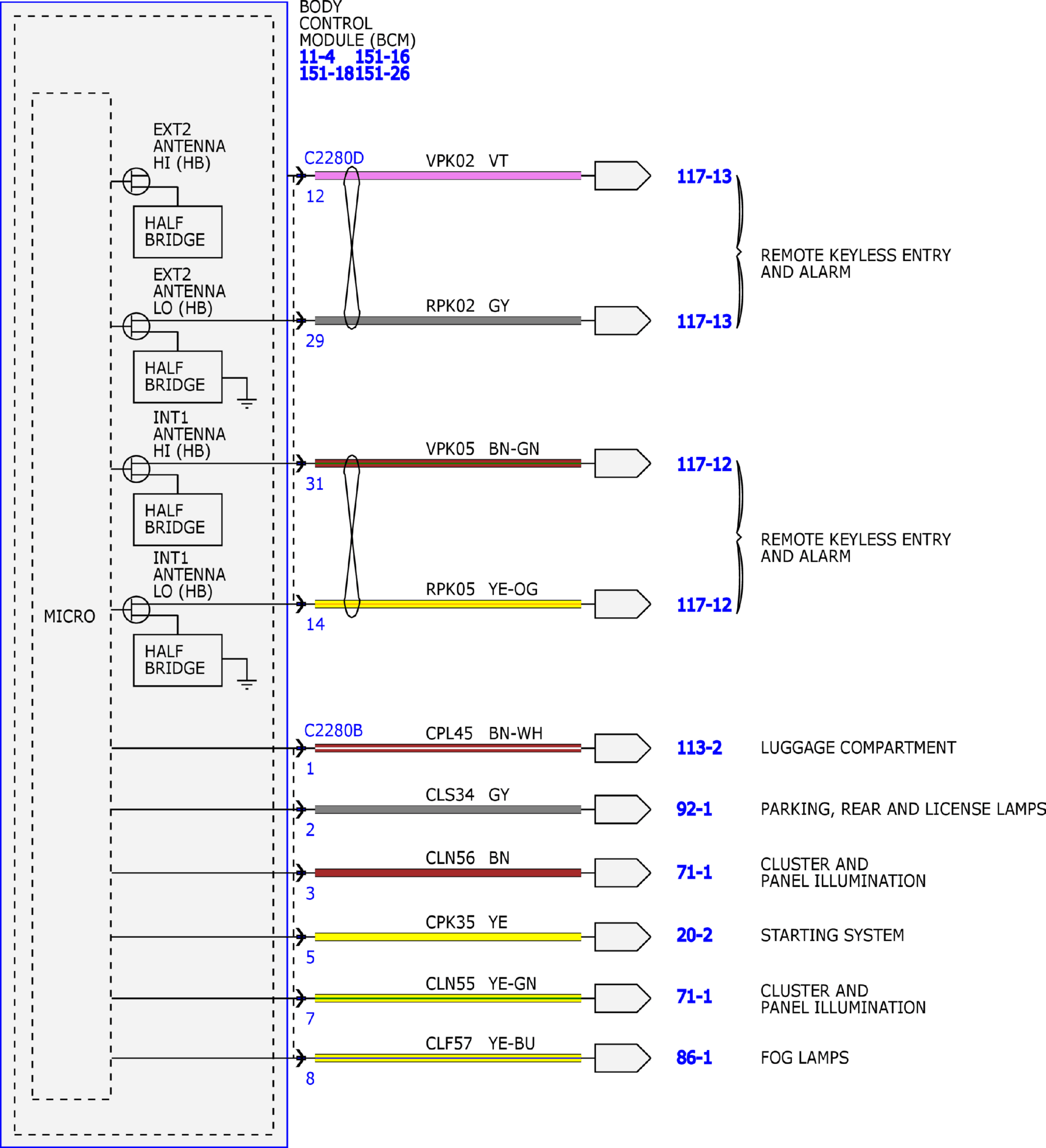

Fig 31: Power Distribution Wiring Diagram (31 of 40)

GFDW57573

Courtesy of FORD MOTOR COMPANY

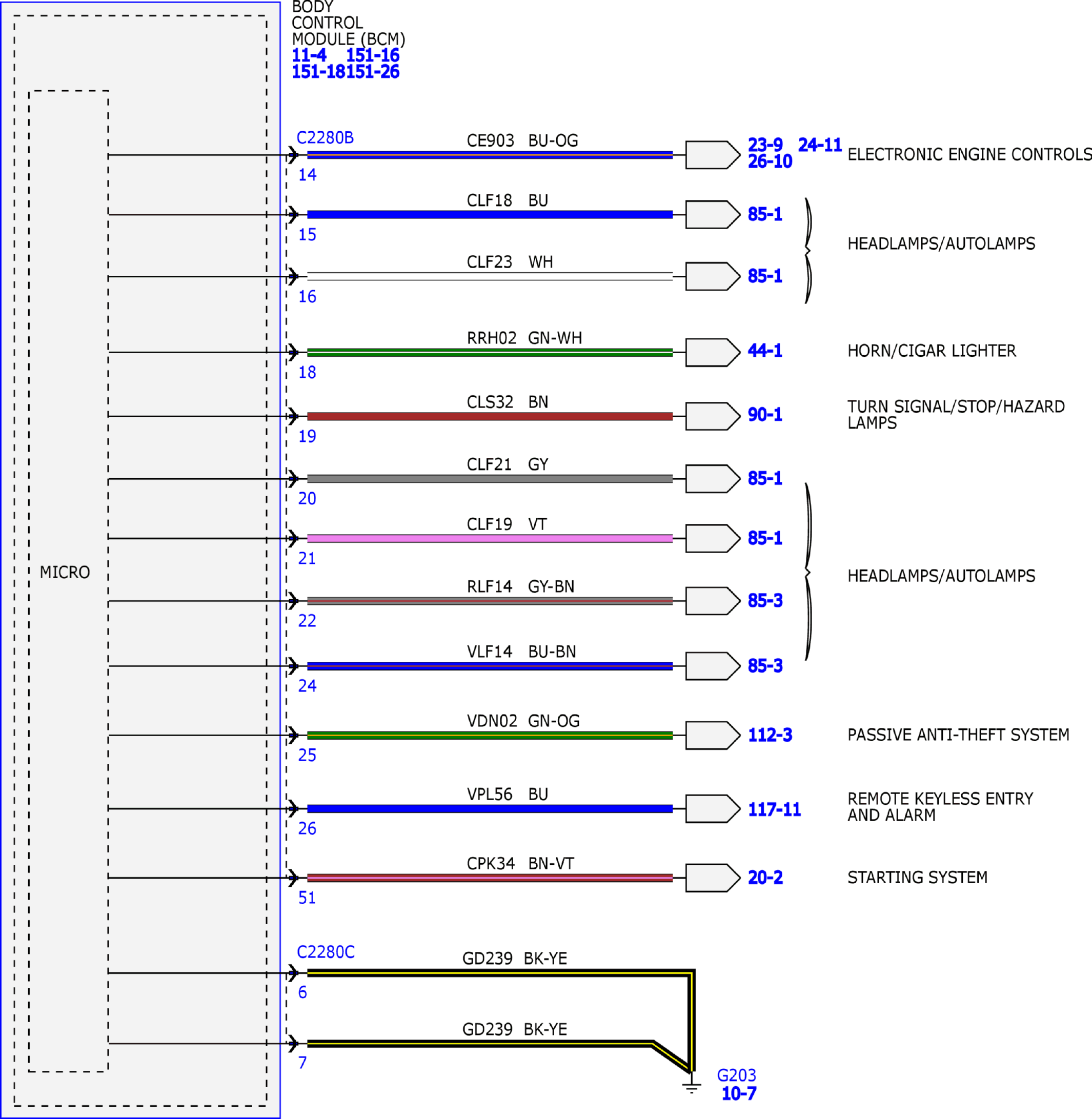

Fig 32: Power Distribution Wiring Diagram (32 of 40)

GFDW57574

Courtesy of FORD MOTOR COMPANY

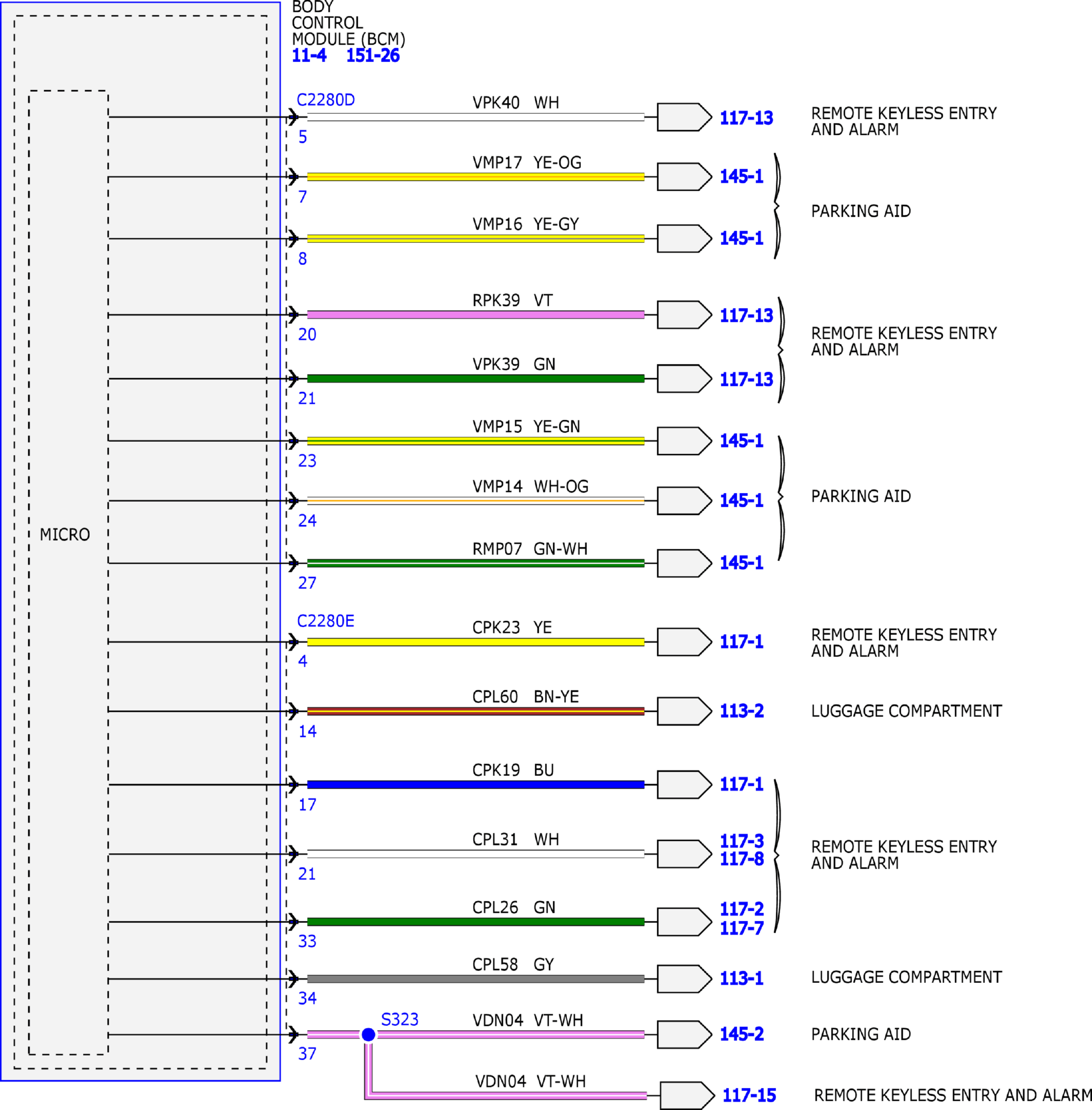

Fig 33: Power Distribution Wiring Diagram (33 of 40)

GFDW57575

Courtesy of FORD MOTOR COMPANY

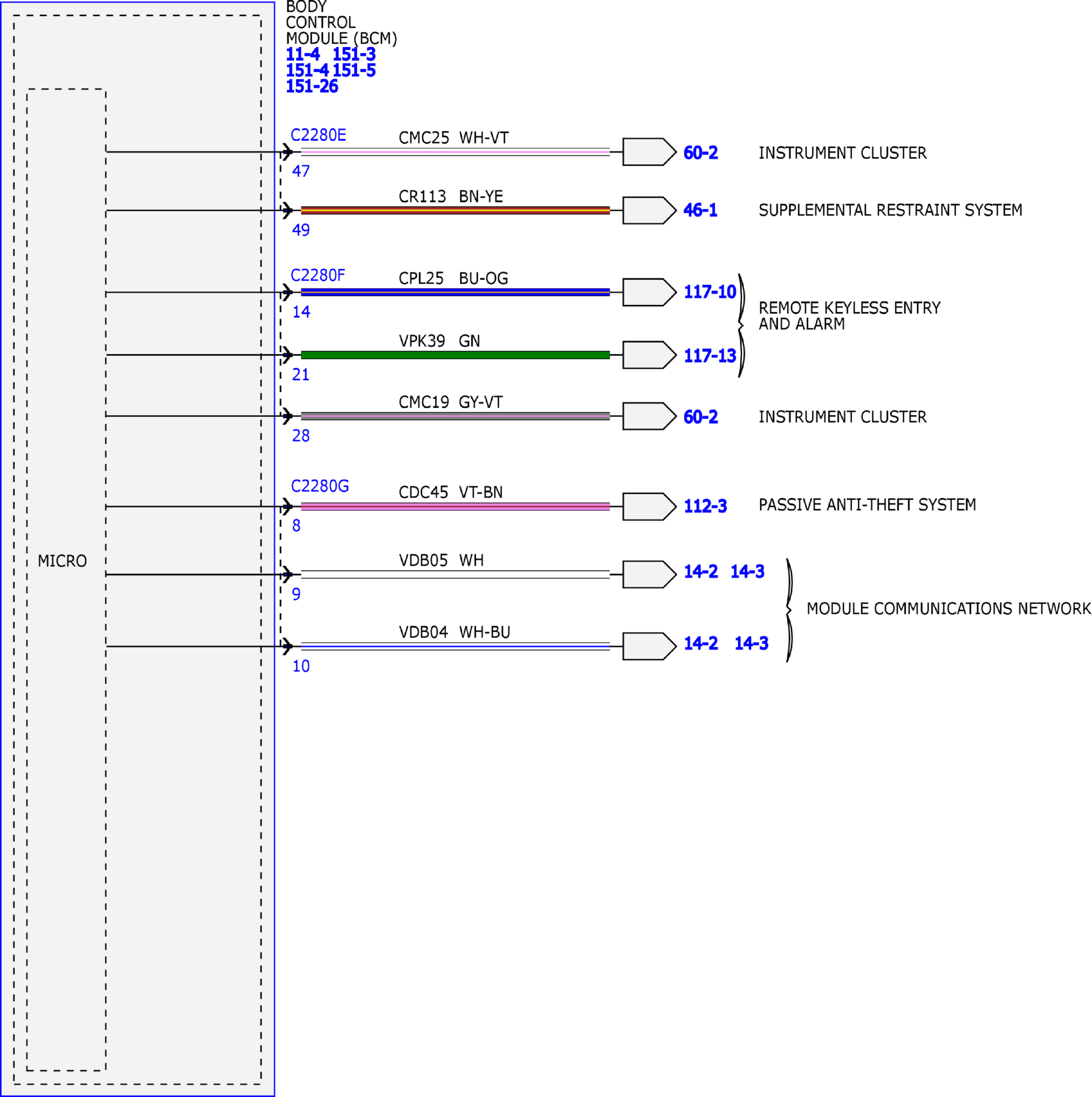

Fig 34: Power Distribution Wiring Diagram (34 of 40)

GFDW57576

Courtesy of FORD MOTOR COMPANY

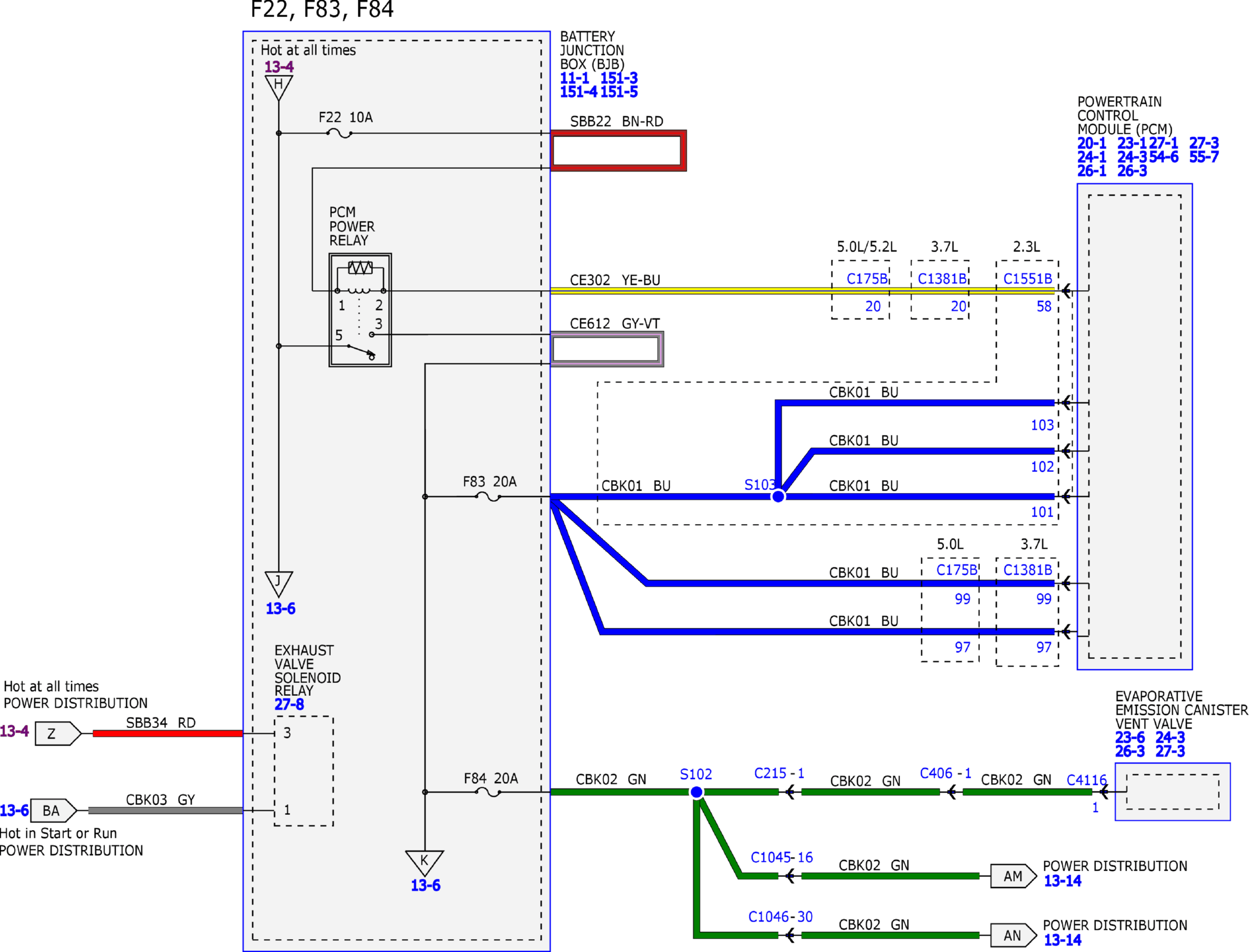

Fig 35: Power Distribution Wiring Diagram (35 of 40)

GFDW57577

Courtesy of FORD MOTOR COMPANY

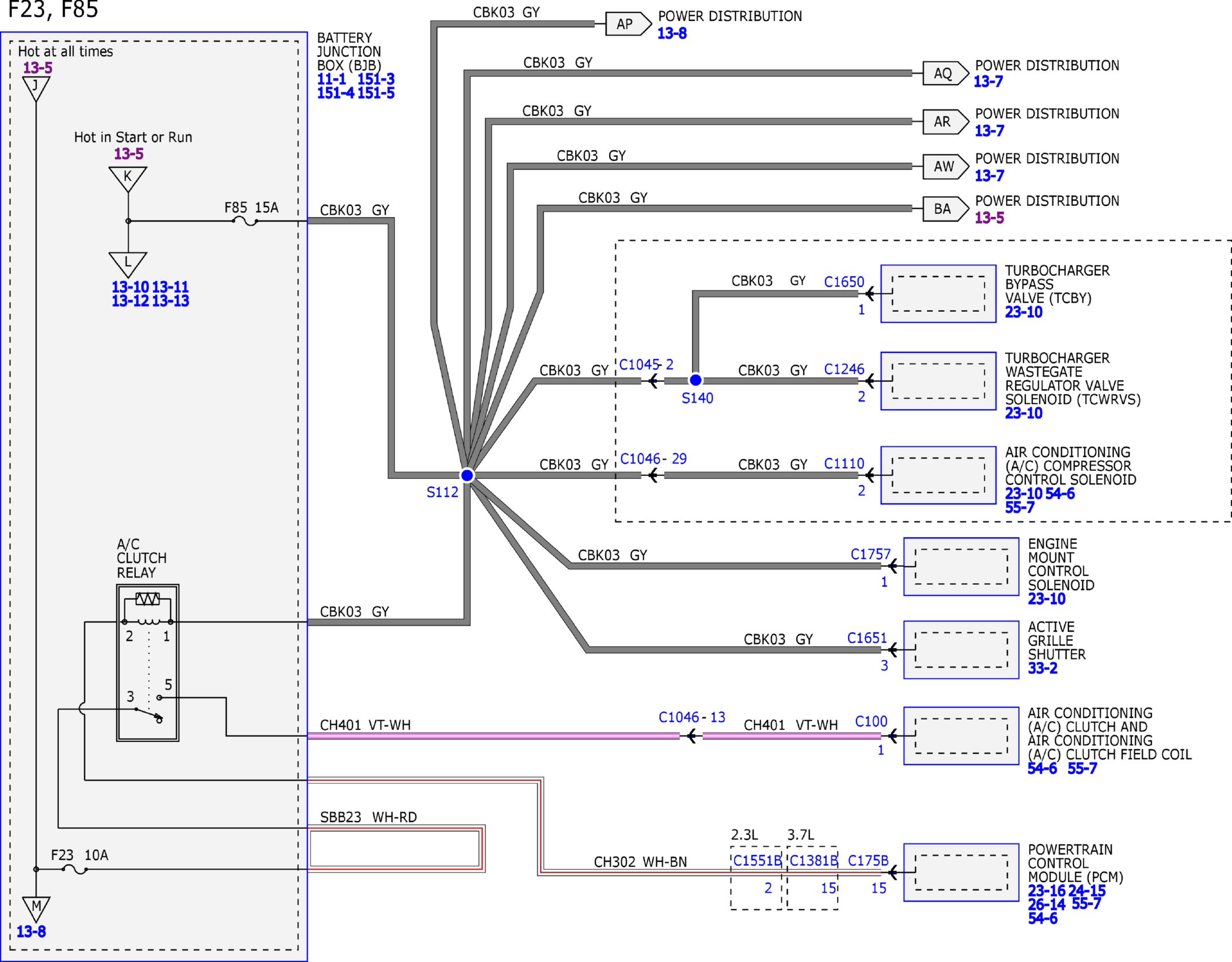

Fig 36: Power Distribution Wiring Diagram (36 of 40)

GFDW57578

Courtesy of FORD MOTOR COMPANY

Fig 37: Power Distribution Wiring Diagram (37 of 40)

GFDW57579

Courtesy of FORD MOTOR COMPANY

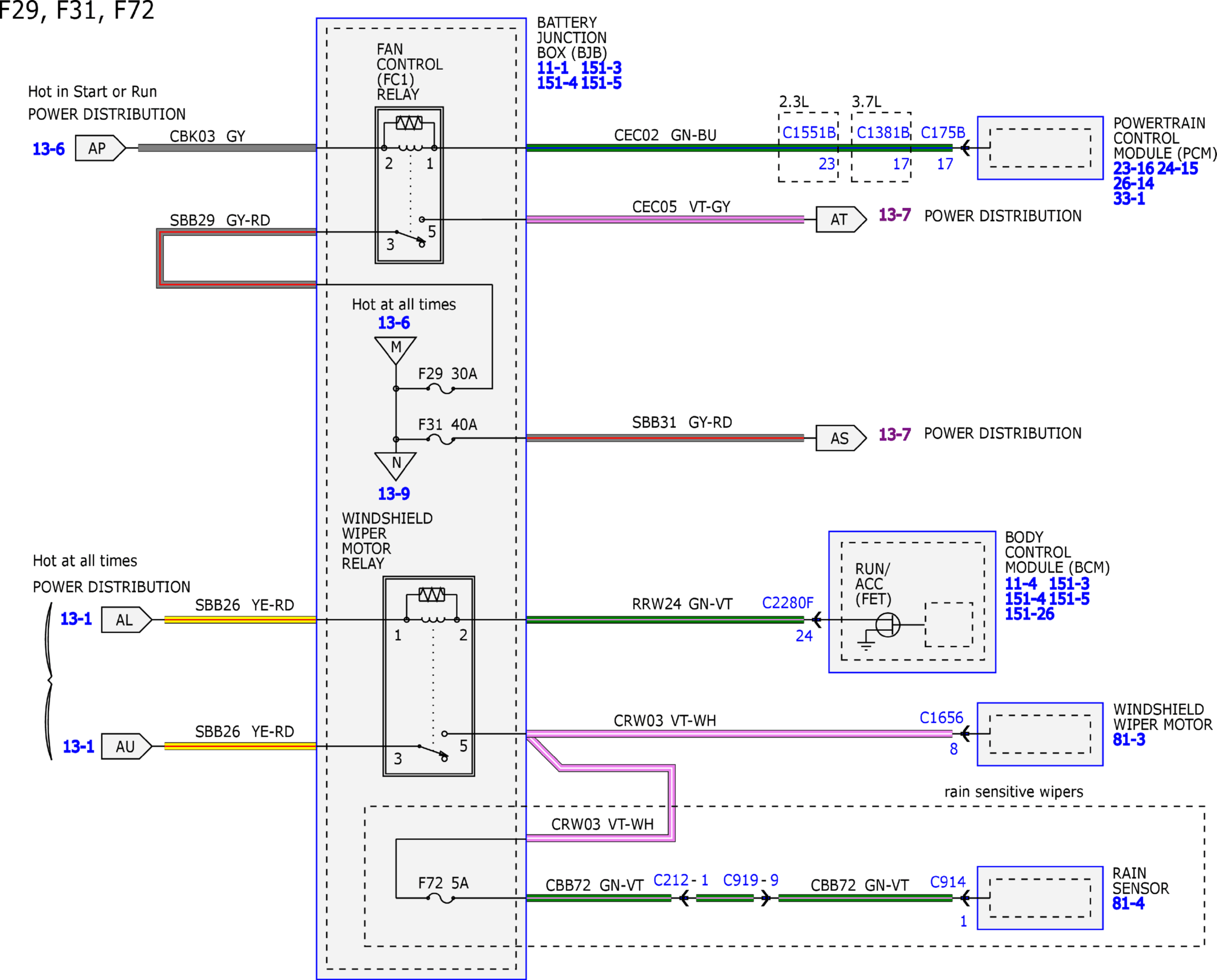

Fig 38: Power Distribution Wiring Diagram (38 of 40)

GFDW57580

Courtesy of FORD MOTOR COMPANY

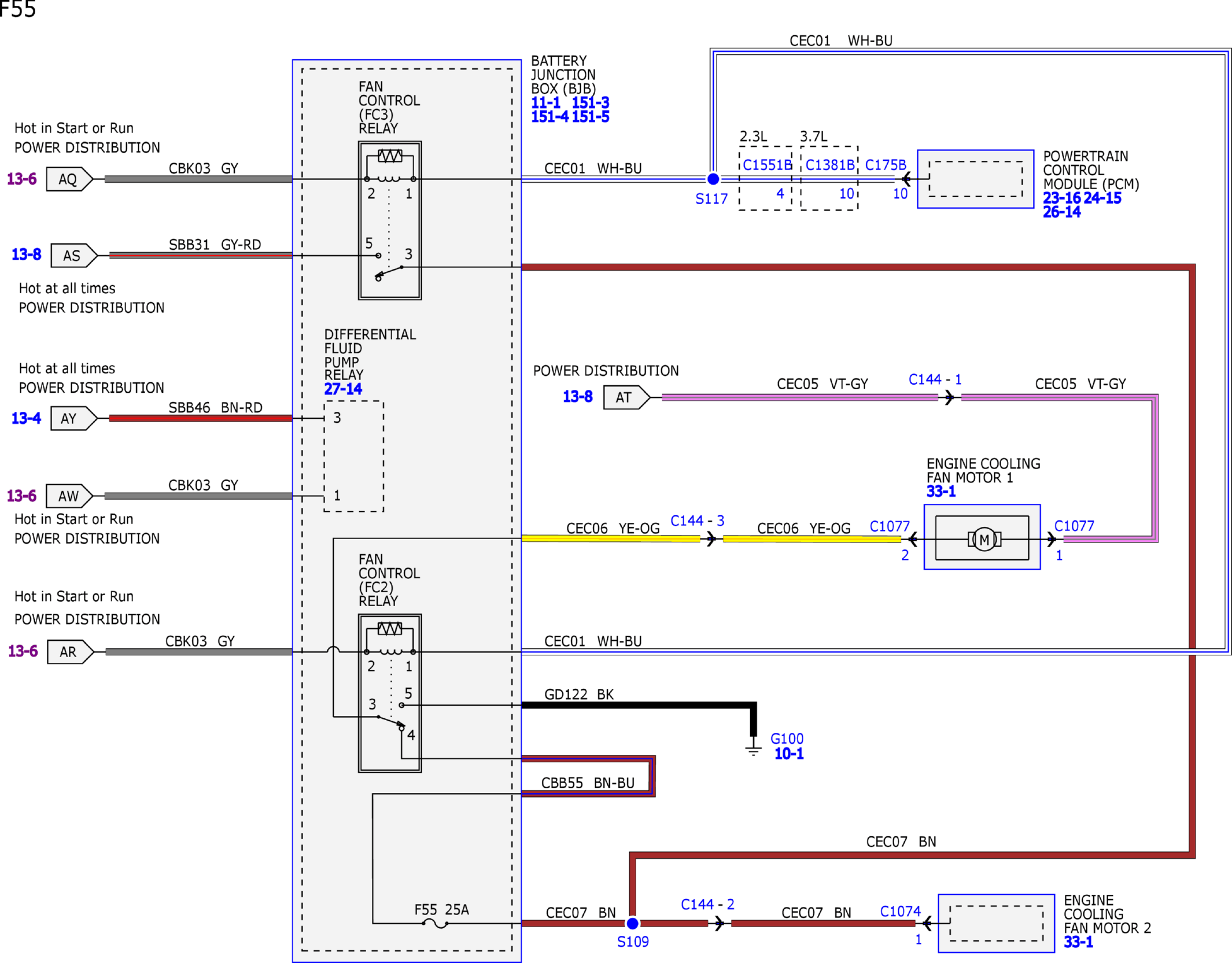

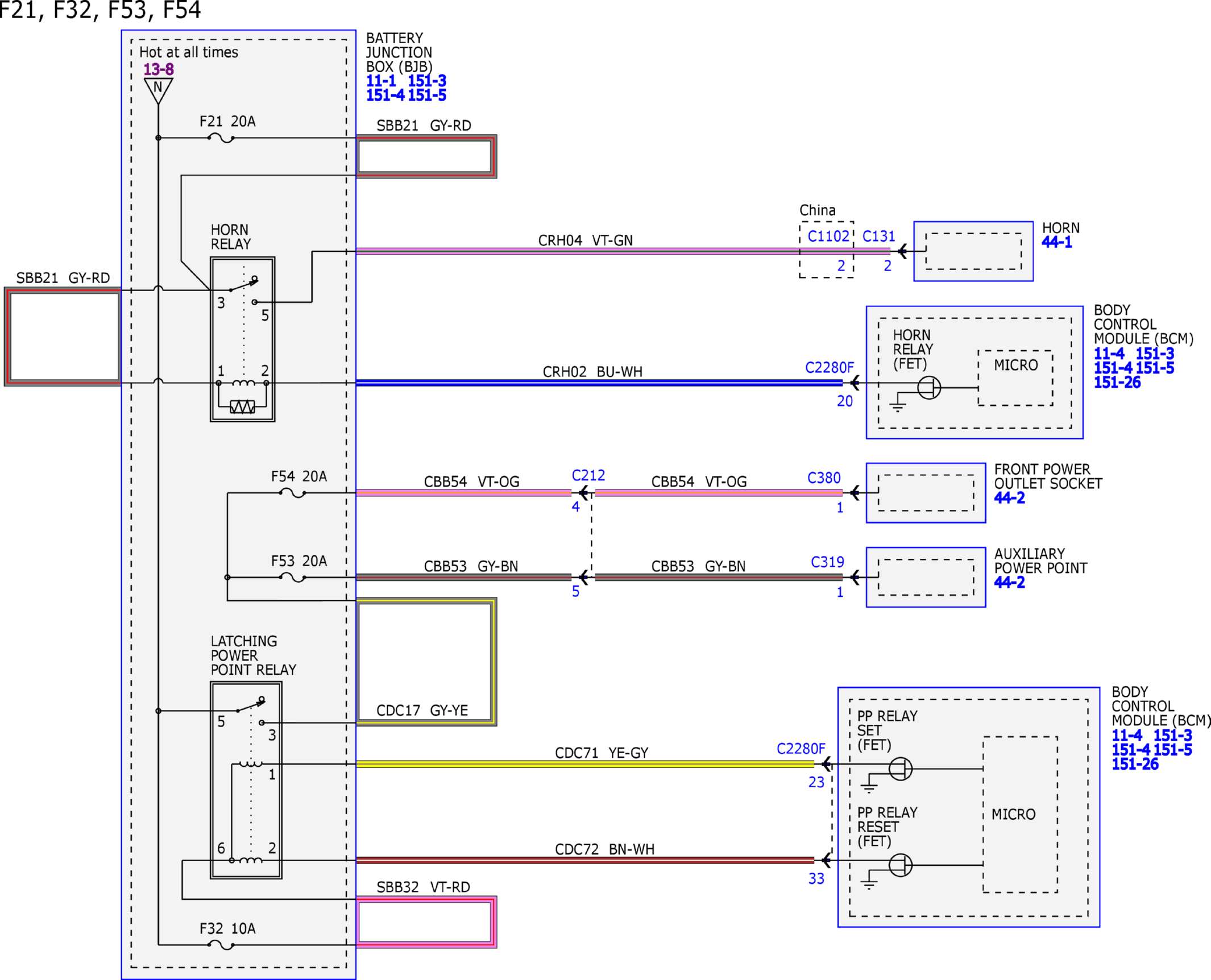

Fig 39: Power Distribution Wiring Diagram (39 of 40)

GFDW57581

Courtesy of FORD MOTOR COMPANY

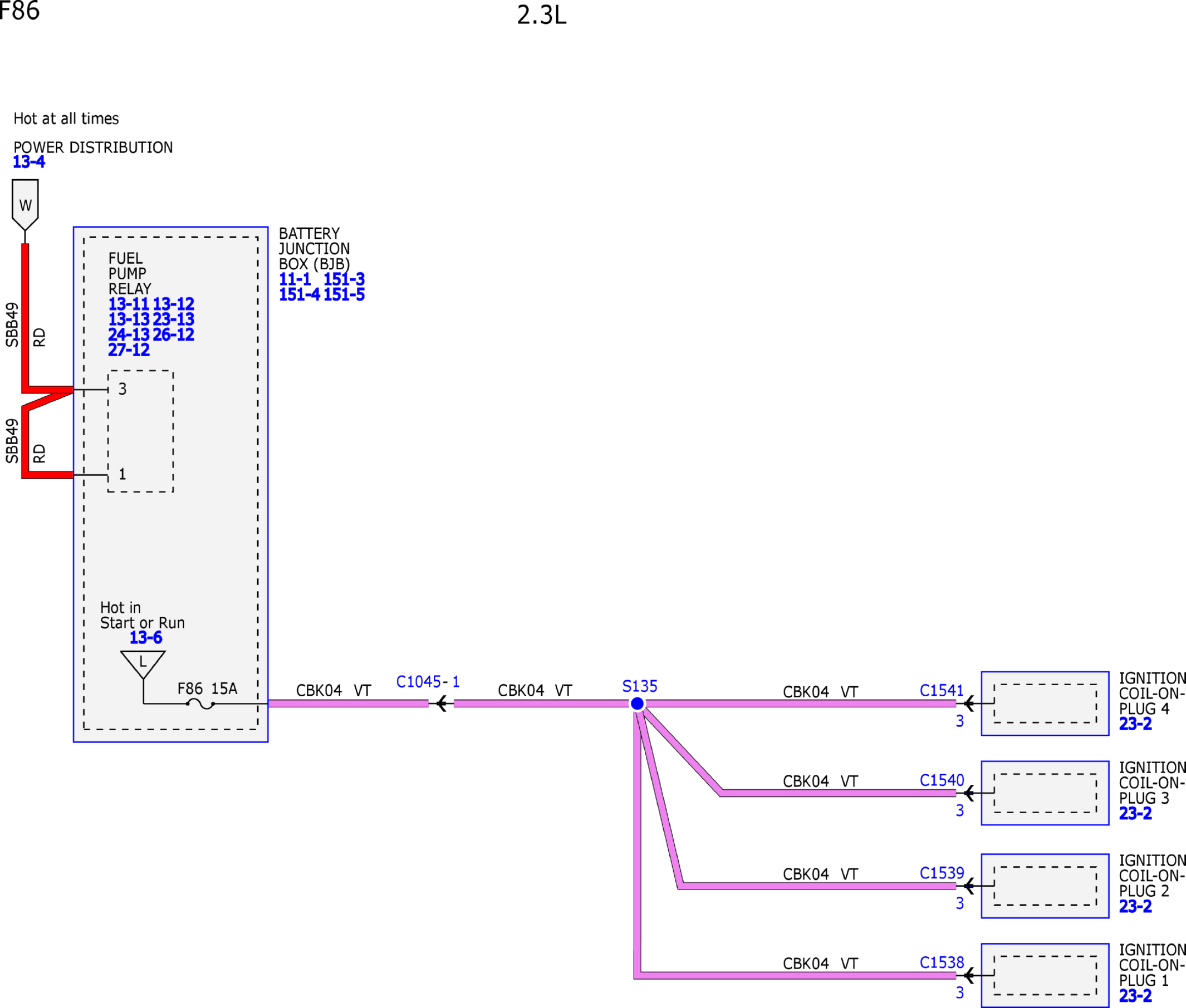

Fig 40: Power Distribution Wiring Diagram (40 of 40)

GFDW57582

Courtesy of FORD MOTOR COMPANY
