Repair procedures: Inspection
WARNING: This page is about a different car, the 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.
- Check belt for maintenance and abnormal wear of V-ribbed part. Replace if necessary.CAUTION:
- Do not bend, twist or turn the drive belt inside out.
- Do not allow the drive belt to come into contact with oil, water and steam.
- Visually check the belt for excessive wear, frayed cords etc.
If any defect has been found, replace the drive belt.

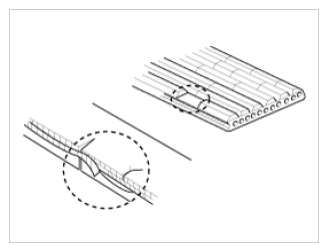

NOTE: Cracks on the rib side of a belt are considered acceptable. If the belt has chunks missing from the ribs, it should be replaced.
