Connector Repair Procedures

WARNING: This page is about a different variant/trim than selected.

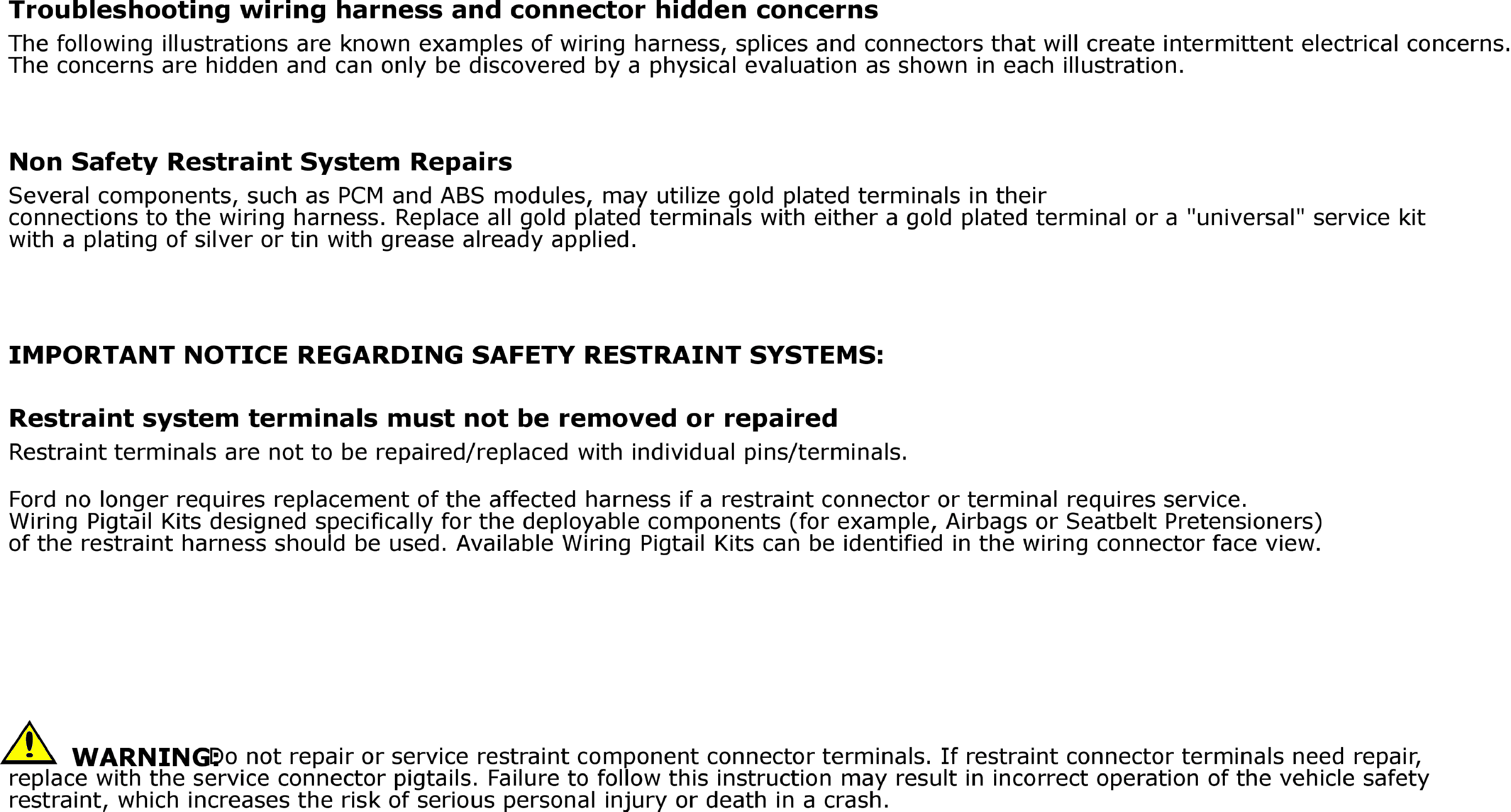

GFDW49993Courtesy of FORD MOTOR COMPANY

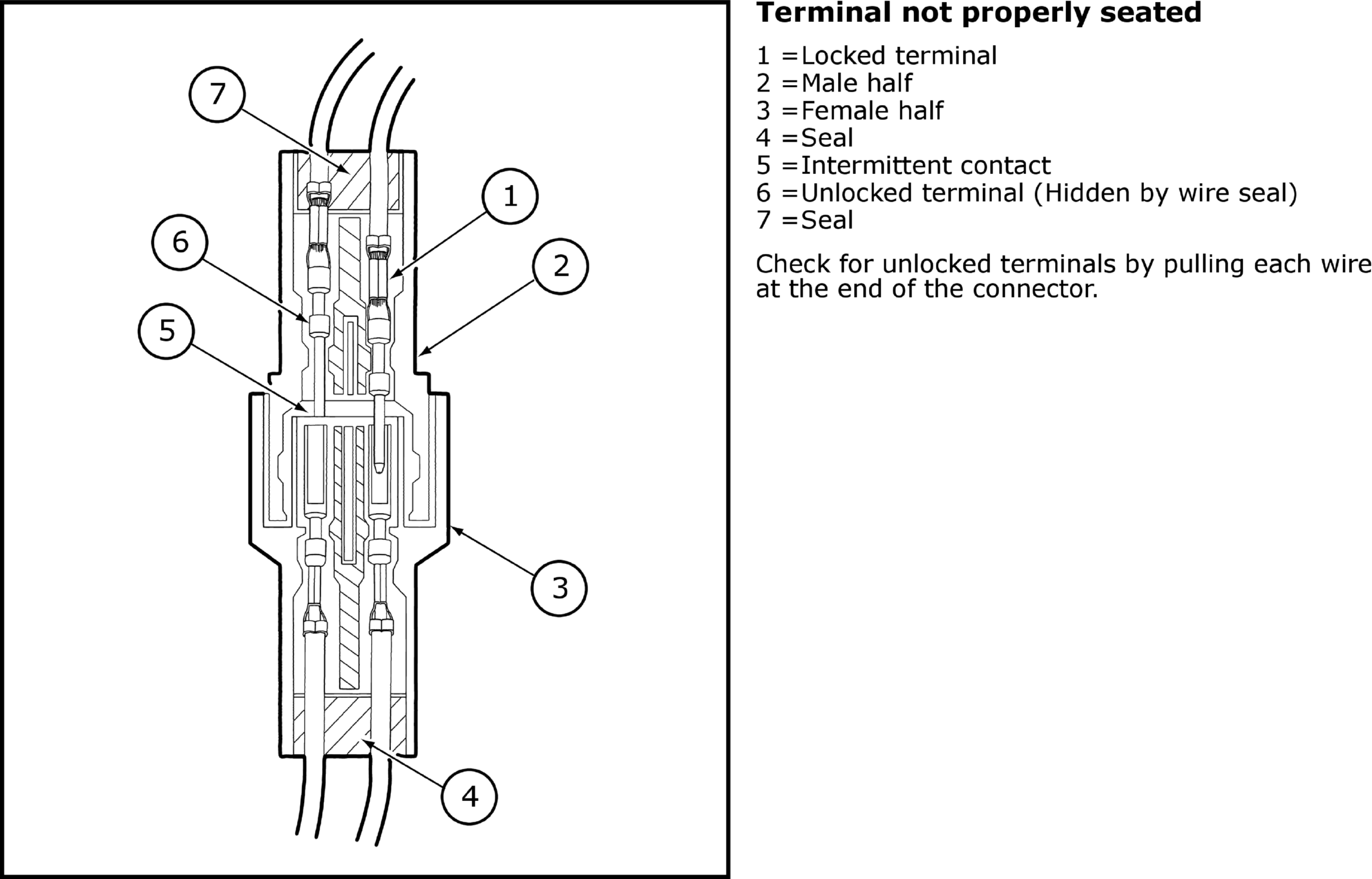

GFDW49994Courtesy of FORD MOTOR COMPANY

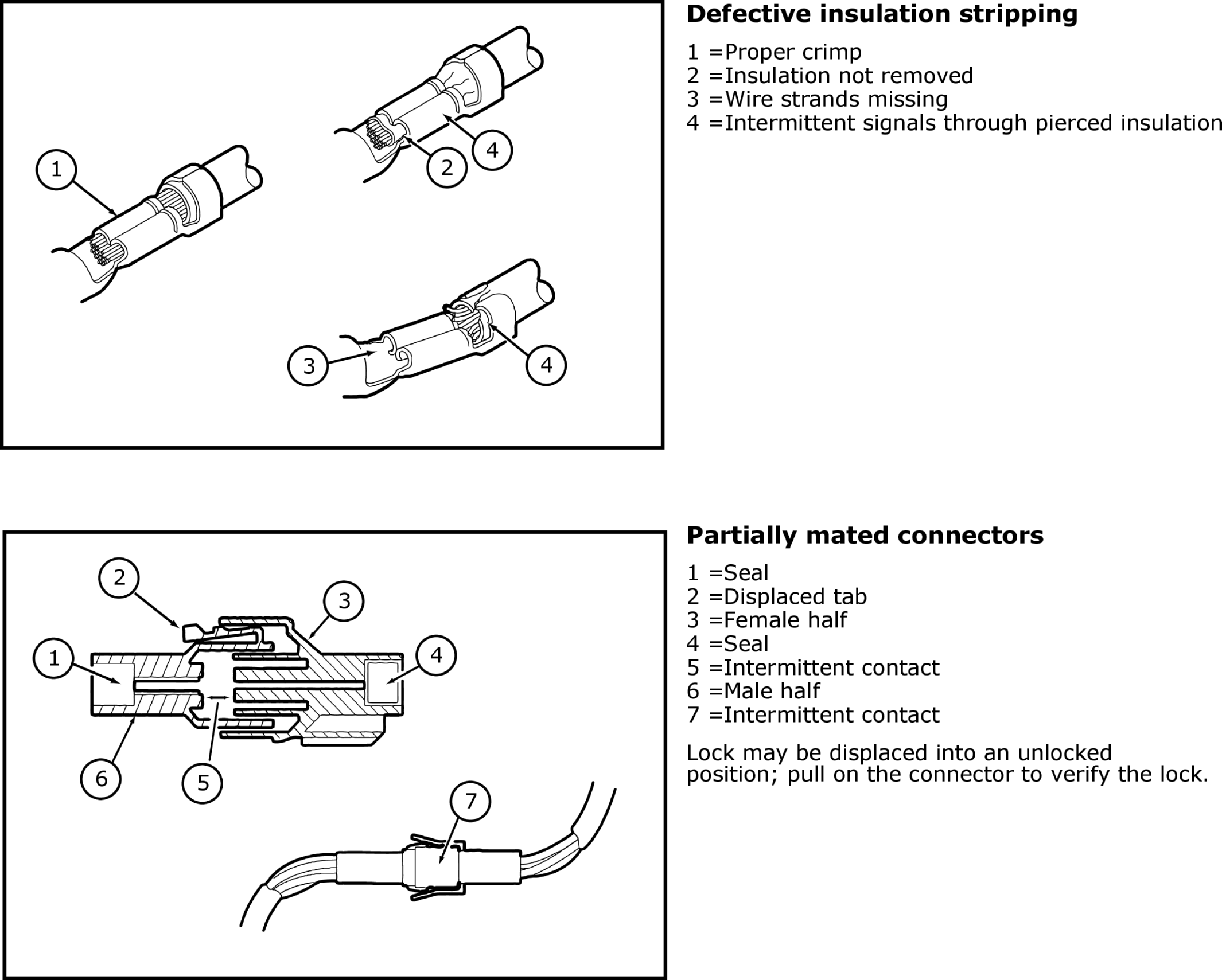

GFDW49995Courtesy of FORD MOTOR COMPANY

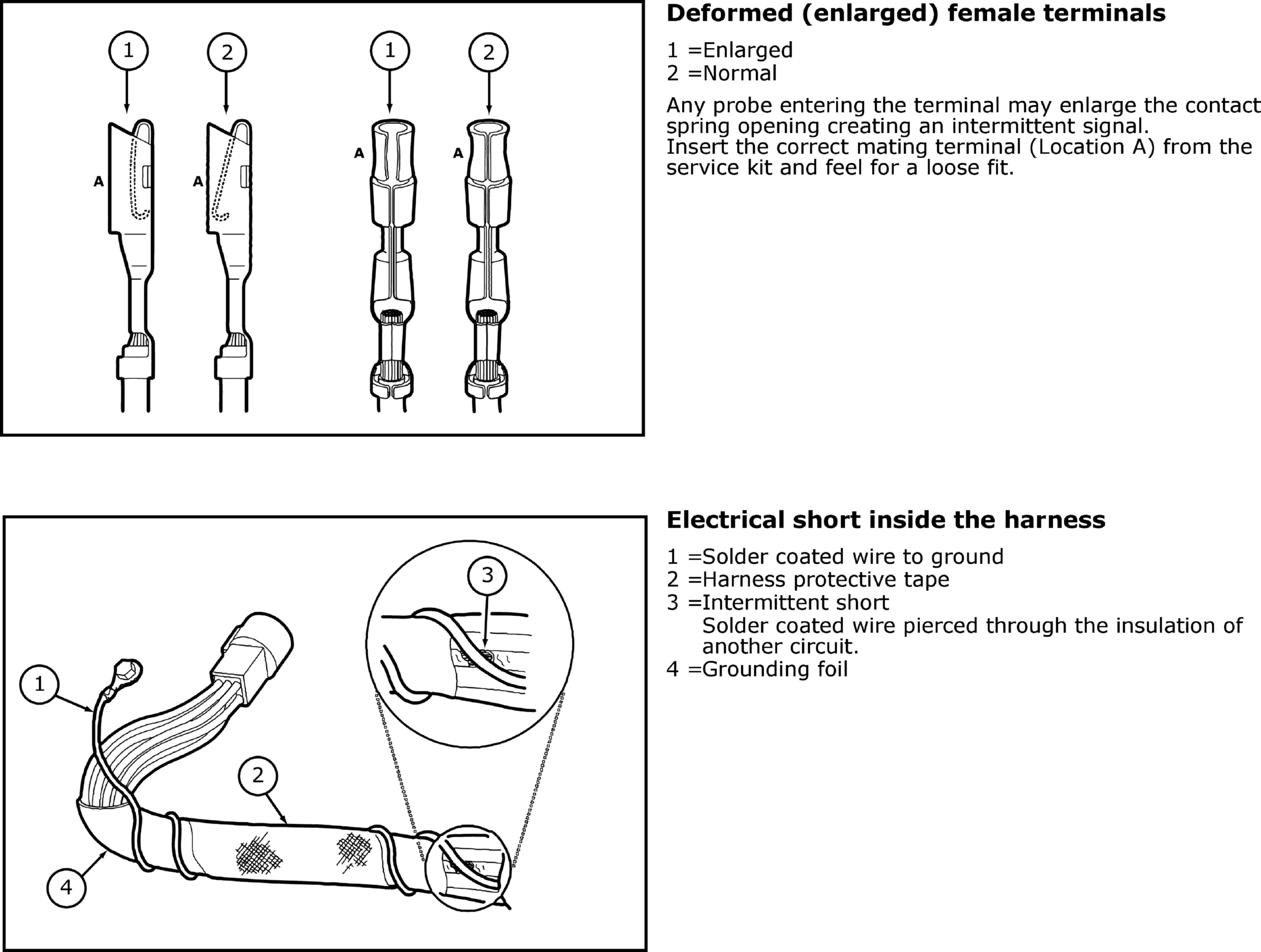

GFDW49996Courtesy of FORD MOTOR COMPANY

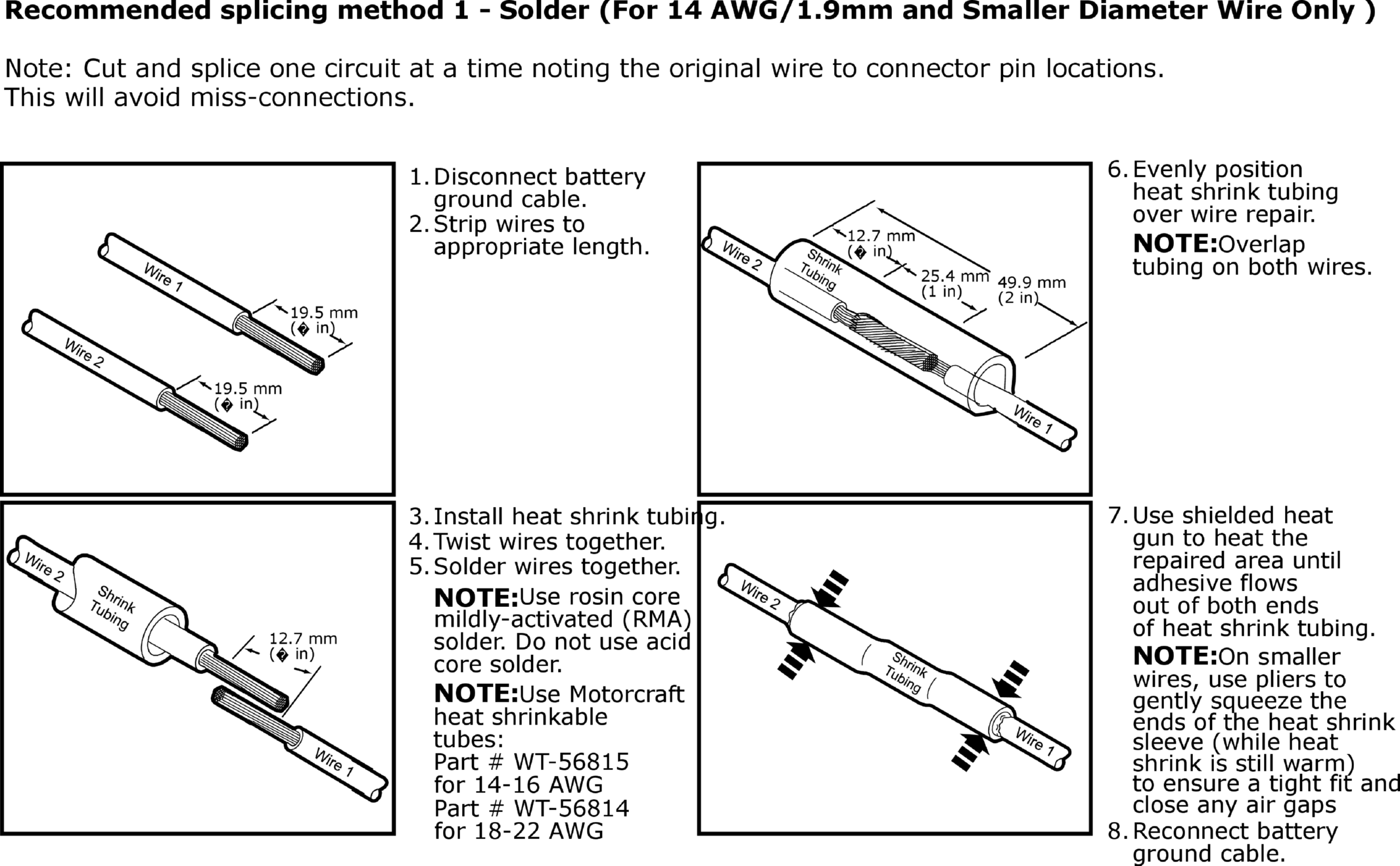

GFDW49997Courtesy of FORD MOTOR COMPANY

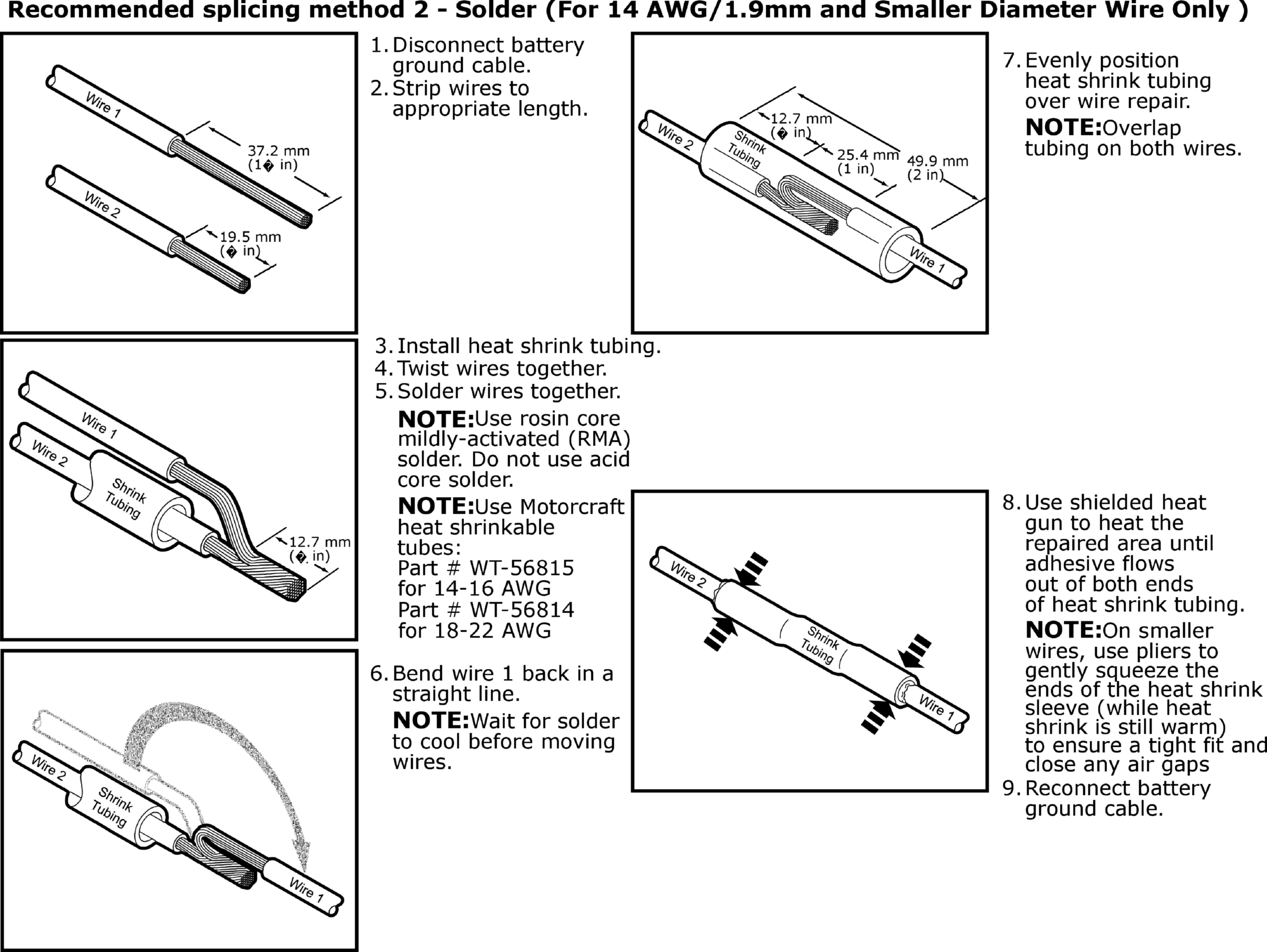

GFDW49998Courtesy of FORD MOTOR COMPANY

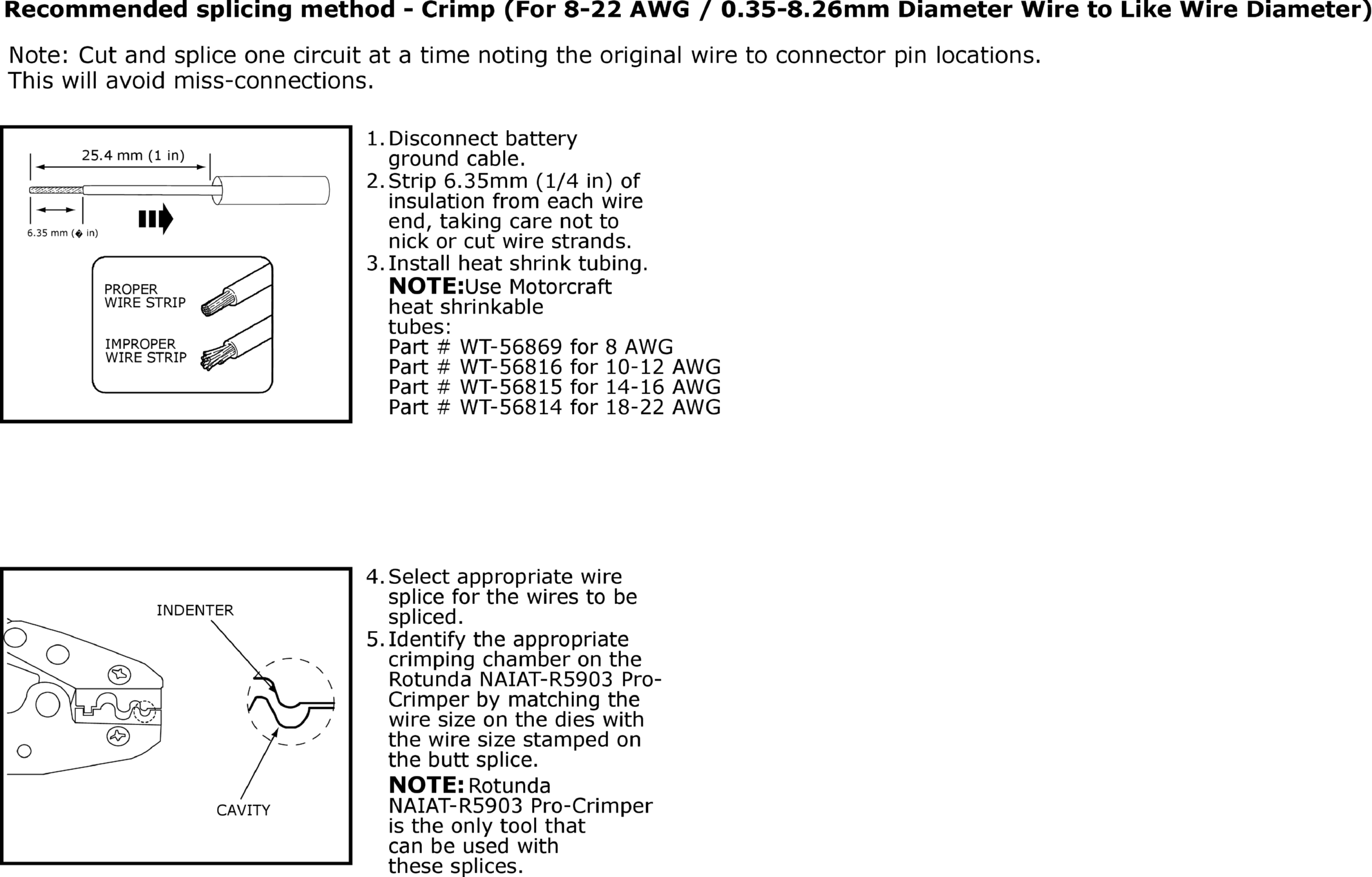

GFDW49999Courtesy of FORD MOTOR COMPANY

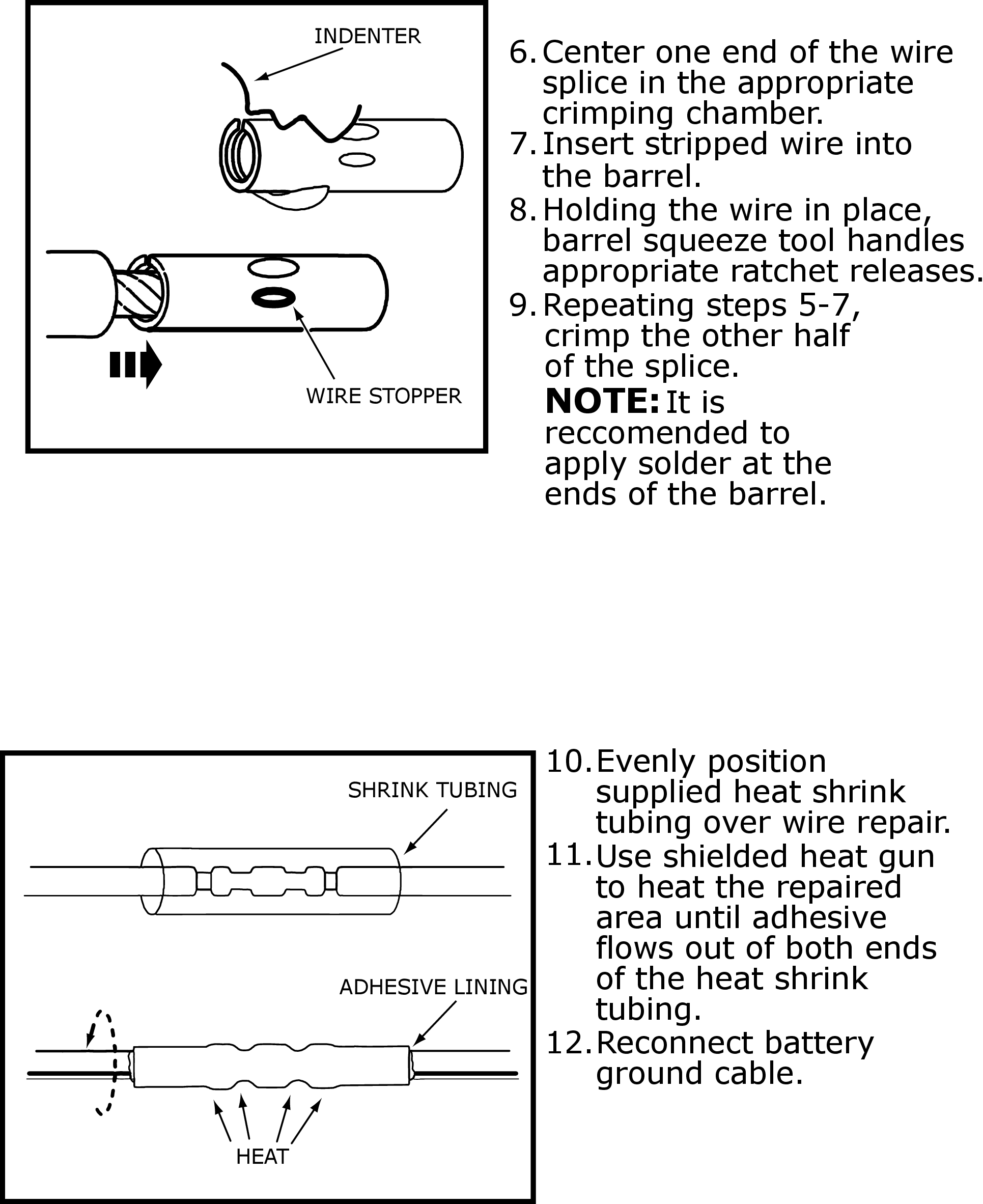

GFDW50000Courtesy of FORD MOTOR COMPANY

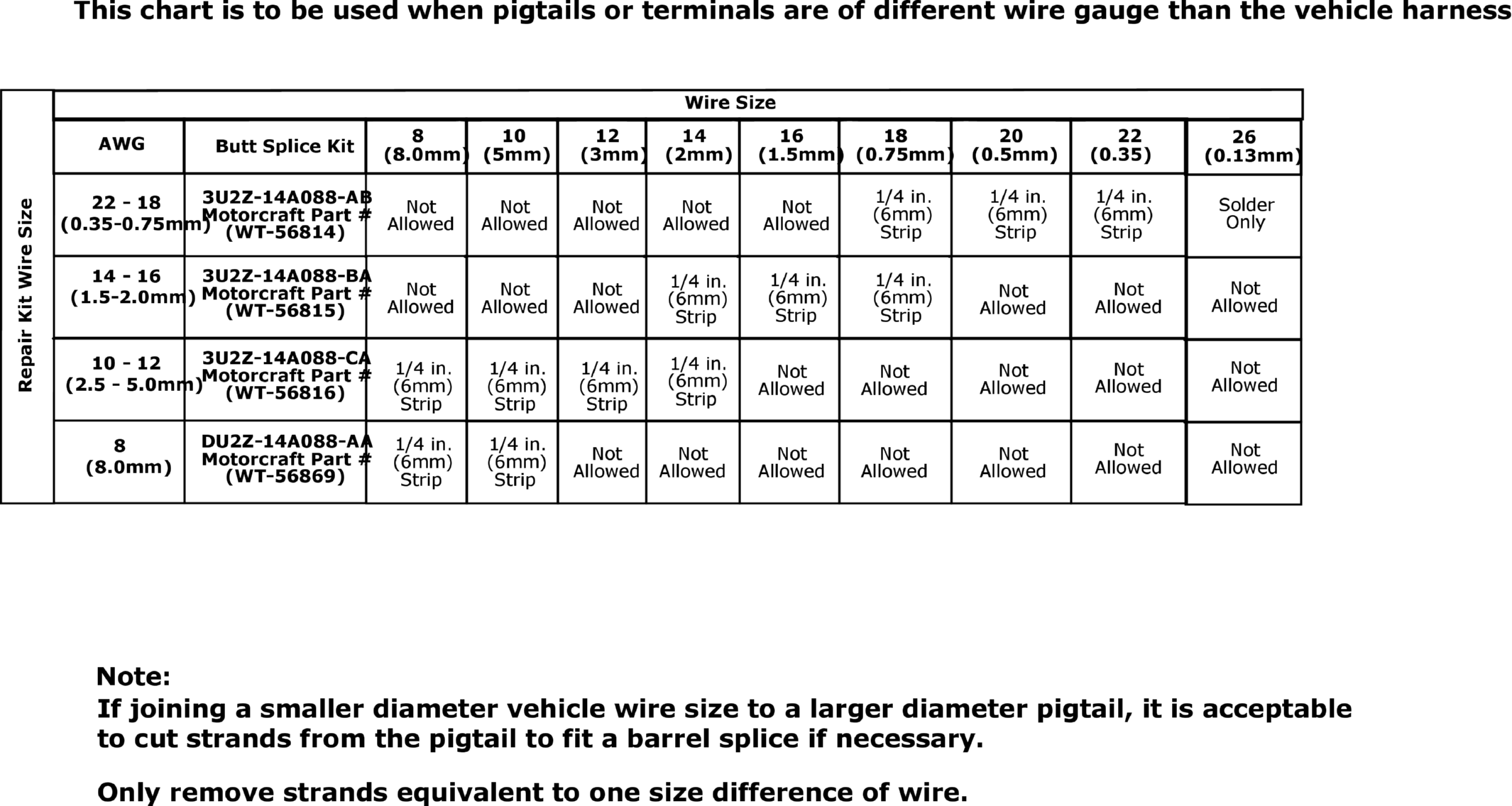

GFDW50001Courtesy of FORD MOTOR COMPANY
