Power Transfer Unit Vent: Installation
WARNING: This page is about a different variant/trim than selected.
- 1.

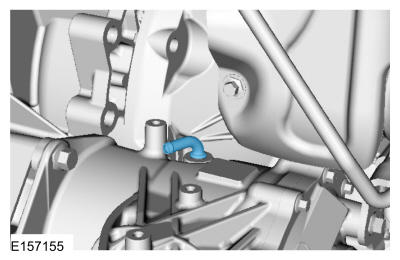

Install a new PTU vent.
 Courtesy of FORD MOTOR COMPANY
|
- 2.
Connect the PTU vent hose.
 Courtesy of FORD MOTOR COMPANY
|
- 3.
Install the PTU heat shield and heat shield bolts.Torque
: 97 lb.in (11 Nm)
 Courtesy of FORD MOTOR COMPANY
|
- 4.
If equipped. Install the underbody shield.
 Courtesy of FORD MOTOR COMPANY
|
