Front Strut and Spring Assembly: Installation
WARNING: This page is about a different variant/trim than selected.
- 1.

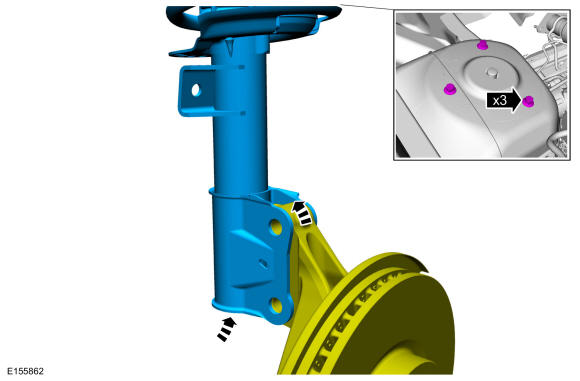

Position the front strut and spring assembly and install the new front strut and spring assembly upper bolts.Torque
: 26 lb.ft (35 Nm)
- 2.
Install the cowl panel grille. Refer to: Cowl Panel Grille .
- 3.

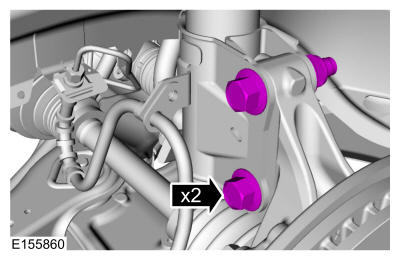

Install the new front strut and spring assembly-to-wheel knuckle bolts and nuts.Torque
: 173 lb.ft (235 Nm)
- 4.

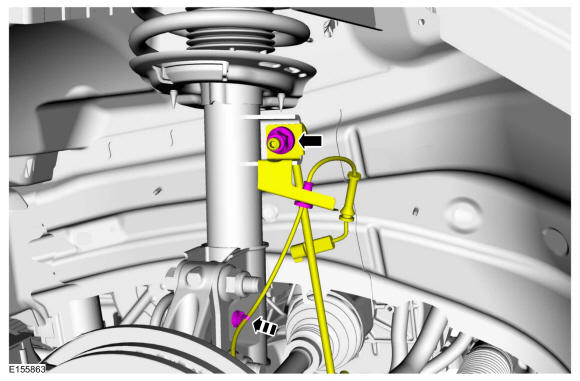

Position the front stabilizer bar link and install the new front stabilizer bar link upper nut. Position and clip the wheel speed sensor harness.Torque
: 85 lb.ft (115 Nm)
- 5.
Position the brake hose and install the brake hose bracket bolt.Torque
: 159 lb.in (18 Nm)
- 6.
Install the wheel and tire. Refer to: Wheel and Tire .
- 7.
Check and if necessary adjust front camber. Refer to: Front Camber Adjustment .
