Side Obstacle Detection Control Module: Removal
WARNING: This page is about a different variant/trim than selected.
WARNING:
Before beginning any service procedure in this service information, refer to Safety Warnings in GENERAL INFORMATION (EXCEPT HYBRID)
. Failure to follow this instruction may result in serious personal injury.
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
The LH side is shown in illustration, the RH side is similar.
- 1.NOTE: If installing a new module, it is necessary to upload the module configuration information to the diagnostic scan tool prior to removing the module. This information must be downloaded into the new module after installation.
If using the IDS scan tool, make sure the software level is at 73.02 or higher. Upload the module configuration information from the SODL or SODR into the diagnostic scan tool by following the diagnostic scan tool on screen instructions. For additional information, REFER to: Module Configuration - System Operation and Component Description .
- 2.
Remove the rear wheel and tire assembly. REFER to: Wheel and Tire .
- 3.

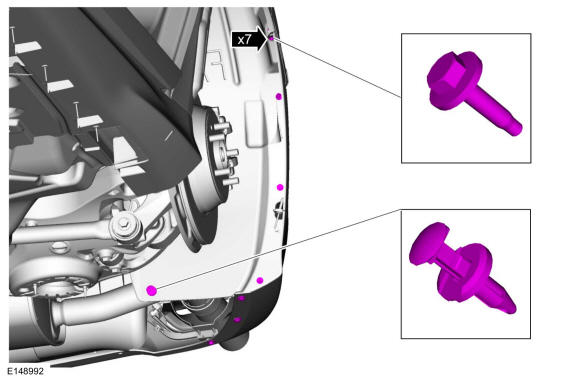

Remove the inner wheel liner to rear bumper cover pin-type retainer and the bolts.Torque
: 13 lb.in (1.5 Nm)
- 4.

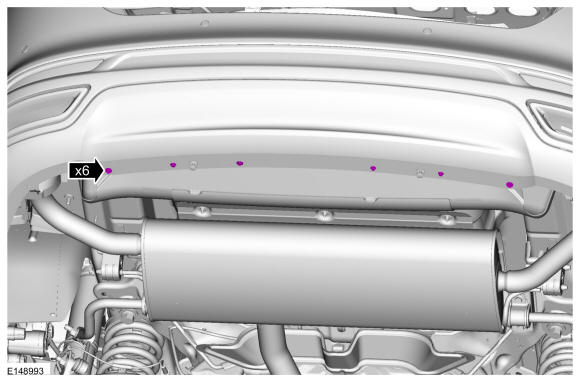

Remove the lower rear bumper cover to the body screws.Torque
: 13 lb.in (1.5 Nm)
- 5.
Remove the rear lamp assembly. REFER to: Rear Lamp Assembly - 4-Door .
- 6.

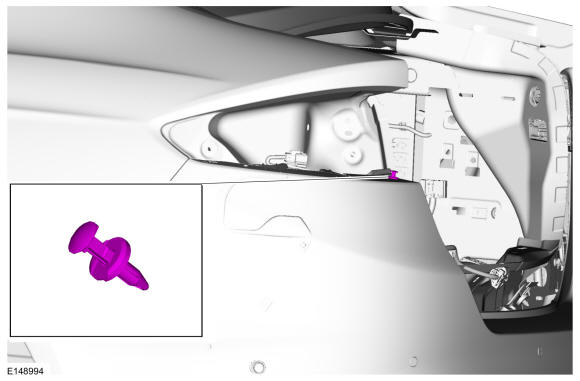

Remove the pin-type retainer.
- 7.

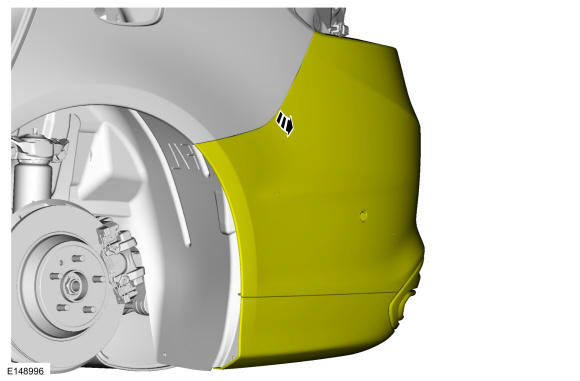

Release the rear bumper cover from the rear bumper cover brackets and position the rear bumper cover aside.
- 8.

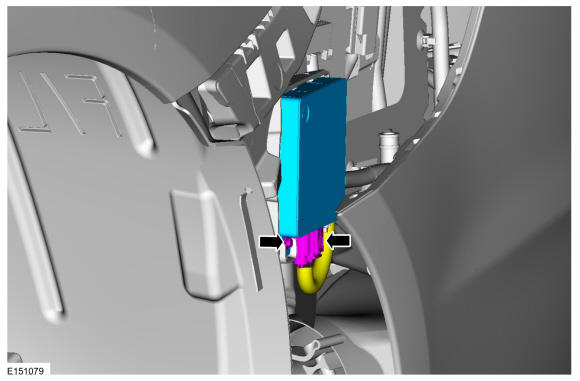

Remove the SODL or SODR.- Disconnect the SODL or SODR electrical connector.
- Remove the SODL or SODR screws.
- 9.

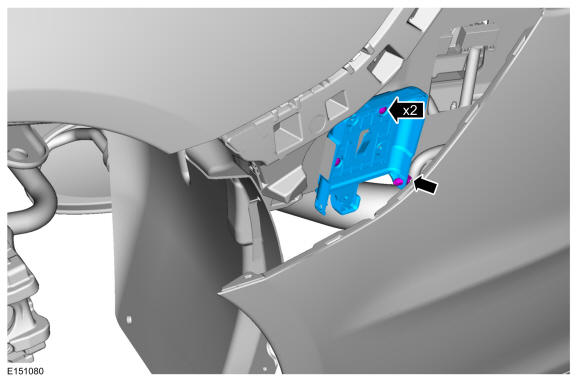

- Disconnect the SODL or SODR bracket wiring harness retainer.
- Remove the screws and the SODL or SODR bracket.
