Head Up Display (HUD) Module: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- 1.WARNING: Before beginning any service procedure in this service information, refer to Safety Warnings in GENERAL INFORMATION (EXCEPT HYBRID) . Failure to follow this instruction may result in serious personal injury.
Refer to: Health and Safety Precautions .
- 2.

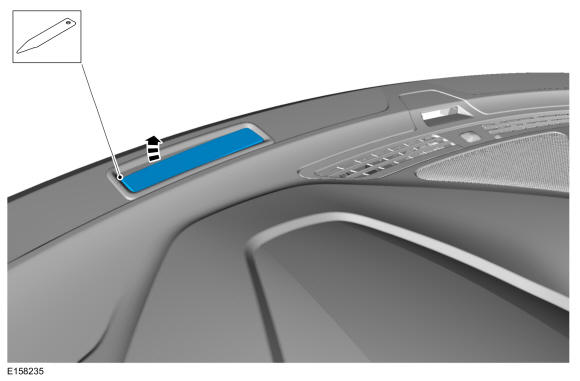

Using a non-marring tool, release the HUD tab and position the HUD aside.Use the General Equipment: Interior Trim Remover
- 3.

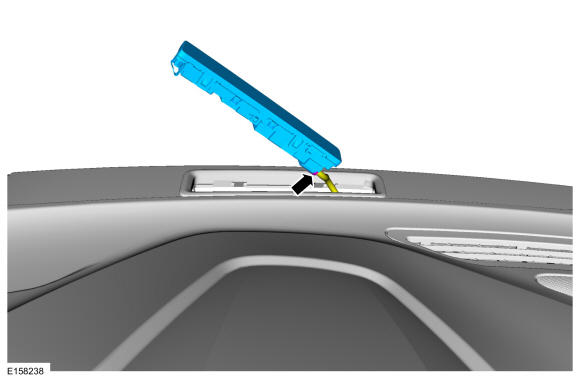

Disconnect the electrical connector and remove the HUD.
