Front Seat Climate Control Module [SCME]: Removal
WARNING: This page is about a different variant/trim than selected.
- 1.NOTE: This step is only necessary when installing a new component.NOTE: The PMI process must begin with the current SCME installed. If the current SCME does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair.
Using a diagnostic scan tool, begin the PMI process for the SCME following the on-screen instructions.
- 2.

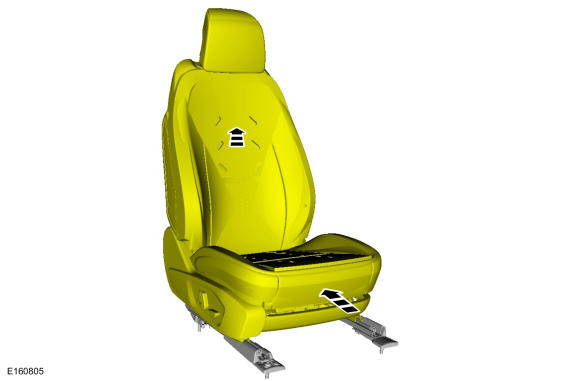

Position the front passenger seat to the full upward and full rearward positions.
- 3.

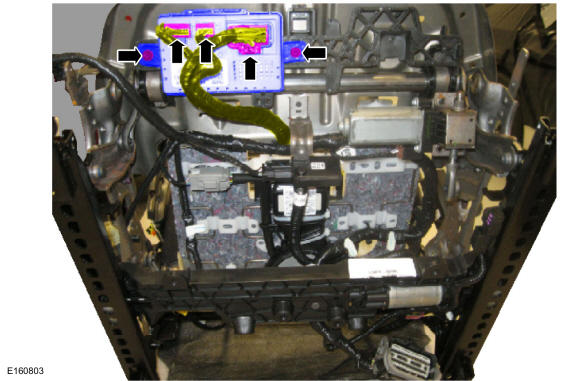

Remove the SCME.- Remove the screws.
- Release the locking wedges and disconnect the electrical connectors.
