Section 12 (OEM Ground Distribution (Except Hybrid)): Grounds

WARNING: This page is about a different variant/trim than selected.

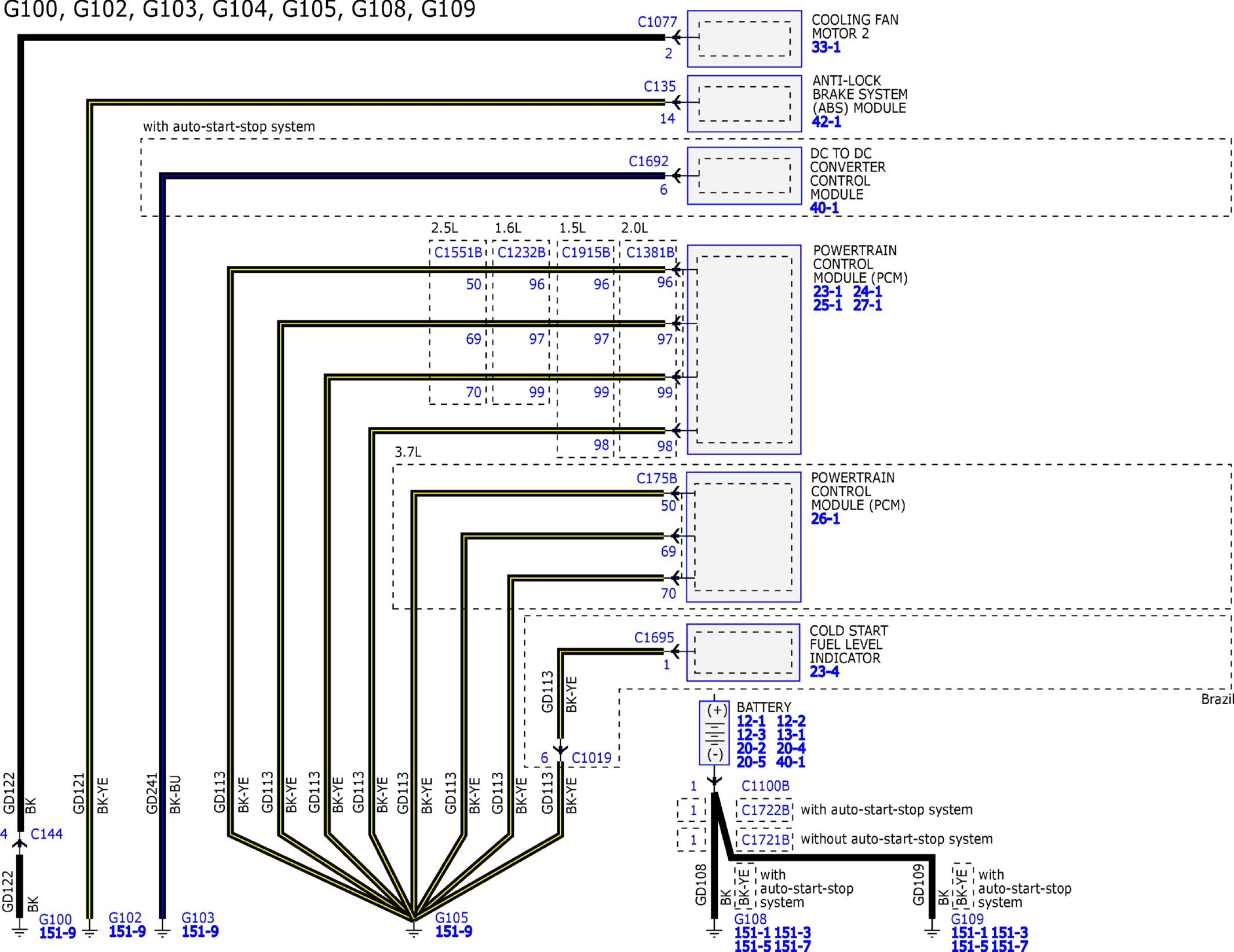

GFDW50015Courtesy of FORD MOTOR COMPANY

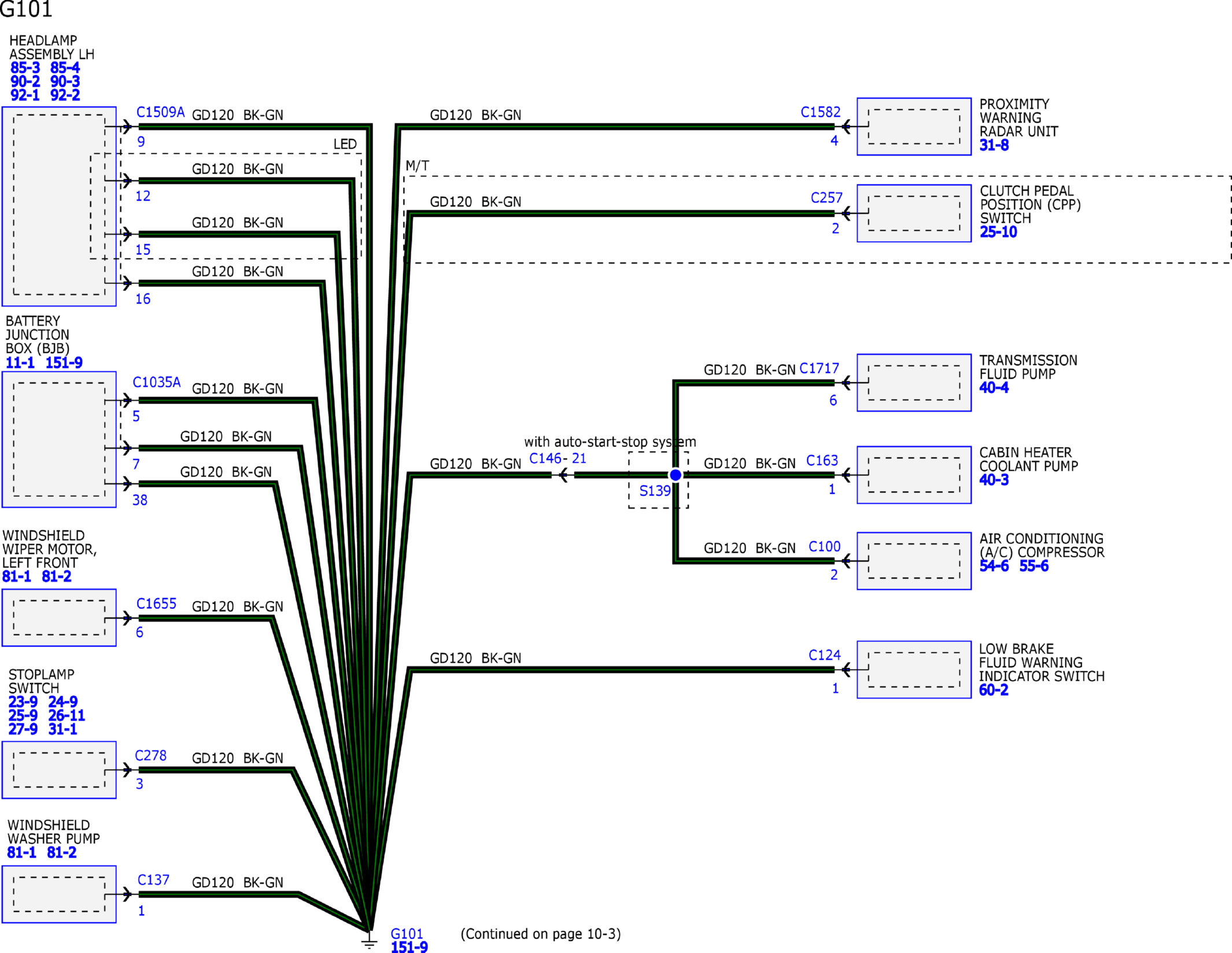

GFDW50016Courtesy of FORD MOTOR COMPANY

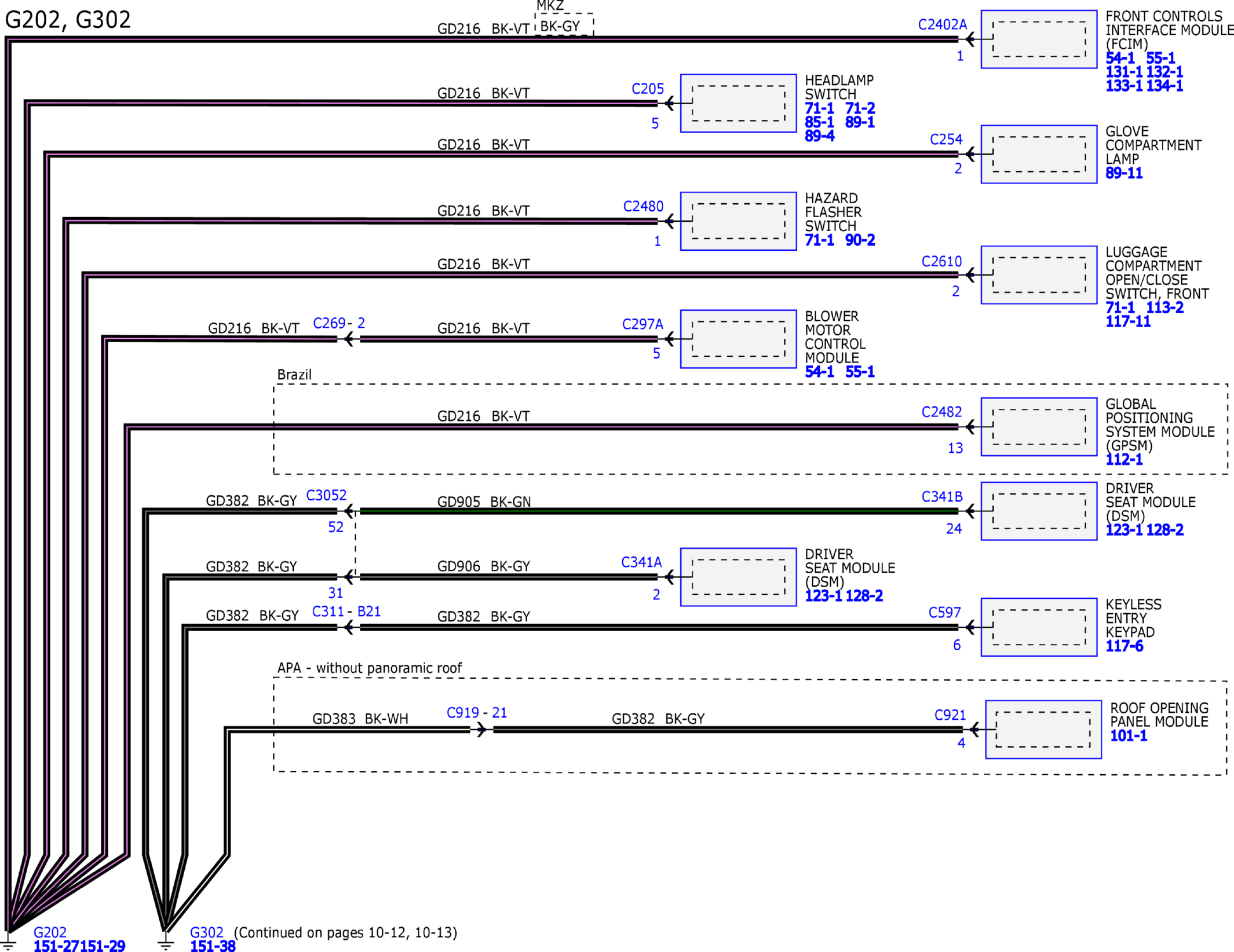

GFDW50017Courtesy of FORD MOTOR COMPANY

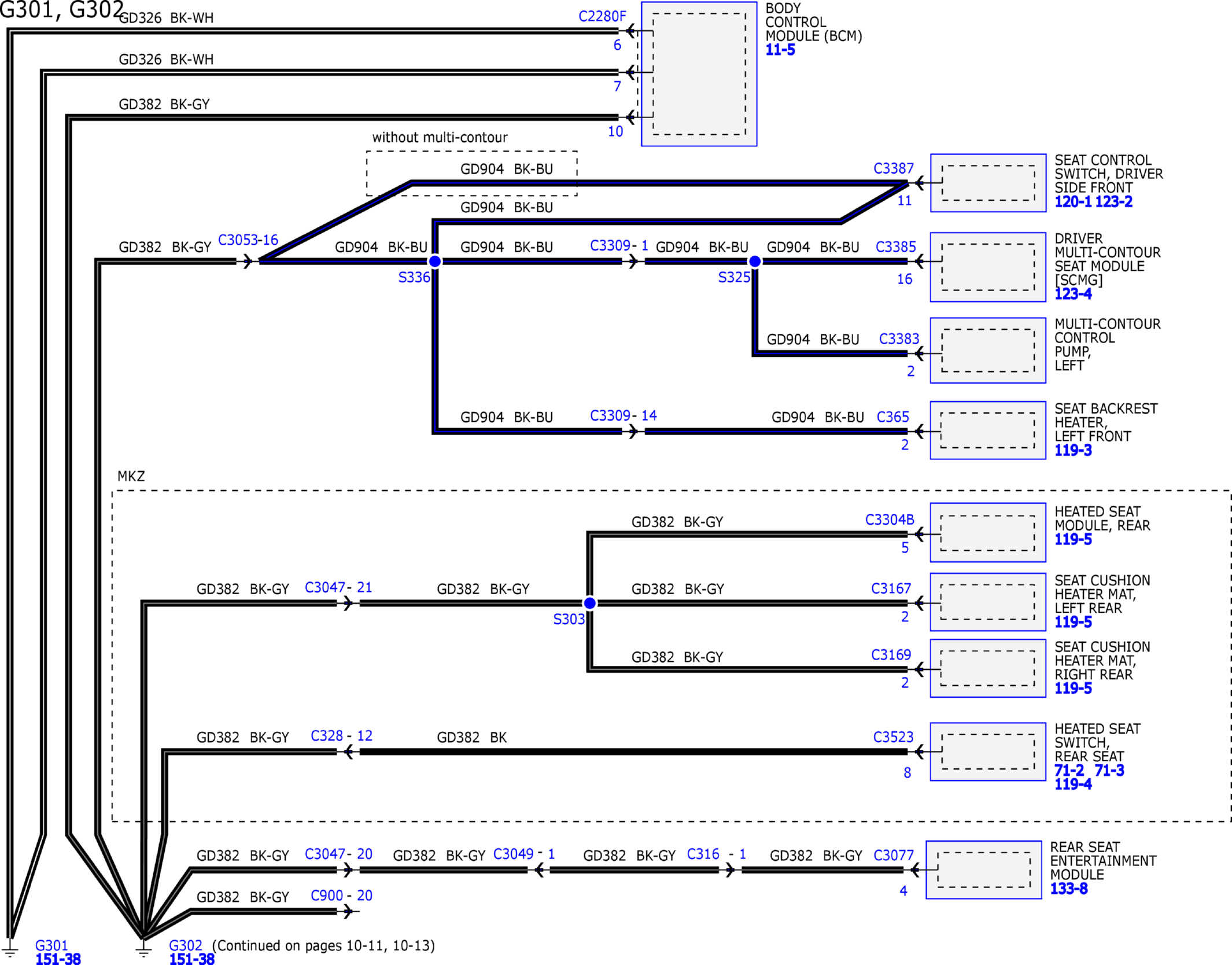

GFDW50018Courtesy of FORD MOTOR COMPANY

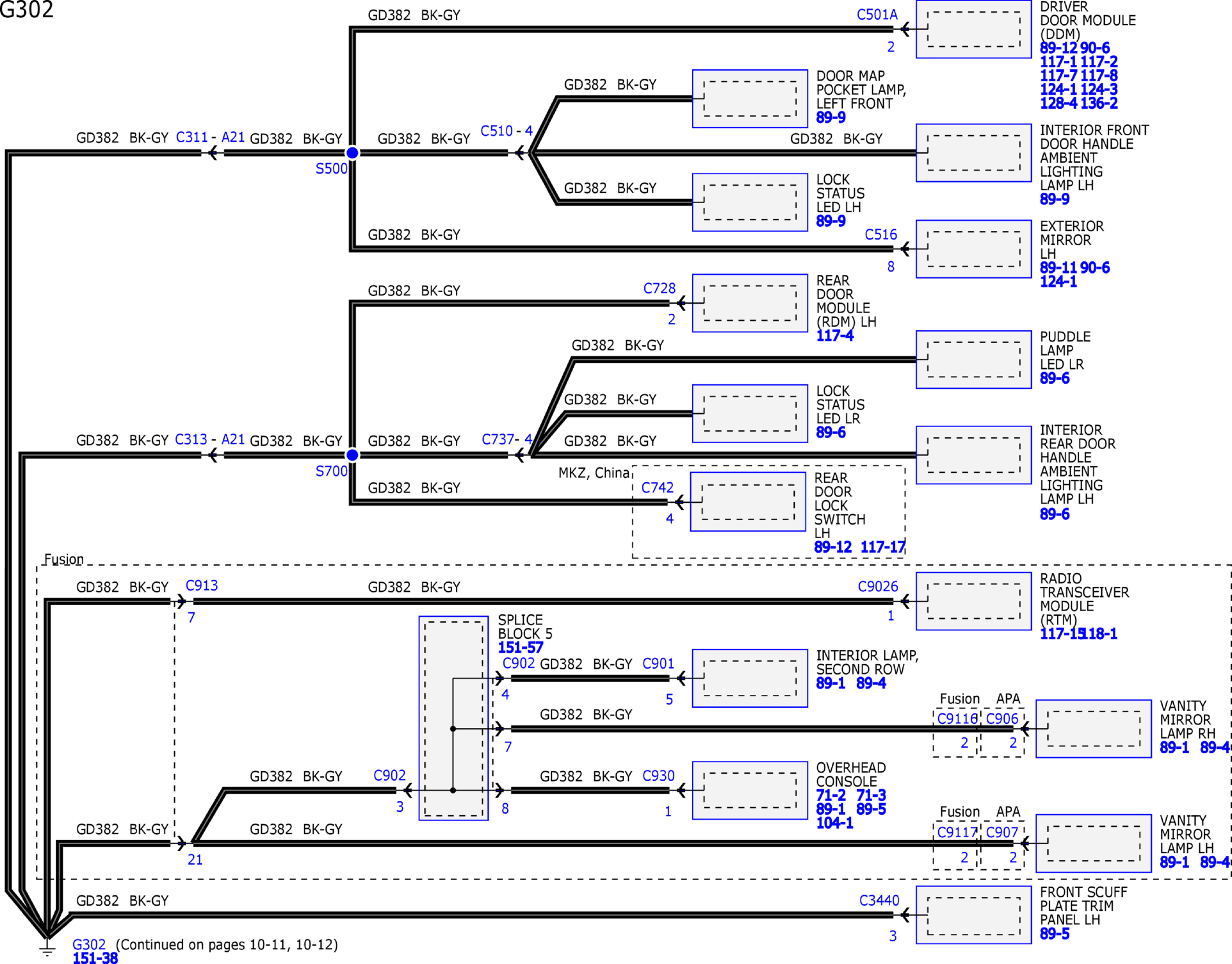

GFDW50019Courtesy of FORD MOTOR COMPANY

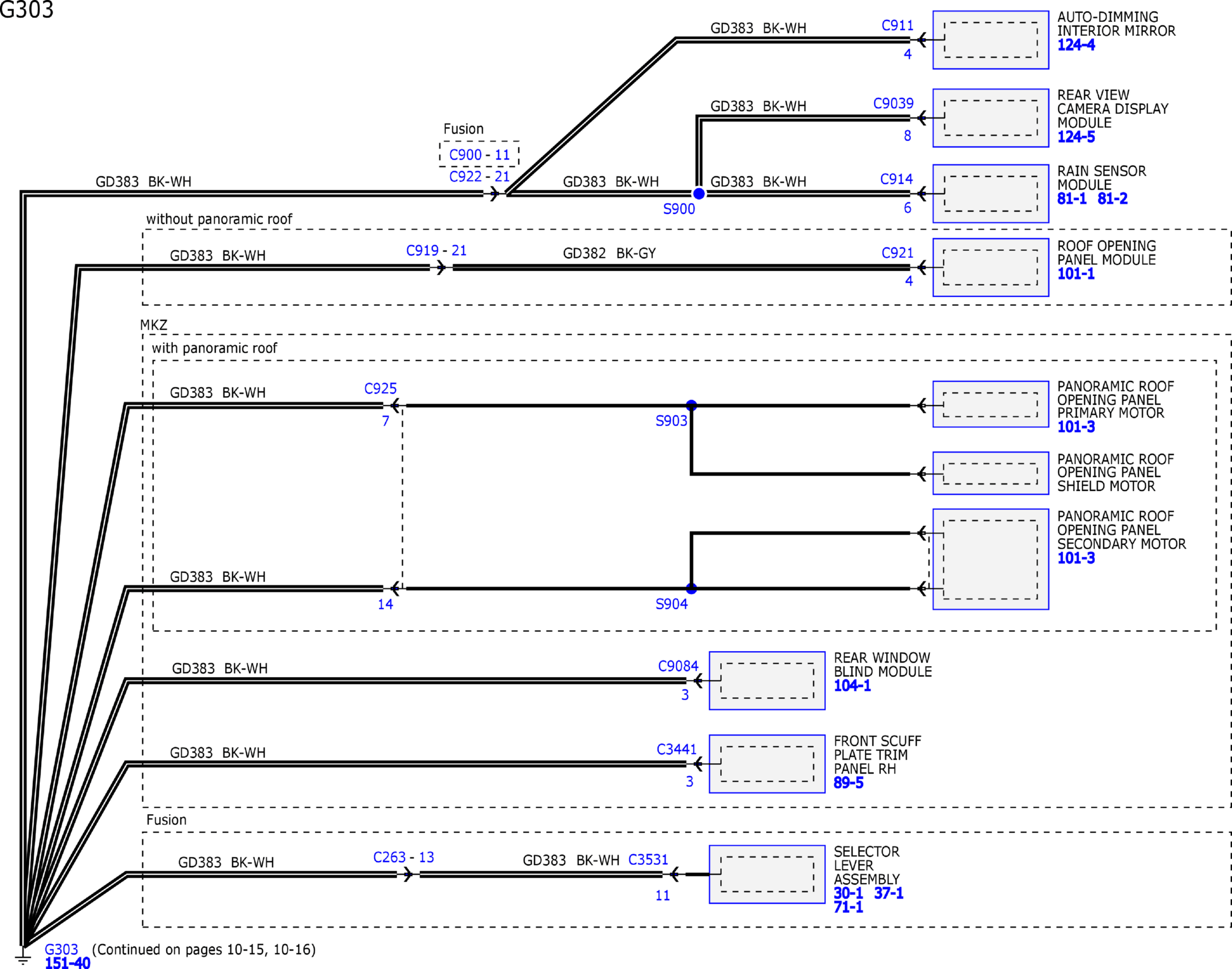

GFDW50020Courtesy of FORD MOTOR COMPANY

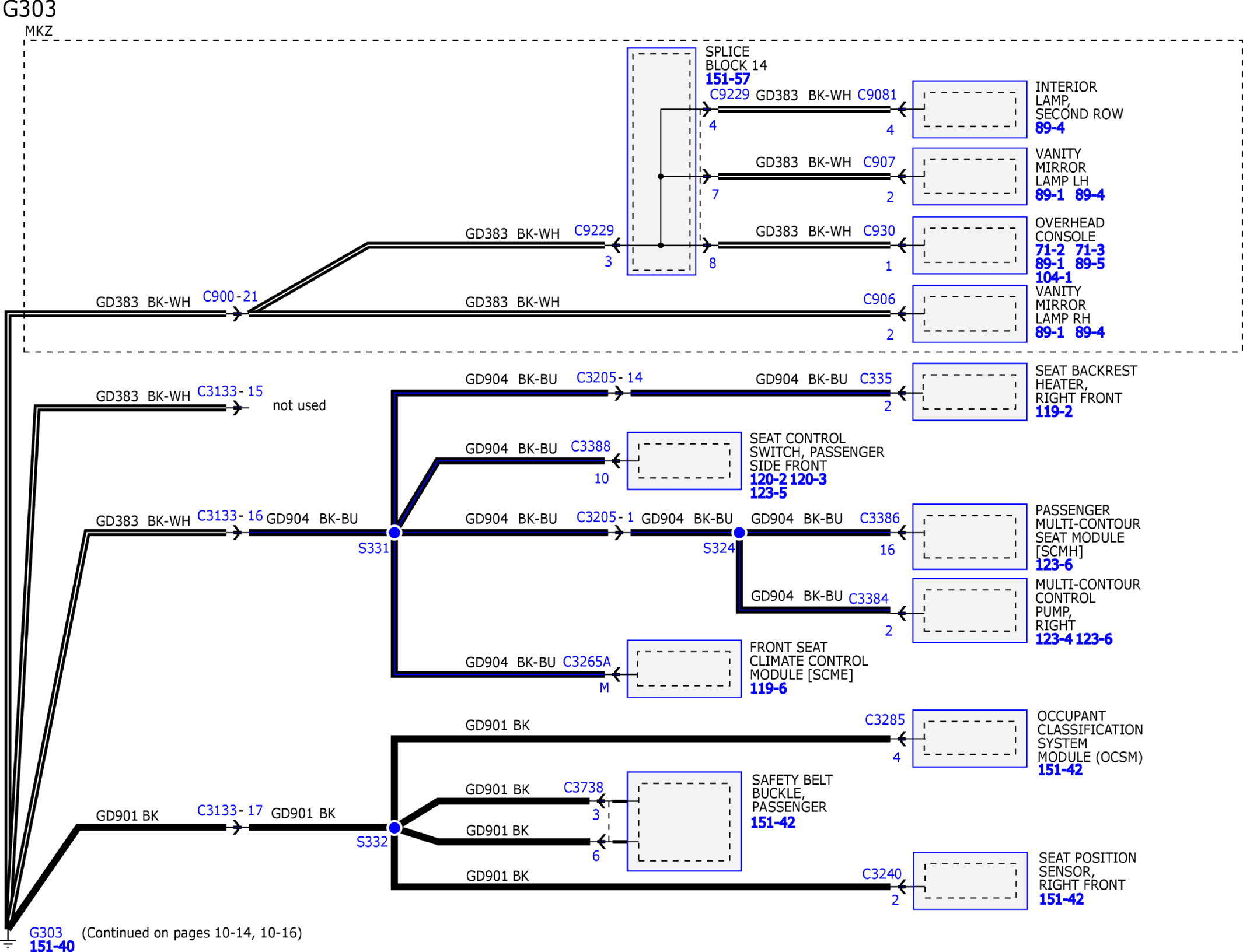

GFDW50021Courtesy of FORD MOTOR COMPANY

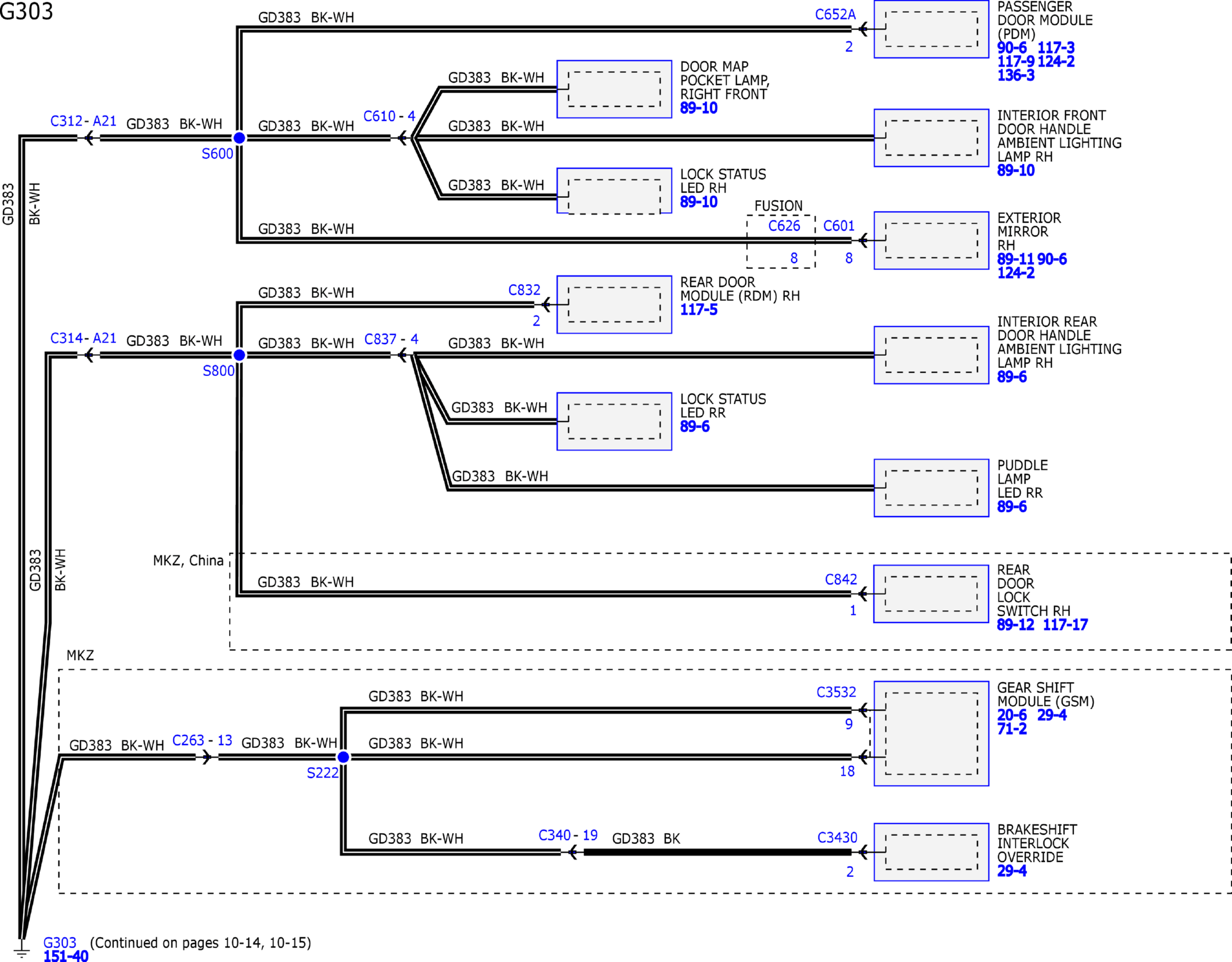

GFDW50022Courtesy of FORD MOTOR COMPANY

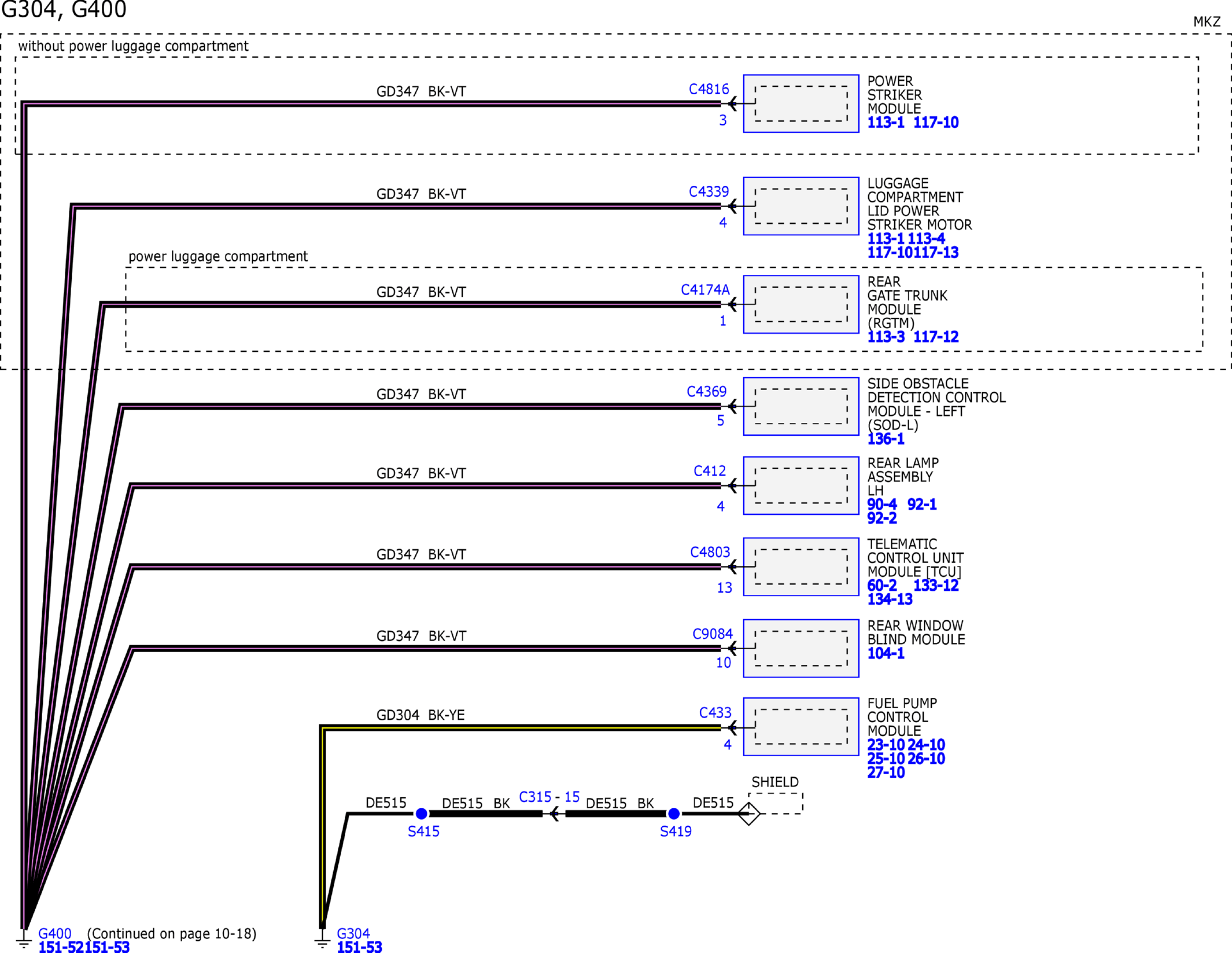

GFDW50023Courtesy of FORD MOTOR COMPANY

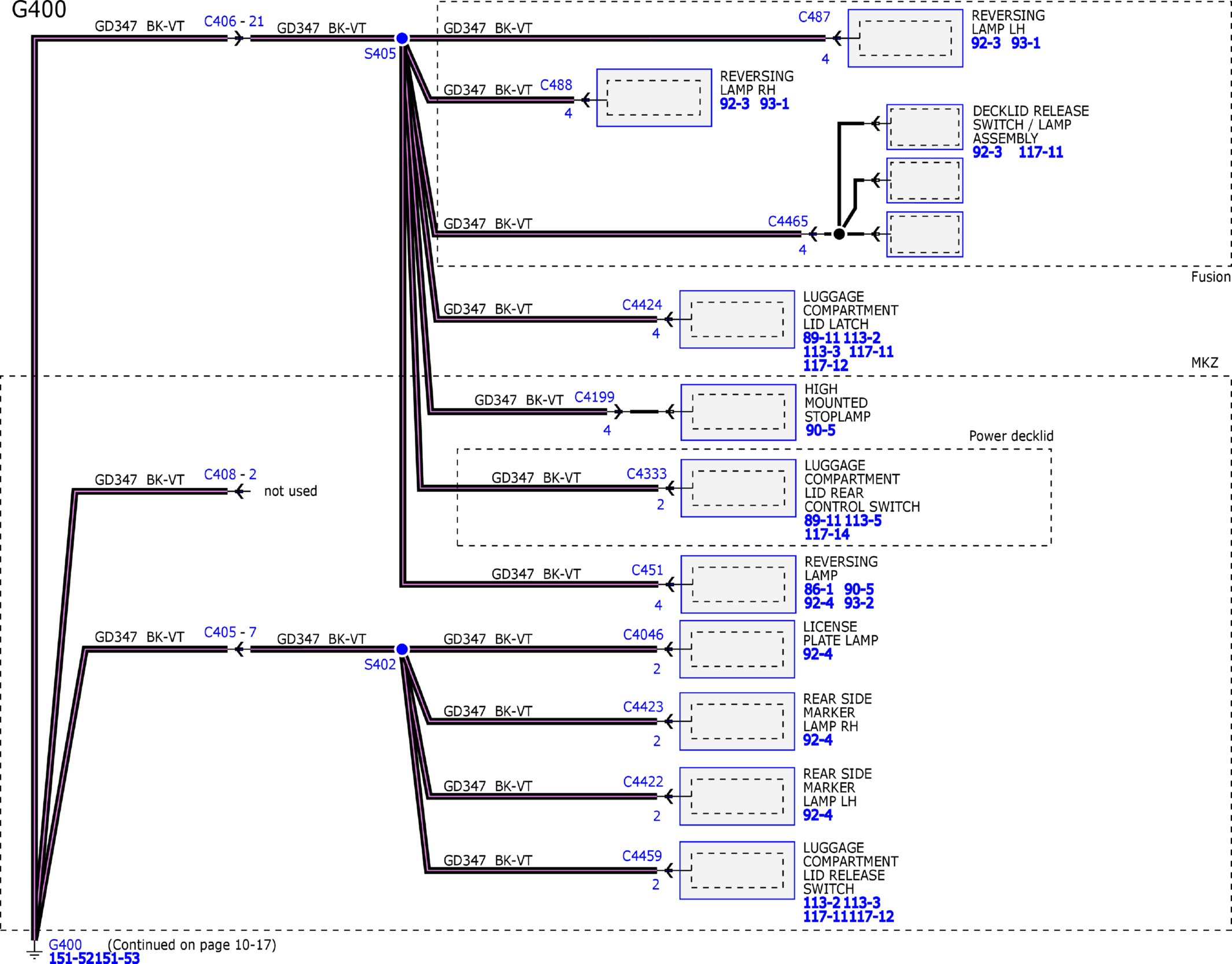

GFDW50024Courtesy of FORD MOTOR COMPANY

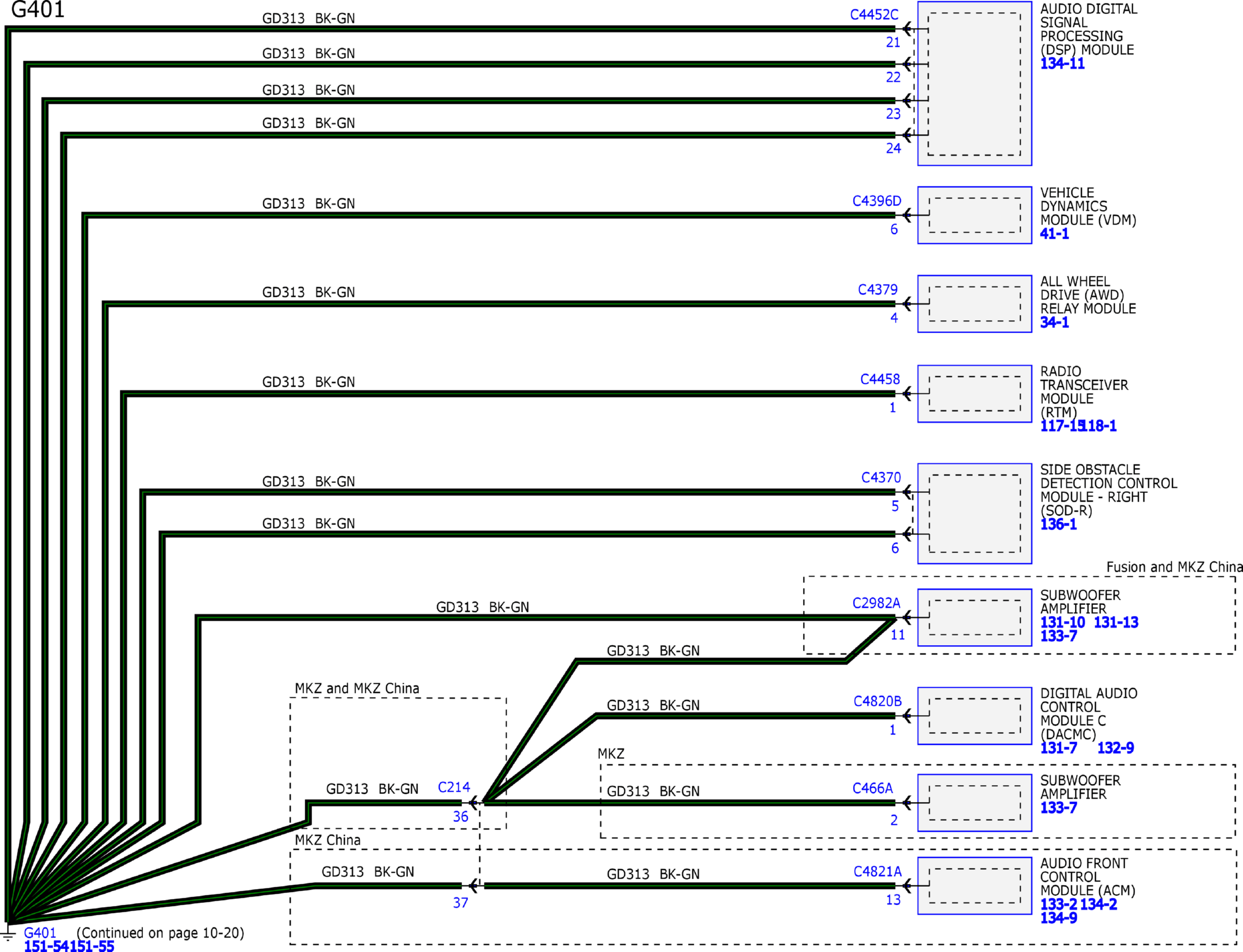

GFDW50025Courtesy of FORD MOTOR COMPANY

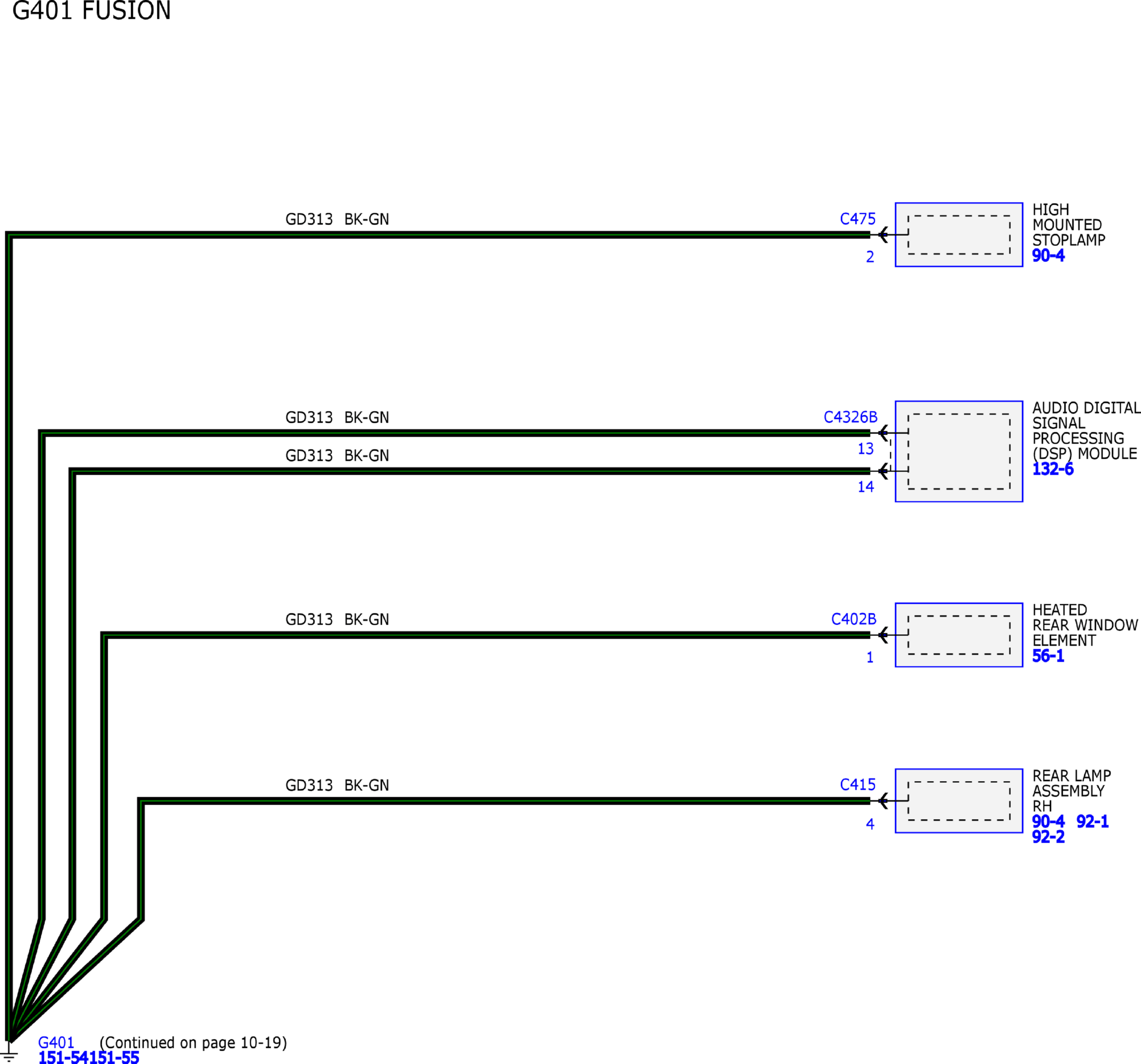

GFDW50026Courtesy of FORD MOTOR COMPANY

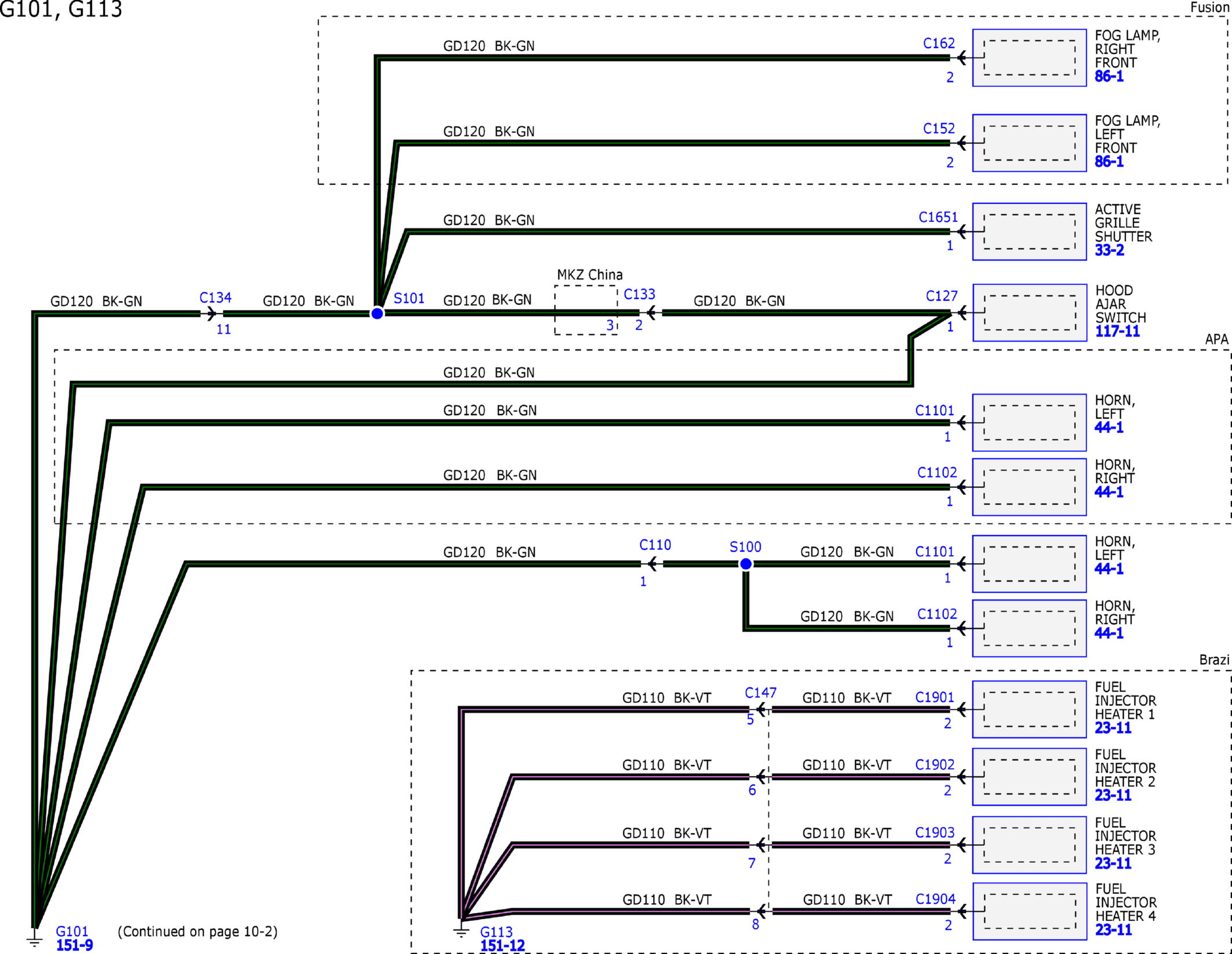

GFDW50027Courtesy of FORD MOTOR COMPANY

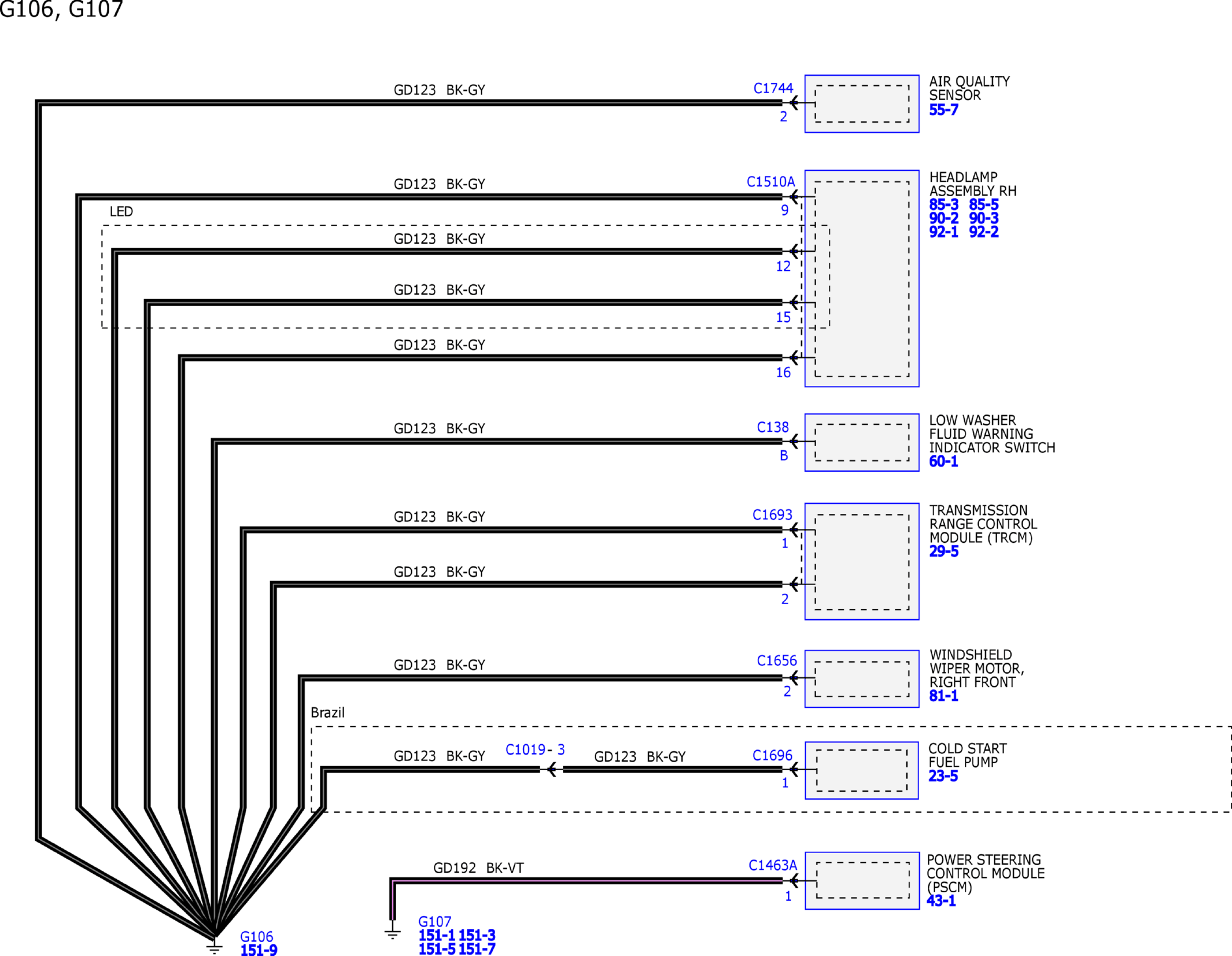

GFDW50028Courtesy of FORD MOTOR COMPANY

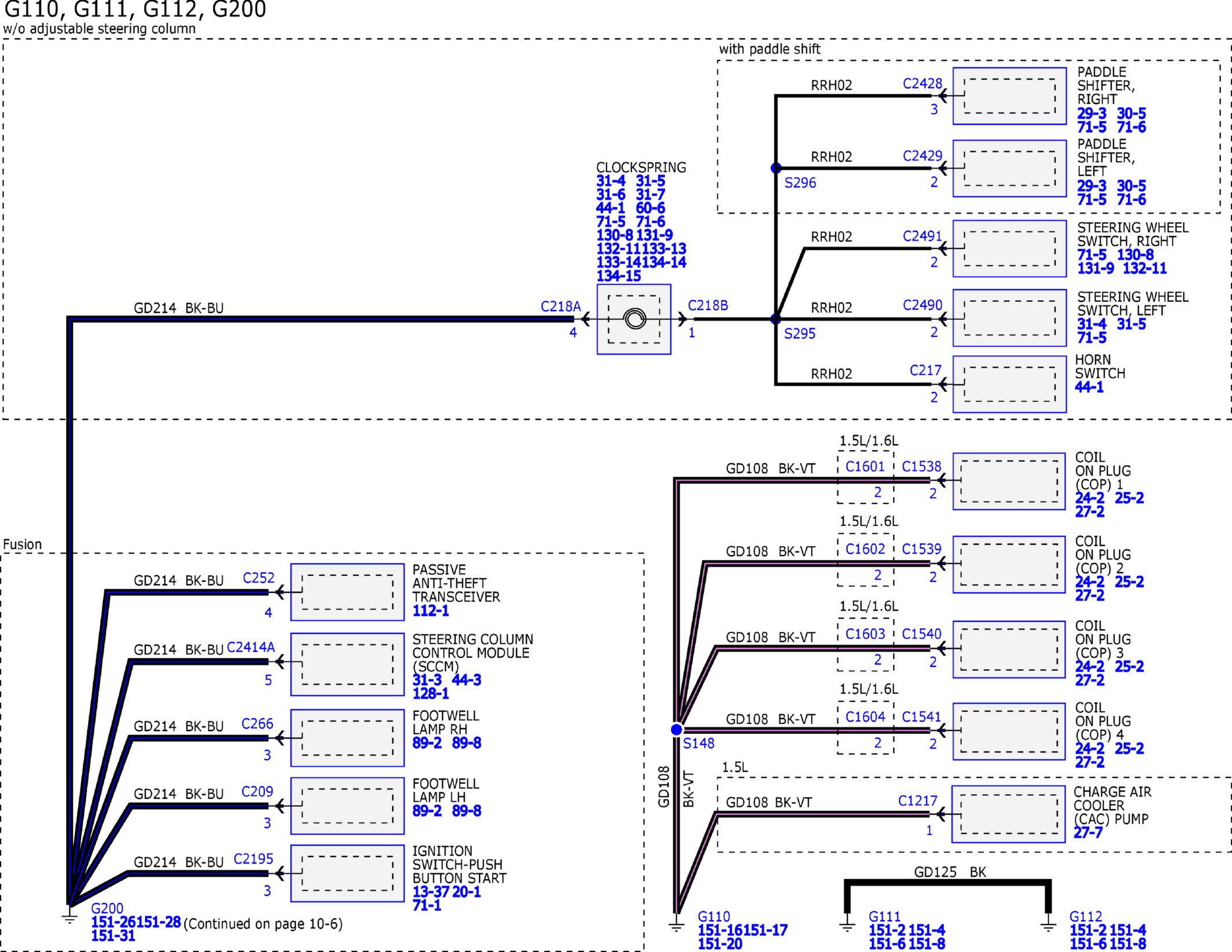

GFDW50029Courtesy of FORD MOTOR COMPANY

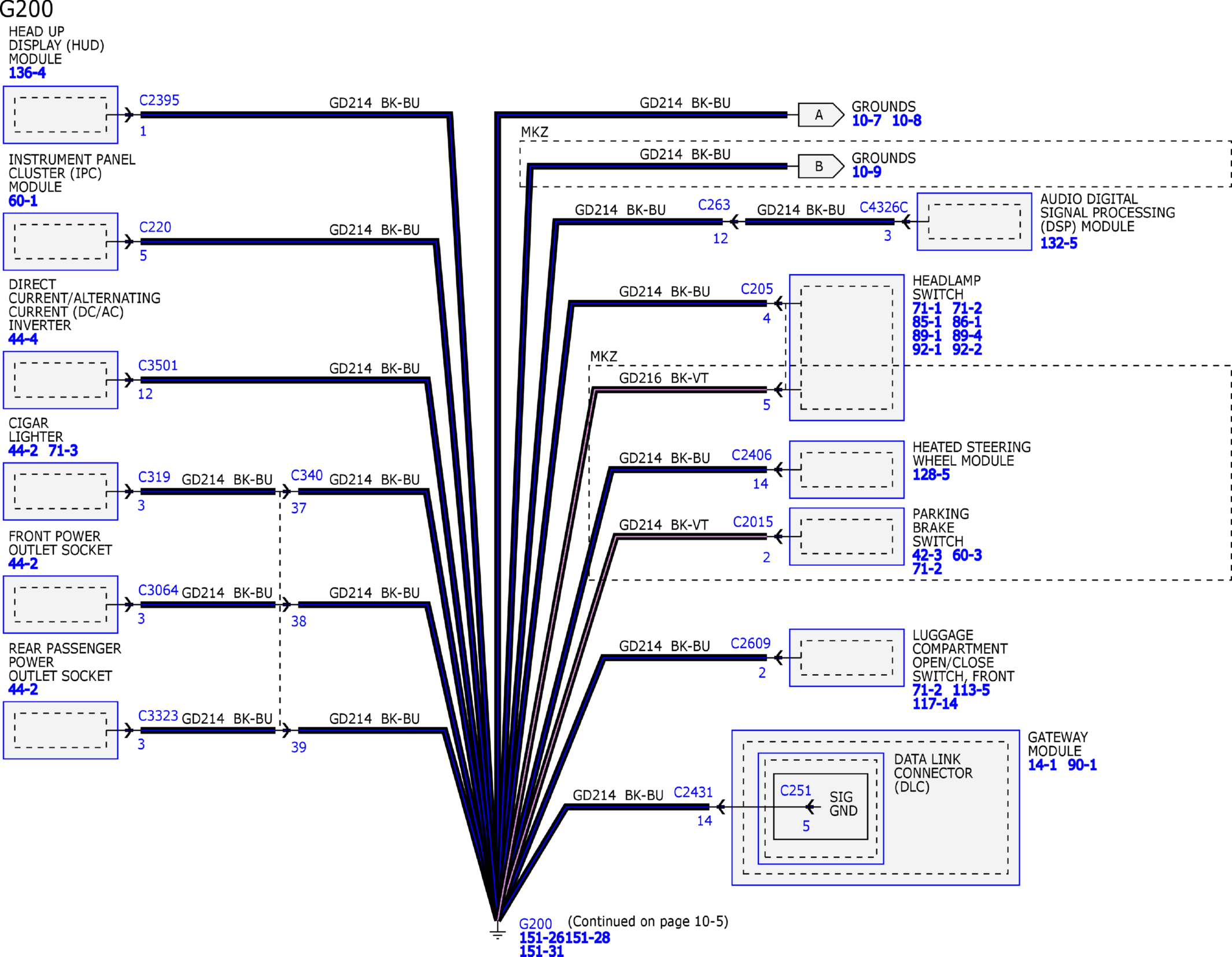

GFDW50030Courtesy of FORD MOTOR COMPANY

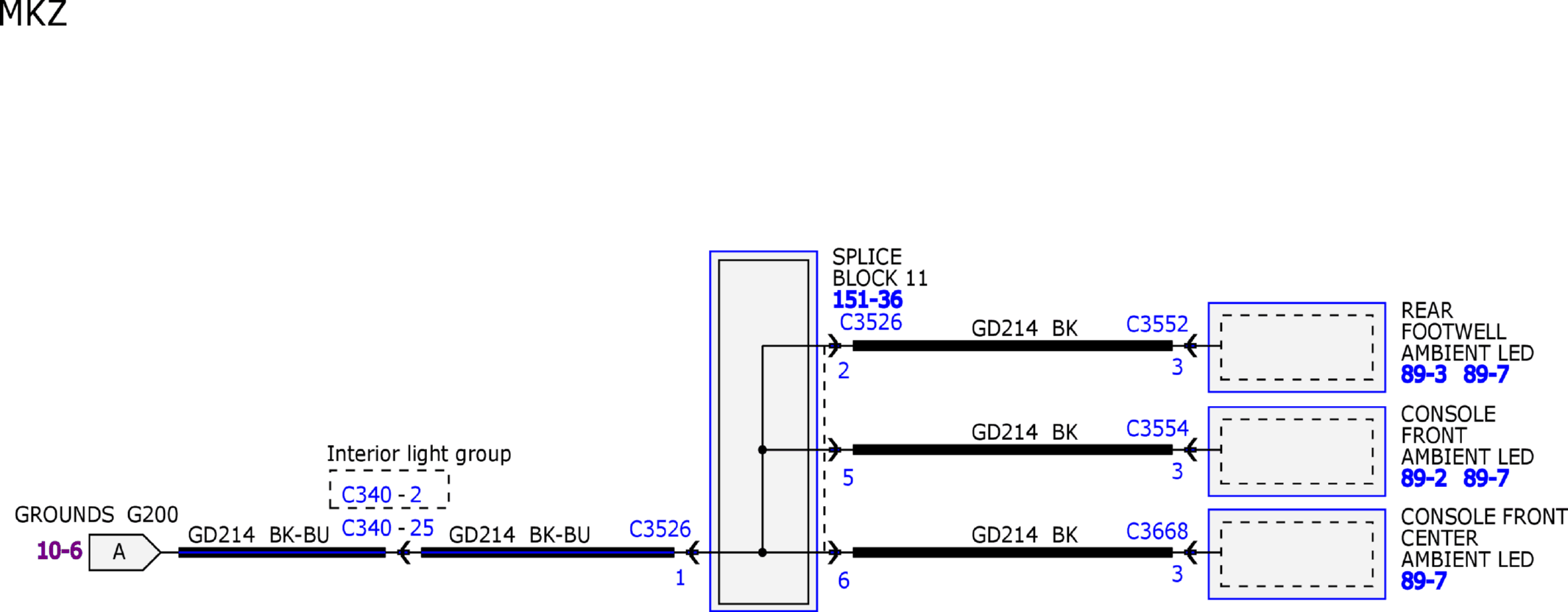

GFDW50031Courtesy of FORD MOTOR COMPANY

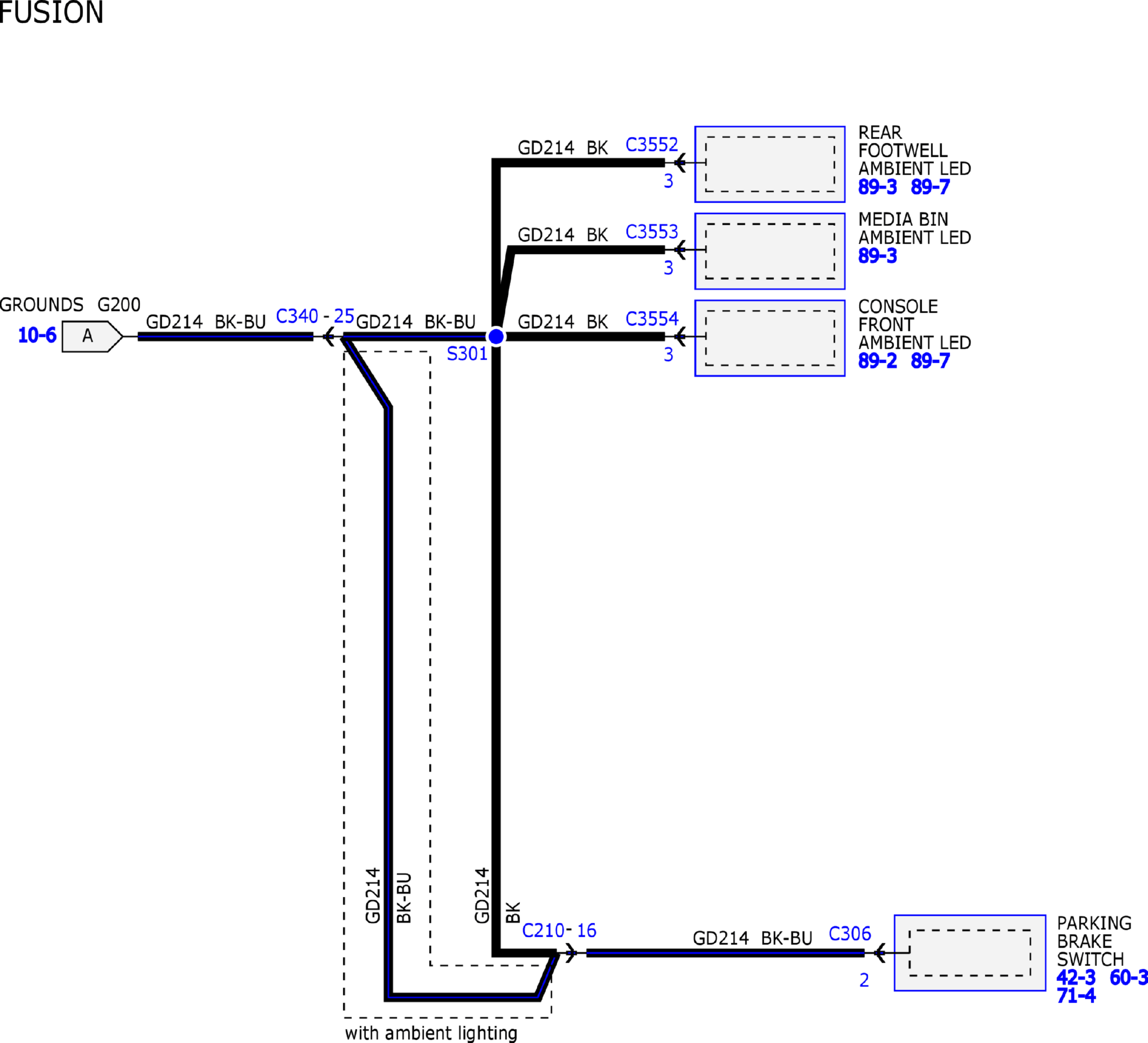

GFDW50032Courtesy of FORD MOTOR COMPANY

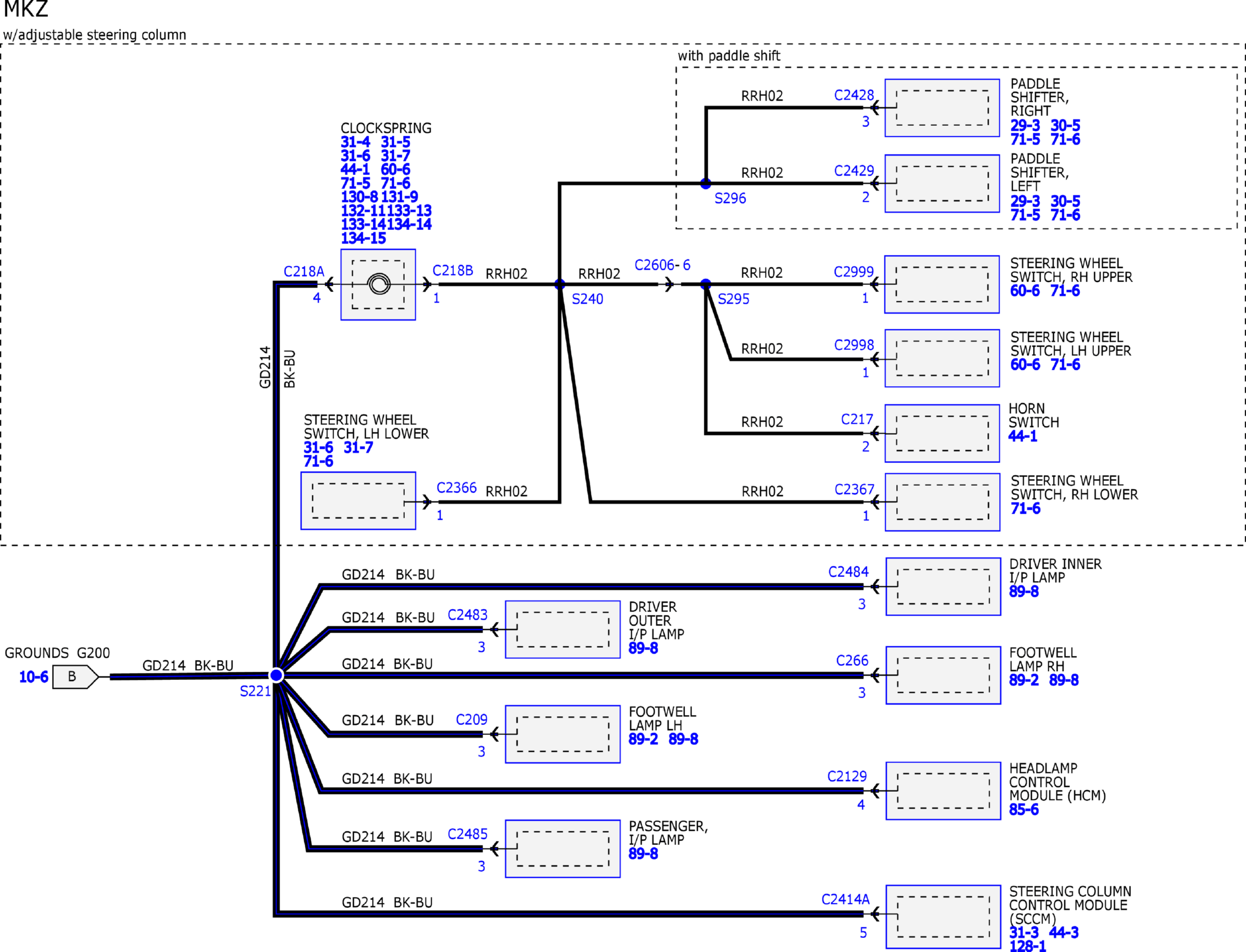

GFDW50033Courtesy of FORD MOTOR COMPANY

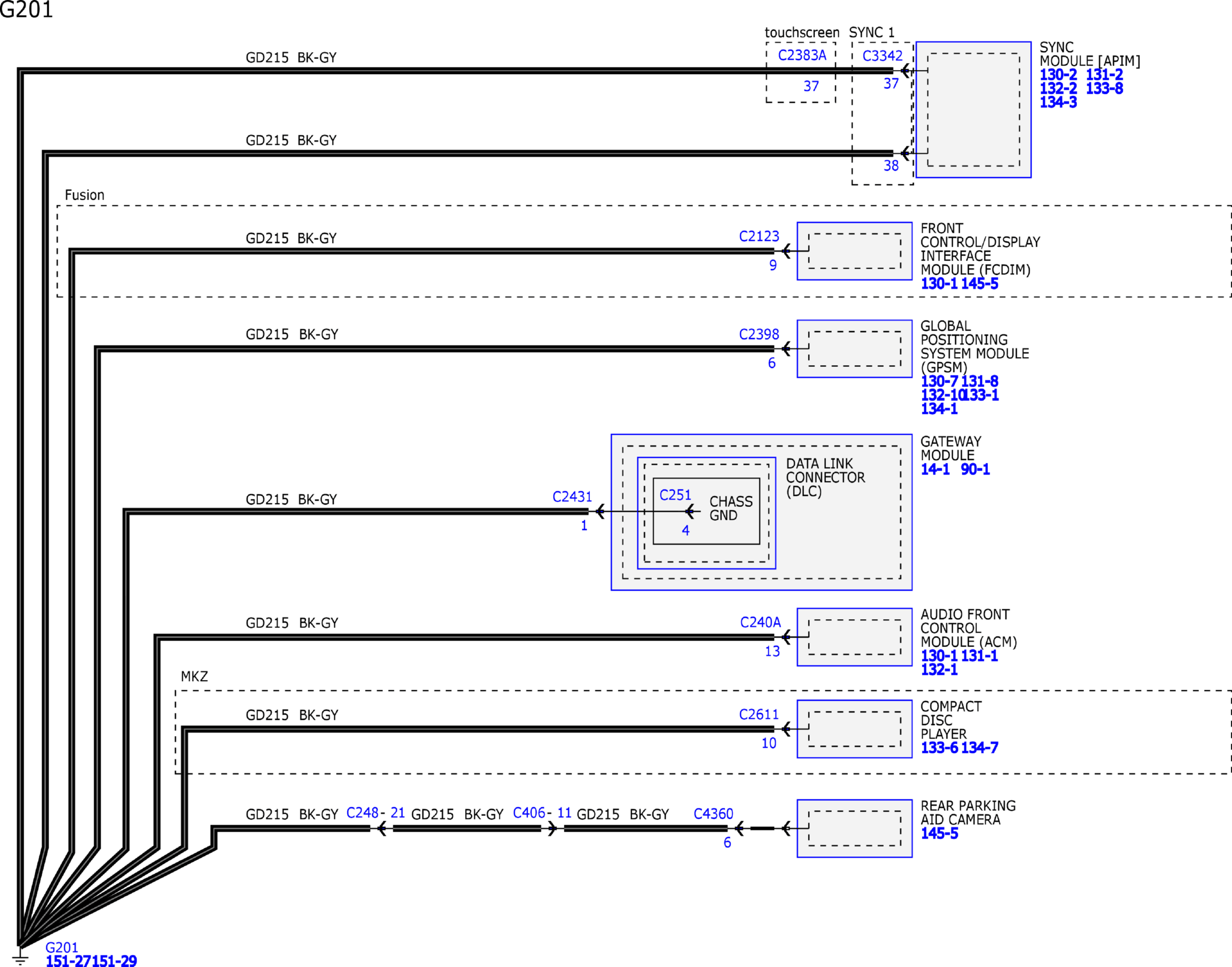

GFDW50034Courtesy of FORD MOTOR COMPANY
