Connector Repair Procedures

WARNING: This page is about a different car, the 2017 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

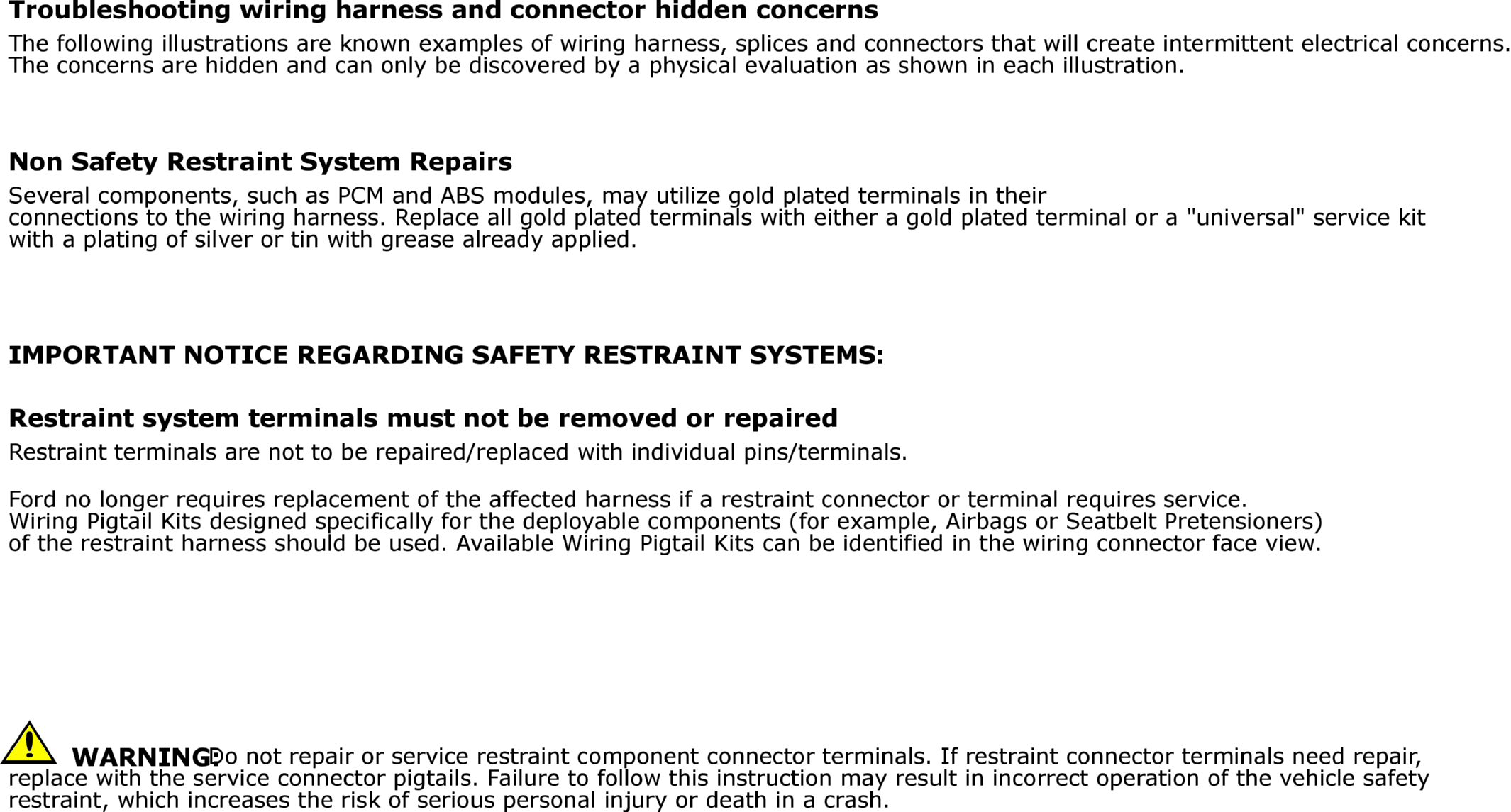

GFDW79615Courtesy of FORD MOTOR COMPANY

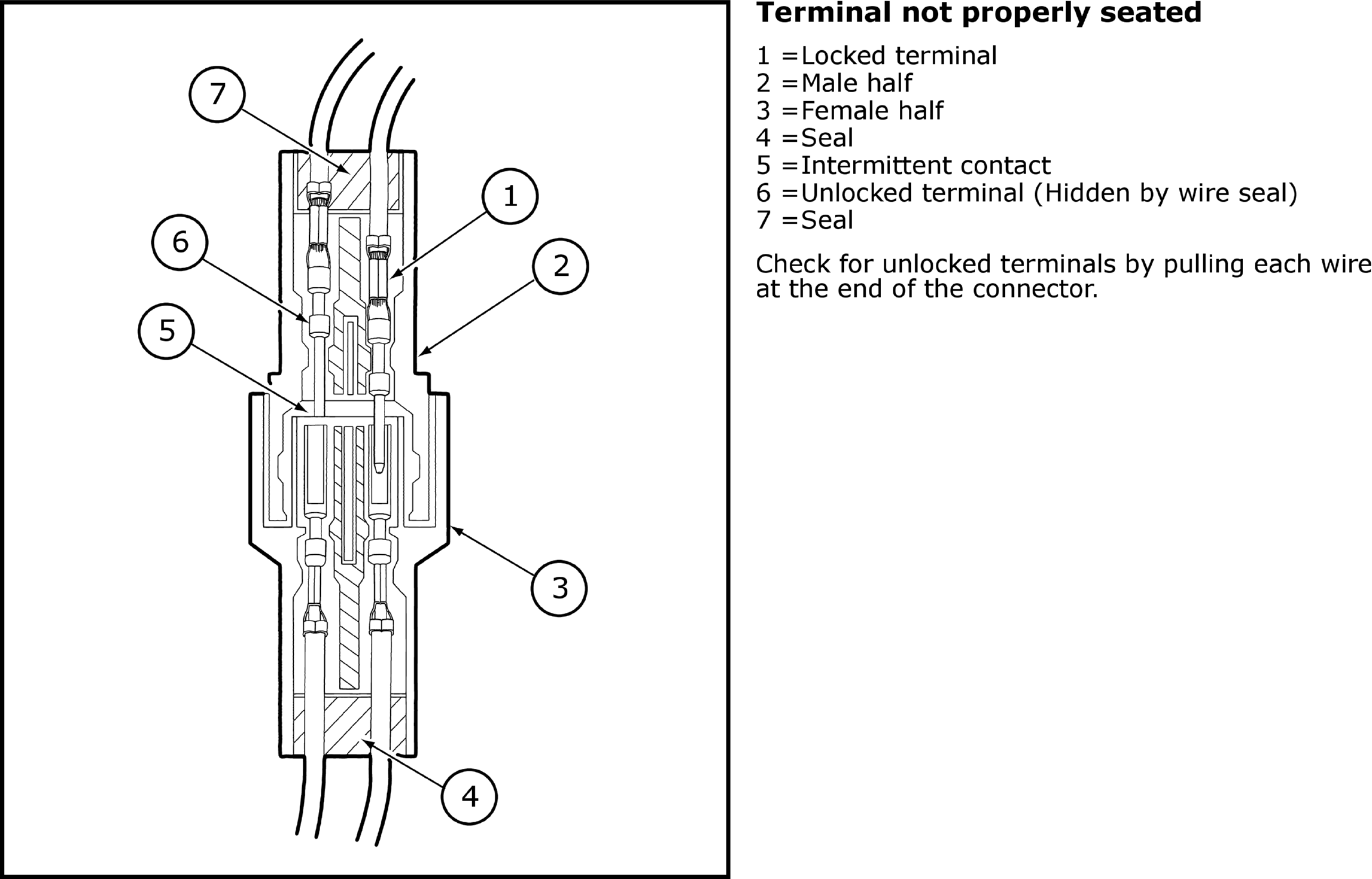

GFDW79616Courtesy of FORD MOTOR COMPANY

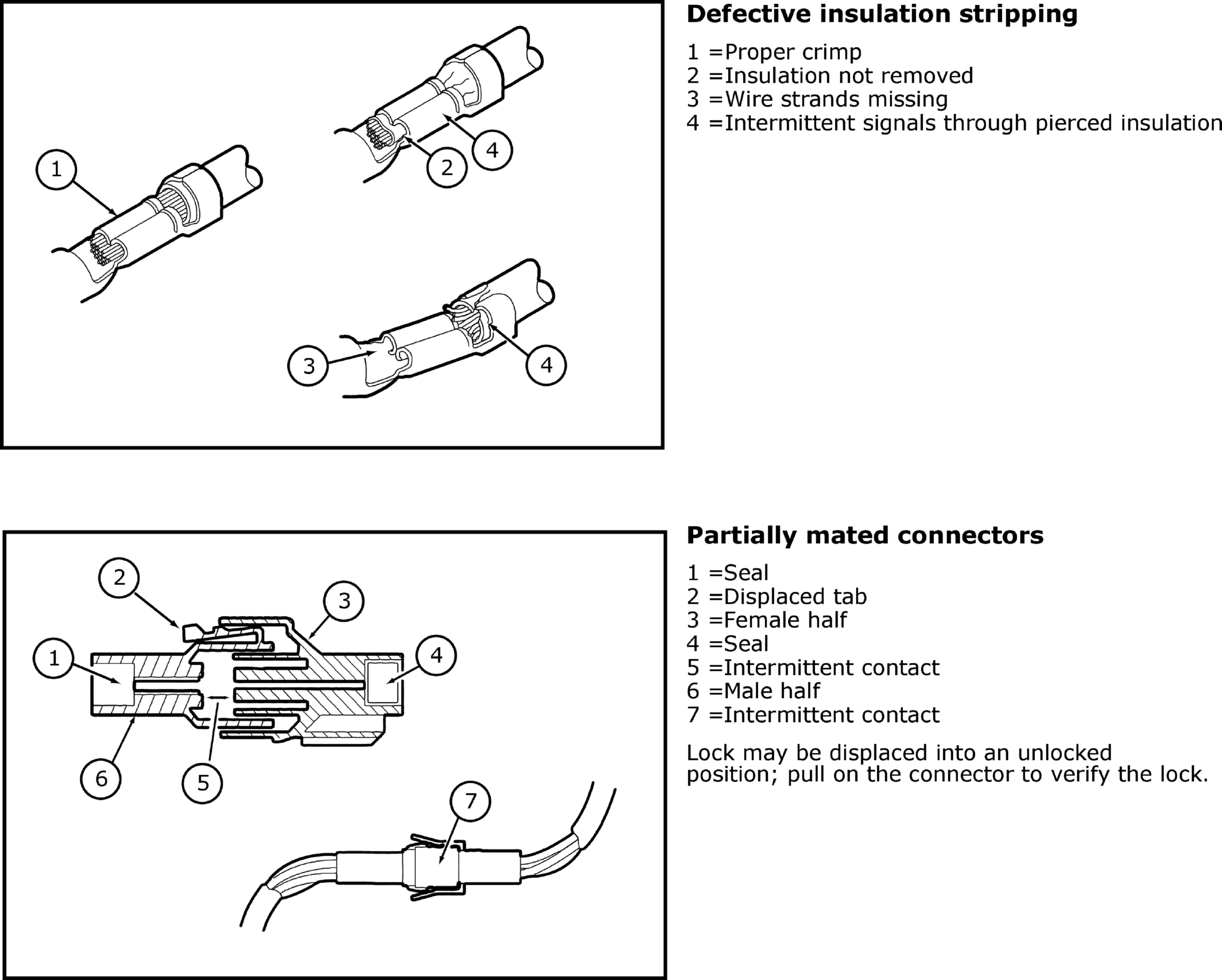

GFDW79617Courtesy of FORD MOTOR COMPANY

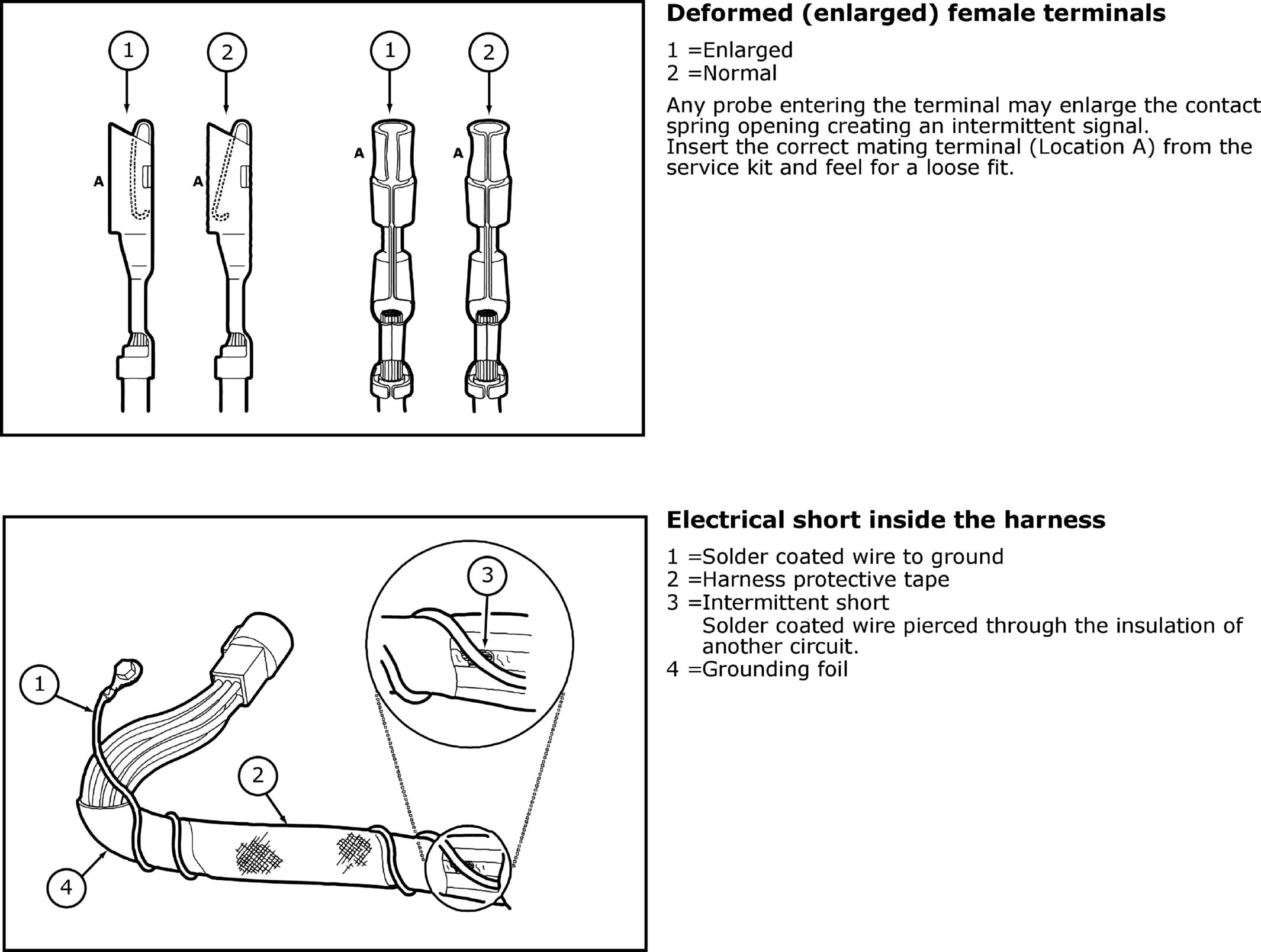

GFDW79618Courtesy of FORD MOTOR COMPANY

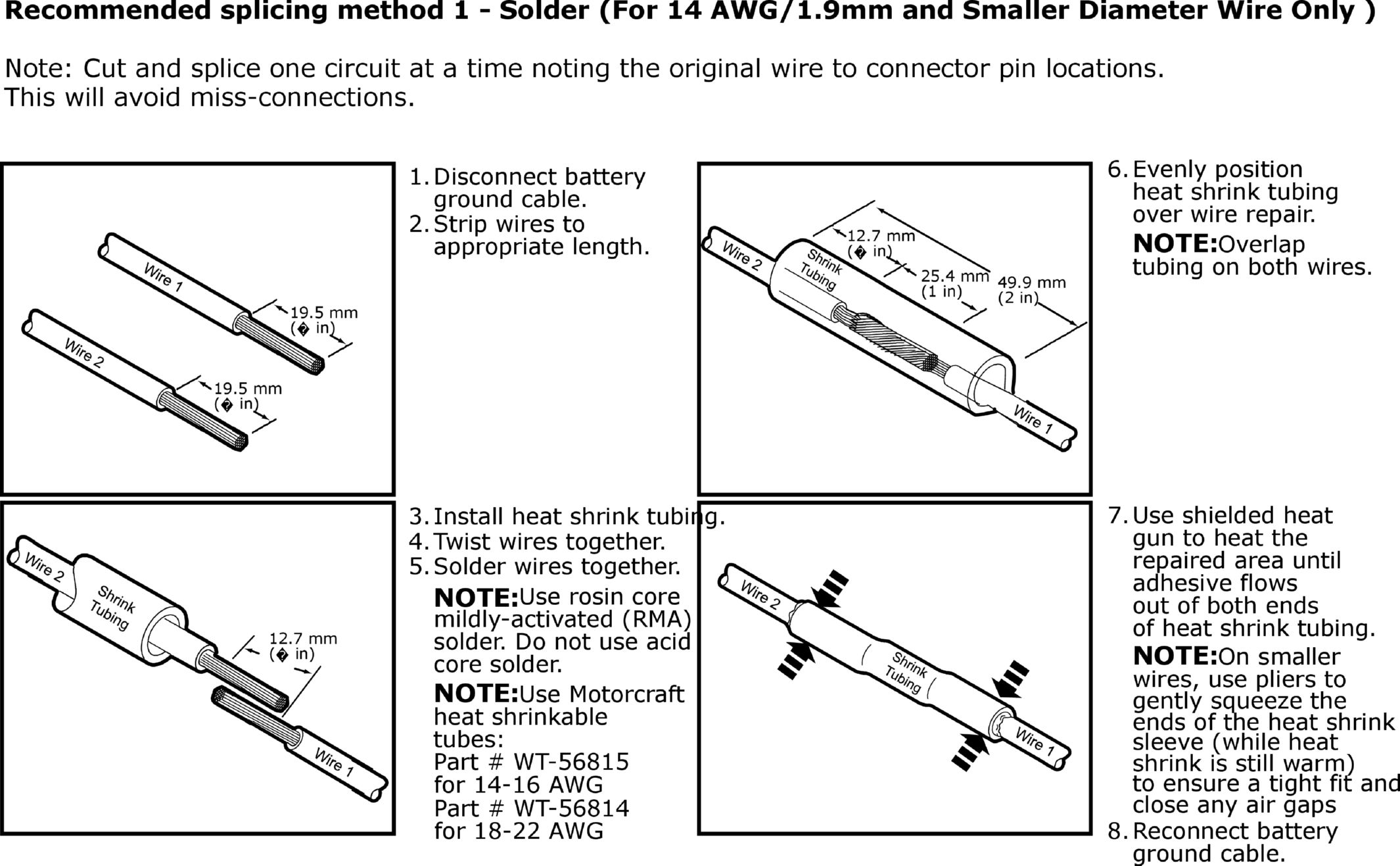

GFDW79619Courtesy of FORD MOTOR COMPANY
GFDW79620Courtesy of FORD MOTOR COMPANY

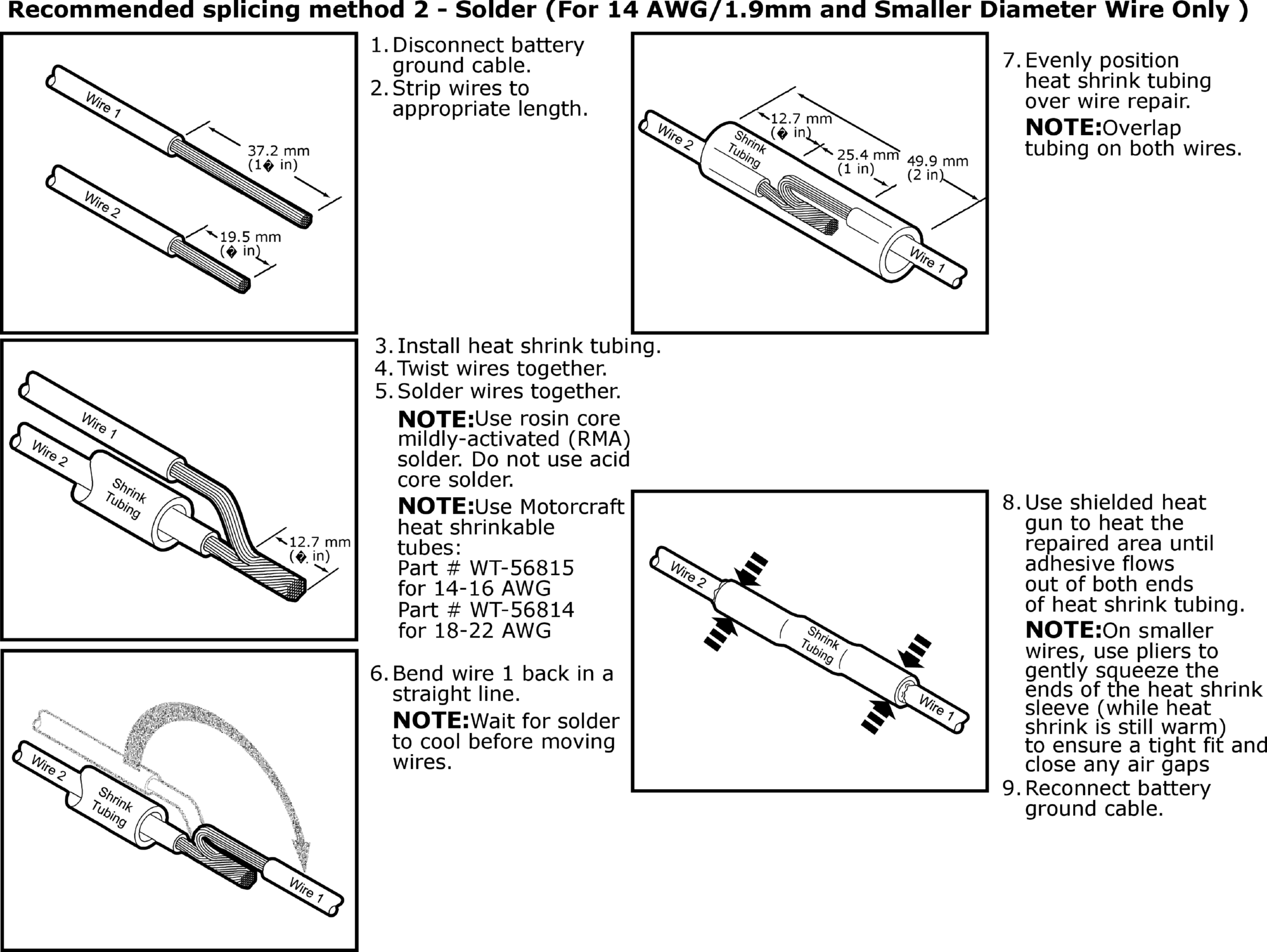

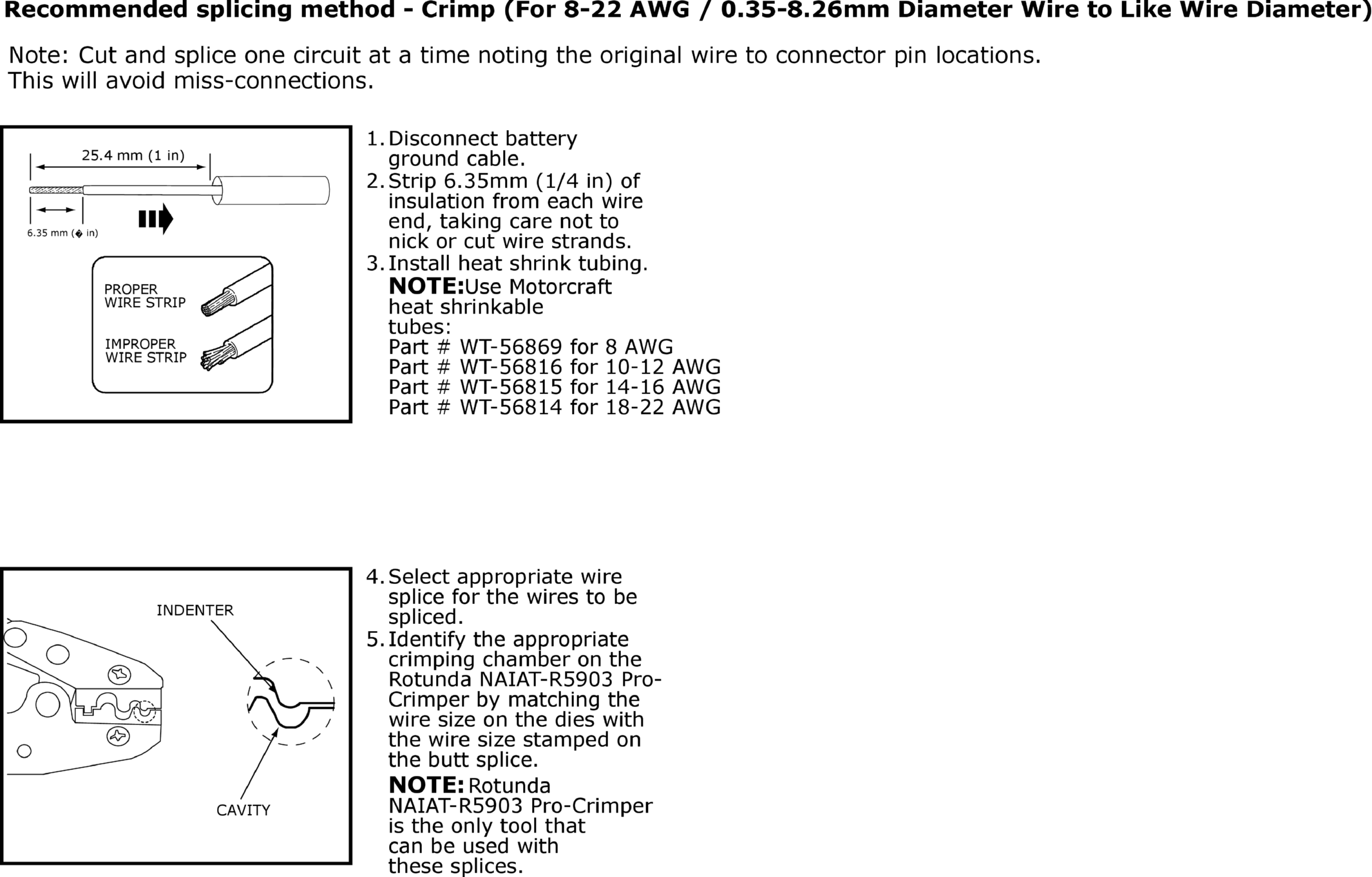

GFDW79621Courtesy of FORD MOTOR COMPANY

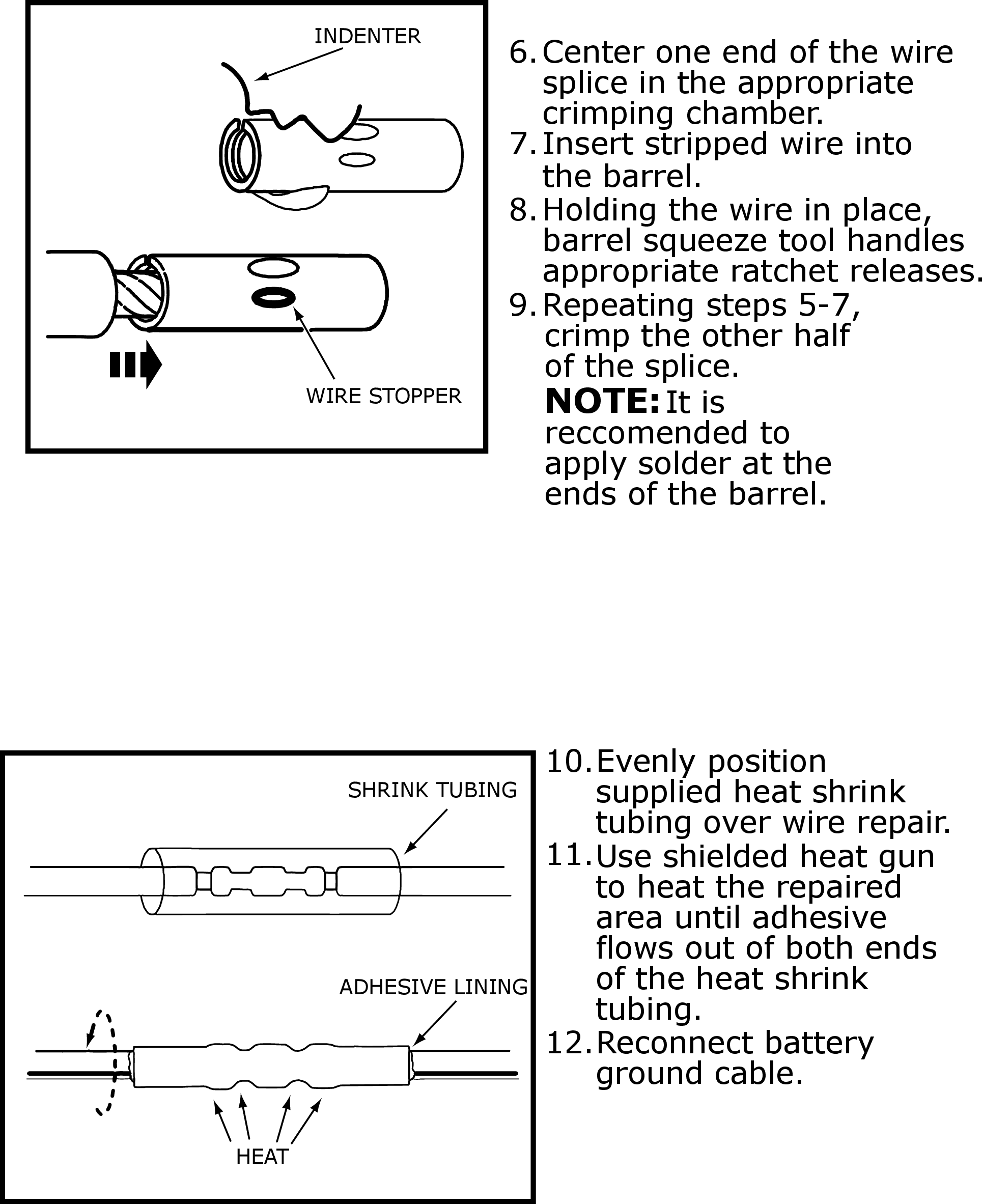

GFDW79622Courtesy of FORD MOTOR COMPANY

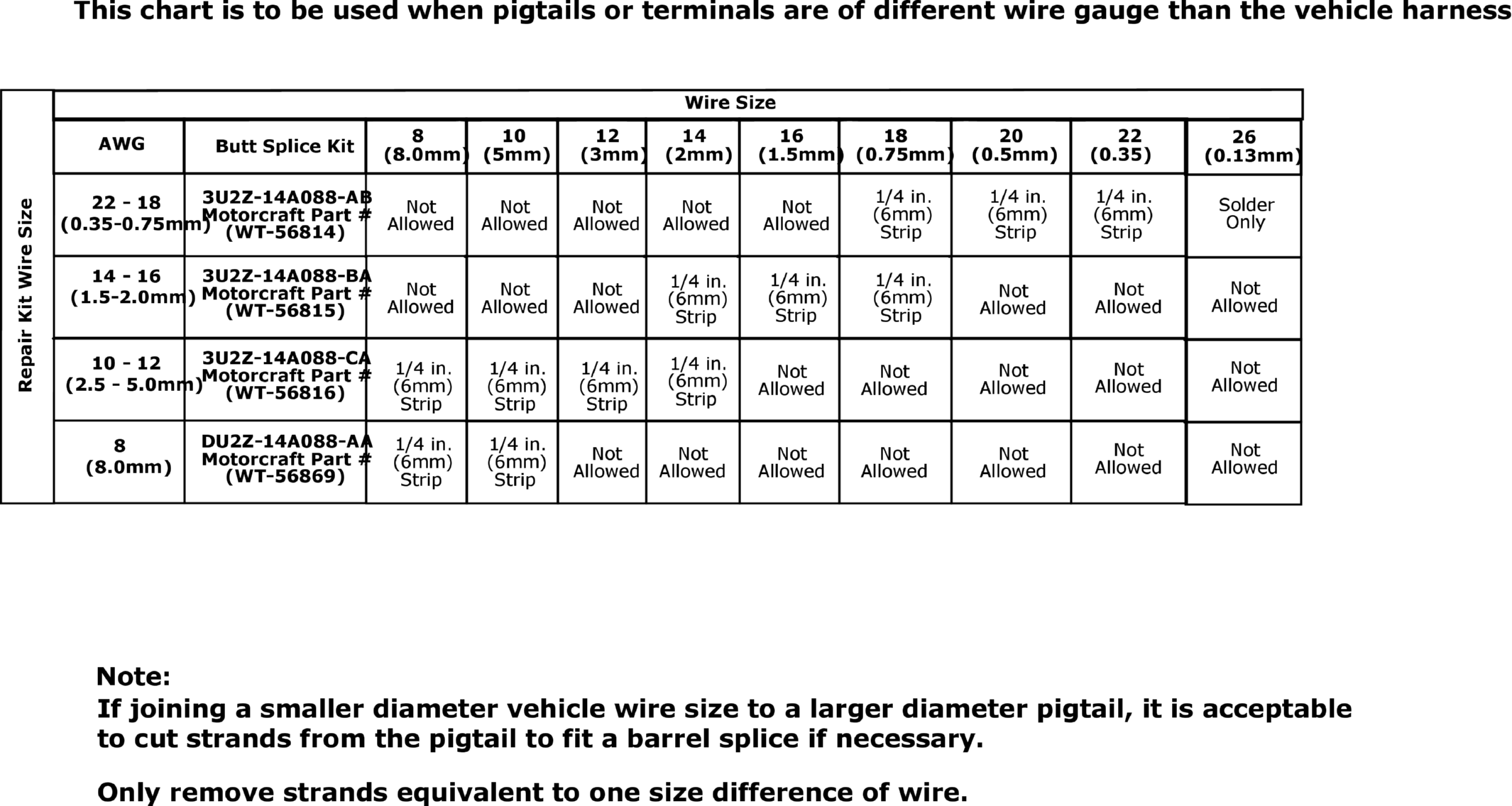

GFDW79623Courtesy of FORD MOTOR COMPANY
