Hood Alignment

WARNING: This page is about a different car, the 2017 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Inspection

NOTE: Removal steps in this procedure may contain installation details.
  1. Inspect the hood-to-body dimensions. Refer to: Body and Frame .

    All alignments

  2. Remove the hood latch. Refer to: Hood Latch .

    Hood fore and aft, left and right alignments

  3. Loosen the nuts enough to permit movement of the hood and adjust to specification. Refer to: Body and Frame .

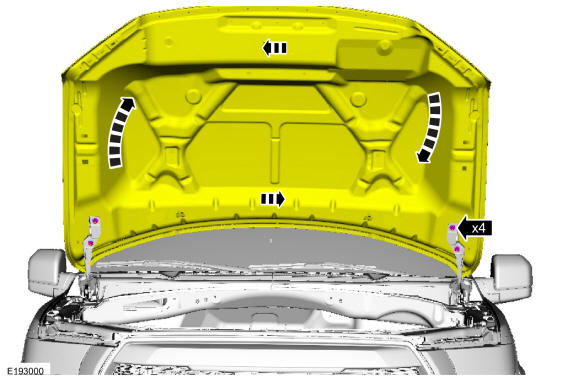

    GFD178731Courtesy of FORD MOTOR COMPANY
  4. Tighten the nuts.

    Torque: 18 lb.ft (25 Nm)

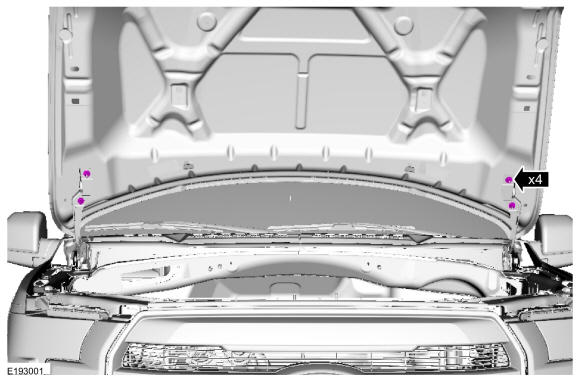

    GFD178732Courtesy of FORD MOTOR COMPANY

    Hood front up and down alignments

  5. Adjust the bump stop rubbers.

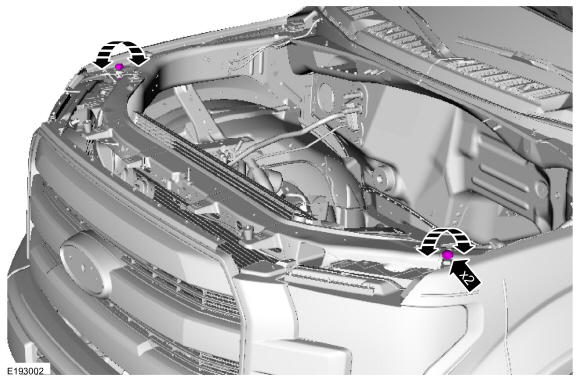

    GFD178733Courtesy of FORD MOTOR COMPANY
  6. Adjust the hood to specification. Refer to: Body and Frame .

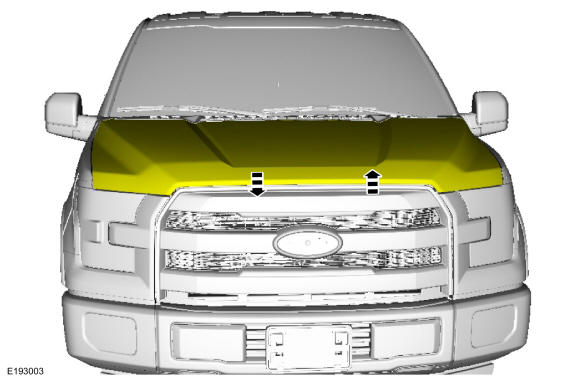

    GFD178734Courtesy of FORD MOTOR COMPANY

    All alignments

  7. Inspect the body-to-hood dimensions. Refer to: Body and Frame .

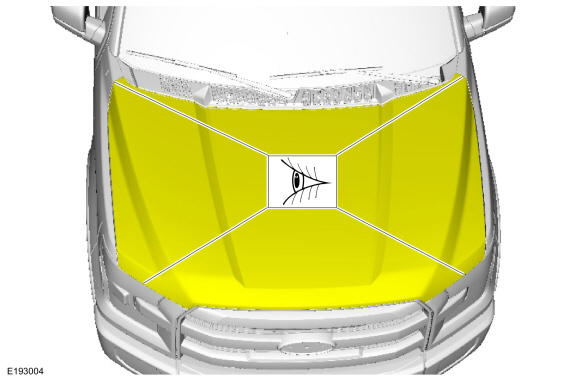

    GFD178735Courtesy of FORD MOTOR COMPANY
  8. Install the removed components.
