Relay Micro - ISO

WARNING: This page is about a different car, the 2017 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

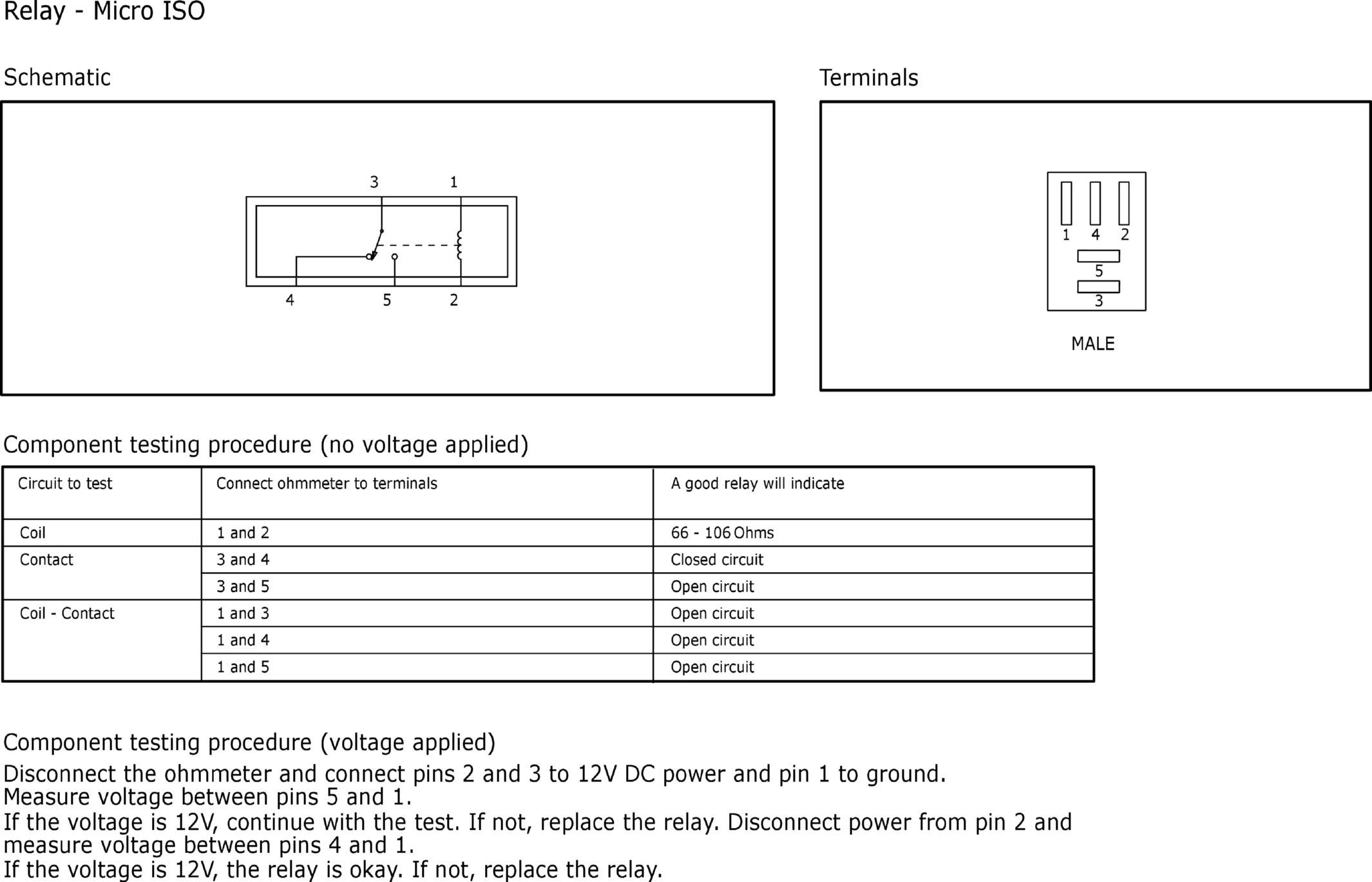

Fig 1: Relay Micro - ISO
GFDW75353Courtesy of FORD MOTOR COMPANY
