Front Wheel Knuckle: Installation

WARNING: This page is about a different car, the 2017 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

1.

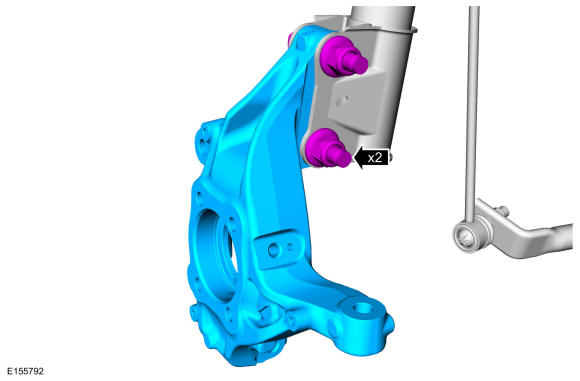

Install the wheel knuckle and install the new front strut and spring assembly-to-wheel knuckle bolts and nuts.
Torque: 173 lb.ft (235 Nm)

Courtesy of FORD MOTOR COMPANY

2.

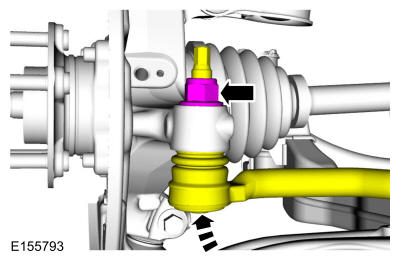

Attach the tie rod end to the wheel knuckle and install the new tie rod end nut.
Torque: 111 lb.ft (150 Nm)

Courtesy of FORD MOTOR COMPANY

3.

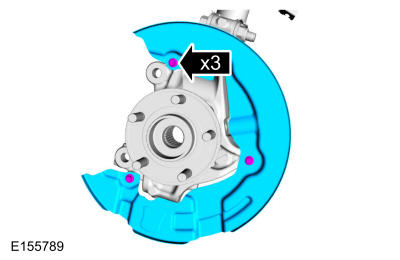

Install the brake disc shield and the brake disc shield retainers.
Torque: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY

4.

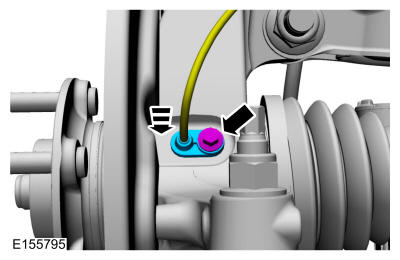

Position the wheel speed sensor and install the wheel speed sensor bolt.
Torque: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY

5.

Install the front wheel bearing and wheel hub. Refer to: Front Wheel Bearing and Wheel Hub .

6.

Check and if necessary adjust front camber. Refer to: Front Camber Adjustment .
