Repair procedures: Inspection

WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the neutral position switch connector (A).

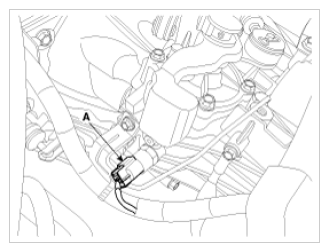

Fig 1: Identifying Neutral Position Switch Connector
Courtesy of HYUNDAI MOTOR AMERICA
Check the continuity between no. 1 and 2 terminals of neutral position switch.
When the shift lever is in neutral, there should be continuity.

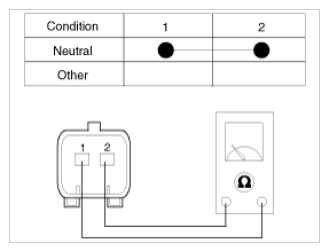

Fig 2: Checking Continuity Between No. 1 And 2 Terminals Of Neutral Position Switch
Courtesy of HYUNDAI MOTOR AMERICA
If necessary, repair or replace the neutral position switch.
