Repair procedures: Removal

WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.

Remove the following items.
1. Engine cover
  (Refer to "ENGINE COVER ")
2. Air cleaner assembly and air duct.
  (Refer to "AIR CLEANER ")
3. Battery and battery tray.
  (Refer to "BATTERY ")

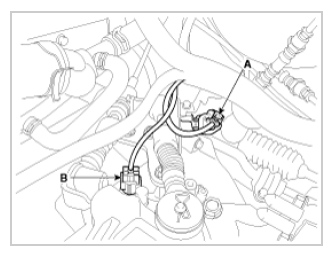

Disconnect the speed sensor connector (A) and back up lamp switch (B).

Fig 1: Identifying Speed Sensor Connector And Back Up Lamp Switch
Courtesy of HYUNDAI MOTOR AMERICA

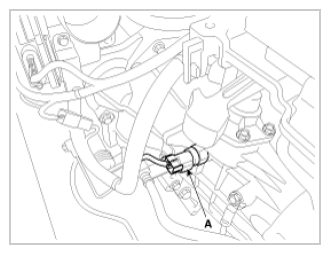

Disconnect the neutral switch connector (A). (1.8 MPI)

Fig 2: Identifying Neutral Switch Connector
Courtesy of HYUNDAI MOTOR AMERICA

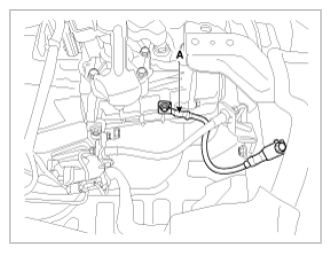

Remove the ground (A).

Fig 3: Identifying Ground Cable
Courtesy of HYUNDAI MOTOR AMERICA

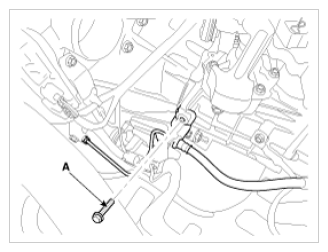

Remove the clutch tube bracket bolt (A).

Fig 4: Identifying Clutch Tube Bracket Bolt
Courtesy of HYUNDAI MOTOR AMERICA
Remove the wiring bracket (A).

Fig 5: Identifying Wiring Bracket
Courtesy of HYUNDAI MOTOR AMERICA

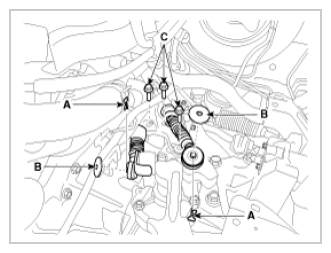

Remove the control cable.
1. Remove the pin (A) and washer (B).
2. Remove the bracket mounting bolts (C).

  Fig 6: Identifying Bracket Mounting Bolts And Pin
  Courtesy of HYUNDAI MOTOR AMERICA
Remove the transaxle upper mounting bolt (B-2ea) and the start motor mounting bolt (A-2ea).
Tightening torque:
1. 49.0 ~ 63.7 N.m (5.0 ~ 6.5 kgf.m, 36.2 ~ 47.0 lb-ft)
2. 42.2 ~ 54.0 N.m (4.3 ~ 5.5 kgf.m, 31.1 ~ 39.8 lb-ft)

  Fig 7: Identifying Transaxle Upper Mounting Bolts
  Courtesy of HYUNDAI MOTOR AMERICA
Remove the cowl top cover.
(Refer to COWL TOP COVER .

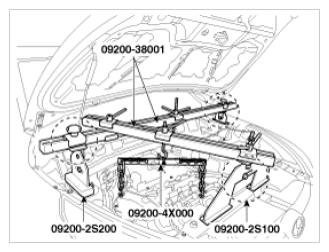

Using the SST (support SST No.: 09200-2S100/2S200, beam SST No.: 09200-38001 or 3N000, adapter SST No.: 09200-4X000), hold the engine and transaxle assembly safely.

Fig 8: Holding Engine And Transaxle Assembly
Courtesy of HYUNDAI MOTOR AMERICA

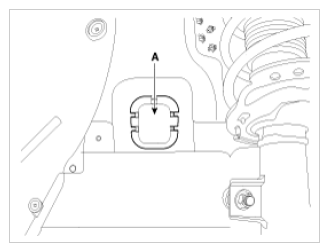

Remove the cover (A).

Fig 9: Identifying Cover
Courtesy of HYUNDAI MOTOR AMERICA

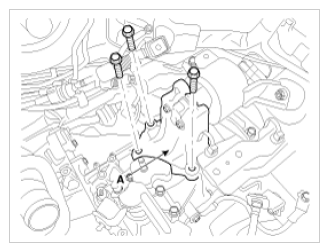

Remove the transaxle mounting bracket bolts (A).
Tightening torque:

88.3 ~ 107.9 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~ 79.6 lb-ft)

Fig 10: Identifying Transaxle Mounting Bracket Bolts
Courtesy of HYUNDAI MOTOR AMERICA

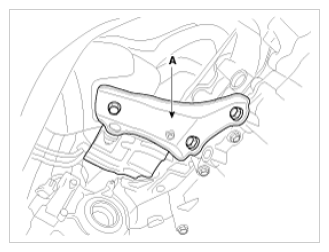

Remove the transaxle support bracket (A).
Tightening torque:

58.9 ~ 78.5 N.m (6.0 ~ 8.0 kgf.m, 43.4 ~ 57.8 lb-ft)

Fig 11: Identifying Transaxle Support Bracket
Courtesy of HYUNDAI MOTOR AMERICA

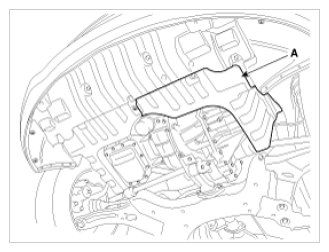

Remove the under cover (A).

Fig 12: Identifying Under Cover
Courtesy of HYUNDAI MOTOR AMERICA
Remove the drive shaft assembly.
(Refer to "FRONT DRIVESHAFT ")

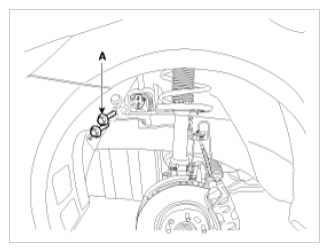

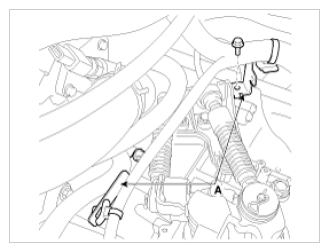

Remove the bracket (A).

Fig 13: Identifying Bracket
Courtesy of HYUNDAI MOTOR AMERICA

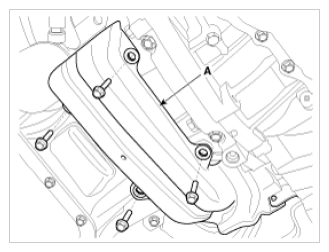

Remove the drive shaft cover (A).

Fig 14: Identifying Drive Shaft Cover
Courtesy of HYUNDAI MOTOR AMERICA

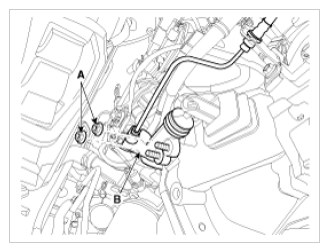

Remove the clutch release cylinder assembly (B) after removing the nuts (A).
Tightening torque:

14.7 ~ 21.6 N.m (1.5 ~ 2.2 kgf.m, 10.8 ~ 15.9 lb-ft)

Fig 15: Identifying Clutch Release Cylinder Assembly
Courtesy of HYUNDAI MOTOR AMERICA

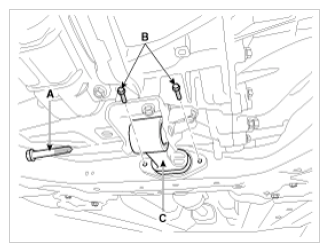

Remove the roll rod bracket (C) after removing bolt (A, B).
Tightening torque:
1. 49.0 ~ 68.6 N.m (5.0 ~ 7.0 kgf.m, 36.2 ~ 50.6 lb-ft)
2. 107.9 ~ 127.5 N.m (11.0 ~ 13.0 kgf.m, 79.6 ~ 94.1 lb-ft)
Fig 16: Identifying Roll Rod Bracket And Bolts
Courtesy of HYUNDAI MOTOR AMERICA

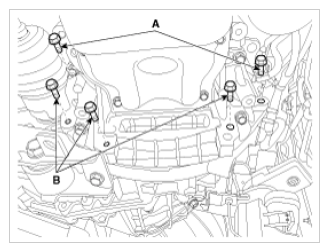

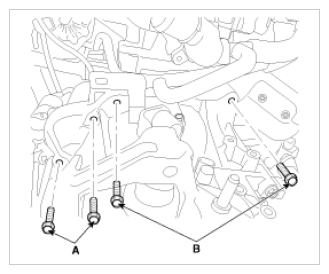

Remove the mounting bolts (A-3ea, B-2ea) of lower part of the transaxle, and remove the transaxle assembly by supporting it with a jack.
Tightening torque:
1. 42.2 ~ 48.1 N.m (4.3 ~ 4.9 kgf.m, 31.1 ~ 35.4 lb-ft)
2. 42.2 ~ 53.9 N.m (4.3 ~ 5.5 kgf.m, 31.1 ~ 39.8 lb-ft)
CAUTION:
- Be careful not to damage other system or parts near by when removing the engine and transaxle assembly.
Fig 17: Identifying Transaxle Assembly Bolts
Courtesy of HYUNDAI MOTOR AMERICA
