Shock Absorber and Spring Assembly: Installation

WARNING: This page is about a different car, the 2016 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

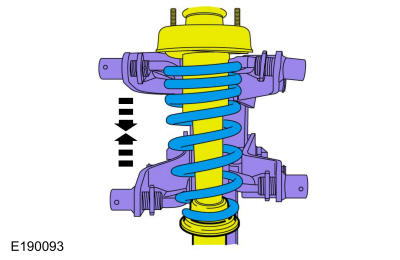

1.

Install the shock absorber and the upper mount. Use the General Equipment: Spring Compressor

Courtesy of FORD MOTOR COMPANY

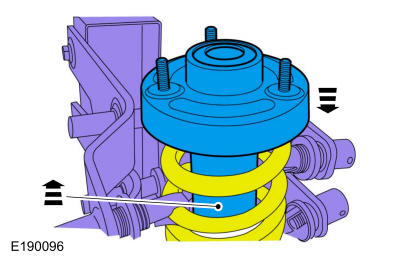

2.

NOTE: If the individual spring and/or shock components are not being serviced, continue to the installation procedure.

NOTE: For reference during assembly, index the upper mount, spring and shock absorber.

Compress the spring until the tension is released from the shock absorber. Use the General Equipment: Spring Compressor

Courtesy of FORD MOTOR COMPANY

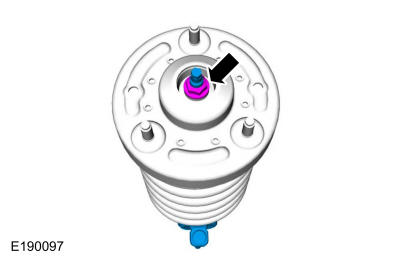

3.

NOTE: Use the hex-holding feature to prevent the shock rod from turning while installing the nut.

While holding the shock rod, install the new shock absorber and the shock rod nut.

Torque: 41 lb.ft (55 Nm)

Courtesy of FORD MOTOR COMPANY

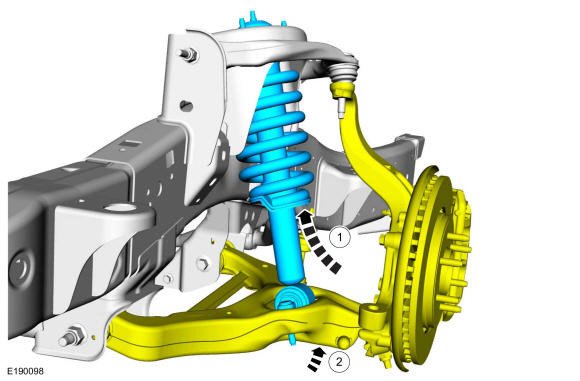

4.
- 1.

  Install the shock absorber and spring assembly.
- 2.

  Position the lower arm and wheel knuckle up.

Courtesy of FORD MOTOR COMPANY

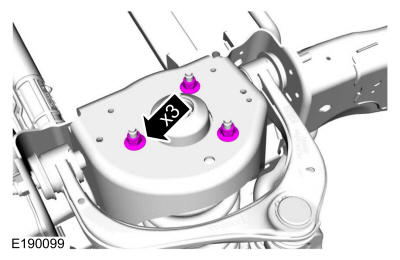

5.

Install the new shock absorber and spring assembly upper nuts.
Torque: 52 lb.ft (70 Nm)

Courtesy of FORD MOTOR COMPANY

6.

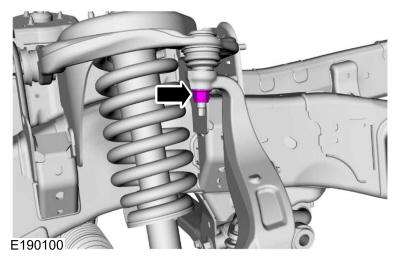

Install the new upper ball joint nut.
Torque: 46 lb.ft (63 Nm)

Courtesy of FORD MOTOR COMPANY

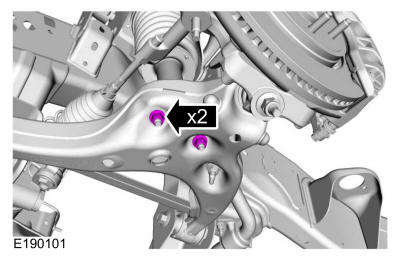

7.

Install the new shock absorber and spring assembly lower nuts.
Torque: 66 lb.ft (90 Nm)

Courtesy of FORD MOTOR COMPANY

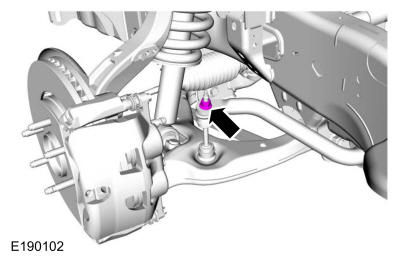

8.

NOTE: Use the hex-holding feature to prevent the stud from turning while installing the nut.

Install the new front stabilizer link upper nut.

Torque: 59 lb.ft (80 Nm)

Courtesy of FORD MOTOR COMPANY

9.
- 1.

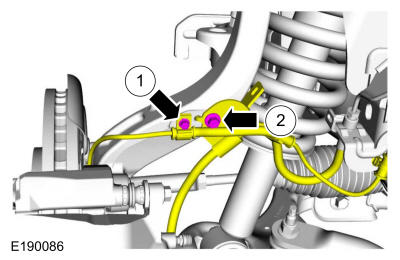

  Position the wheel speed sensor wire harness and install the wheel speed sensor bolt.
  Torque: 106 lb.in (12 Nm)
- 2.

  Position the brake hose and install the brake hose bracket bolt.
  Torque: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY

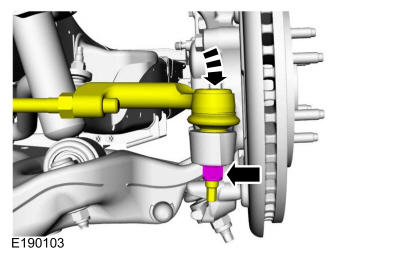

10.

Position the tie rod end and install the new tie rod end nut.
Torque: 76 lb.ft (103 Nm)

Courtesy of FORD MOTOR COMPANY

11.

Install the wheel and tire. Refer to: Wheel and Tire .
