Seat Control Switch, Passenger Side Front

WARNING: This page is about a different car, the 2016 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

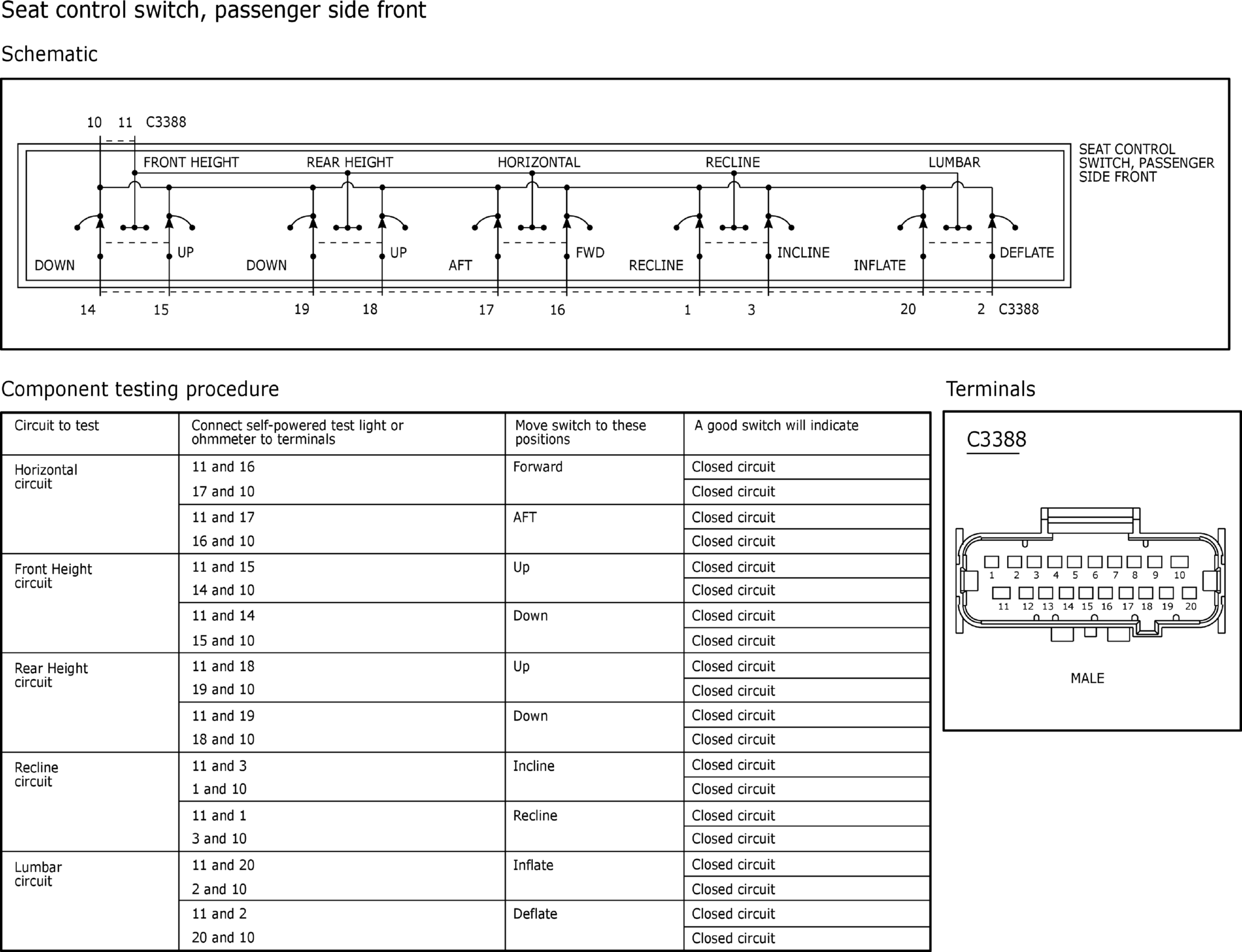

Fig 1: Seat Control Switch, Passenger Side Front
GFDW46644Courtesy of FORD MOTOR COMPANY
