Section 539 (OEM Wiring Diagrams Component Testing)
>>
Component Testing
>>
Relay - Ultra Micro ISO
Relay - Ultra Micro ISO
WARNING:
This page is about a different car, the 2016 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

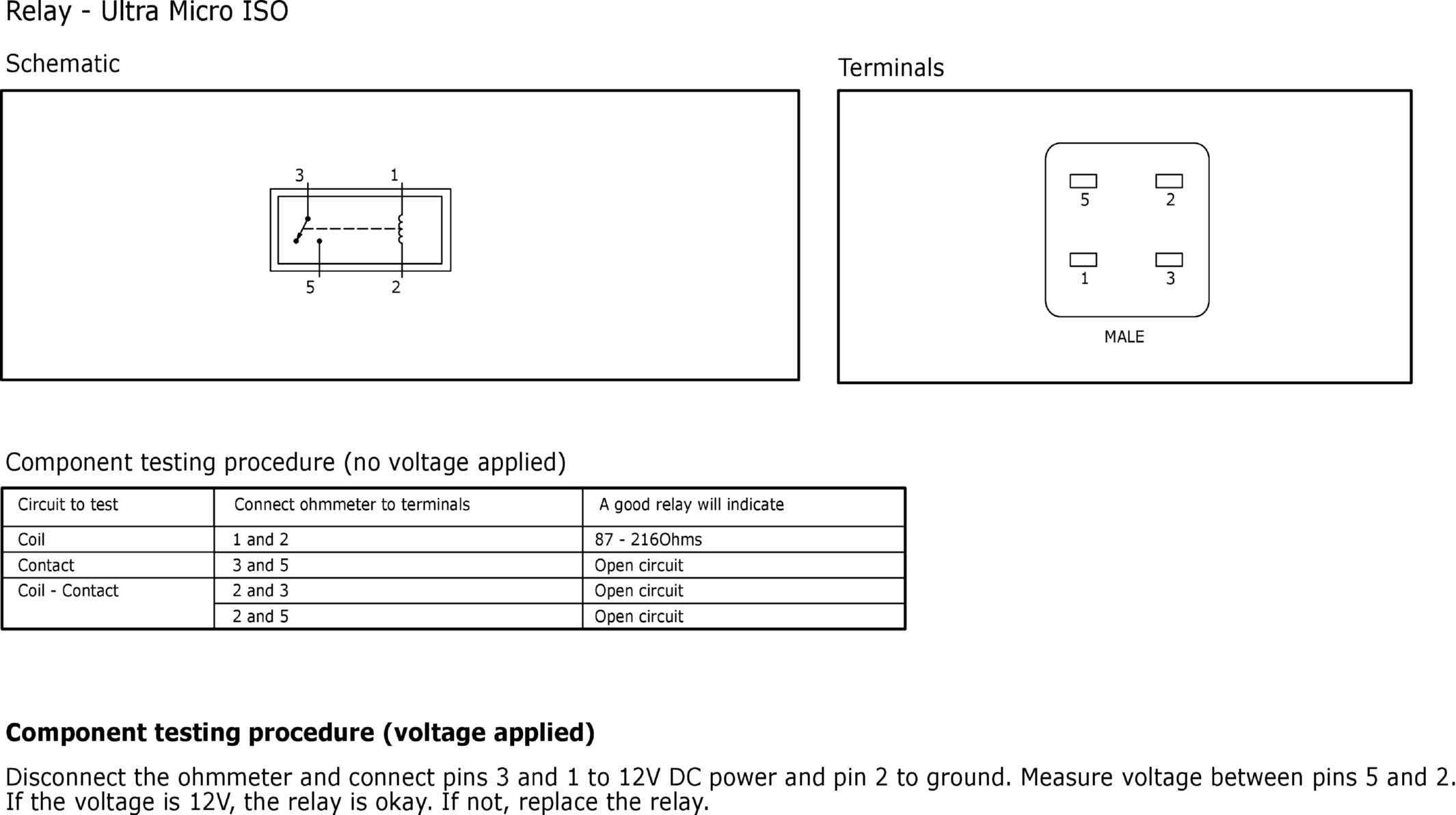

Fig 1: Relay - Ultra Micro ISO
Courtesy of FORD MOTOR COMPANY
