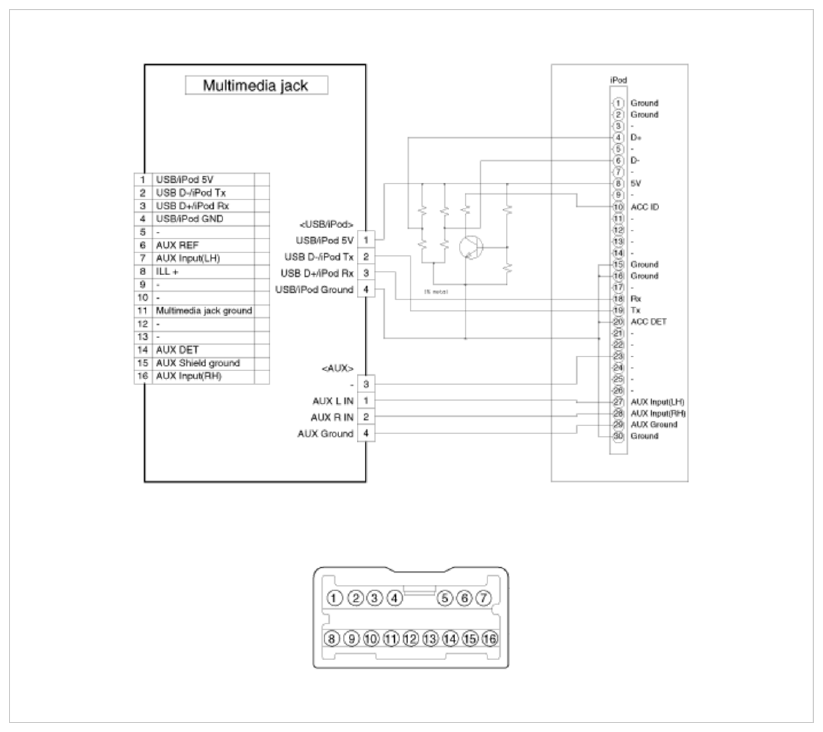

Circuit Diagram
WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.
| No | Terminal Description | Condition | Specified Condition |
|---|---|---|---|
| 1 | USB/iPod power | USB/iPod device is inserted | 4.9V ~ 5.1V |
| 2 | USB D- | USB device is inserted | 3.2V ~ 3.45 |
| 3 | USB D+ | USB device is inserted | 3.2V ~ 3.45 |
| 4 | iPod detection line | iPod device is inserted | GND |
| 5 | - | ||
| 6 | AUX Reference Ground | Always | Below 1 ohm |
| 7 | AUX Left Sound Signal | External Auxiliary device is Audio playing (At time of Aux jack use) | A waveform synchronized with sound is output |
| 8 | Rheostat from vehicle + | ||
| 9 | - | ||
| 10 | - | ||
| 11 | Multimedia jack ground | GND | |
| 12 | - | ||
| 13 | - | ||
| 14 | AUX Signal Input Detect | Auxiliary device is inserted | 0V (Low) → 5V (High) |
| 15 | AUX Shield ground | GND | |
| 16 | AUX Right Sound Signal | External Auxiliary device is Audio playing (At time of Aux jack use) | A waveform synchronized with sound is output |
