Inspect Stator
WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.

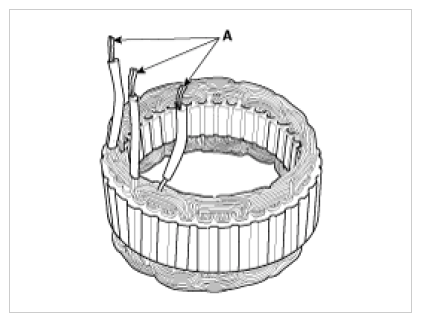

- Check that there is continuity between each pair of leads (A).
Courtesy of HYUNDAI MOTOR AMERICA
- Check that there is no continuity between each lead and the coil core.
- If the coil fails either continuity check, replace the alternator.
