Repair procedures: Removal

WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear wheel and tire.

    Tightening torque:

    88.3 ~ 107.9 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~ 79.6 lb-ft)

  2. Remove the rear wheel speed sensor mounting bolt (A).

    Tightening torque:

    6.9 ~ 10.8 N.m (0.7 ~ 1.1 kgf.m, 5.1 ~ 8.0 lb-ft)

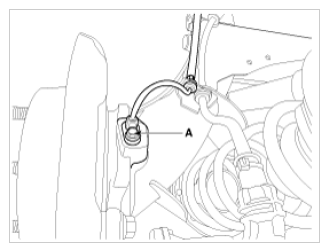

    Fig 1: Identifying Rear Wheel Speed Sensor Mounting Bolt
    G09886793Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the rear wheel speed sensor cable mounting bolt.
  4. Remove the rear wheel house trim.

    (Refer to "REAR WHEEL HOUSE TRIM ")

  5. Disconnect the rear wheel speed sensor connector (A), and than remove the rear wheel speed sensor.

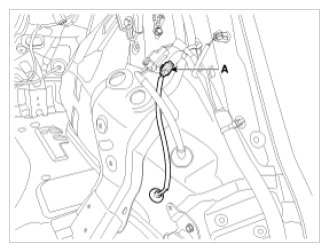

    Fig 2: Identifying Rear Wheel Speed Sensor Connector
    G09886794Courtesy of HYUNDAI MOTOR AMERICA
  6. Install in the reverse order of removal.
    CAUTION: Install the rear sensor after lubricating the O-ring of sensor with the assembly fluid (RAREMAX AF-1)
    When inserting the sensor, take care the O-ring not to be damaged.
