Section 355 (OEM Wiring Diagrams Component Testing)
>>
Component Testing
>>
Door Lock Switch, Passenger Side
Door Lock Switch, Passenger Side
WARNING:
This page is about a different car, the 2015 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

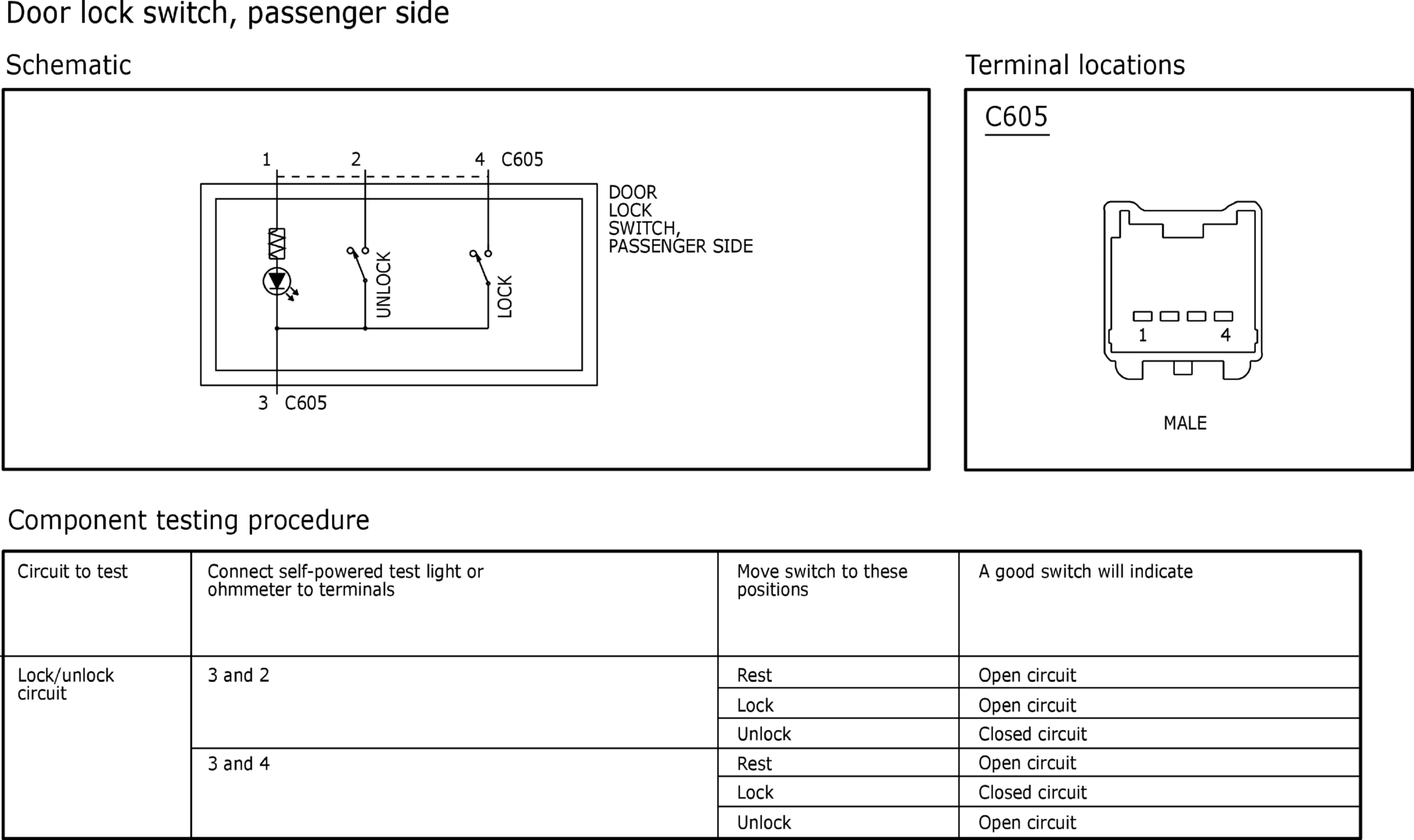

Fig 1: Door Lock Switch, Passenger Side
Courtesy of FORD MOTOR COMPANY
