Repair procedures: Replacement

WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front door trim.
(Refer to Front Door - "FRONT DOOR TRIM ")
Remove the front door belt inside weatherstrip (A).

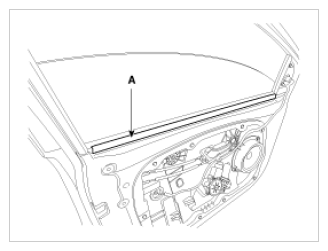

Fig 1: Identifying Front Door Belt Inside Weatherstrip
Courtesy of HYUNDAI MOTOR AMERICA
Remove the front door window glass mounting hole plug (B).
CAUTION:
- Be careful not to drop the glass and/or scratch the glass surface.
Information
- Use the door switch to align the mounting hole/bolt with the hole in the door.
- If unable to operate the window motor, remove the motor and align the hole by hand.
Carefully adjust the front door window glass (A) until you can see the bolts, then loosen them. Separate the glass from the glass run and carefully pull the glass out through the window slot.
Tightening torque:

3.9 ~ 2.9 N.m (0.4 ~ 1.2 kgf.m, 11.8 ~ 8.7 lb-ft)

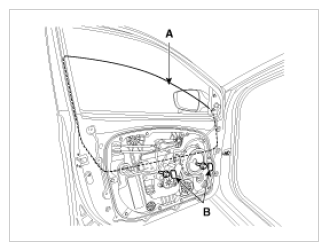

Fig 2: Identifying Front Door Window Glass And Mounting Hole Plug
Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
Information
- Roll the glass up and down to see if it moves freely without binding.
- Adjust glass position as needed.
- Make sure the door lock and opens properly.
- Replace any damaged clips.
