Repair procedures: Replacement

WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Put on gloves to protect your hands.

NOTE:

Be careful not to scratch the door trim and other parts.

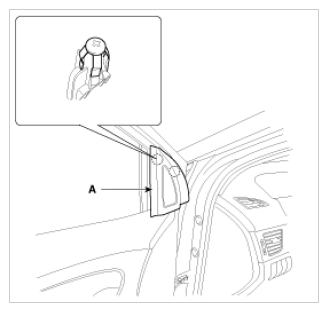

Using a screwdriver or remover, remove the front door quadrant inner cover (A).

Fig 1: Identifying Front Door Quadrant Inner Cover
Courtesy of HYUNDAI MOTOR AMERICA

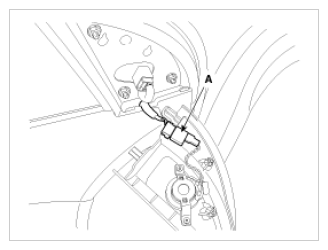

Disconnect the tweeter speaker connector (A).

Fig 2: Identifying Tweeter Speaker Connector
Courtesy of HYUNDAI MOTOR AMERICA

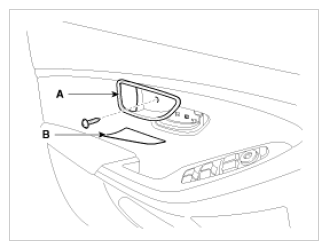

After loosening the mounting screw, then remove the front door inside handle housing (A).
Remove the front door trim pad (B).

Fig 3: Identifying Front Door Inside Handle Housing And Front Door Trim Pad
Courtesy of HYUNDAI MOTOR AMERICA

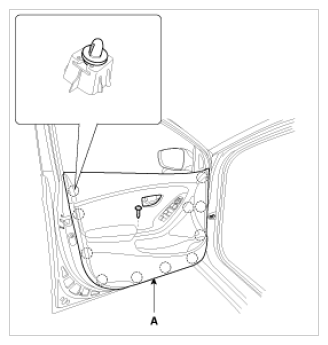

After loosening the mounting screws, then remove the front door trim (A).

Fig 4: Identifying Front Door Trim
Courtesy of HYUNDAI MOTOR AMERICA

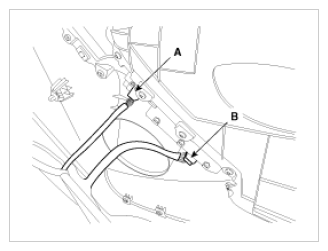

Disconnect the outside rear view mirror folding switch connector (A) and power window switch connector (B).

Fig 5: Identifying Rear View Mirror Folding And Power Window Switch Connector
Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
Information
- Make sure the connector is connected properly.
- Make sure the door locks/unlocks and opens/closes properly.
- Replace any damaged clips.
