Repair procedures: Replacement

WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.

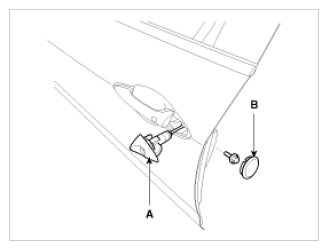

Remove the hole plug (B).
After loosening the mounting bolt, then remove the front door outside handle cover (A).
Tightening torque:

6.9 ~ 10.8 N.m (0.7 ~ 1.1 kgf.m, 5.1 ~ 8.0 lb-ft)

Fig 1: Identifying Front Door Outside Handle Cover And Hole Plug
Courtesy of HYUNDAI MOTOR AMERICA

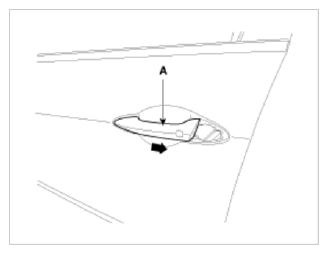

Remove the front door outside handle (A) by sliding it rearward.

Fig 2: Removing Front Door Outside Handle
Courtesy of HYUNDAI MOTOR AMERICA

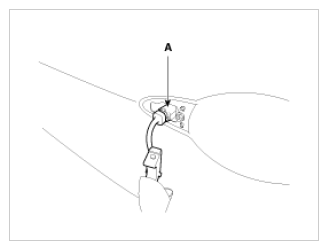

Disconnect the front door outside handle connector (A).

Fig 3: Identifying Front Door Outside Handle Connector
Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
Information
- Make sure the connector is connected properly.
- Make sure the door locks/unlocks and opens/closes properly.
