Repair procedures: Replacement

WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door trim.

    (Refer to Front Door - "FRONT DOOR TRIM ")

  2. After loosening the mounting screws, then remove the front door inside handle (A).

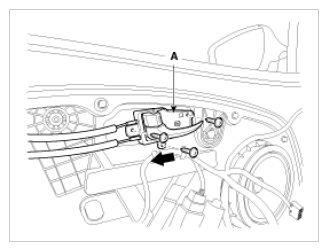

    Fig 1: Removing Front Door Inside Handle
    G09886893Courtesy of HYUNDAI MOTOR AMERICA
  3. Disconnect the front door inside handle cable (A).

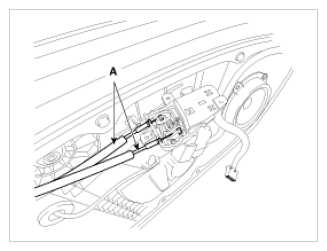

    Fig 2: Identifying Front Door Inside Handle Cable
    G09886894Courtesy of HYUNDAI MOTOR AMERICA
  4. Install in the reverse order of removal.

    Information

    • Make sure the door locks/unlocks and opens/closes properly.
    • Replace any damaged clips.
