Seat Cushion Rear: Notes
WARNING: This page is about a different car, the 2015 Lincoln MKS. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

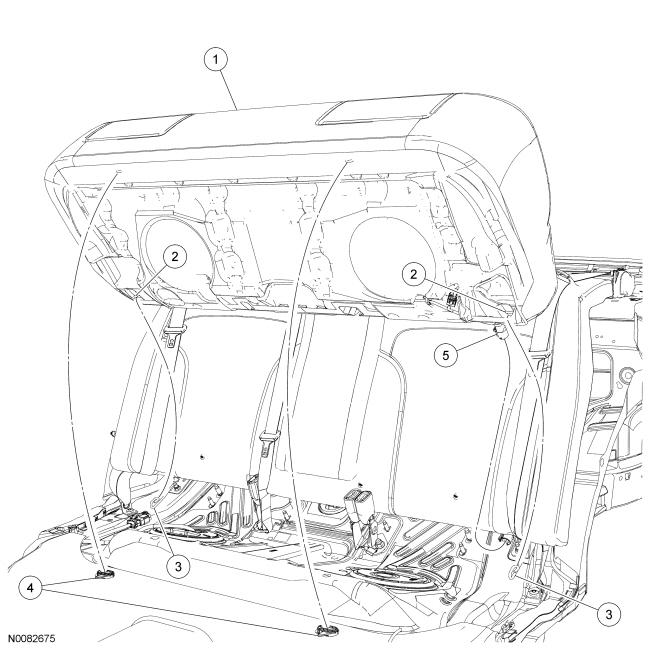

Seat Cushion - Rear
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Cushion assembly |
| 2 | - | Cushion foam pad wire for rear attachment (part of 600A88) |
| 3 | - | Retainer hooks (part of 613A38) |
| 4 | 101C24 | Cushion floor latches |
| 5 | - | Seat cushion heater mat electrical connector (part of 14D698) |
