Repair procedures: Removal

WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.

Remove valve core and deflate the tire.
Remove the side of the tire bead area from the wheel using tire changing machine.

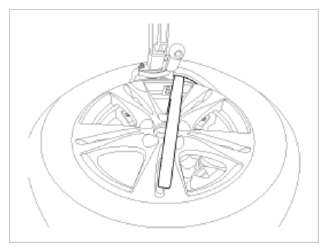

Fig 1: Removing Side Of Tire Bead Area From Wheel Using Tire Changing Machine
Courtesy of HYUNDAI MOTOR AMERICA
CAUTION:
- The tire bead should be broken Approx. 90° from the valve side of the wheel. The bead breaker should not be set too deep.
- Avoid tire/tool contact with the valve on dismount.
- Dismount should end near the valve.
Rotate the wheel clockwise.

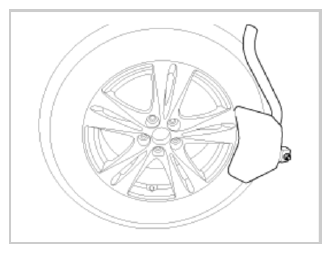

Fig 2: Rotating Wheel Clockwise
Courtesy of HYUNDAI MOTOR AMERICA

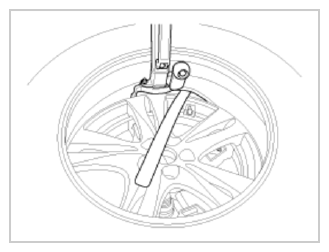

Fig 3: Rotating Wheel Clockwise
Courtesy of HYUNDAI MOTOR AMERICA
