Front brake pads

WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.

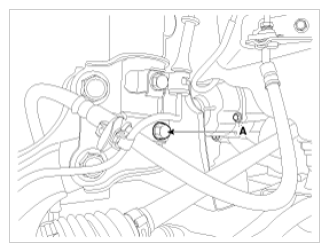

Remove the brake hose mounting bracket bolt (A).

Fig 1: Identifying Brake Hose Mounting Bracket Bolt
Courtesy of HYUNDAI MOTOR AMERICA

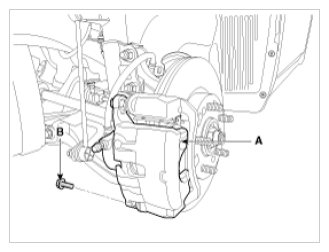

Loosen the guide rod bolt (B) and pivot the caliper (A) up out of the way.
Tightening torque:

21.6 ~ 31.4 N.m (2.2 ~ 3.2 kgf.m, 15.9 ~ 23.1 lb-ft)

Fig 2: Identifying Guide Rod Bolt And Pivot Caliper
Courtesy of HYUNDAI MOTOR AMERICA

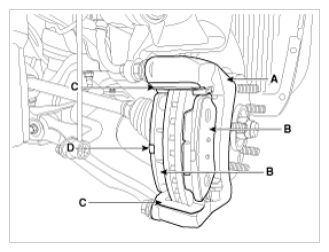

Replace pad shim (D), pad retainers (C) and brake pads (B) in the caliper carrier (A).

Fig 3: Identifying Pad Shim, Retainers And Caliper Carrier
Courtesy of HYUNDAI MOTOR AMERICA
