Repair procedures: Removal

WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch OFF and disconnect the negative (-) battery cable.
Remove the crash pad lower panel.
(Refer to "CRASH PAD LOWER PANEL ")
Remove the knee airbag module.
(Refer to "KNEE AIRBAG MODULE ")

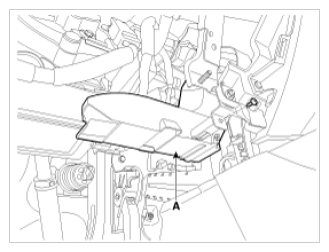

Remove the shower duct (A).

Fig 1: Identifying Shower Duct
Courtesy of HYUNDAI MOTOR AMERICA

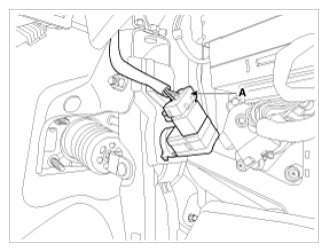

Disconnect the stop lamp switch connector (A).

Fig 2: Identifying Stop Lamp Switch Connector
Courtesy of HYUNDAI MOTOR AMERICA

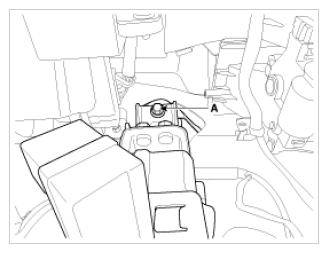

Remove the brake pedal member mounting bolt (A).

Fig 3: Identifying Brake Pedal Member Mounting Bolt
Courtesy of HYUNDAI MOTOR AMERICA

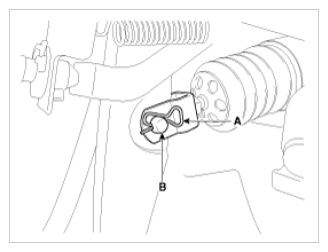

Remove the snap pin (A) and clevis pin (B).

Fig 4: Identifying Snap And Clevis Pin
Courtesy of HYUNDAI MOTOR AMERICA

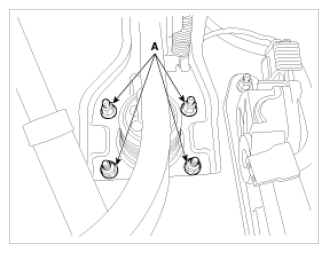

Remove the brake pedal member assembly mounting nuts and then remove the brake pedal assembly.

Fig 5: Identifying Mounting Nuts Of Brake Pedal Member Assembly
Courtesy of HYUNDAI MOTOR AMERICA
