Repair Procedures: Removal

WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
Remove the front bumper cover.
(Refer to "FRONT BUMPER COVER ")
Loosening the head lamp mounting bolts (3EA) and disconnect the head lamp connector (B).
Then, remove the head lamp assembly (A).
NOTE:
- Take care not to scratch the head lamp lens or fender.

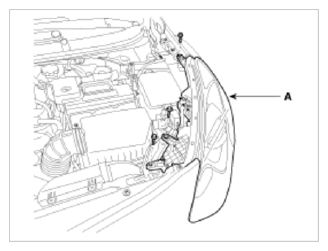

Fig 1: Identifying Head Lamp Assembly
Courtesy of HYUNDAI MOTOR AMERICA

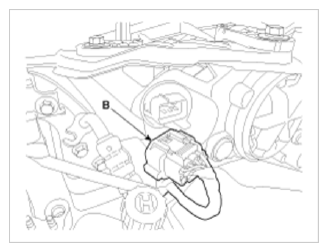

Fig 2: Identifying Head Lamp Connector
Courtesy of HYUNDAI MOTOR AMERICA

NOTE: Take care that holding clip (A) is not to be damaged.

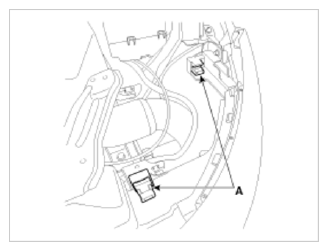

Fig 3: Identifying Holding Clip
Courtesy of HYUNDAI MOTOR AMERICA
Remove the dust caps from the head lamp assembly after turning in the counter clock-wise direction.
1. Turn signal lamp
2. Head lamp (Low) cap
3. Head lamp (High) cap

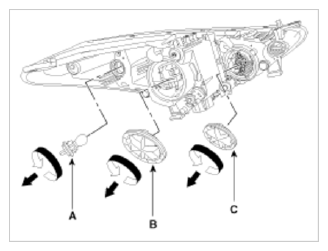

  Fig 4: Removing Dust Caps From Head Lamp Assembly
  Courtesy of HYUNDAI MOTOR AMERICA
