Front Fog Lamp Aiming
WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.
The front fog lamps should be aimed as the same manner of the head lamps aiming.

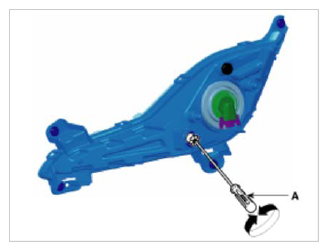

With the front fog lamps and battery normal condition, aim the front fog lamps by turning the adjusting screw (A) with a driver.
Courtesy of HYUNDAI MOTOR AMERICA
