Repair Procedures: Removal

WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative(-) battery terminal.
  2. Remove the front bumper cover.

    (Refer to "FRONT BUMPER COVER ")

  3. Remove the front fog lamp connector (A) from the front bumper.

    [LH]

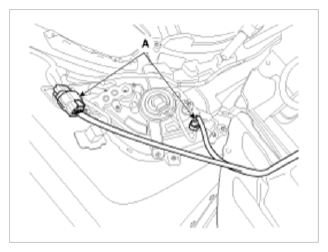

    Fig 1: Identifying Front Fog Lamp Connector (LH)
    G09887723Courtesy of HYUNDAI MOTOR AMERICA

    [RH]

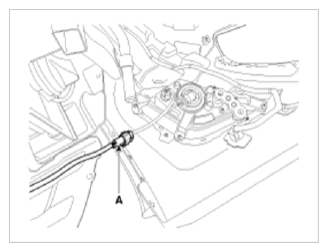

    Fig 2: Identifying Front Fog Lamp Connector (RH)
    G09887724Courtesy of HYUNDAI MOTOR AMERICA

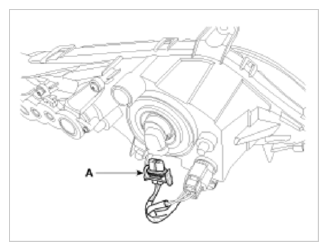

  4. Disconnect the connector (A).
    Fig 3: Identifying Connector
    G09887725Courtesy of HYUNDAI MOTOR AMERICA

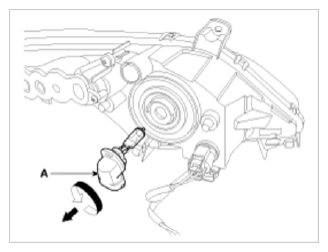

  5. Remove the front fog bulb (A) after turning it in the counterclockwise direction.
    Fig 4: Removing Front Fog Bulb
    G09887726Courtesy of HYUNDAI MOTOR AMERICA

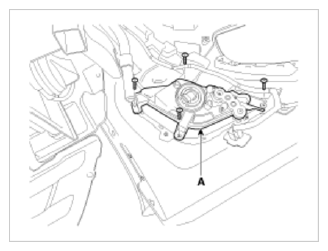

  6. Remove the front fog lamp assembly (A) after loosening 4 screws.
    Fig 5: Identifying Front Fog Lamp Assembly
    G09887727Courtesy of HYUNDAI MOTOR AMERICA
