Repair procedures: Removal

WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.

Remove the fuel pump.
(Refer to Fuel Delivery System - "FUEL PUMP ")
Disconnect the electric pump wiring connector (A) and the fuel sender connector (B).

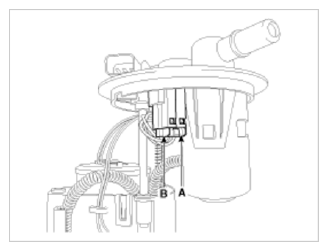

Fig 1: Identifying Electric Pump Wiring And Fuel Sender Connector
Courtesy of HYUNDAI MOTOR AMERICA
Remove the head assembly (A) after releasing the cushion fixing clip (B).

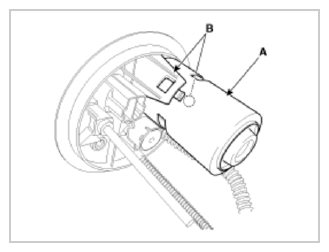

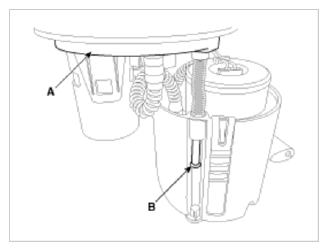

Fig 2: Identifying Head Assembly And Cushion Fixing Clip
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the fuel tube quick-connectors (C).

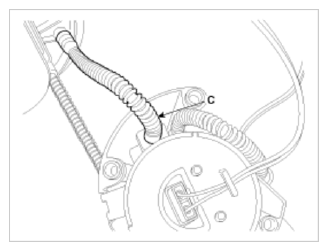

Fig 3: Identifying Fuel Tube Quick-Connectors
Courtesy of HYUNDAI MOTOR AMERICA
Remove the fuel sender (A) in the direction of an arrow.

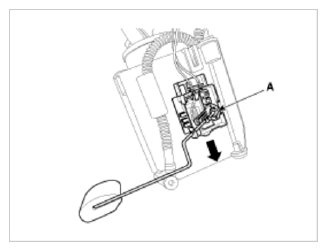

Fig 4: Removing Fuel Sender
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the fuel tube connector (A).

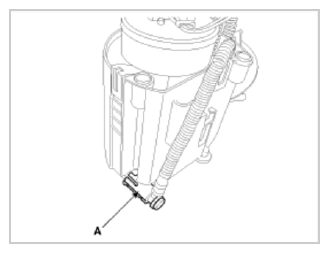

Fig 5: Identifying Fuel Tube Connector
Courtesy of HYUNDAI MOTOR AMERICA
Remove the cut valve (A) after releasing hooks (B).

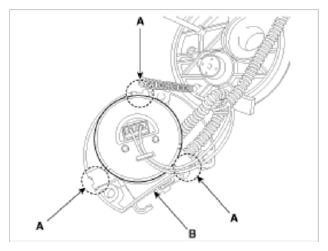

Fig 6: Identifying Cut Valve And Releasing Hooks
Courtesy of HYUNDAI MOTOR AMERICA
Remove the reservior-cup (B) after releasing the fixing hooks (A).

Fig 7: Identifying Cut Valve And Releasing Hooks
Courtesy of HYUNDAI MOTOR AMERICA
Release the fixing hooks, and then remove the pre-filter (A) and the fuel pressure regulator (B).
