Remove the fuel pump.
(Refer to Fuel Delivery System - "FUEL PUMP ")

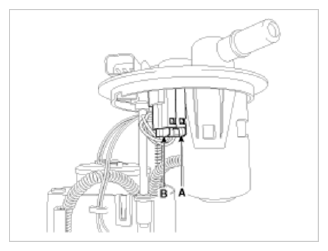

Disconnect the electric pump wiring connector (A) and the fuel sender connector (B).

Fig 1: Identifying Electric Pump Wiring Connector And Fuel Sender Connector
Courtesy of HYUNDAI MOTOR AMERICA

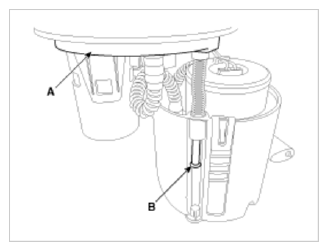

Remove the head assembly (A) after releasing the cushion fixing clip (B).

Fig 2: Identifying Head Assembly And Cushion Fixing Clip
Courtesy of HYUNDAI MOTOR AMERICA

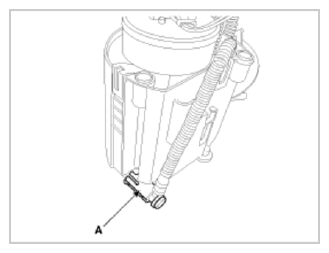

Disconnect the fuel tube quick-connectors (C).

Fig 3: Identifying Fuel Tube Quick-Connectors
Courtesy of HYUNDAI MOTOR AMERICA

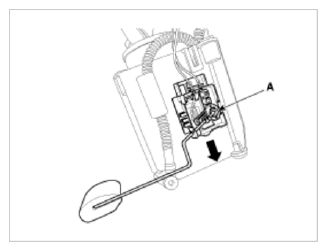

Remove the fuel sender (A) in the direction of an arrow.

Fig 4: Removing Fuel Sender
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the fuel tube connector (A).

Fig 5: Identifying Fuel Tube Connector
Courtesy of HYUNDAI MOTOR AMERICA

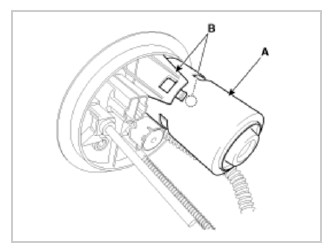

Remove the cut valve (A) after releasing hooks (B).

Fig 6: Identifying Cut Valve And Releasing Hooks
Courtesy of HYUNDAI MOTOR AMERICA

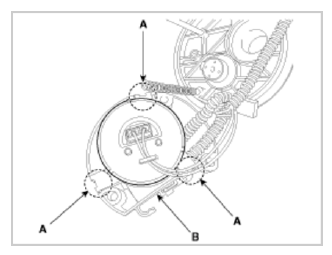

Remove the reservior-cup (B) after releasing the fixing hooks (A).

Fig 7: Identifying Reservoir-Cup And Fixing Hooks
Courtesy of HYUNDAI MOTOR AMERICA

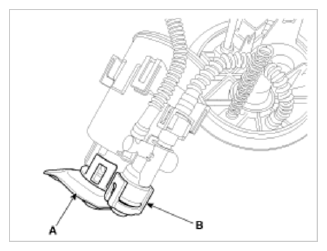

Release the fixing hooks, and then remove the pre-filter (A) and the fuel pressure regulator (B).

Fig 8: Identifying Pre-Filter And Fuel Pressure Regulator
Courtesy of HYUNDAI MOTOR AMERICA

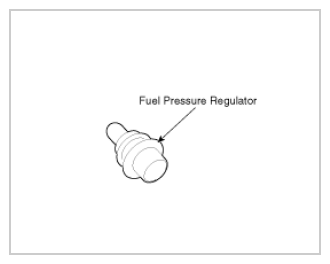

Fig 9: Identifying Fuel Pressure Regulator
