Repair procedures: Removal

WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the under covers.
  2. Drain engine oil.
  3. Remove the oil pan (A).
    1. Unfasten the bolts.
    2. Insert the blade of SST (09215-3C000) between the lower crankcase and the oil pan. Separate the applied sealer and remove the oil pan.

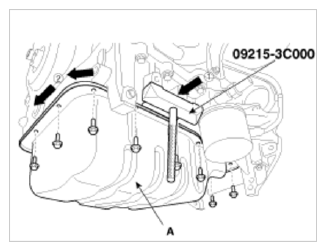

      Fig 1: Removing Oil Pan
      G09885615Courtesy of HYUNDAI MOTOR AMERICA
    NOTE: Loosen one oil pan bolt near each corner of the oil pan leaving the bolts held in by about 2 threads. Then remove all other pan bolts.
    NOTE:
    • Insert the SST between the oil pan and the lower crankcase by tapping it with a plastic hammer in the direction of arrow.
    • After tapping the SST with a plastic hammer along the direction of arrow around more than 2/3 edge of the oil pan, remove it from the lower crankcase.
    • Do not turn over the SST abruptly without tapping. It is result in damage of the SST.
    • Be careful not to damage the contact surfaces of the lower crankcase and the oil pan.
  4. Remove the oil screen (A) with the gasket (B).

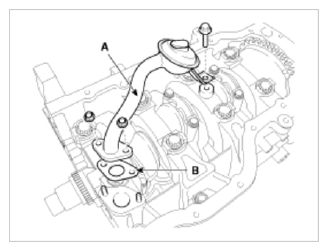

    Fig 2: Identifying Oil Screen And Gasket
    G09885616Courtesy of HYUNDAI MOTOR AMERICA
