Selection Of Engine Oil

WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.

Recommendation: 5W-20/GF4 & SM (If not available, refer to the recommended API or ILSAC classification.)

API classification: SM or above

ILSAC classification: GF4 or above

ACEA classification: A5 or above

ACEA A5 approved oil

Supplier Product
SK ZIC LD5W-30
Chevron KIXX G1 LL
Total QUARTZ HKS G-310
QUARTZ INEO MC3 5W-30
Shell HELIX ULTRA AH-E 5W-30
HELIX ULTRA 5W-40
Fuchs TITAN SUPERSYN LONG LIFE 5W-30/40

* API SL, ILSAC GF-3, ACEA A3 class engine oil can be used if the recommended engine oil is not available

SAE viscosity grade: Refer to the recommended SAE viscosity number

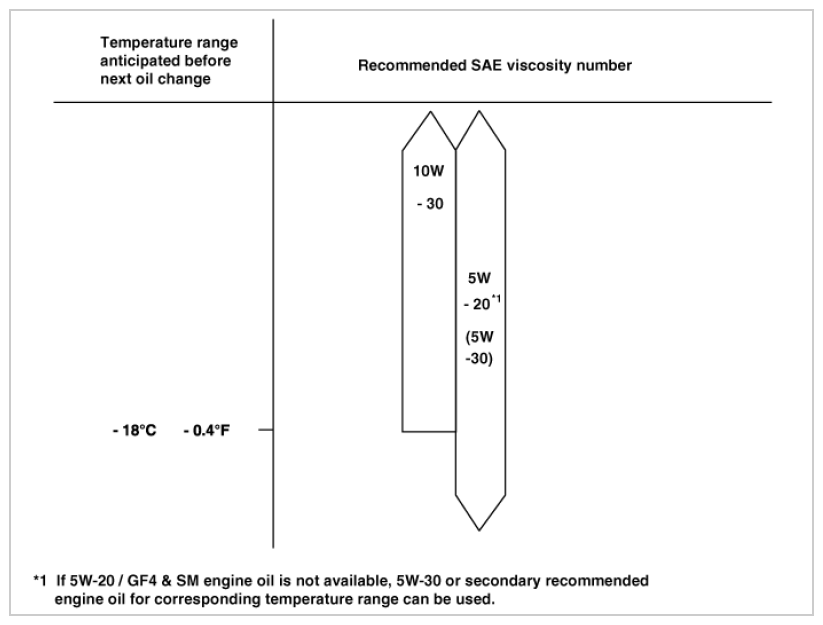

Fig 1: Identifying SAE Viscosity Number
G09885612Courtesy of HYUNDAI MOTOR AMERICA
NOTE: For best performance and maximum protection of all types of operation, select only those lubricants which:
  1. Satisfy the requirement of the API, ILSAC or ACEA classification.
  2. Have proper SAE grade number for expected ambient temperature range.
  3. Lubricants that do not have both an SAE grade number and API, ILSAC or ACEA service classification on the container should not be used.
