Removal And Installation: Condenser: Removal

WARNING: This page is about a different car, the 2017 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: During the removal or installation of components, cap, tape or otherwise appropriately protect all openings and tubes/fittings to prevent the ingress of dirt or other contamination. Remove caps, tape and other protective materials prior to installation.

NOTE: Removal steps in this procedure may contain installation details.

Recover the refrigerant. Refer to the appropriate Recovery procedure in Climate Control System.
Remove the radiator grille. Refer to: Radiator Grille .
Remove the air cleaner. Refer to: Air Cleaner - 2.7L Ecoboost . Refer to: Air Cleaner - 3.5L Duratec . Refer to: Air Cleaner - 3.5L Ecoboost . Refer to: Air Cleaner - 5.0L 32V TI-VCT .

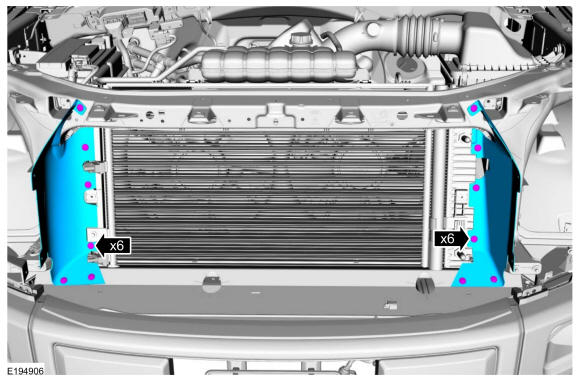

Remove RH and LH radiator side air deflector pin-type retainers and the radiator side air deflectors.

Courtesy of FORD MOTOR COMPANY

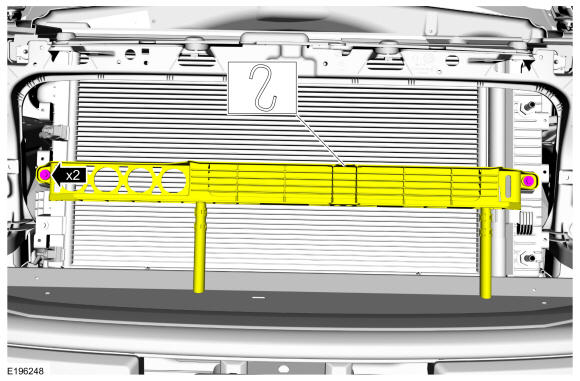

NOTE: 5.0L transmission fluid auxiliary cooler shown, others similar.

If equipped. Remove the retainers and position the transmission fluid auxiliary cooler aside.

Torque: 62 lb.in (7 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that all openings are sealed.

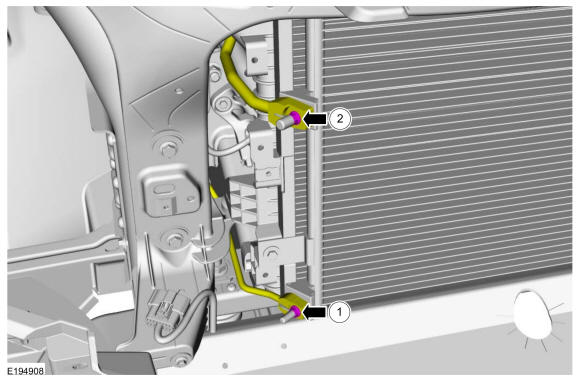

1. Remove the condenser inlet and outlet nuts and disconnect the fittings.
  Torque:

  1: 71 lb.in (8 Nm)

  2: 133 lb.in (15 Nm)
- Make sure to cover any open ports to prevent debris from entering the system.
Courtesy of FORD MOTOR COMPANY

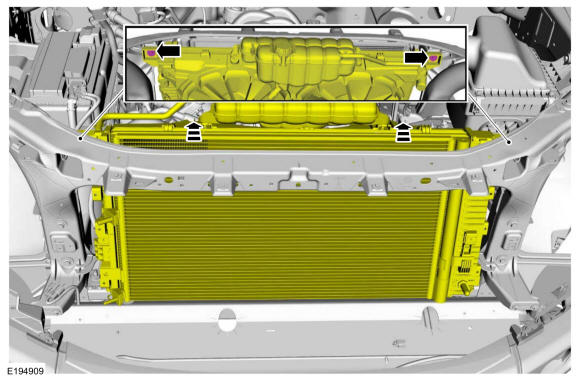

Remove the radiator retainers and tilt the cooling module backward.
Torque: 133 lb.in (15 Nm)

Courtesy of FORD MOTOR COMPANY

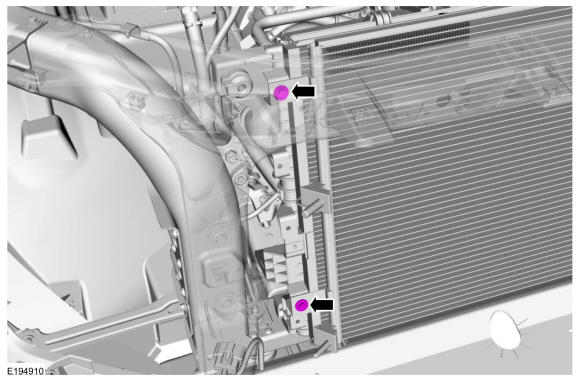

Remove the condenser retainers.
Torque: 62 lb.in (7 Nm)

Courtesy of FORD MOTOR COMPANY

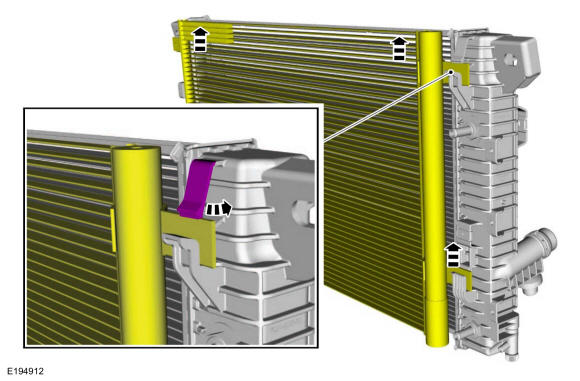

Release the tab and position the condenser upward.

Courtesy of FORD MOTOR COMPANY

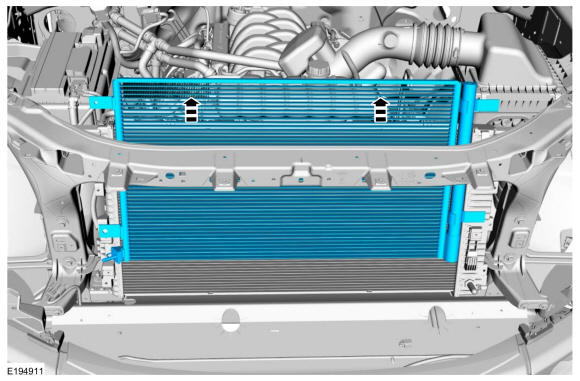

Remove the condenser.

Courtesy of FORD MOTOR COMPANY
