Repair Procedures: Disassembly

WARNING: This page is about a different car, the 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Identify, valves and valve springs as they are removed so that each item can be reinstalled in its original position.

Remove the valves.
1. Using the SST (09222-3K000, 09222-3K100), compress the valve spring and remove the retainer lock (A).
  NOTE: When installing the SST, insert the front support (A) directly into the bolt hole on the cylinder head.

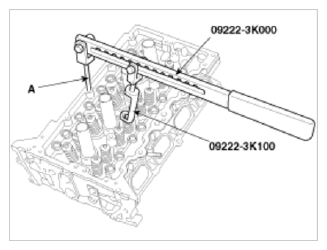

  Fig 1: Installing SST
  Courtesy of HYUNDAI MOTOR AMERICA

  CAUTION: Do not press valve retainer more than 12 mm (0.47 in.).
2. Remove the spring retainer (B).
3. Remove the valve spring (C).
4. Remove the valve (D).
5. Using needle-nose pliers, remove the valve stem seal (E).

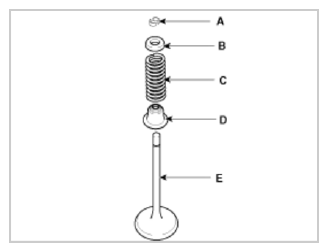

  Fig 2: Identifying Valve Spring Retainer And Stem Seal
  Courtesy of HYUNDAI MOTOR AMERICA

  NOTE: Do not reuse the valve stem seals.
