Repair procedures: Removal

WARNING: This page is about a different car, the 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the crankshaft damper pulley.

    (Refer to Timing System - "CRANKSHAFT DAMPER PULLEY ")

  2. Remove the front oil seal (A).

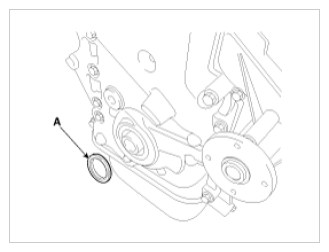

    Fig 1: Identifying Front Oil Seal
    G09885411Courtesy of HYUNDAI MOTOR AMERICA
