Fuel Pump Driver Module (FPDM): Removal

WARNING: This page is about a different car, the 2017 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the left C-pillar lower trim panel. Refer to: C-Pillar Lower Trim Panel .

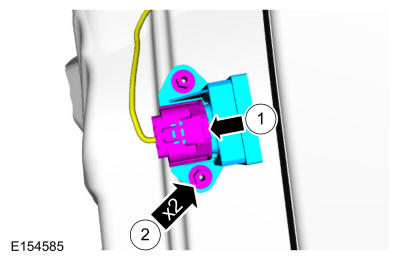

1. Disconnect the FPDM electrical connector.
2. Remove the FPDM retaining nuts and then remove the FPDM.
  Torque: 13 lb.in (1.5 Nm)

Courtesy of FORD MOTOR COMPANY
