Window Control Switch - W/ Door Modules

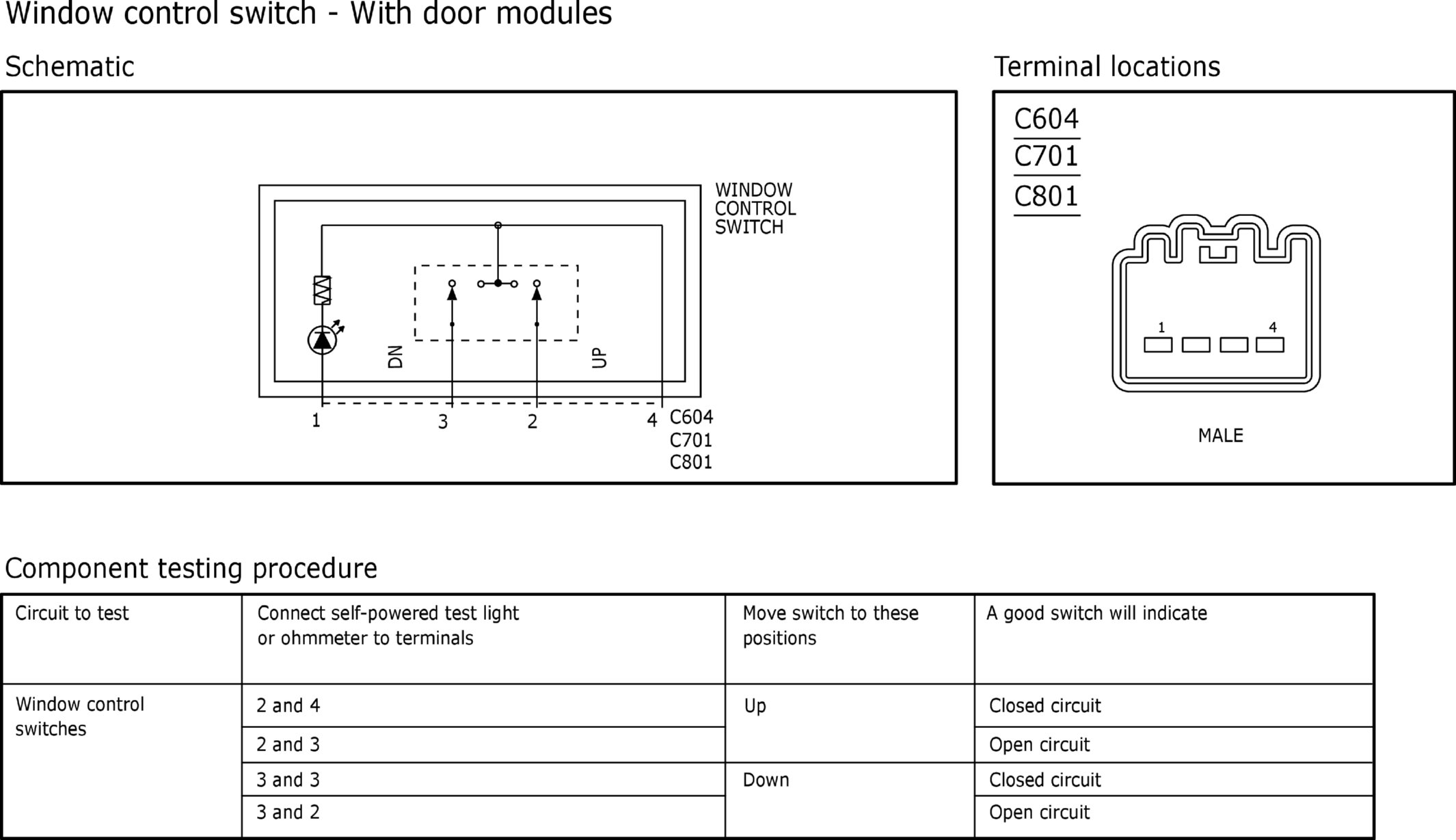

Fig 1: Window Control Switch - W/ Door Modules

GFDW53092

Courtesy of FORD MOTOR COMPANY
