Automatic Transmission External Controls (Electric Vehicle)
>>
Removal And Installation
>>
Selector Lever Cable
>>
Installation
Selector Lever Cable: Installation
1.

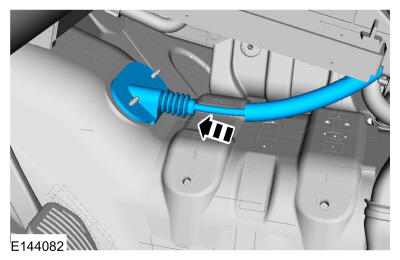

Position the selector lever cable. Use the General Equipment: Draw Cord
Courtesy of FORD MOTOR COMPANY
2.
Connect the selector lever cable to the selector lever.
Courtesy of FORD MOTOR COMPANY
3.

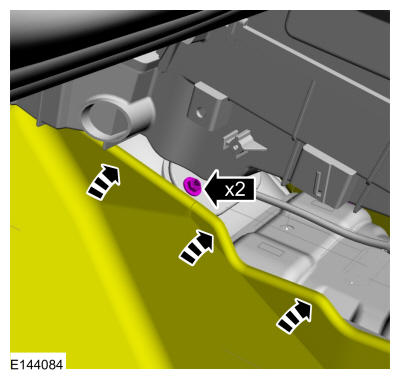

Install the selector lever cable grommet nuts and position the carpet.
Torque: 80 lb.in (9 Nm)
Courtesy of FORD MOTOR COMPANY
4.

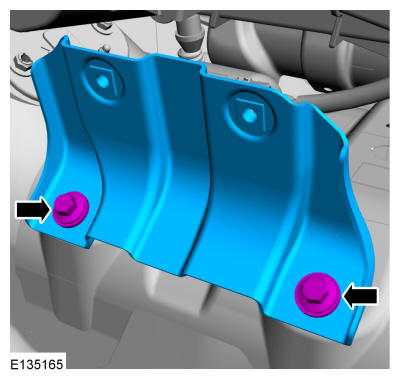

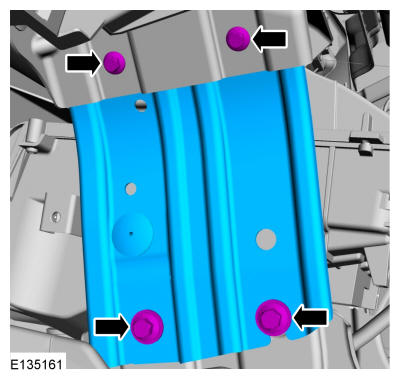

Install the instrument panel bracket and the bolts.
Torque: 18 lb.ft (25 Nm)
Courtesy of FORD MOTOR COMPANY
5.
Install the instrument panel bracket and the bolts.
Torque: 18 lb.ft (25 Nm)
Courtesy of FORD MOTOR COMPANY
6.
Install the floor console side finish panel and a new pushpin.
Courtesy of FORD MOTOR COMPANY
7.

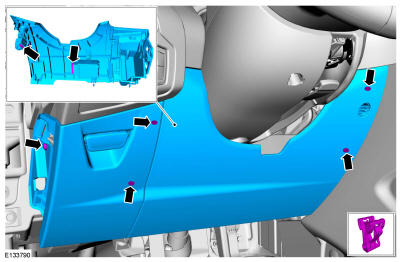

Install the steering column opening trim panel.
Courtesy of FORD MOTOR COMPANY
8.

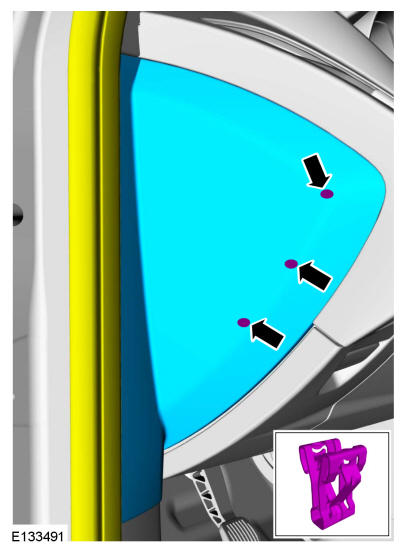

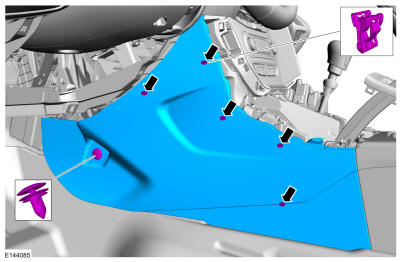

Install the instrument panel side trim panel and position the weatherstrip.
Courtesy of FORD MOTOR COMPANY
9.

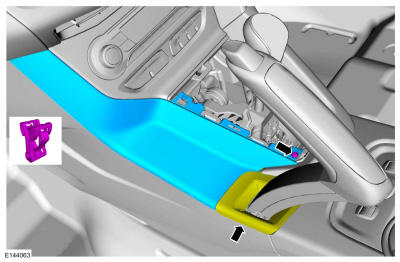

Install the floor console finish panel and the bolt. Position the parking brake lever trim panel.
Courtesy of FORD MOTOR COMPANY
10.

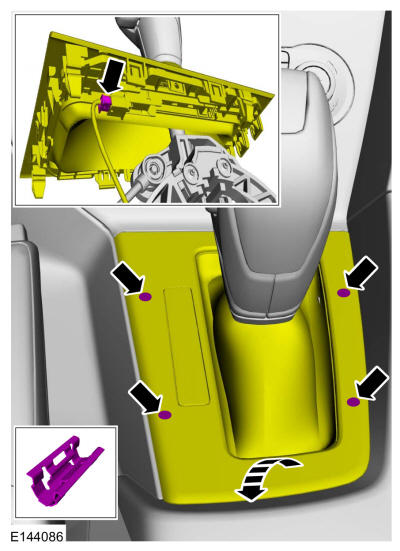

Connect the electrical connector and install the selector lever bezel.
Courtesy of FORD MOTOR COMPANY
11.
Position the selector lever in D.
Courtesy of FORD MOTOR COMPANY
12.

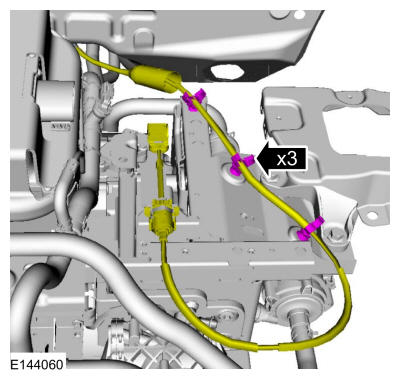

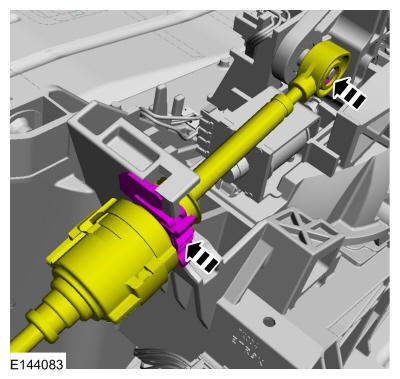

Connect the selector lever cable to the retainers.
Courtesy of FORD MOTOR COMPANY
13.

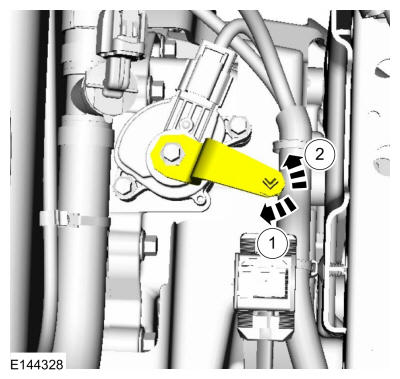

Position the transmission manual lever in D.
1.
Rotate the manual control lever clockwise until it stops.
2.
Rotate the manual control lever counterclockwise one detent.
Courtesy of FORD MOTOR COMPANY
14.

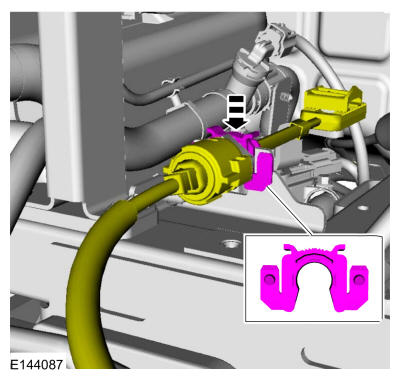

Connect the selector lever cable retaining clip to the transmission.
Courtesy of FORD MOTOR COMPANY
15.
Unlock the selector lever cable adjuster.
Courtesy of FORD MOTOR COMPANY
16.
Verify the adjuster moves freely.
Courtesy of FORD MOTOR COMPANY
17.
Connect the selector lever cable adjuster to the transmission manual lever.
Courtesy of FORD MOTOR COMPANY
18.
Lock the selector lever cable adjuster.
Courtesy of FORD MOTOR COMPANY
19.
Verify that the vehicle only starts in P and N and the reverse lamps illuminate in R.
Courtesy of FORD MOTOR COMPANY
