Selector Lever Cable Adjustment

Activation

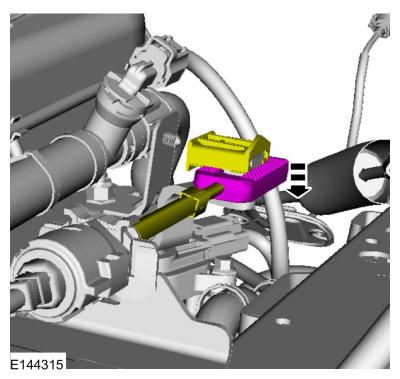

• 1.



Courtesy of FORD MOTOR COMPANY

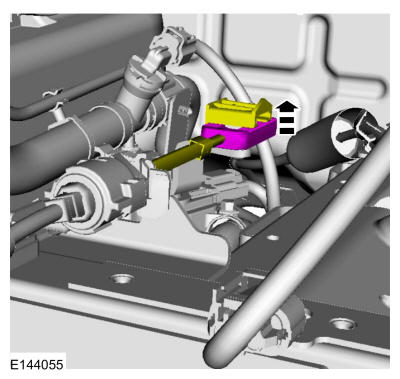

• 2.



Courtesy of FORD MOTOR COMPANY

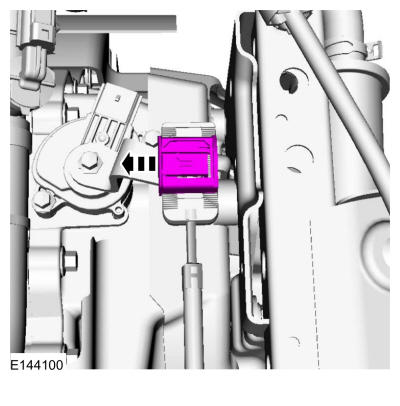

• 3.



Courtesy of FORD MOTOR COMPANY

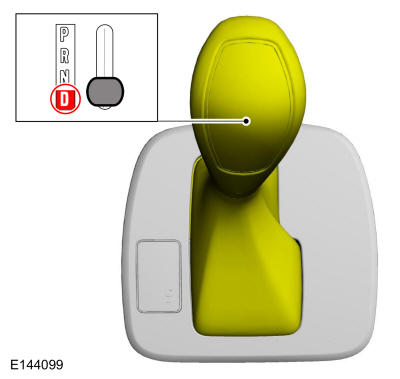

• 4.

  Set the selector lever to the (D) position.

Courtesy of FORD MOTOR COMPANY

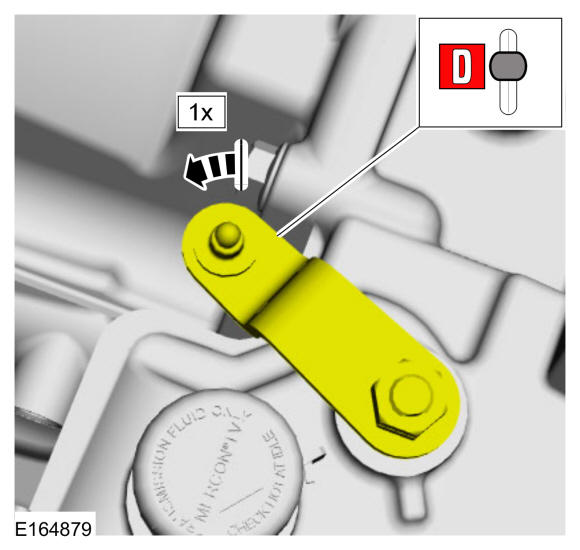

• 5.



Courtesy of FORD MOTOR COMPANY

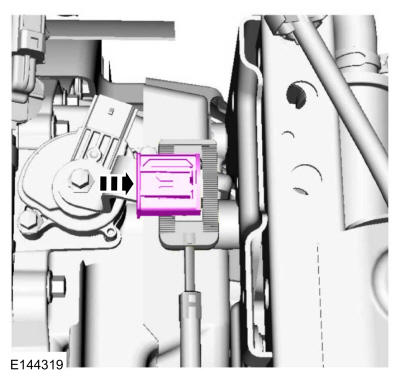

• 6.



Courtesy of FORD MOTOR COMPANY

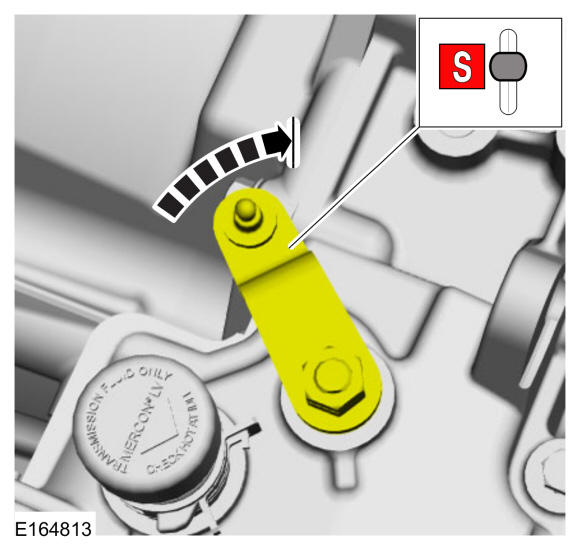

• 7.



Courtesy of FORD MOTOR COMPANY

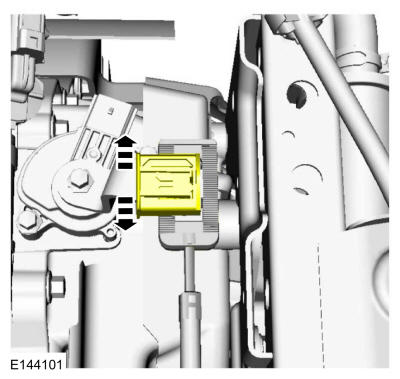

• 8.



Courtesy of FORD MOTOR COMPANY

• 9.

  Verify that the vehicle only starts in PARK and NEUTRAL and the reversal lamps illuminate in REVERSE.
