Safety Belt Retractor - Front, RH: Notes

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

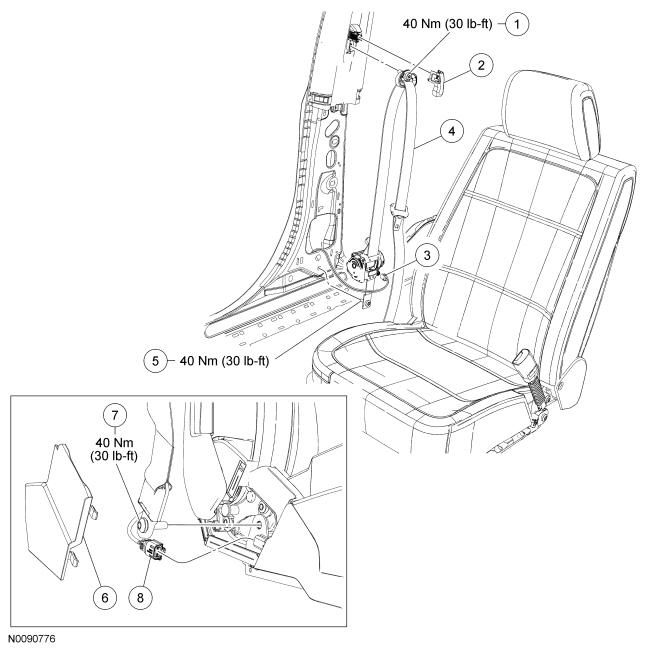

Fig 1: Front Safety Belt Retractor Bolts With Torque Specifications (RH)

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	-	D-ring bolt (part of 611B08)
2	60262	D-ring cover
3	-	Adaptive load-limiting safety belt retractor electrical connector (part of 14A005)
4	611B08	Safety belt retractor
5	-	Safety belt retractor bolt (part of 611B08)
6	61692	Cushion side shield cover
7	-	Safety belt anchor bolt (part of 611B08)
8	-	Belt Tension Sensor (BTS) electrical connector (part of 611B08)
